Description
20mm*20mm iFlight BLITZ Mini ATF435 Stack Flight Controller OSD with 5V BEC E55S Mini 55A 2-6S 4IN1 ESC for Nazgul Evoque F4 FPV Racing Drone

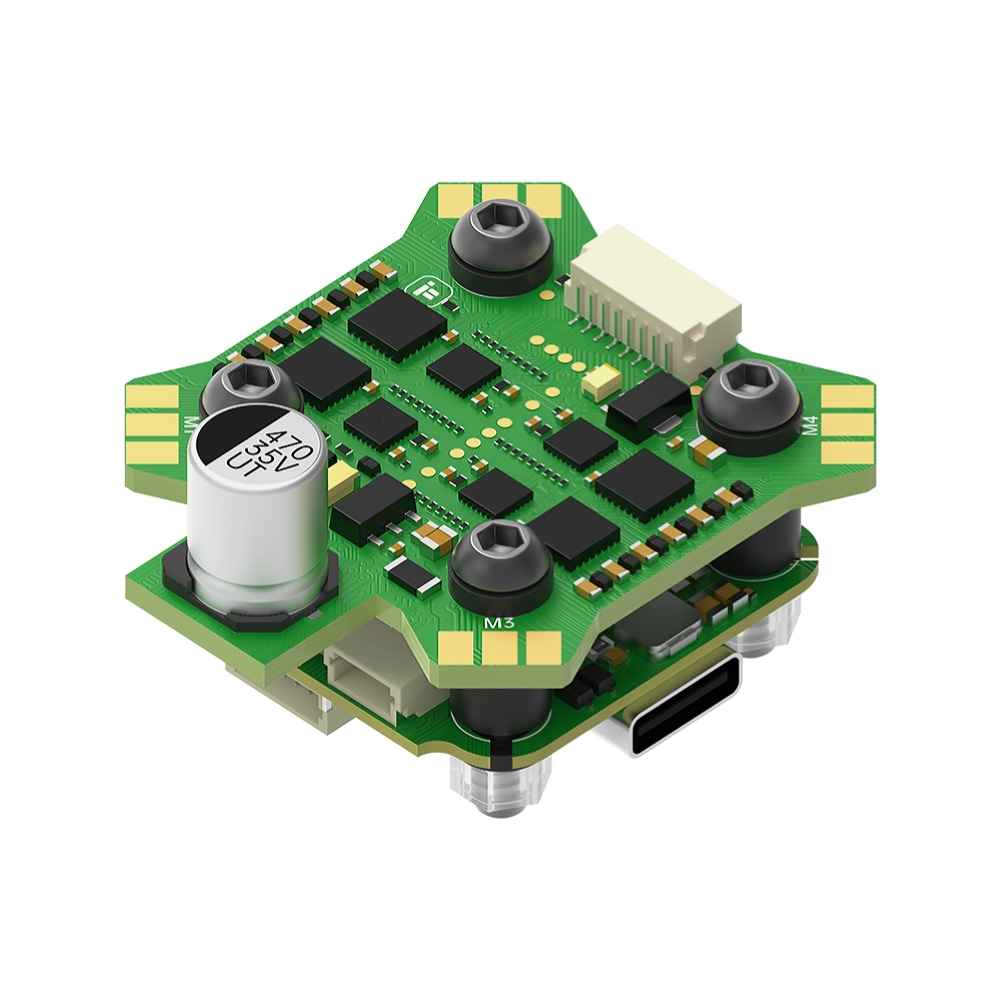

The iFlight BLITZ Mini ATF435 Stack is designed for the Nazgul Evoque F4 FPV Racing Drone. It includes a BLITZ Mini ATF435 Flight Controller with an AT32F435RGT7 MCU, BMI270 gyro, and DPS310 barometer. The controller features a 16MB Blackbox flash, six UARTs, and supports Smartaudio/IRC Tramp VTX protocols. The E55S Mini 4IN1 ESC supports 2-6S lipo input, with a constant current of 55A and a burst of 65A. It also includes a current sensor and supports various DShot protocols. The compact design, with a mounting pattern of 20x20mm and a weight of just 16.3g, makes it ideal for high-performance drone racing.
FC Specifications:
|

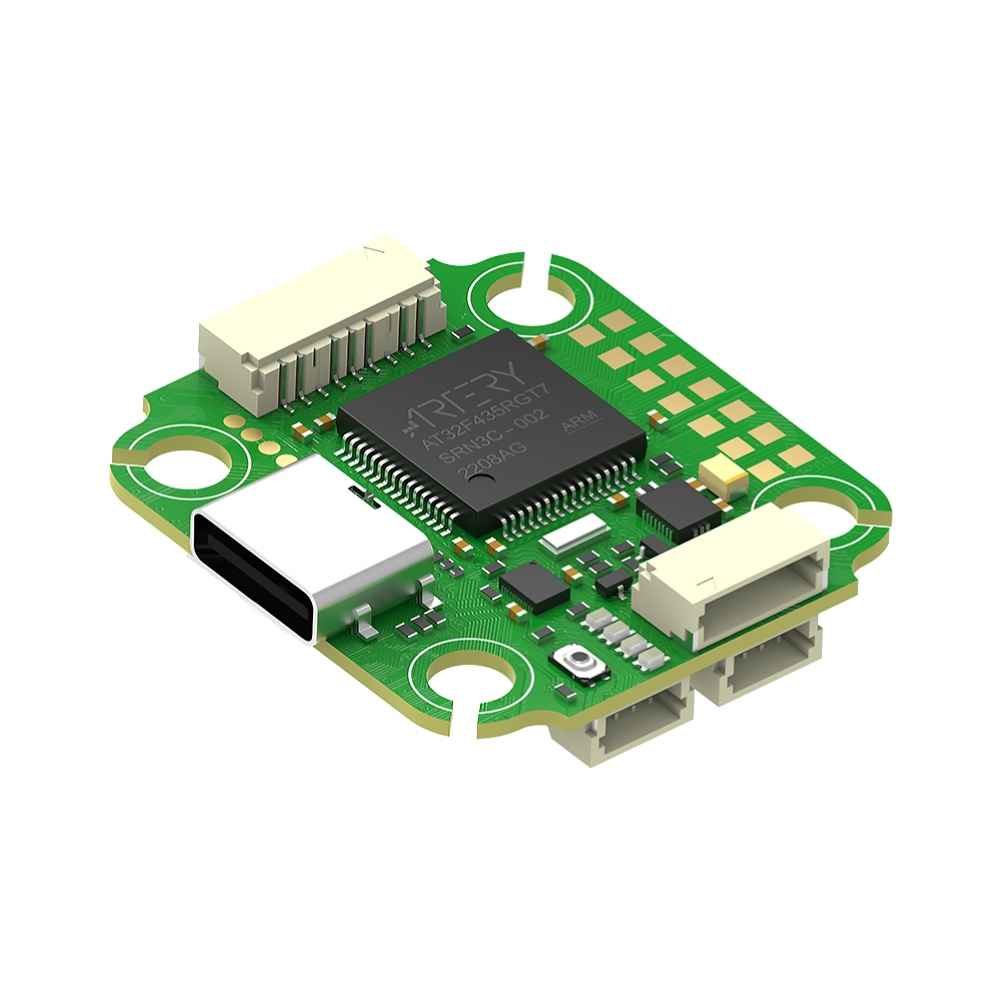

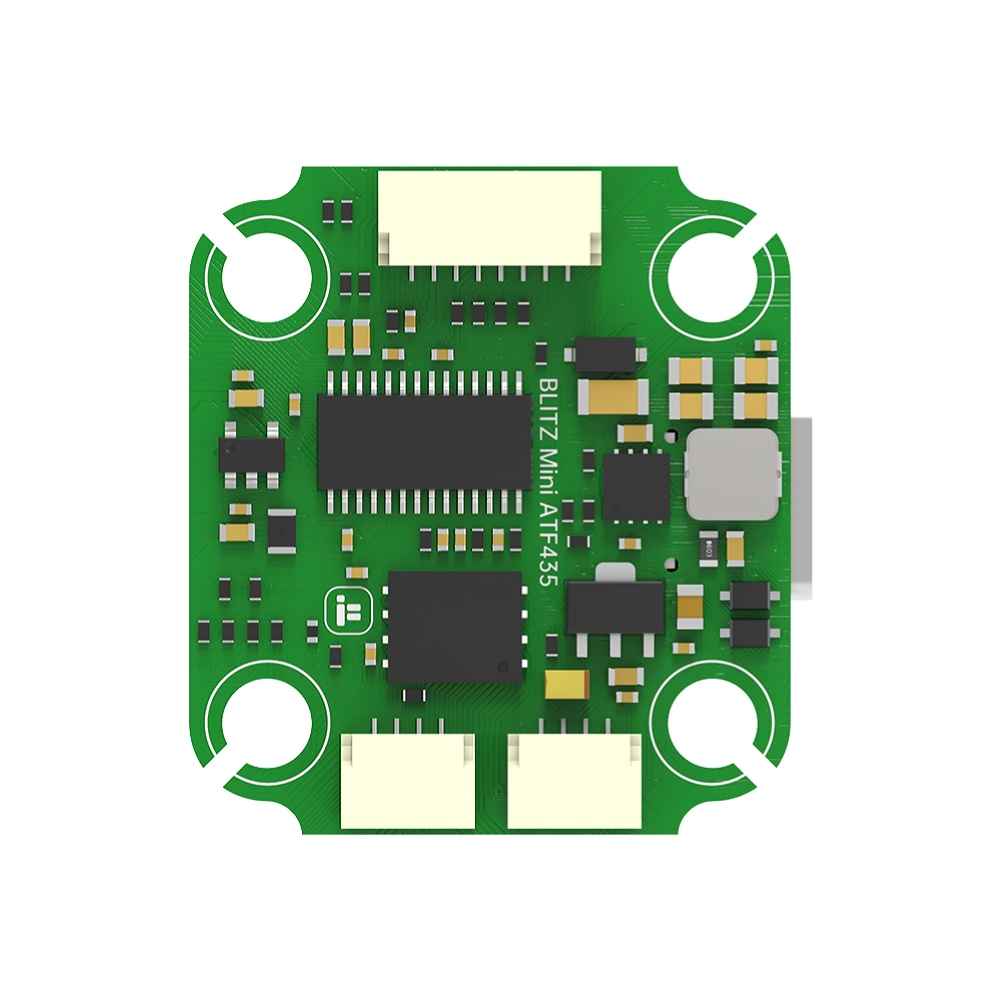

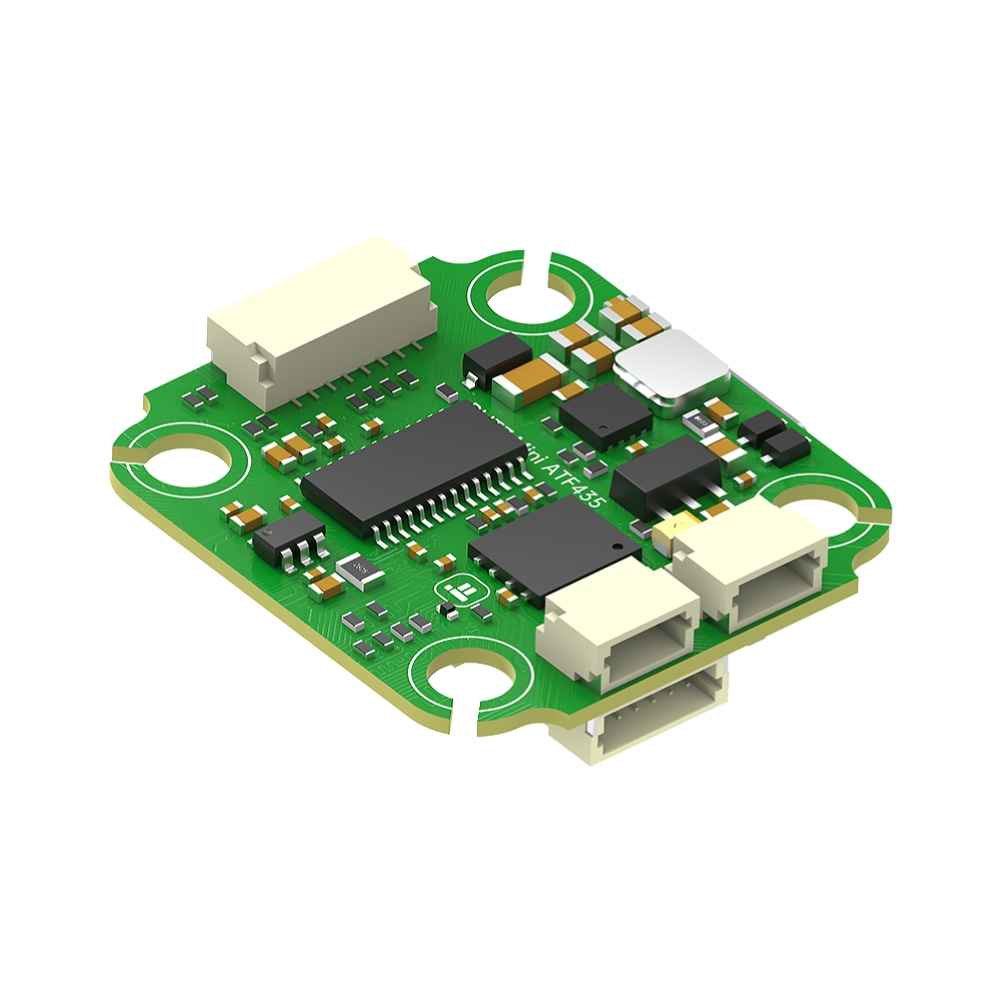

BLITZ Mini ATF435 Flight Controller

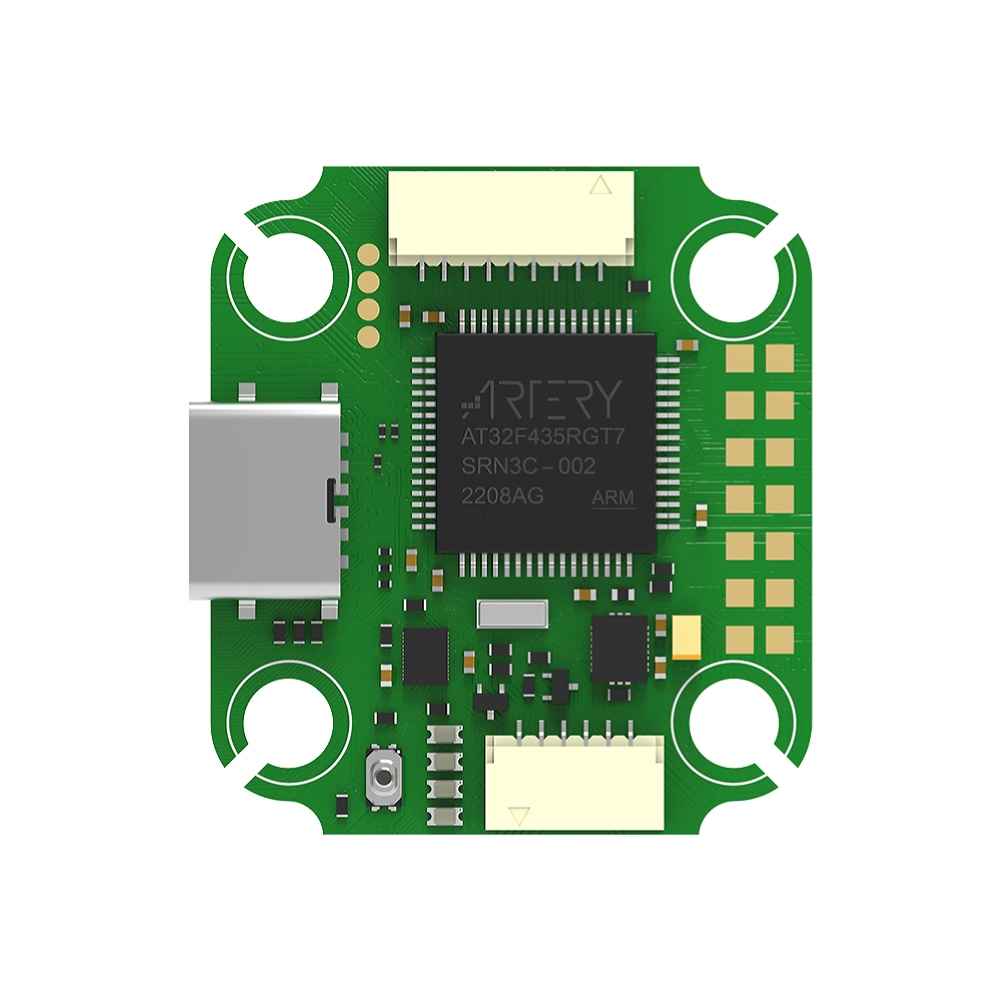

MCU: AT32F435RGT7
Gyro: BMI270
Barometer: DPS310
OSD Chip: AT7456E
Flash: 16MB (Blackbox flash)
UARTS: 6
Motor outputs: 4x (SH1.0 connector)
I2C serial: SDA / SLA pads
Smartaudio / IRC Tramp VTX protocol supported
LED controller: Yes
Beeper pad: Yes
Firmware target: IFLIGHT_BLITZ_ATF435
Mount pattern: 20*20mm/嫉4
Dimensions: 30.5*27mm
Weight: 5g
BEC: 5V 2.5A
Wiring Suggestion
UART 1 for VTX HD / Analog
UART 2 for a Receiver
UART 3/4/5 for GPS or other sensors that require a serial port
UART 6 for ESC Telemet
|

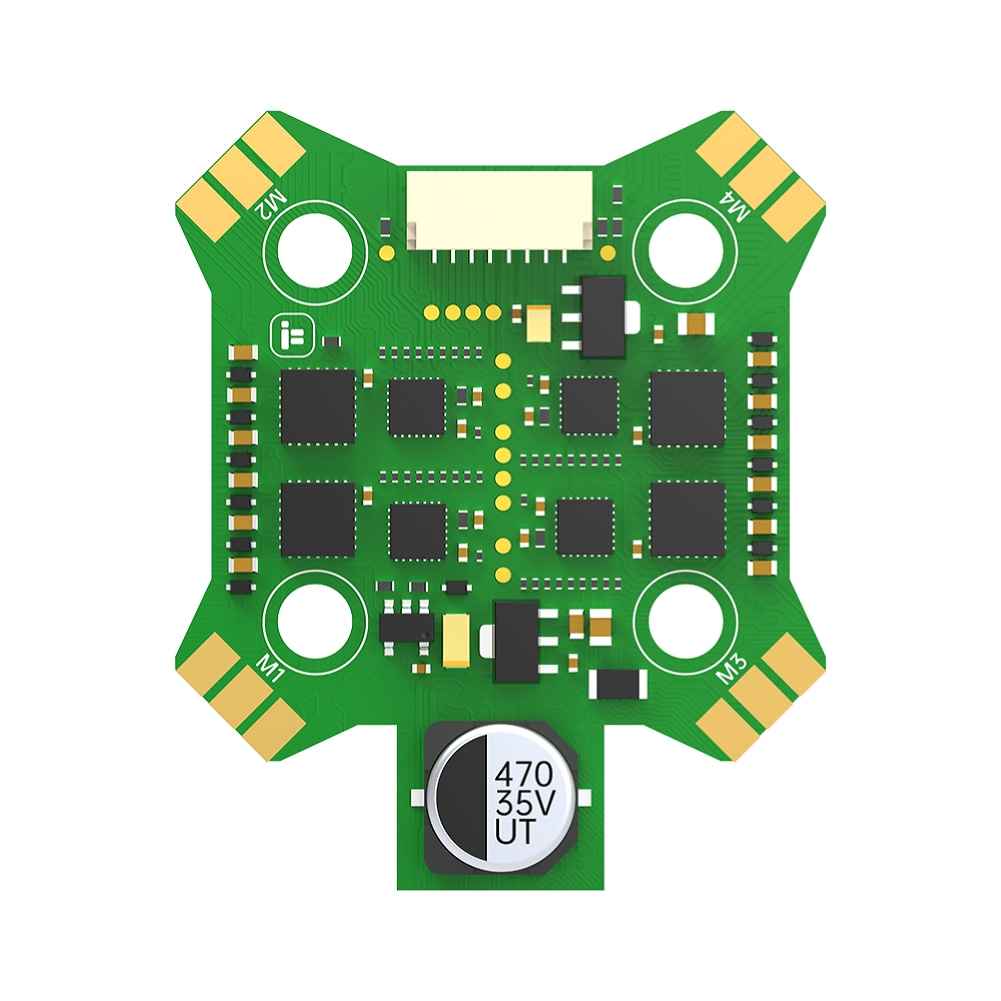

BLITZ E55S Mini
Mounting Holes: 20*20mm/?4mm
Weight: 11.3g
Supports 2-6S lipo input
MCU: BB21
Constant: 55 Amps
Burst: 65 Amps
Telemetry Output: No
Current sensor: Yes
Current rate: 300
BEC: No
Supports: DShot DShot150/300/600/MultiShot/ OneShot etc.
Target: Q-H-25 16.7(BlheliS) / Bluejay Q-H-50 (Bluejay)
Packing List:
|
Flight Controller Version
1 x BLITZ Mini ATF435 Flight Controller
|
Brushless ESC Version
1 x BLITZ Mini E55S 4-IN-1 2-6S ESC
|
FC & ESC Version
1 x BLITZ Mini ATF435 Flight Controller
1 x BLITZ Mini E55S 4-IN-1 2-6S ESC
1 x Power cables & ESC signal wires
Package Included:
1 x BLITZ Mini ATF435 Flight Controller
1 x BLITZ Mini E55S 4-IN-1 2-6S ESC
1 x Power cables & ESC signal wires
