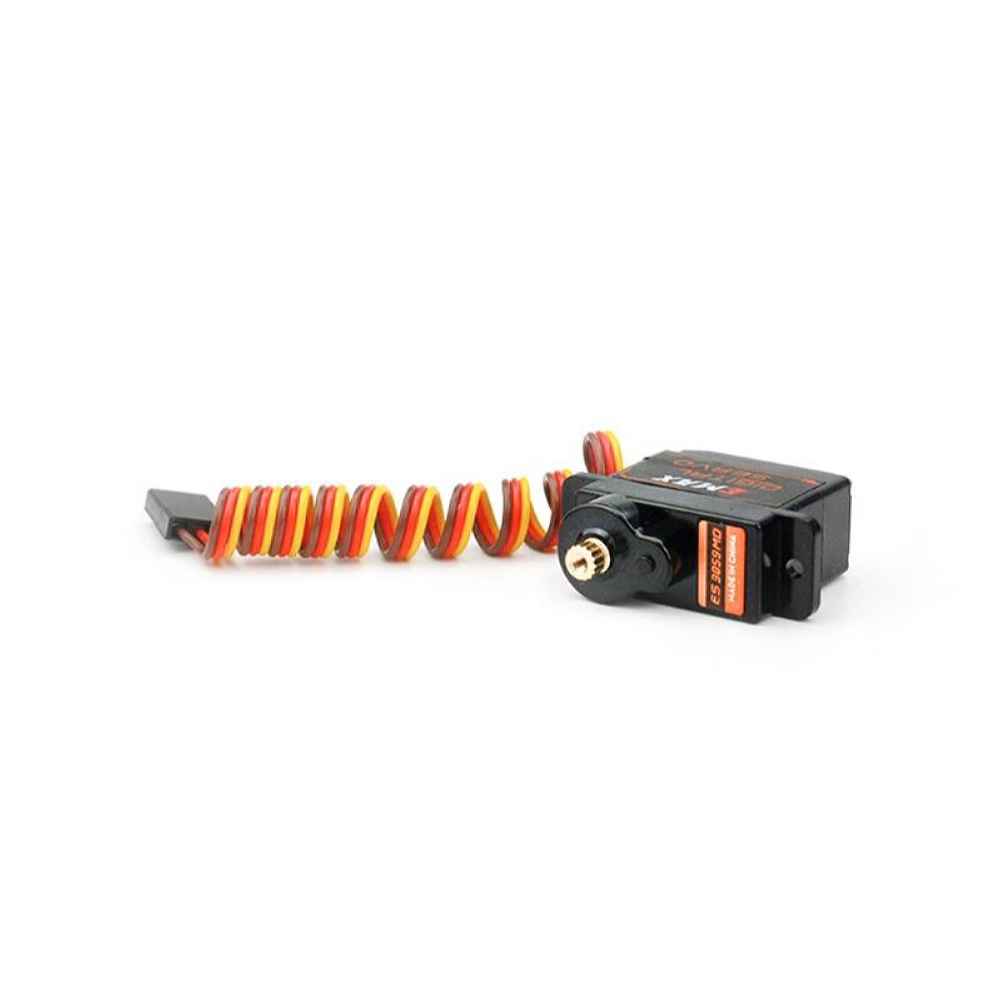

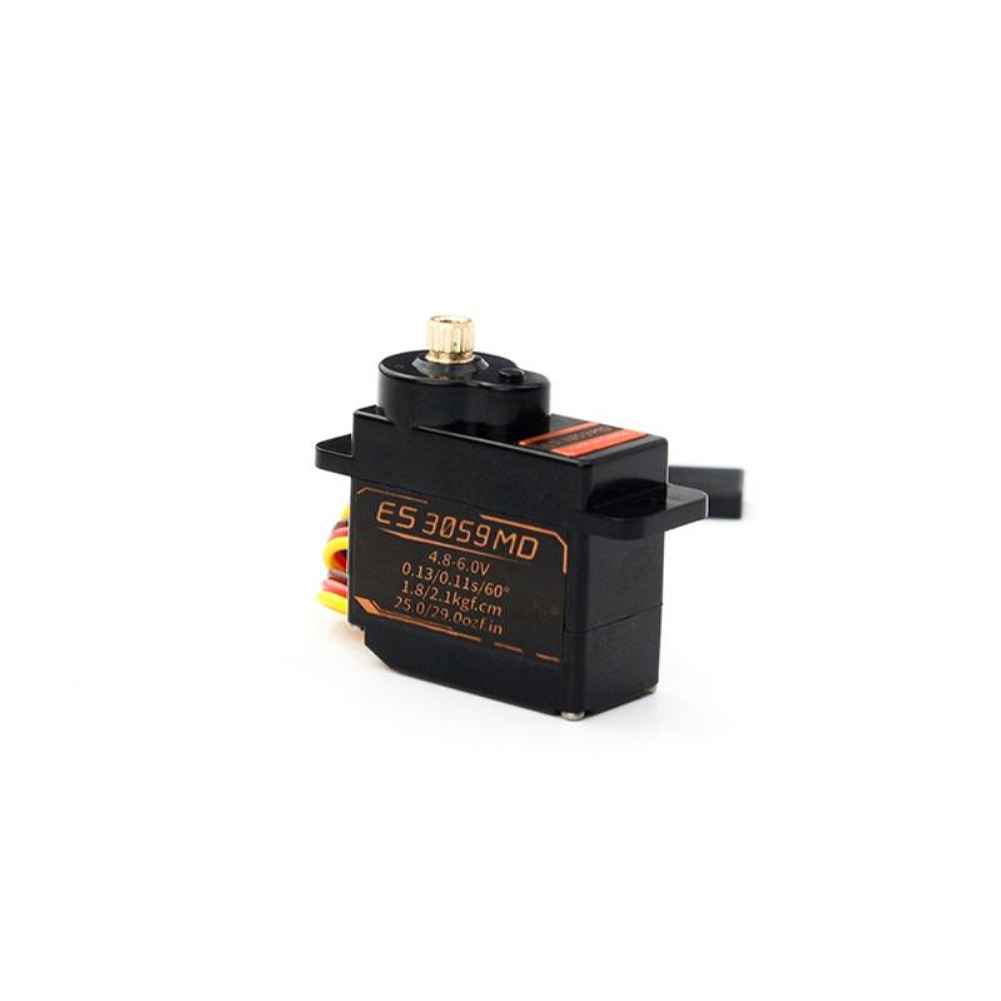

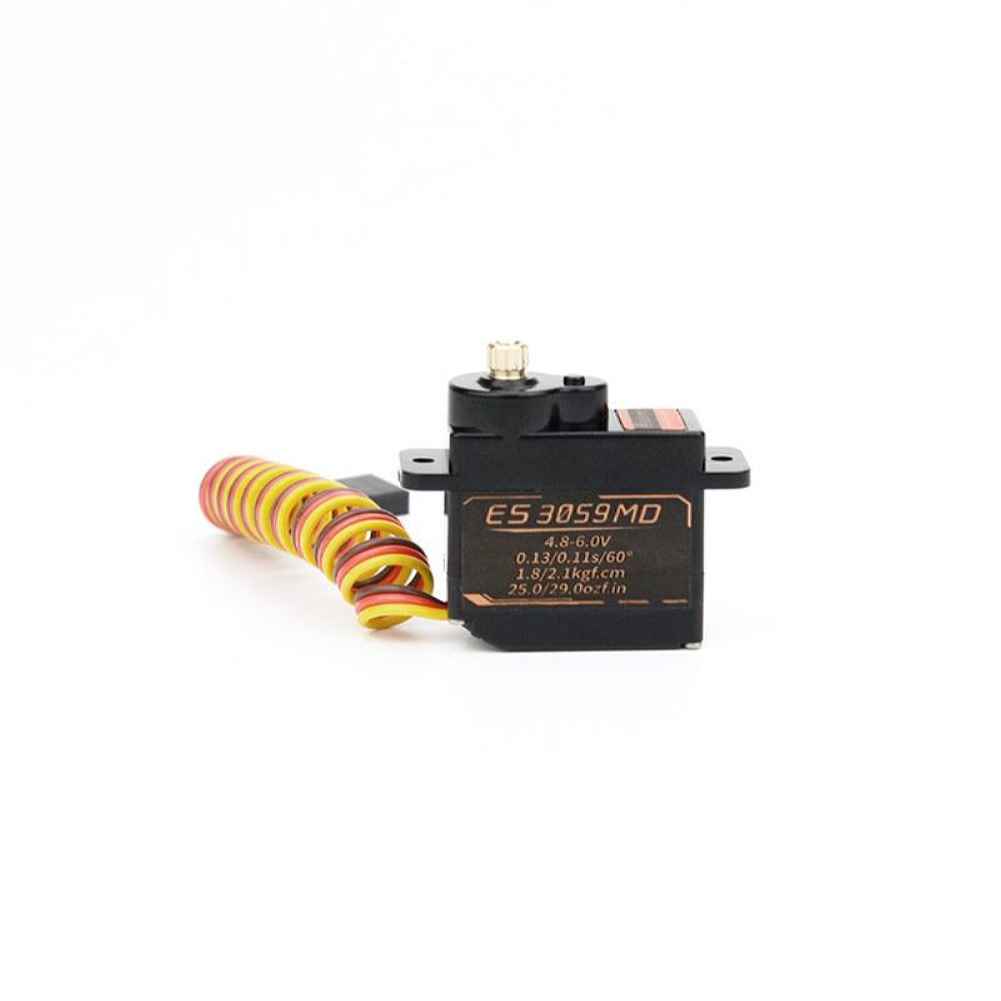

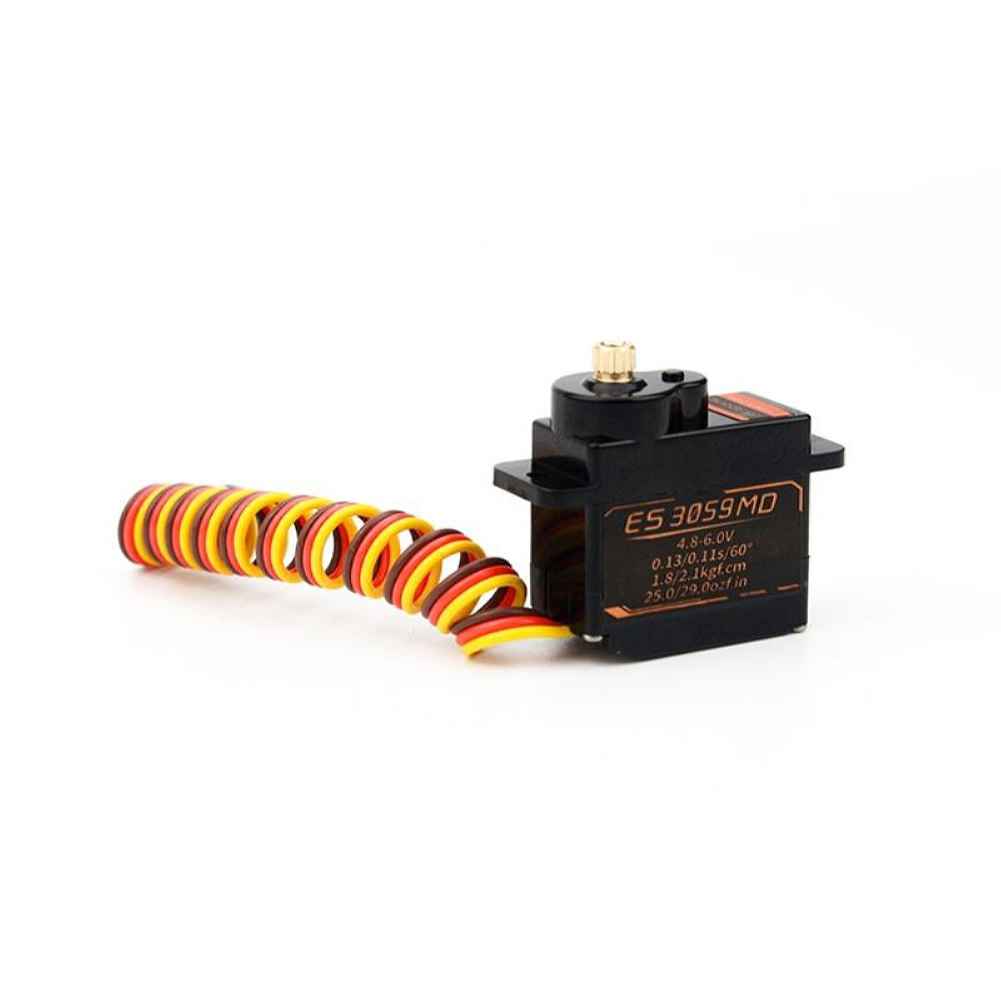

Emax ES3059MD 9g Metal Gear Mini Digital Servo for RC Robot Car Helicopter Airplane
The Emax ES3059MD 9g Metal Gear Mini Digital Servo is engineered for precision and durability, suitable for RC robots, cars, helicopters, and airplanes. It operates efficiently within a voltage range of 4.8V to 6V and a temperature range from -10掳C to 55掳C. With a stall torque up to 2.1kg.cm and a maximum current of 1.0A, this servo delivers reliable performance. The servo features a 360-degree extreme angle and a control system using PWM for precise control. It includes a 250mm JR connector wire, and its compact design ensures seamless integration into various RC models.
Apply Enciromental Condition:
Storage temperature range: -20锝濩-65锝濩
Operating temperature range: -10锝濩-55锝濩
Operating voltage range: 4.8V-6V
Electrical specification:
Operating speed(at no load)
0.13sec/60 (4.8v)
0.11sec/60 (6v)
Running curret(at no load)
250mA Max (4.8v)
300mA Max (6v)
Stall torque
1.8kg.cm Max (4.8v)
2.1kg.cm Max (6v)
Maximum current
0.8A Max (4.8v)
1.0A Max (6v)
Idle current
7.4mA (4.8v)
7.4mA (6v)
Mechanical specification:

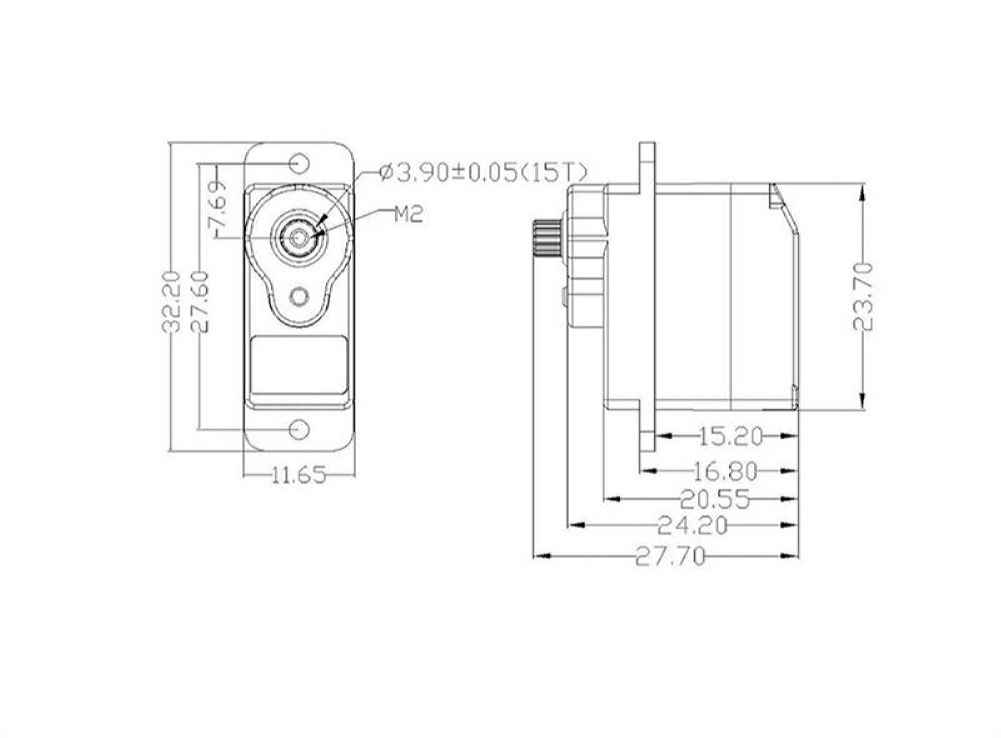

Overall Dimensions: As picture
Weight: 12.3銑?.5g
Connector wire gauge: JR
Connector wire length: 250銑?
Flower head: 15T
Bearing: NO
Gear type: 3 metal gear+3 plastic gear
Extreme angle: 360锝?
Control specification:
Control system: PWM
Operating travel: 90锝炪姡8锝?1000-2000绫?sec)
Neutral positon: 1500绫?sec
Rotating direction: Counter clockwise/Pulse Traveling 1500 to 1900绫?sec
Pulse width range: 500-2500绫?sec
Maximum travel: 180锝炪姡10锝?500-2500绫?sec)
Package Included:

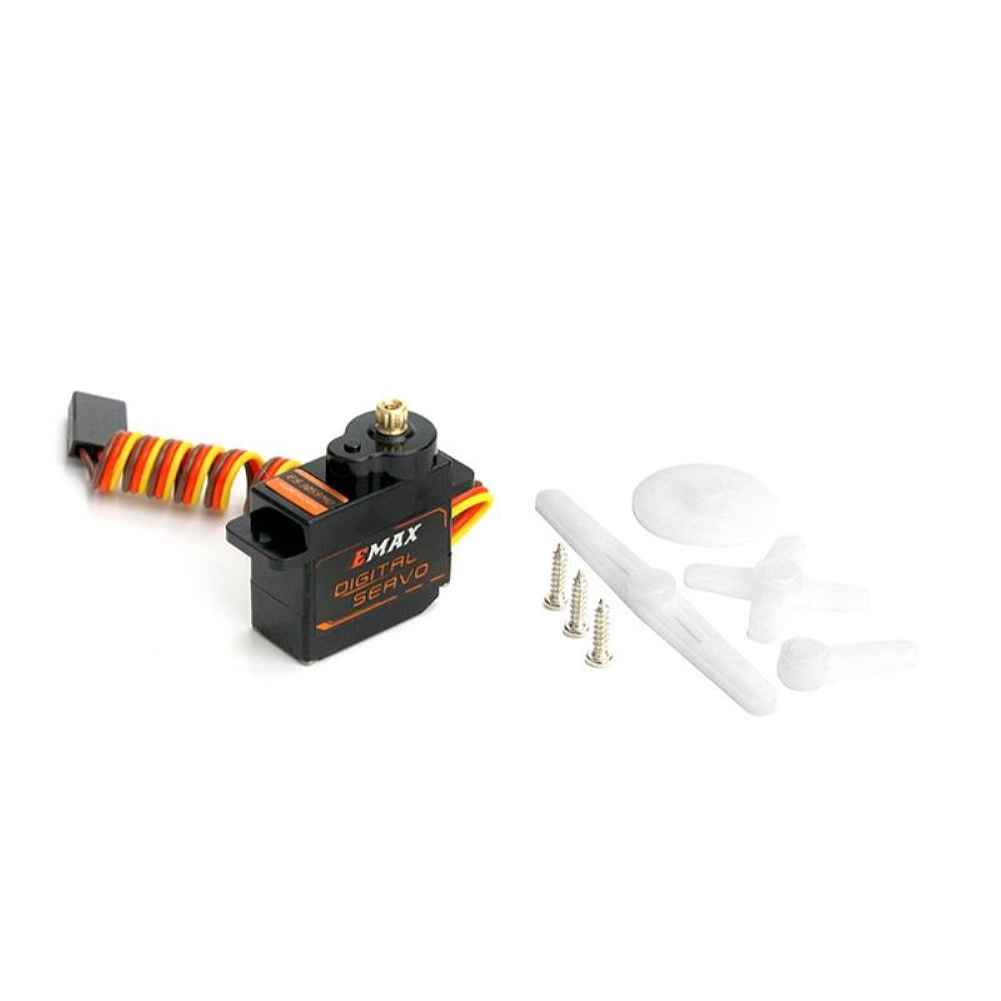

1 x Emax ES3059MD 9g Metal Gear Mini Digital Servo
