Description
BLUEARROW D03013 Digital Ultra-Micro Preision Servo For Blade 130X Helicopter

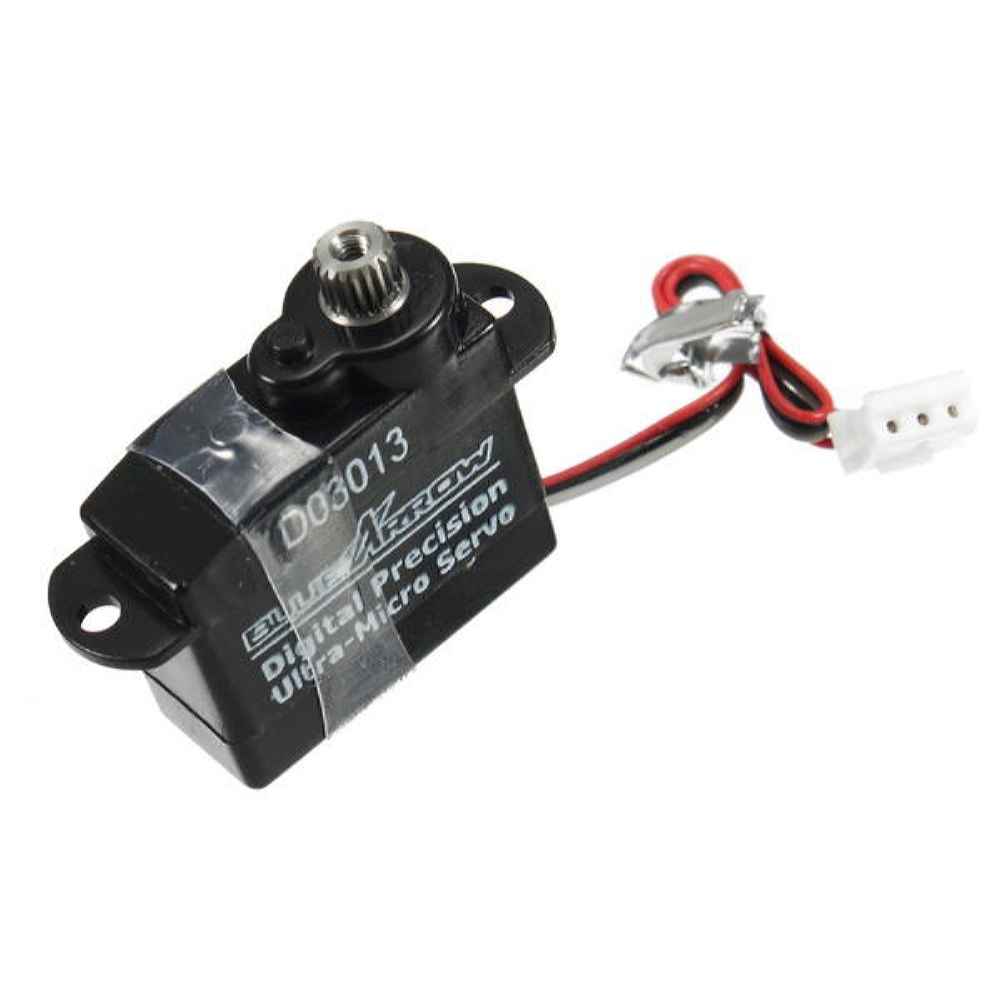

The BLUEARROW D03013 Digital Ultra-Micro Precision Servo is designed for the Blade 130X Helicopter, offering a lightweight structure at just 3.0 grams. It features a digital driver circuit and a high-precision potentiometer for precise centering with less than 0.5 degrees of error. The servo operates at impressive speeds of 0.07 seconds per 60 degrees at 4.8V and 0.06 seconds per 60 degrees at 6.0V, delivering torque of up to 0.65 kg.cm. Equipped with a coreless motor and metal output gear, it ensures durability and performance. The servo includes a JST-ZHR plug with a 1.50 mm pitch connector and comes with conversion cables for easy installation.
Specifications:
*Type: 1: Reverse
2: Positive
* Digital driver circuit inside
* High precision potentiometer
* Precise centering-less 0.5°
* Lightweight structure, just 3.0 grams
Speed: 0.07 sec / 60° @ 4.8V
0.06 sec / 60° @ 6.0V
Torque: 0.50 kg.cm / 6.94 oz.in @ 4.8V
0.65 kg.cm / 9.02 oz.in @ 6.0V
Motor: Coreless
Gear: Metal output Gear + POM Gear
Plug: JST-ZHR plug 1.50 ,mm pitch connector
(Plus conversion cables)
Weight: 3.0 g 0.10 oz (Excluding Arms & Screws)

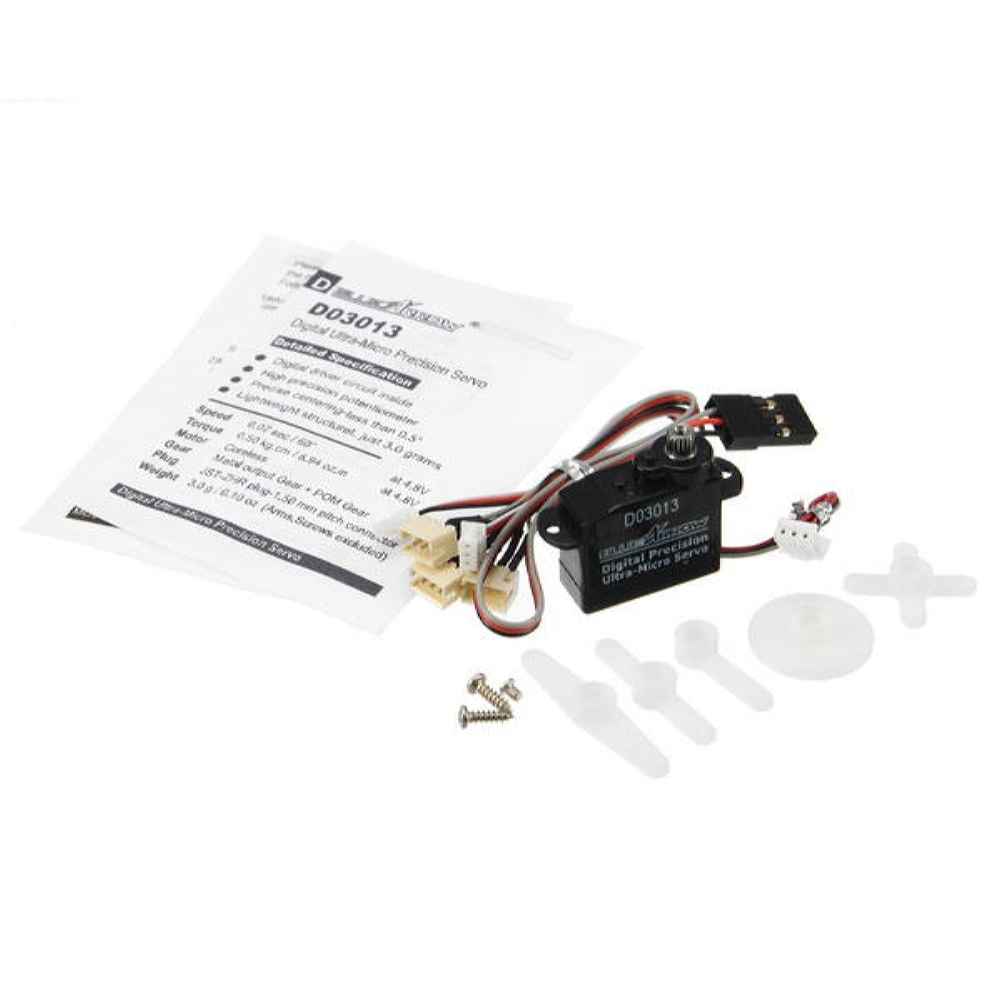

Package Included:

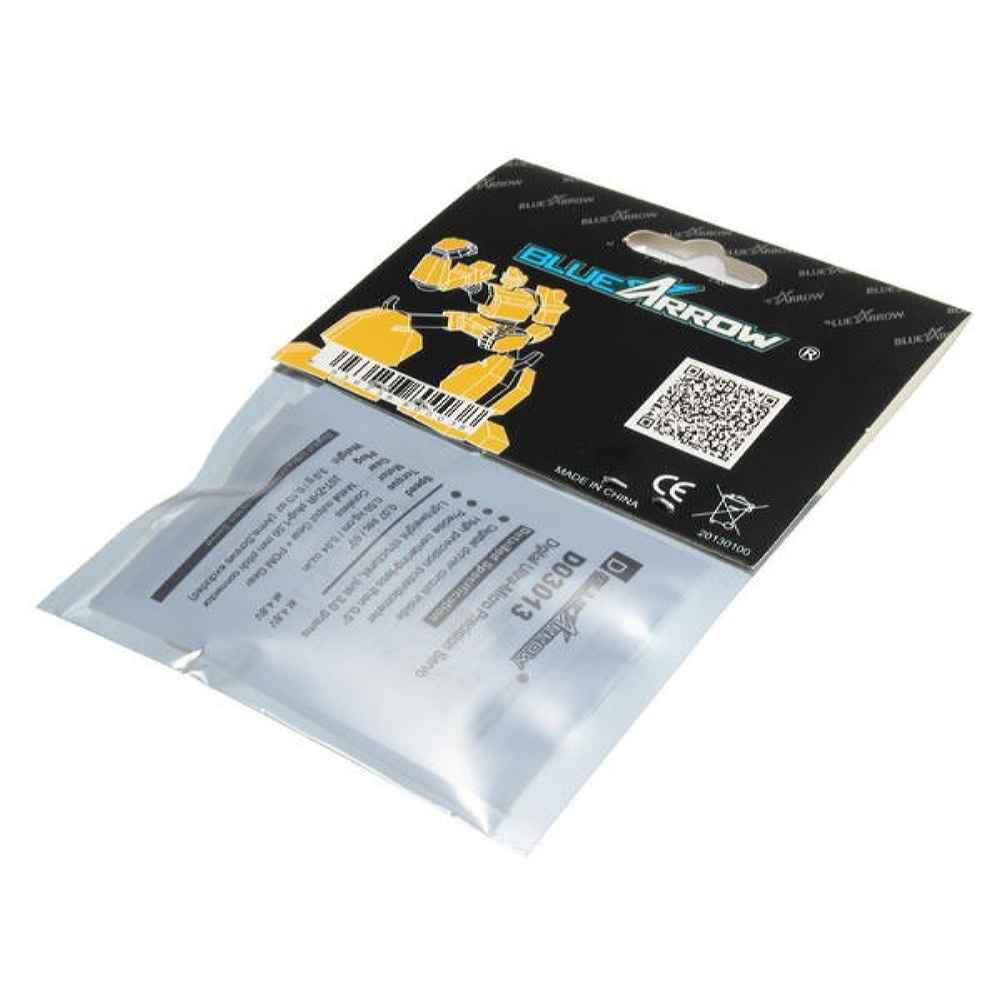

1 x BLUEARROW D03013 Servo
