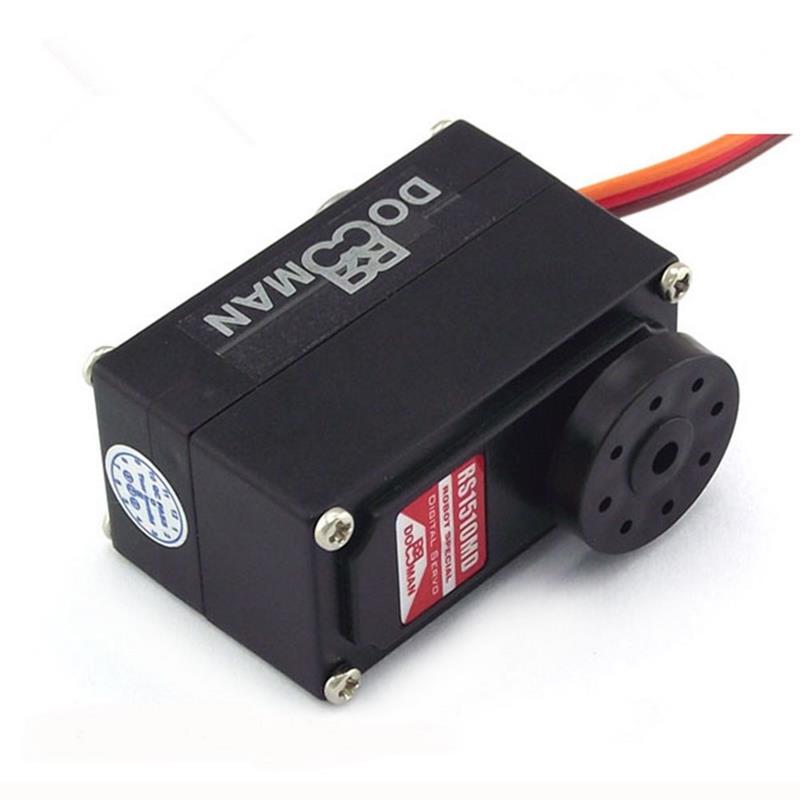

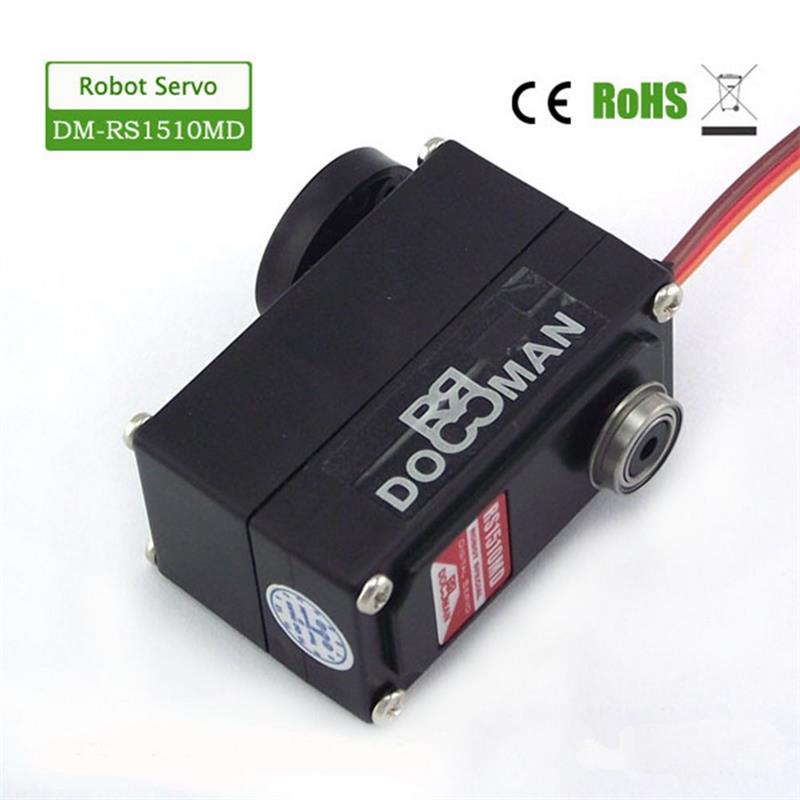

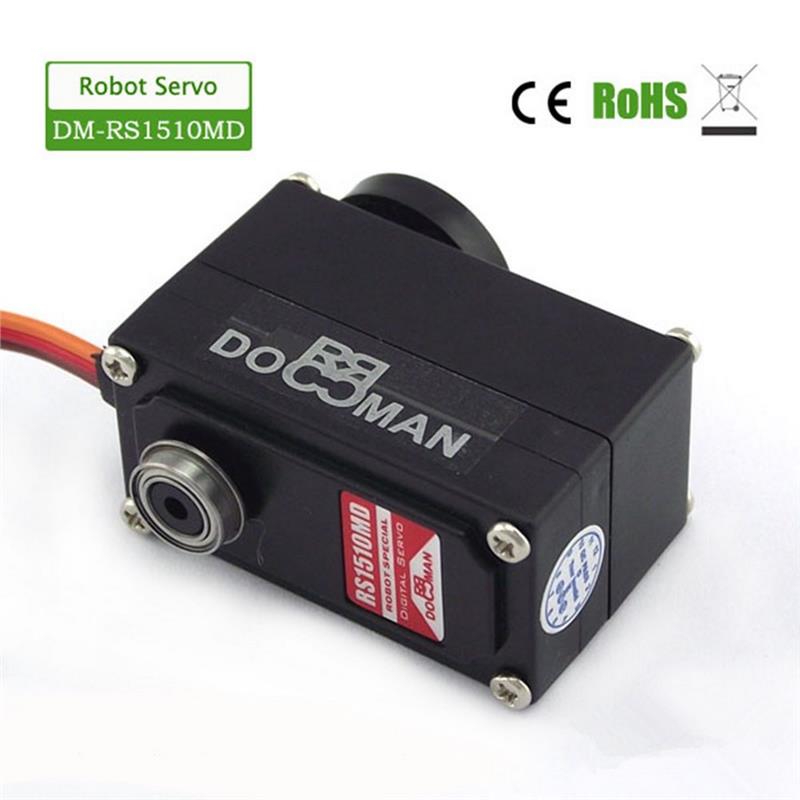

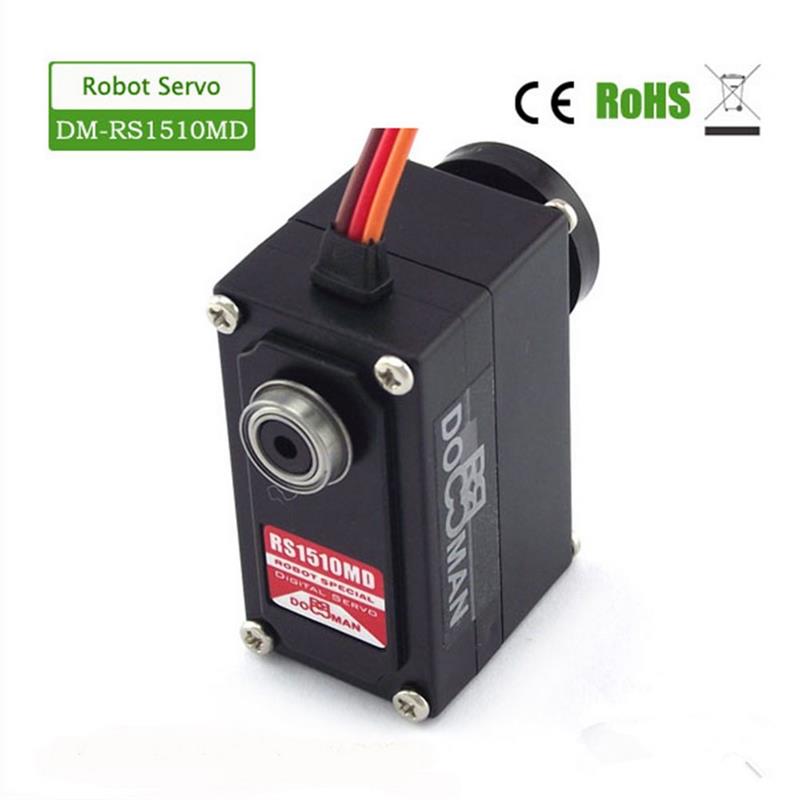

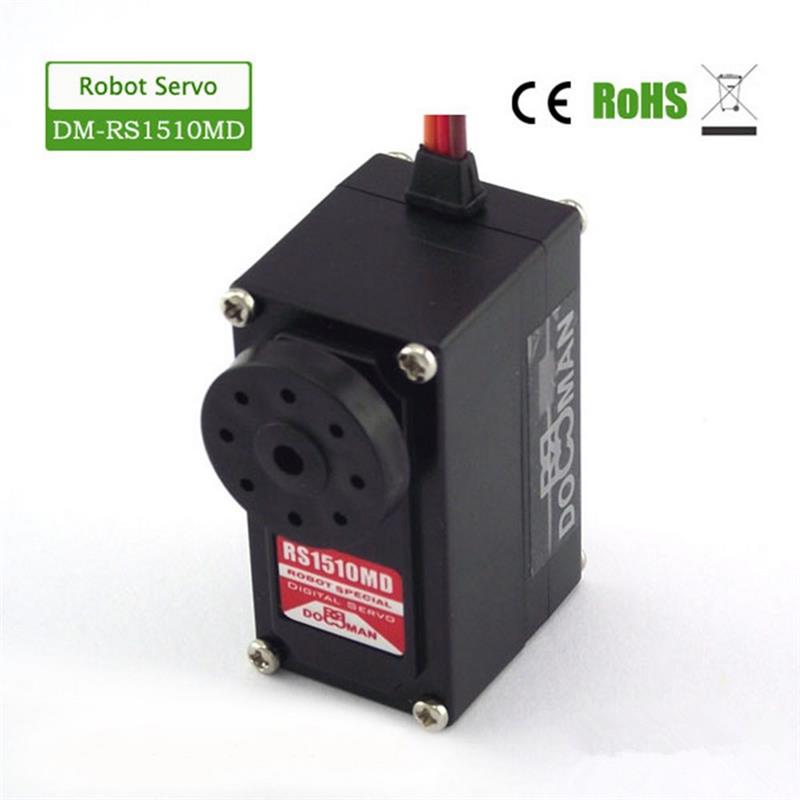

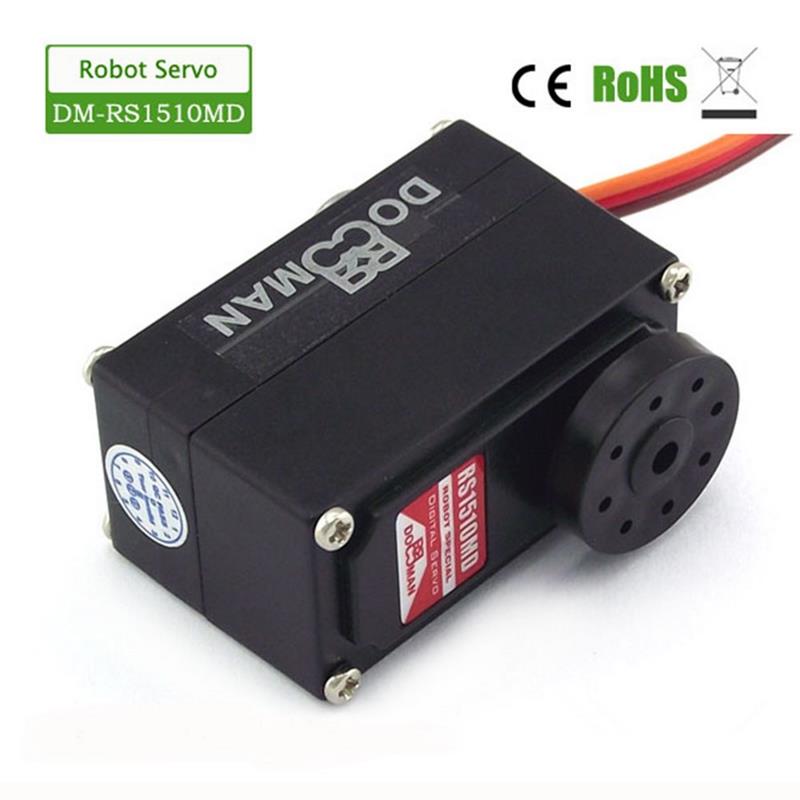

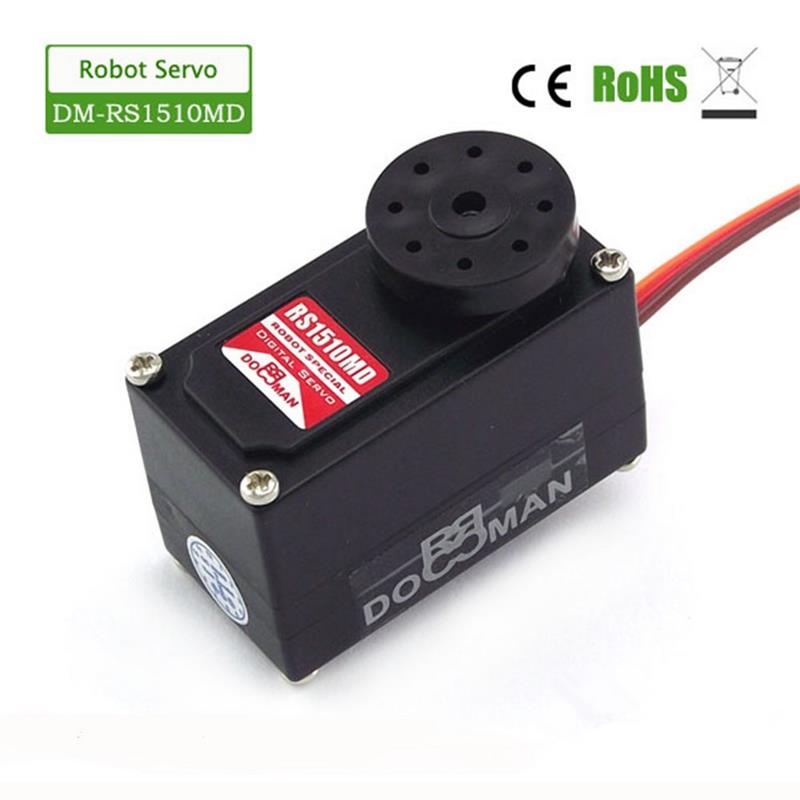

DM-RS1510MD 15KG 180 Degree Metal Gear Digital Servo RC Robot Servo
Features:
-DOMAN RC digital servo 180 degree metal teeth 15kg short shell short body dual axis 17 DOF humanoid robot servo
-Precision machining of metal gears, high precision, small virtual gap
-High quality motor, high torque, low energy consumption and high efficiency
-Double bearing design, dual-axis design for robot
-Short shell and short body design, the overall line of the robot is beautiful, and the humanoid degree is higher
-With flexible start function and position feedback function, and in the position feedback state, the servo can be moved by hand, so that the player can adjust the position of the servo by hand according to the action needs, and then read the position, so that the action editing is more Convenient and efficient, surpassing opponents in minutes
-3 outlets for easy wiring, serial interface can be used
-Long-life high-quality potentiometer
-Digital circuit, fast responses, low failure rate, high precision
-Mature digital circuit board, using mos-FET drive, and digital processor to make it fast and control in good condition.
-Futabas standard 25T tooth key
-Compatible with Futabas, JR, SANWA, Hitec and other well-known remote control systems.
-Pulse width PWM500-2500us, running angle 180 degrees
-With flexible start function and position feedback function, and in the position feedback state, the servo can be moved by hand, so that the player can adjust the position of the servo by hand according to the action needs, and then read the position, so that the action editing is more Convenient and efficient, surpassing opponents in minutes.
Specification:
Model.: DM-RS1510MD
Weight: 42g
Size: 44mmX23mmX26.5mm
Speed: 0.25sec/60deg (6v) 0.23sec/60deg (7.4v)
Locked-rotor torque: 14.4kg.cm (6v) 16.5kg.cm (7.4v)
Working voltage: 6-7.4Volts (input voltage must be higher than or equal to 6V, use 2s lithium battery requires UBEC voltage regulation, because the full charge can reach 8.4V, it will burn out the steering gear, and the unstable voltage will also affect the steering gear work)
Package Included:

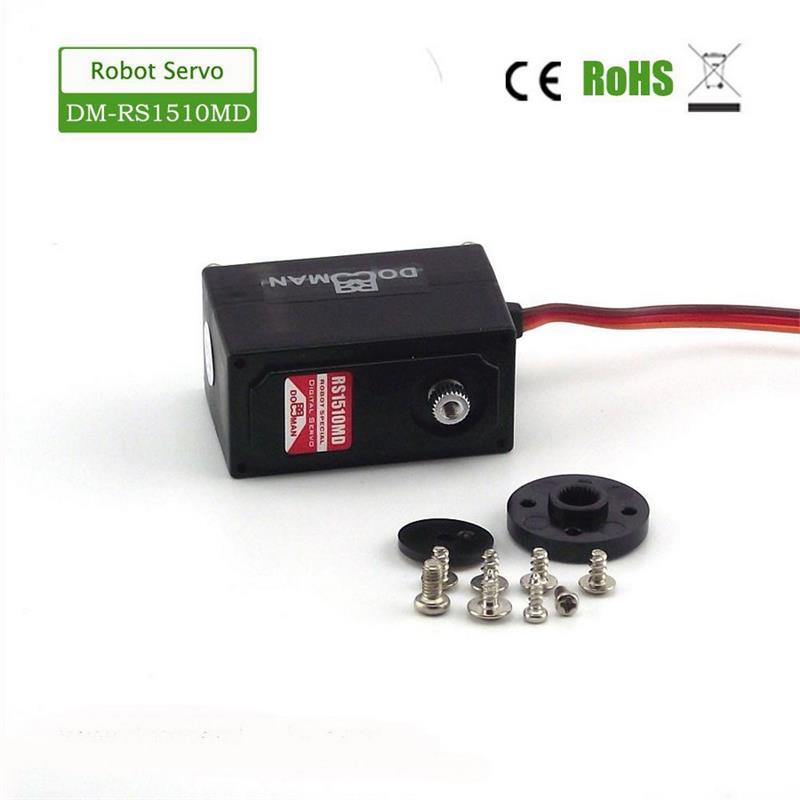

1*DM-RS1510MD Metal Digital Servo
