Radiomaster Ranger Micro 2.4GHz ExpressLRS RF Module, 1W Power, Wifi & Bluetooth, RP1 RP2 Nano Receiver Combo for TX16S MKII TX12 MKII

Description

Radiomaster Ranger Micro 2.4GHZ ExpressLRS RF Module Up to 1Watt Power Output Support Wifi Bluetooth With RP1 RP2 ExpressLRS 2.4ghz Nano Receiver Combo for TX16S MKII TX12 MKII Radio Transmitter

The Radiomaster Ranger Micro 2.4GHz ExpressLRS RF Module offers up to 1W power output, supporting both Wifi and Bluetooth connectivity. It is an ideal choice for those looking to experience the efficiency and long-range capabilities of the ELRS protocol without investing in a new radio. This module is compatible with TX16S MKII and TX12 MKII radio transmitters. It features a high-efficiency cooling system, F-1000Hz refresh rates, and comes with a T-shape antenna for optimal signal coverage. The package includes RP1 and RP2 Nano Receivers, which boast improved PCB design for better heat dissipation and easier soldering.

Radiomaster Ranger Micro 2.4GHZ ExpressLRS RF Module Up to 1Watt Power Output Support Wifi Bluetooth With RP1 RP2 ExpressLRS 2.4ghz Nano Receiver Combo for TX16S MKII TX12 MKII Radio Transmitter
Want to experience the efficiency, long range and low latency of the ELRS protocol without purchasing a new radio RadioMaster has you covered!
Featuring up to 1W output, F-1000Hz refresh rates and a high-efficiency cooling system, the Ranger Micro 2.4GHz ELRS Module represents the cutting edge in ELRS technology. Attach the module to a compatible radio (TX16S, TX16S MkII, TX12, TX12 MkII and more) to enjoy all that ELRS has to offer.

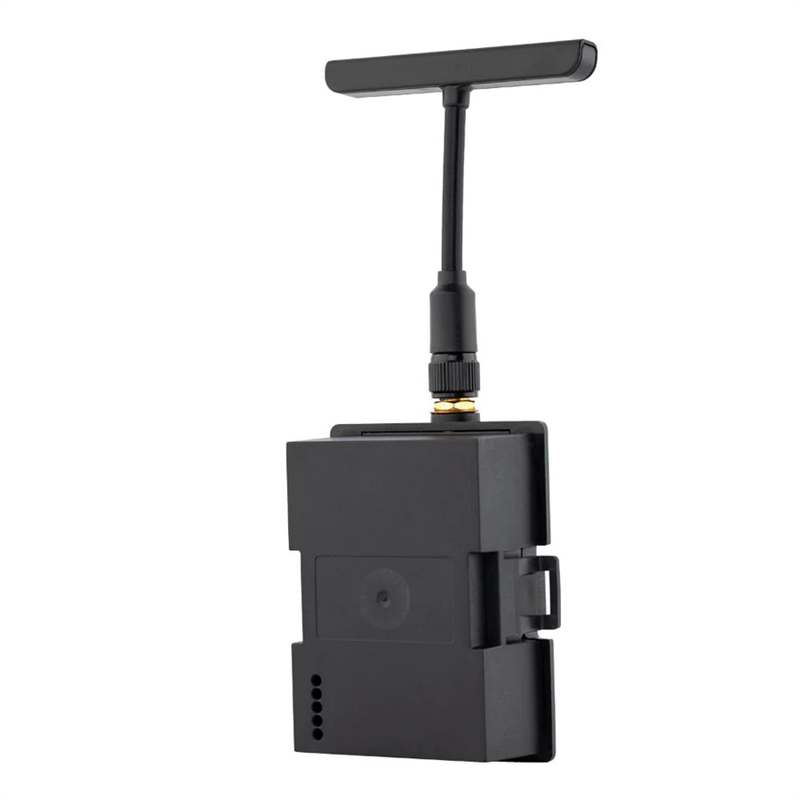

The included T-shape antenna is designed for maximum signal coverage. An optional MOXON antenna is available for directional applications.
Ranger Micro Module Specification:
Brand: Radiomaster
Item: Ranger Micro Module
Regulatory Domain: ISM2400
MCU: ESP32(main), ESP8285(aux,as ESP backpack)
RF chip: SX1281IMLTRT
Frequency Range: 2400 MHz – 2480 MHz
Maximum packet rate: 500Hz/F-1000Hz (F-1000Hz mode requires EgdeTX 2.7.1 or later)
Minimum receiver refresh rate: 25Hz
RF Output Power: 30dBm for FCC, 20dBm for CE (Adjustable by LUA)
Wifi Support: Yes
Bluetooth support: Yes
XT30 Power supply voltage: DC 6V – 16.8V
Weight: 50g (with antenna) / 40.5g (without antenna)

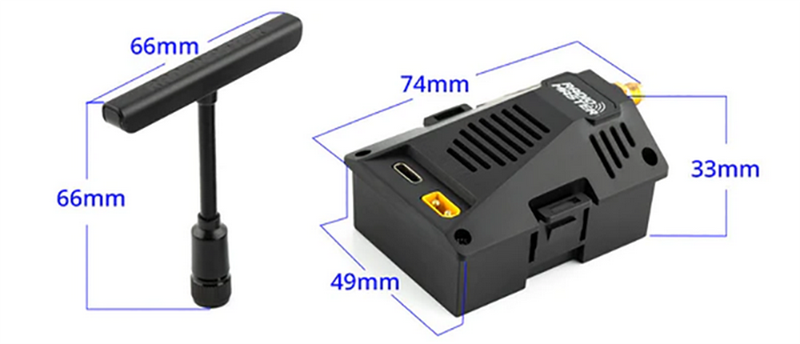

Dimension: 136*49*33mm (with T antenna) / 74*49*33mm (without antenna)
RP2 Nano Receiver Specification:
Item Name: RP2 Nano Receiver
Type: ISM
ESP8285 MCU
SX1280IMLTRT RF Module
Antenna: On Board SMT Antenna
Frequency Range: 2400 MHz to 2480 MHz
Maximum receive refresh rate: 500Hz /F1000Hz
Minimum receiver refresh rate: 25Hz
Working voltage: 5v
Weight: 0.55g
Dimension: 13mm*11mm*7mm
Ranger Micro Module Features:
* High-efficiency cooling system.
* Up to 1Watt Power output .
* Wifi and Bluetooth support.
* Packet rates up to F-1000Hz.
* T-antenna included.
* With the Micro connector, support TX16S MKII and TX12 MKII radio.
RP2 Nano Receiver Features:
* Improved PCB design is better for heat dissipation.
* Solder pads are improved and easier to solder to.
* LED on top side of PCB.
*Note: The Ranger Micro 2.4GHz ELRS Module fits JR style micro module bays, for Nano connectors, please consider the Ranger and the Ranger Nano modules.

Package Included:
1 x Ranger Micro Module
1 x T Antenna
2 x RP1 ExpressLRS 2.4GHz Nano Receiver
1 x RP2 ExpressLRS 2.4GHz Nano Receiver
