Happymodel ExpressLRS ELRS ES900TX 915MHz Ultra Long Range Transmitter Module and ES900RX 0.6g Receiver for Radiomaster TX16S Jumper T12 T16 T18 Transmitter
Happymodel ExpressLRS ELRS ES900TX 915MHz Ultra Long Range Transmitter Module and ES900RX 0.6g Receiver for Radiomaster TX16S Jumper T12 T16 T18 Transmitter
Notice:
Since November 24, 2021, Out of stock orders ES900TX and ES900TX/RX combo are all fully assembled before shipped out of factory.
Out of stock orders will be shipped according to the new ES900TX and ES900RX 915MHz.
The New version ExpressLRS hardware 868MHz/900MHz TX and RX module??ES900TX and ES900RX coming out which is instead ES915TX and ES915RX due to shortage of SMT32 chips.
OVERVIEW:
ES900TX and ES900RX modules are a set of Long Range 915MHz/868MHz(optional) wireless transmission equipment developed and designed based on the open source software ExpressLRS. This set of modules is characterized by ultra-long range, stable operation and low latency. The module is compatible with most Opentx remote controllers, especially suitable for Radiomaster TX16S and Jumper T12 T16 T18 series remote controllers, basically plug and play. We have specially customized the heat sink for the transmitter module, and also reserve the installation position of the 2006 fan which can help the transmitter module to operate stably under high power conditions.
New ES900TX module coming with a 2006 Fan, it would working automatically when the TX power is 250mw.
Specifications:

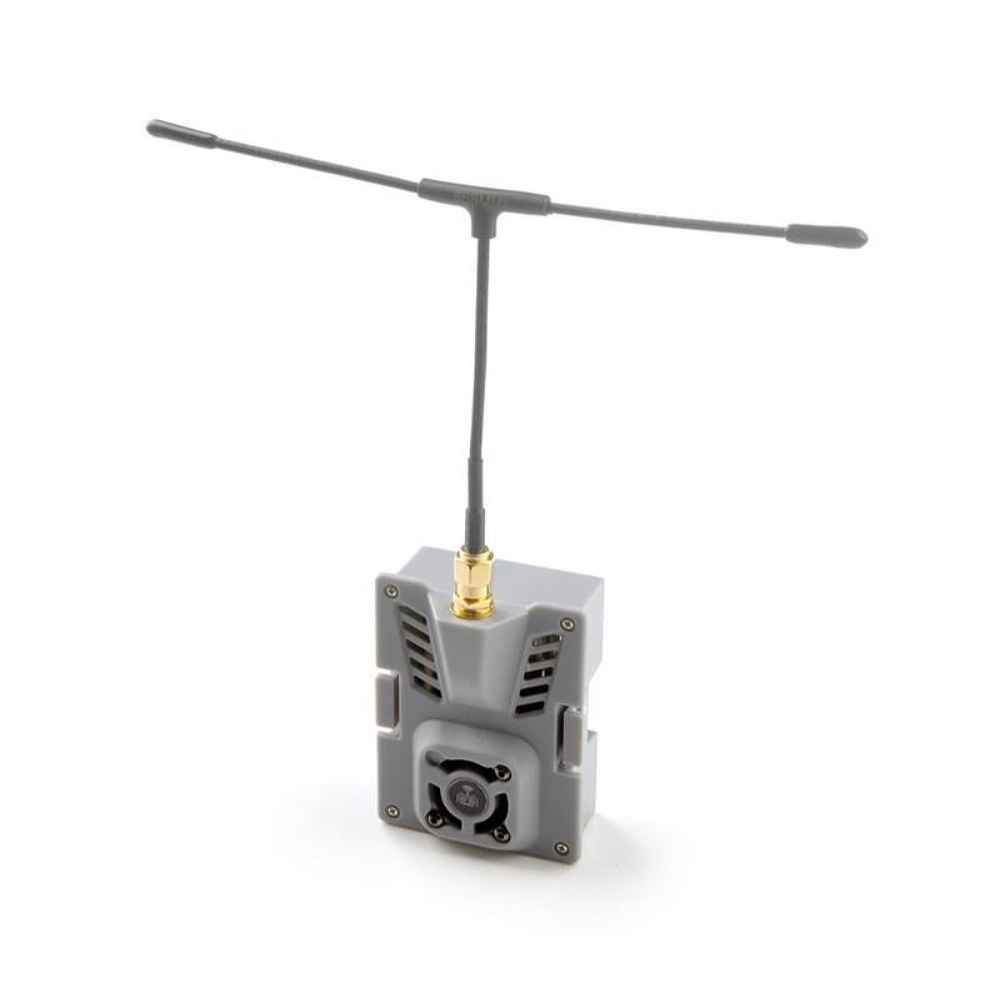

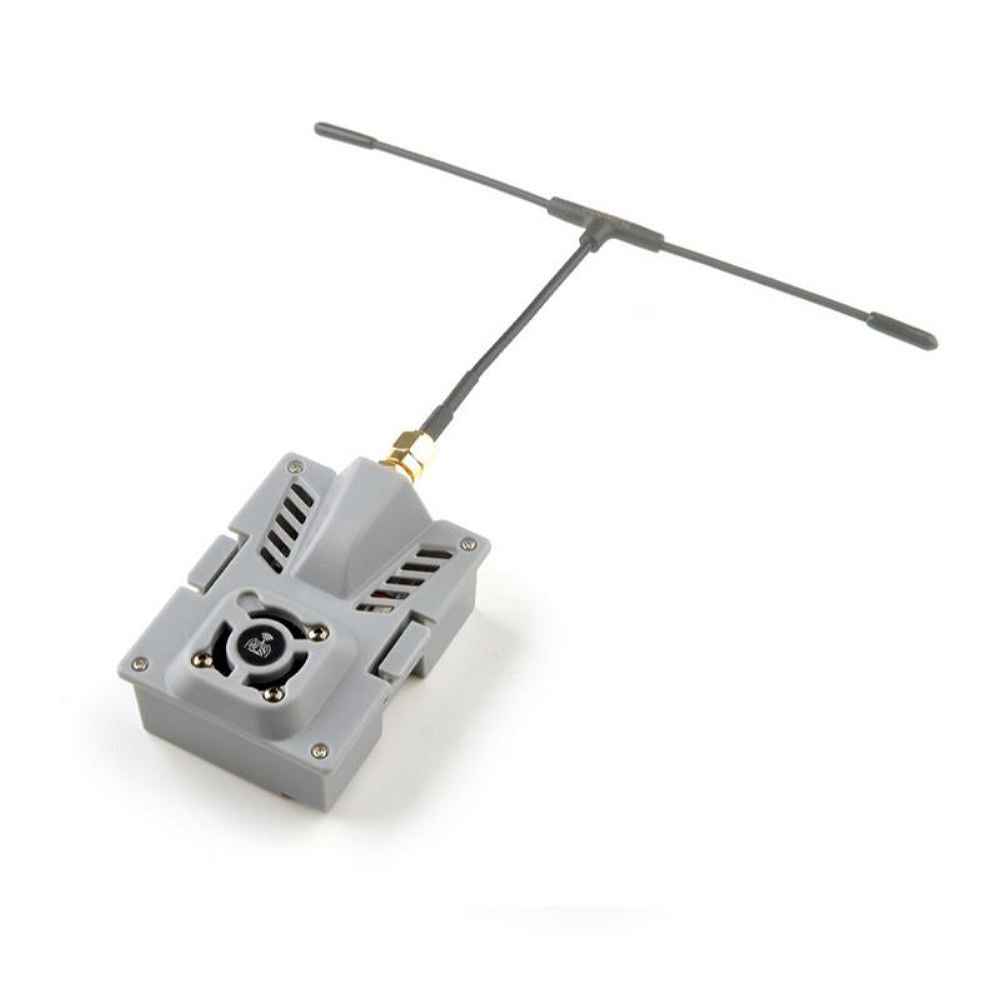

ES900TX:
MCU:ESP32+ESP8285
Dimension: 55mm*39mm*11mm
Weight: 9.2gram (only the TX module)
Antenna connector: SMA
VCC input: 5~13v, Recommend 5v~9v
RF Frequency optional: 915mhz or 868mhz(EU)
Maximum Output Power: <33dBm(For >27dBm operation, we recommend add a fan for force cooling)
Wifi update firmware function for ES900TX would be available in a short time.

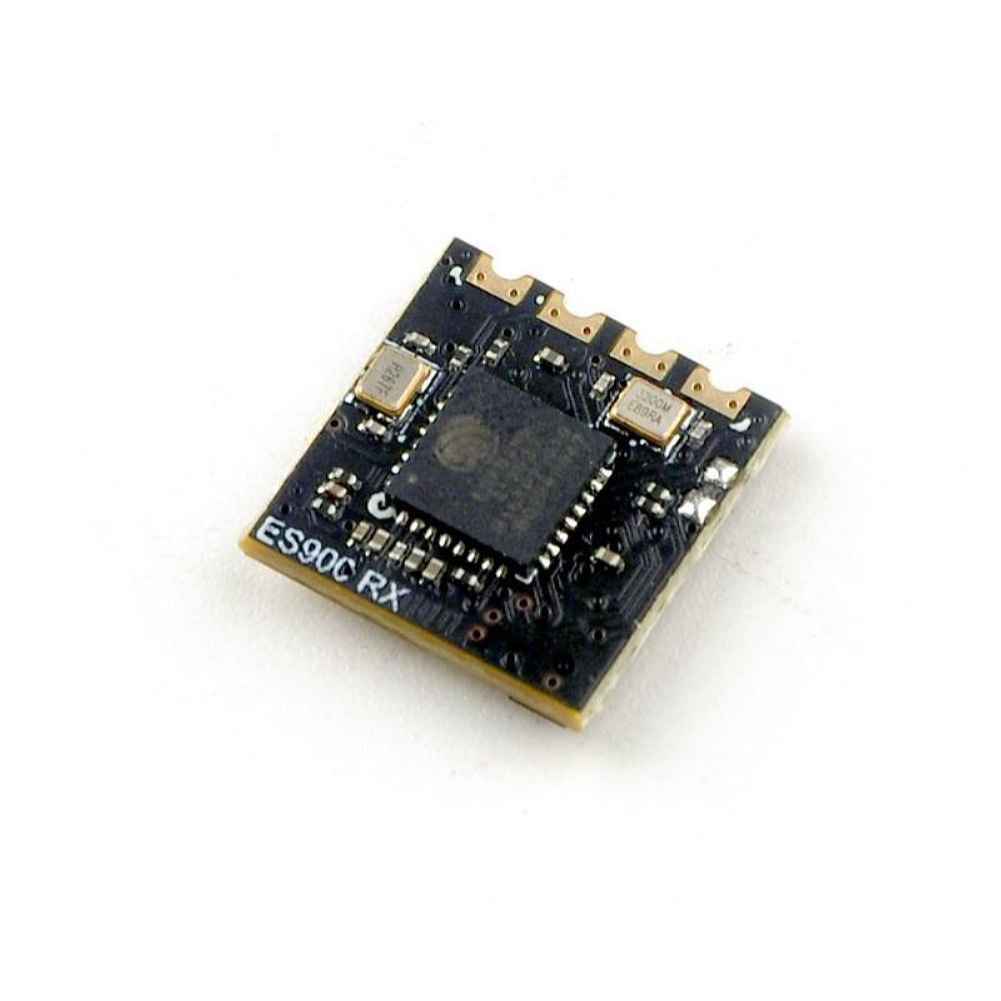

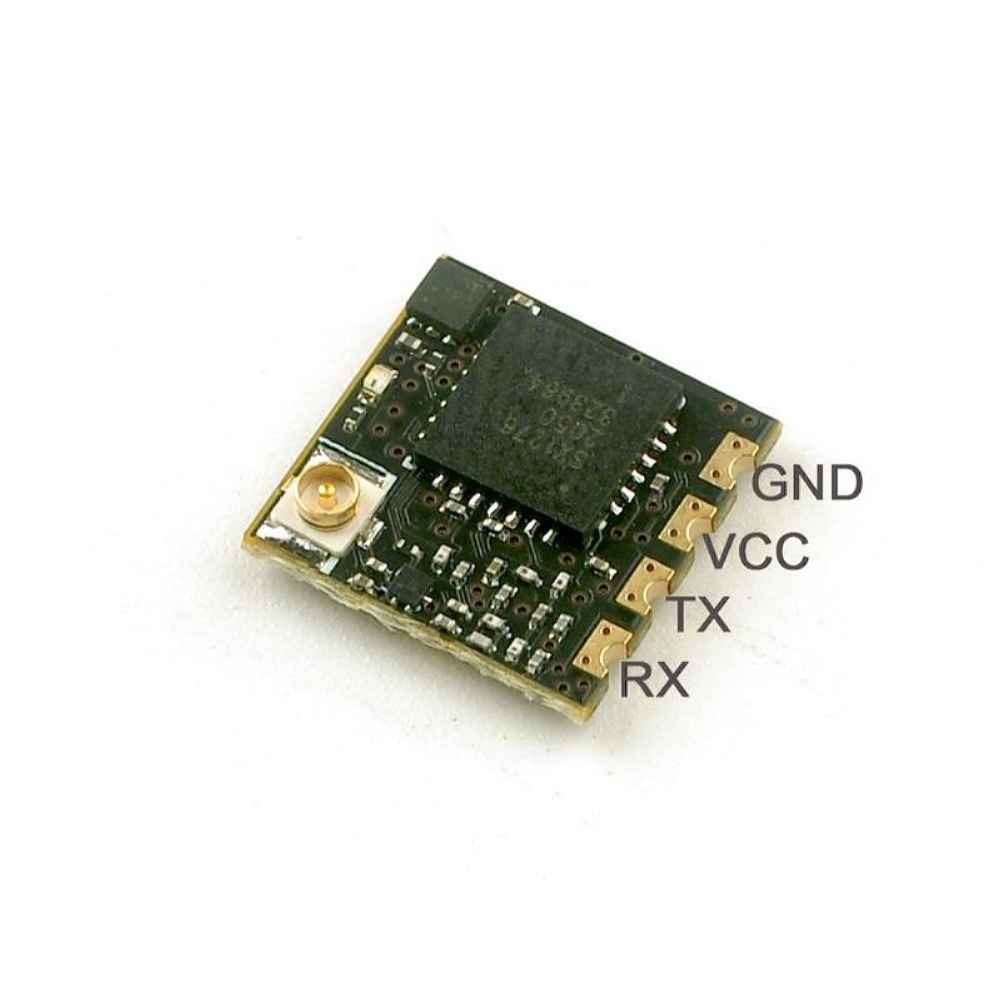

ES900RX:
MCU: ESP8285
VCC input: 5v
Operation current: ~100Ma
Rx To FC protocol: CRSF
RF Frequency optional: 915mhz or 868mhz(EU)
Dimension: 12mm*12mm*3mm

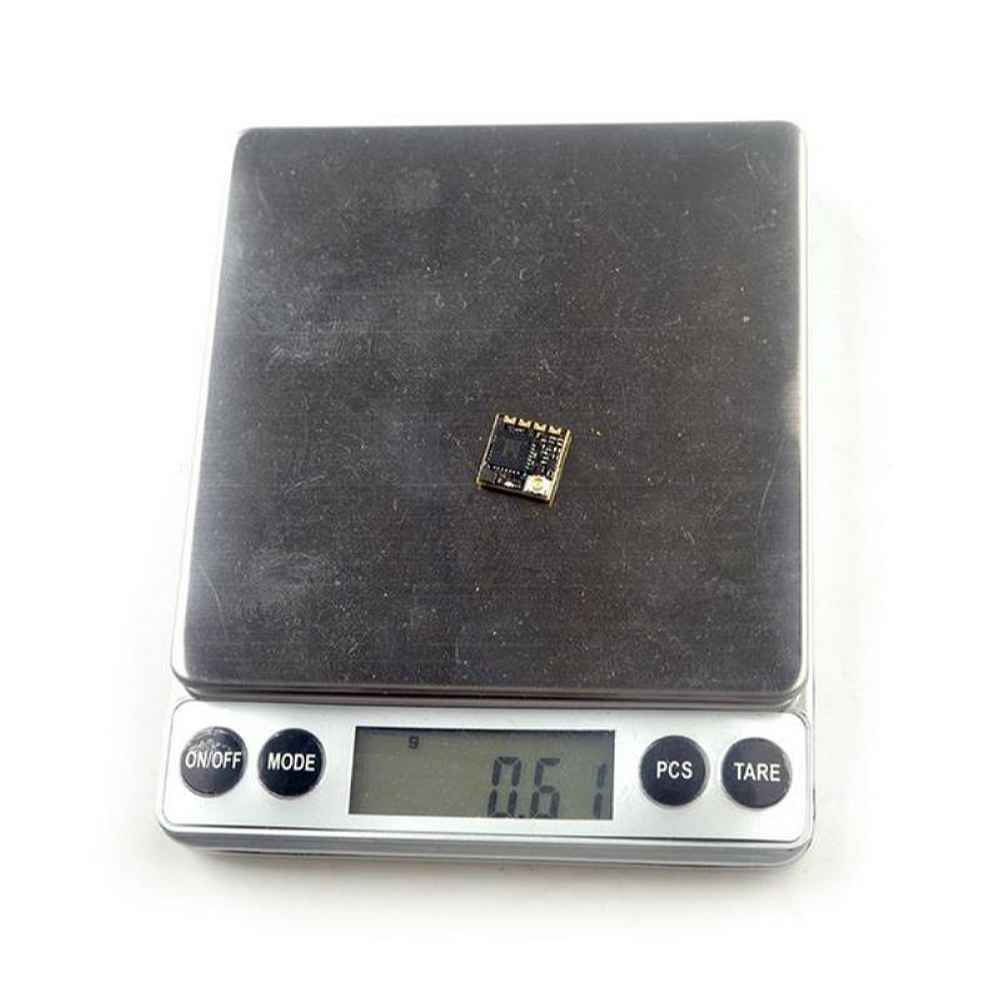

Weight: 0.60 gram (exclude antenna)
Antenna connector: IPEX1
Telemetry output Power: <17dBm
RC7 Firmware for ES900RX download:
ExpressLRS RC7 firmware for ES900 RX 915MHz and 868MHz [update by wifi]

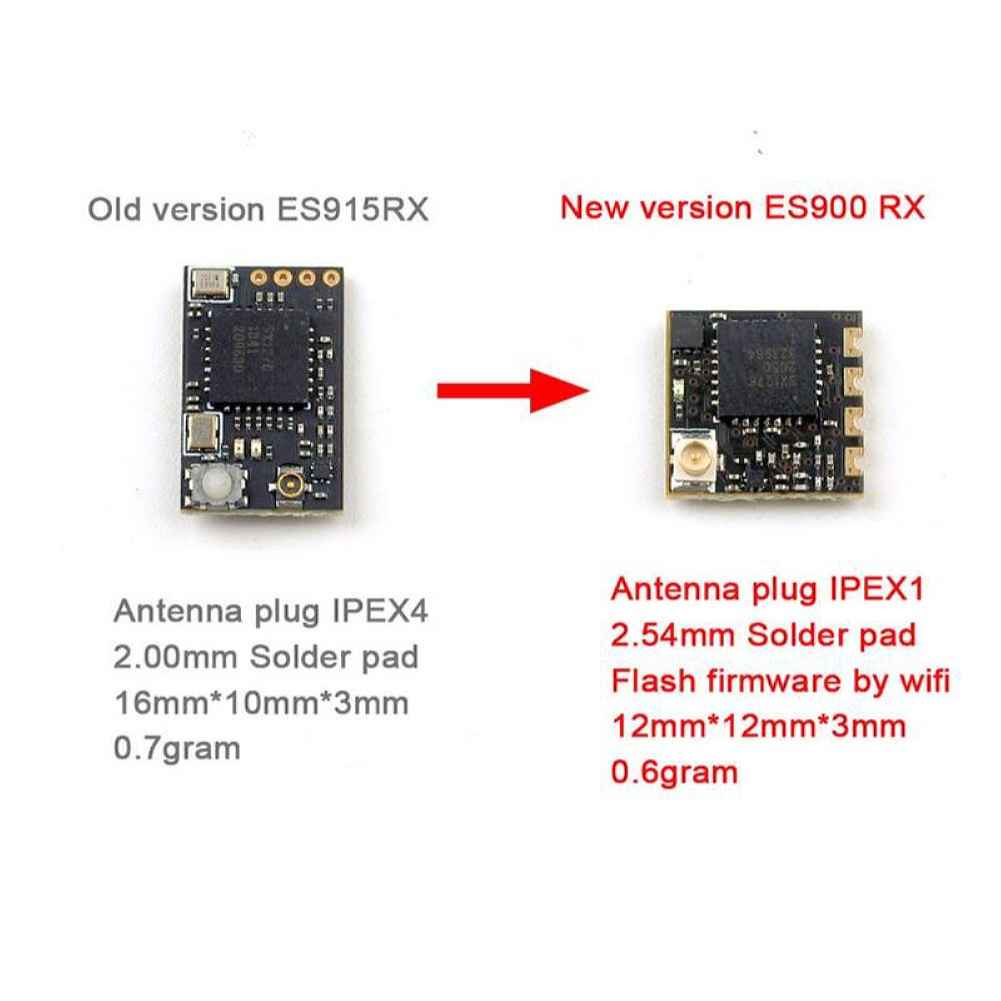

ES915RX(Discontinued) | ES900 RX | ES915TX(Discontinued) | ES900TX | |
MCU | STM32F103RBH6 | ESP8285 | STM32F103C8T6 | ESP32+ESP8285 |
RF Chip | SX1276IMLTRT | SX1276IMLTRT | SX1276IMLTRT | SX1276IMLTRT |
Antenna plug | IPEX4 | IPEX1 | SMA | SMA |
Dimension | 16mm*10mm*3mm | 12mm*12mm*3mm | 55mm*39mm*13mm | 55mm*39mm*11mm |
Weight | 0.7g | 0.6g | / | / |
Firmware upload | Betaflight pass-through | Betaflight pass-through or Wifi | SD-card or Configurator | Wifi or Configurator |
As ExpressLRS firmware is constantly being improved and updated, we strongly recommend that you use the ExpressLRS configurator update firmware to get the best experience
Configurator: https://github.com/ExpressLRS/ExpressLRS-Configurator/releases
Firmware: https://github.com/ExpressLRS/ExpressLRS/releases
Bind procedure:
– Supply power to the ES900RX, wait until the red LED on the ES900RX are off, immediately turn off the power, and then repeat again the above steps. When the ES900RX is powered on for the third time, the red LED light will start to double flash quickly, which means that the ES900RX enters the binding mode.
– Insert the ES900TX or ES915TX module to Radio transmitter, and choose External RF mode to CRSF protocol, then you can find ELRS menu from the Radio systems, Enter into ELRS and press [Bind], the Red LED on the ES900RX module will turning off then start blinking slowly and finally getting to be solid , this means bind successfully.
ES900RX firmware update by wifi procedure:
– Make the ES900RX enter into Bind mode and then wait around 1 minute and don??t bind with it , then the ES900RX would get into Wifi mode automatically, you could connected the wifi hot pot ??ExpressLRS RXby enter the password ??expresslrs/p>- Visit the firmware update website by enter 0.0.0.1, and choose the correct firmware then click ??update, wait for around 1~2 minutes, the update progress would finished and you can find ??firmware update successful and reboot, that means update is finished.
Package Include:

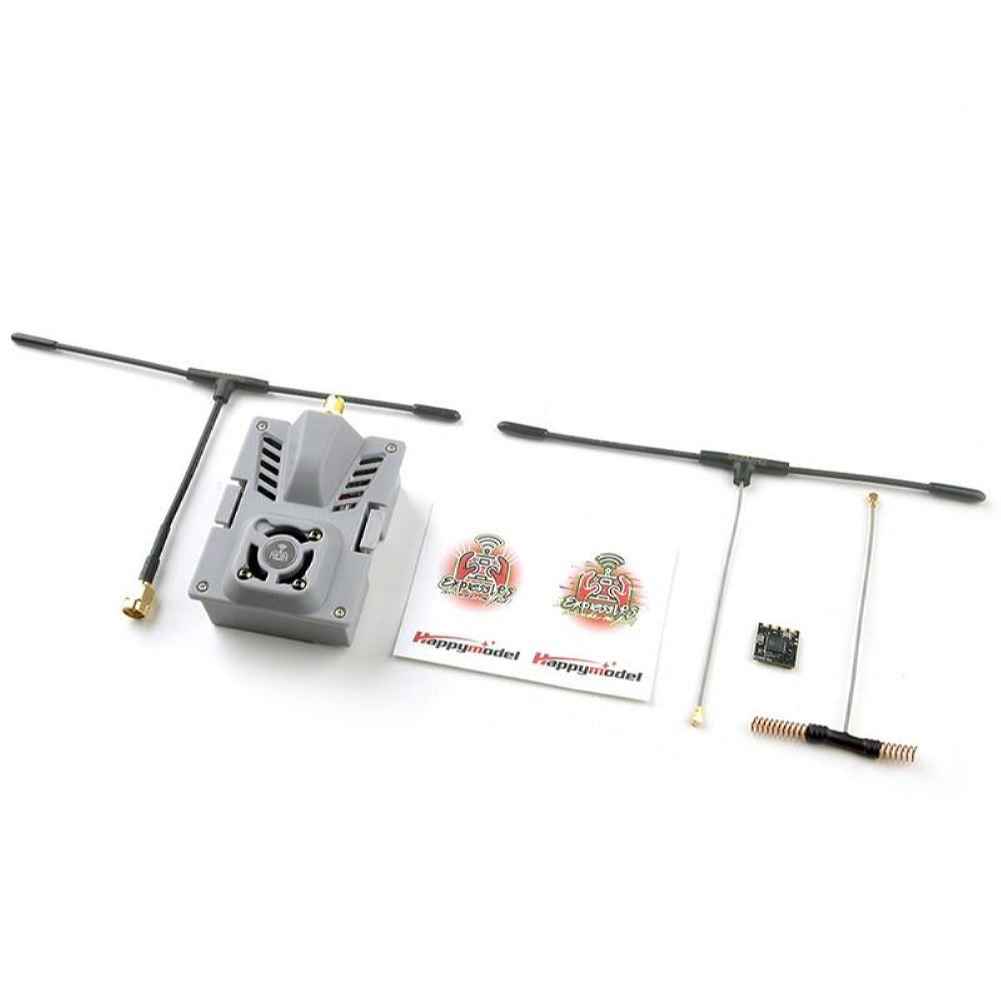

ES900TX & ES900RX 915MHz Kit:
1 x ES900TX 915MHz Module
1 x ES900RX 915MHz Receiver
1 x TX 915MHz Antenna
2 x RX 915MHz Antenna
1 x Molding JR Bay mounted case for TX module
1 x Heat sink
1 x Adapter wire
1 x 2006 Fan

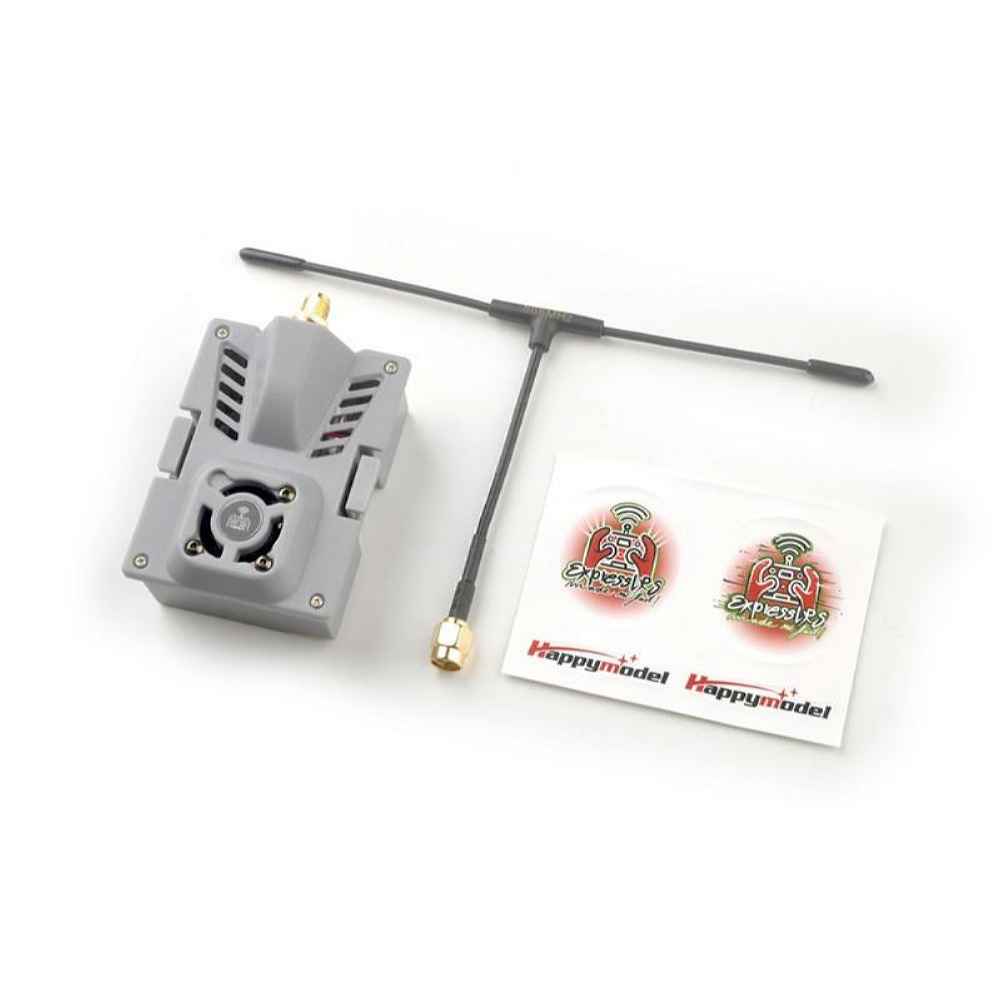

ES900TX 915MHz:
1 x ES900TX 915MHz Module
1 x TX 915MHz Antenna
1 x Molding JR Bay mounted case for TX module
1 x Heat sink
1 x Adapter wire
1 x 2006 Fan

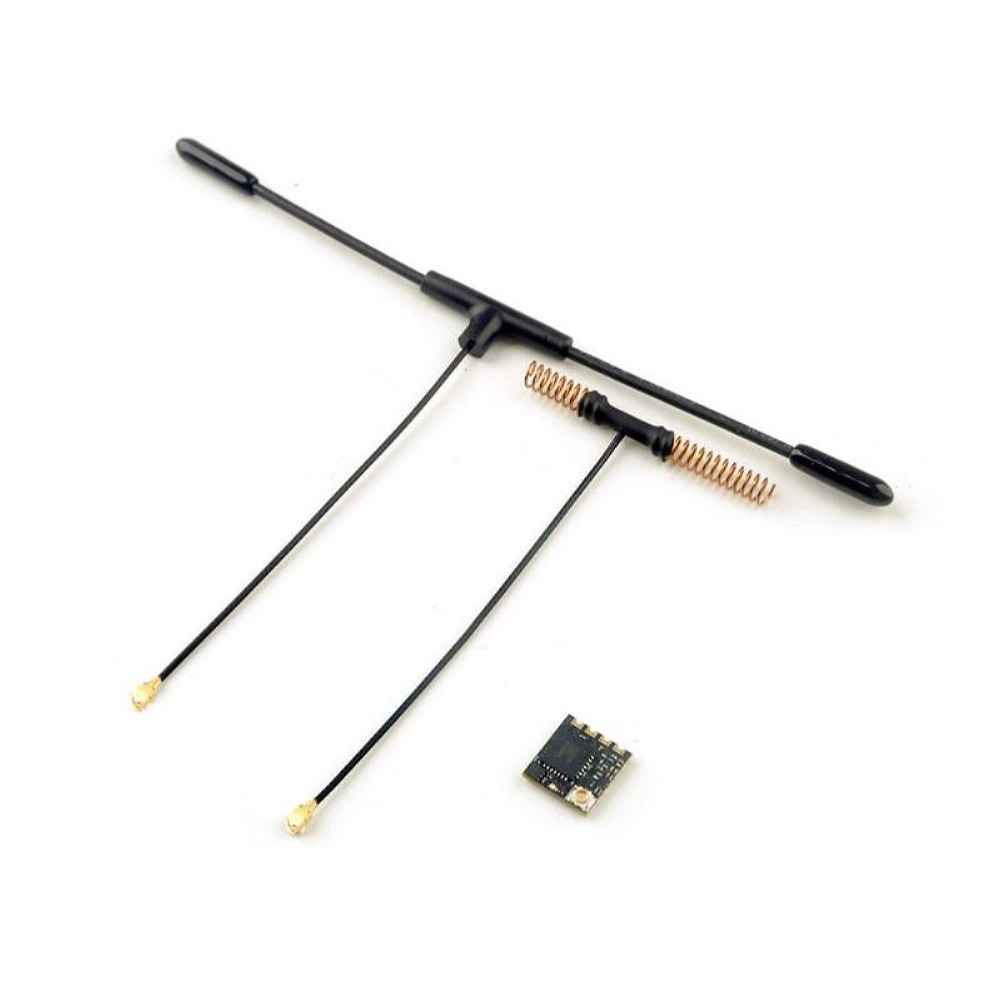

ES900RX 915MHz:
1 x ES900RX 915MHz Receiver
2 x RX 915MHz Antenna
