Description

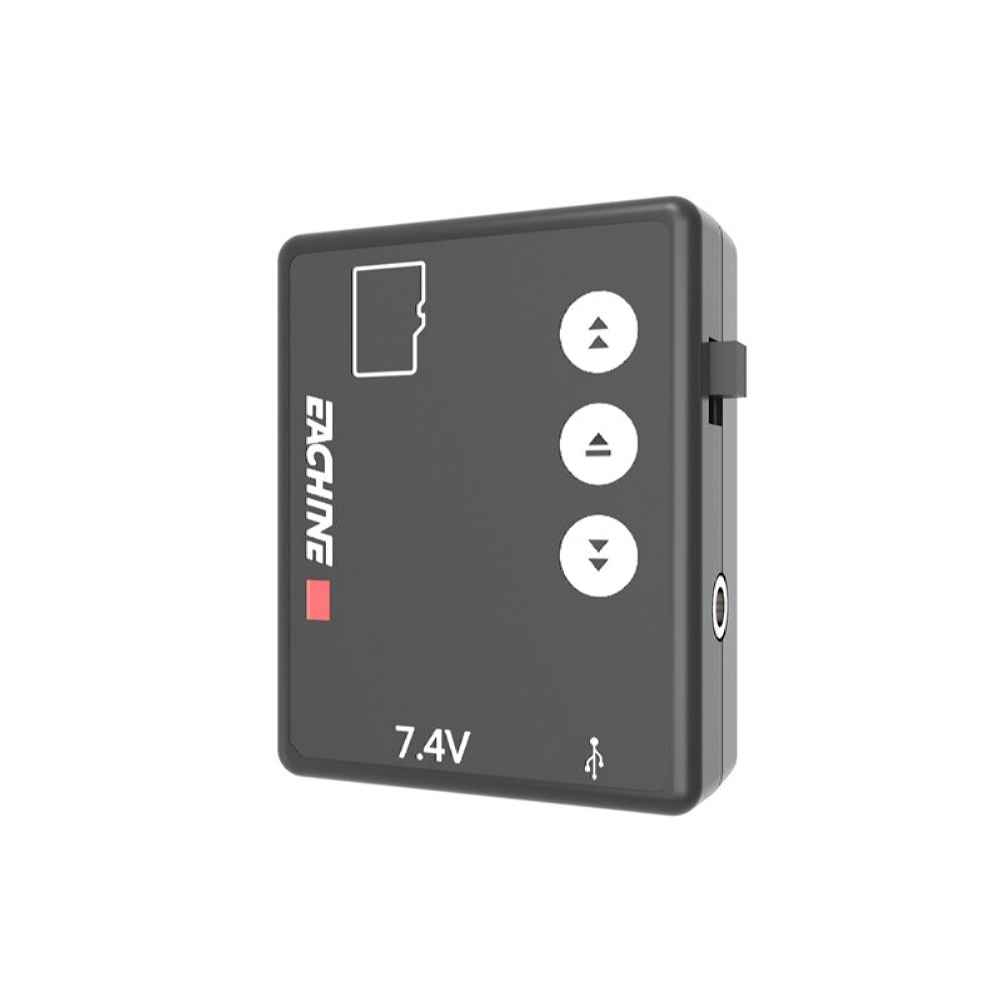

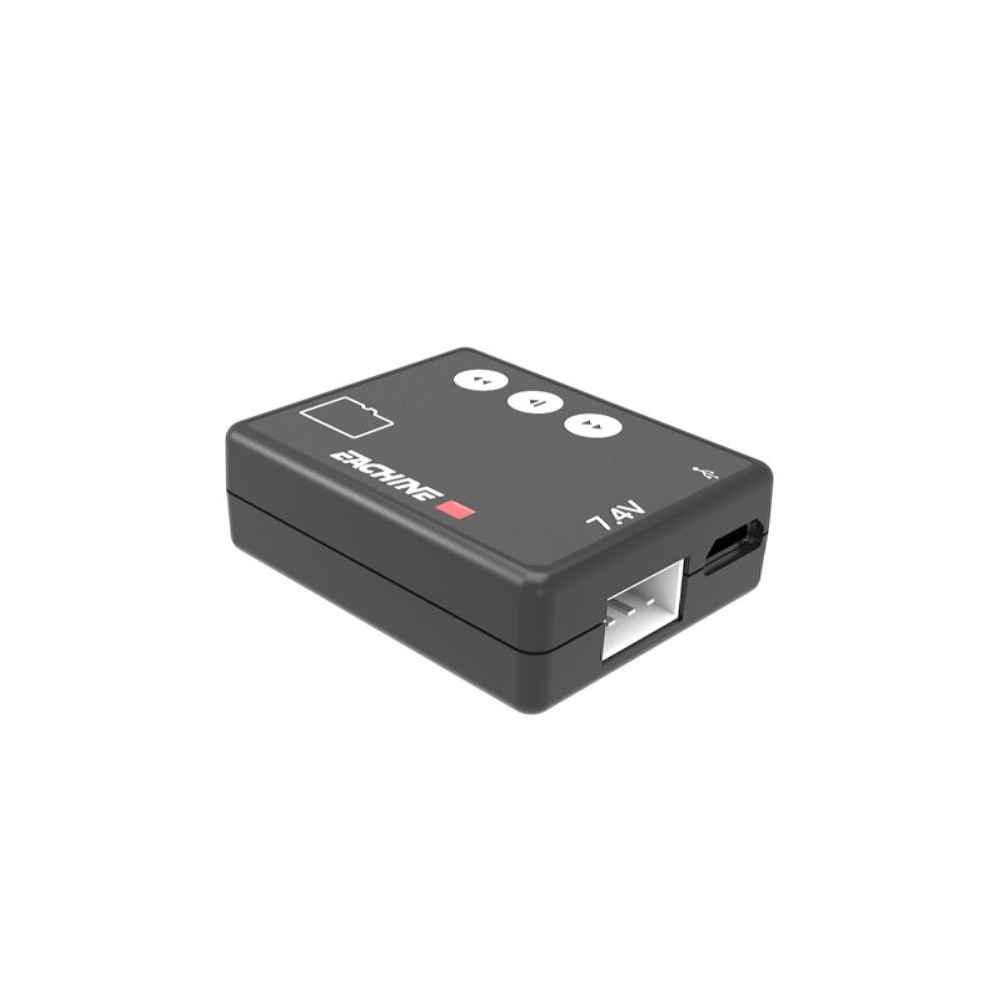

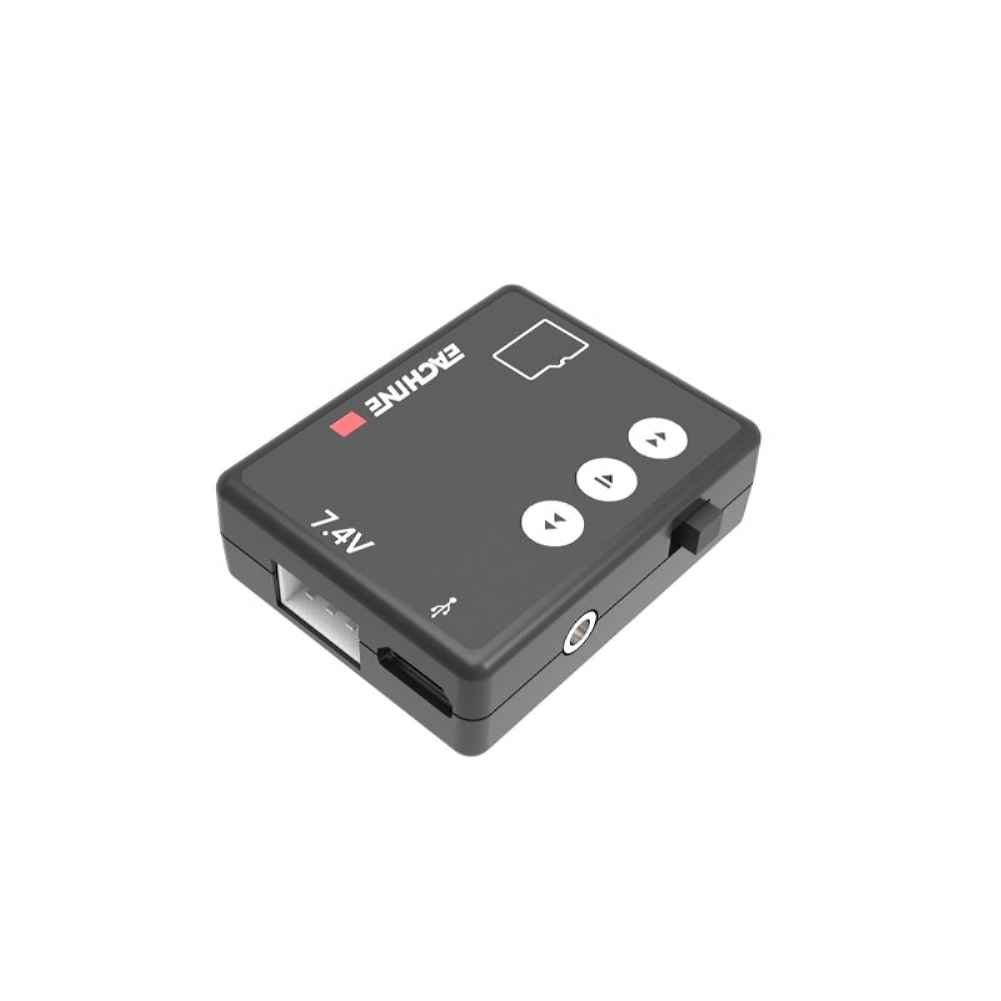

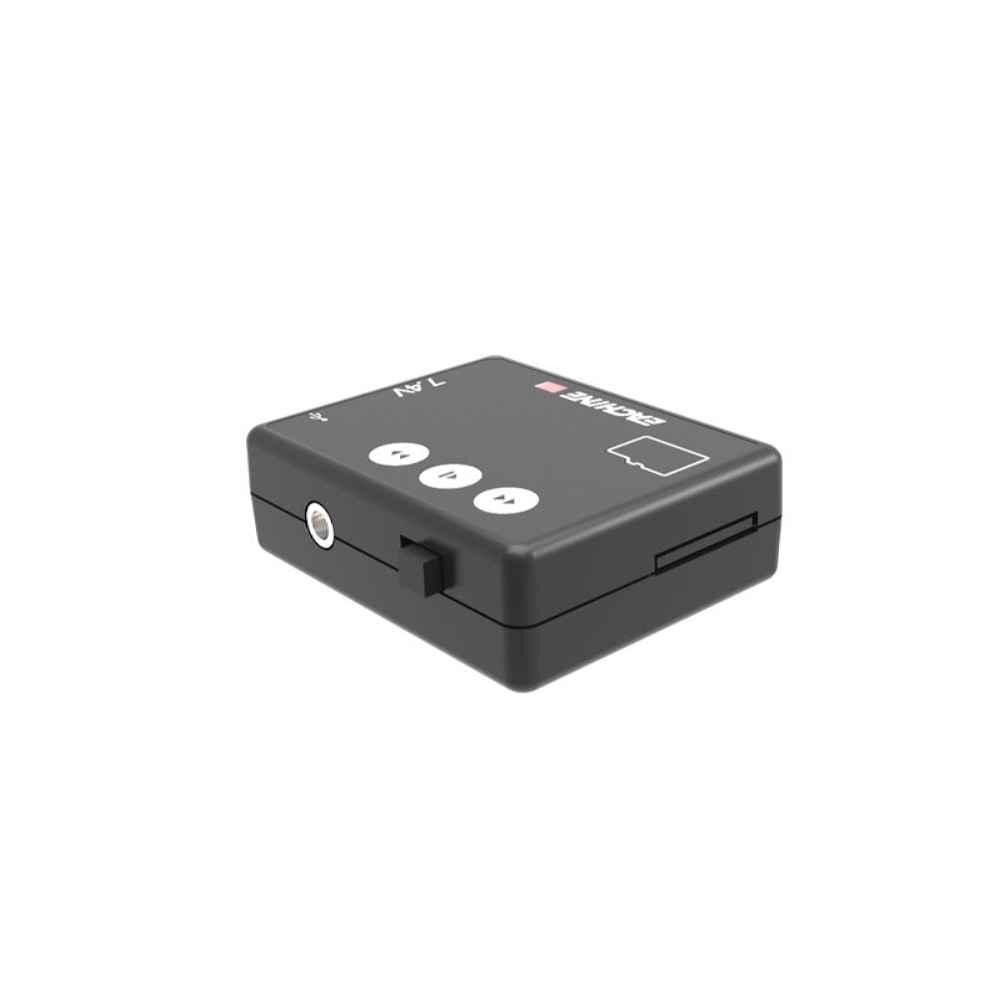

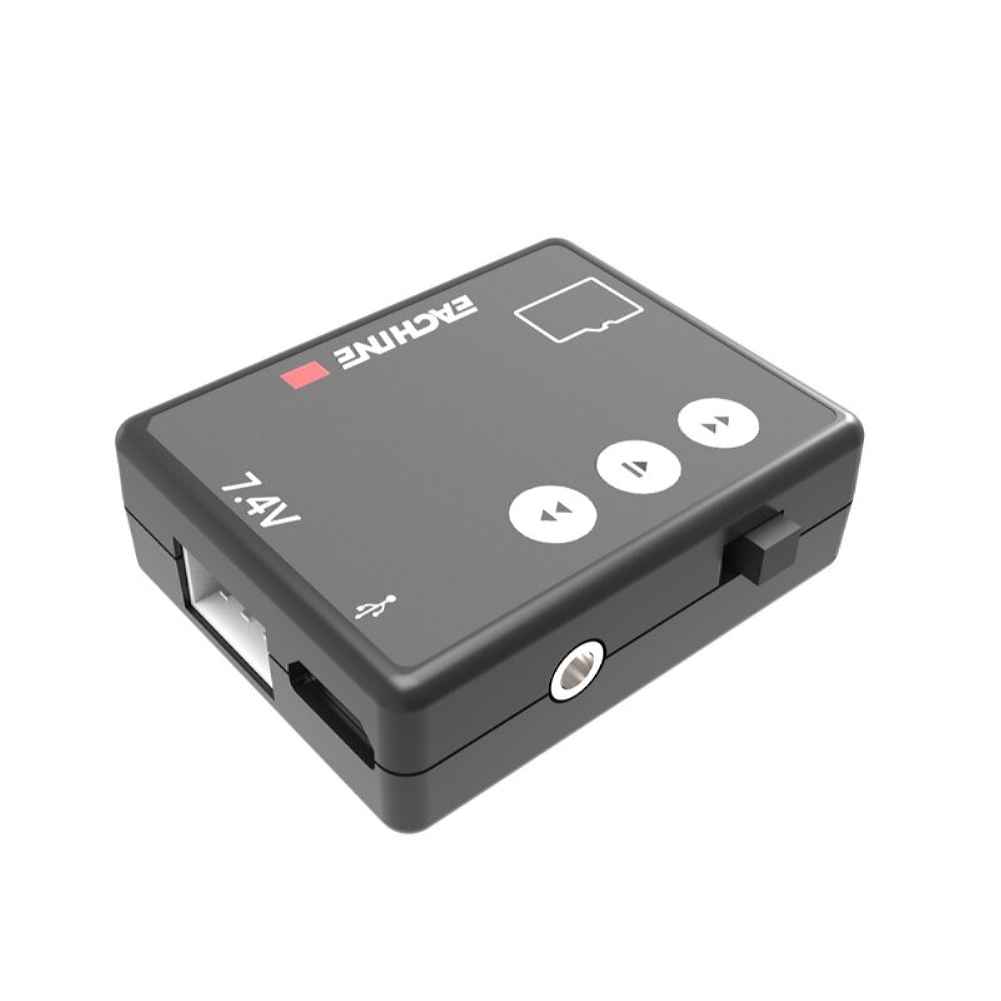

Eachine EV100 Micro AV Recorder 1280*480 Mini DVR Module Support 32G TF For FPV Goggles Monitor Camera Receiver Drone
The Eachine EV100 Micro AV Recorder is a compact and lightweight DVR module designed for FPV goggles, cameras, and drone receivers. It operates on a DC voltage of 5V or 7.4V (2S) and has a working current range of 200MA to 240MA. This mini DVR supports video formats in NTSC and PAL, offering video output sizes of VGA (640x480px), D1 (720×480), and HD (1280×480). It records at a frame rate of 30 frames per second and utilizes MJPEG compression in AVI format. With a maximum support for 32G TF cards, this recorder is ideal for capturing clear and smooth video footage. The module measures 38.5mm x 30.8mm x 12.5mm and weighs only 9g, making it easy to integrate into your FPV setup.
Specification:
Item name: EV100 DVR Video Audio Recorder
Operating Voltage: DC 5V/ 7.4V(2S)Working Current : 200MA ~ 240MA
Video Format: NTSC/PAL
Video Output Size: VGA(640*480px)D1(720*480)HD(1280*480)
Light Frequency: 50HZ/60HZ
Compress Format: MJPEGVideo Format : avi.
Records Frame Rate: 30 Frames
Max Support: 32G TF Card
Size: 38.5mm*30.8mm*12.5mm
Weight: only 9g
Package Included:
1 x Eachine DVR recorder
1 x A/V cable
2 x 3M adhesive
1 x Manual
