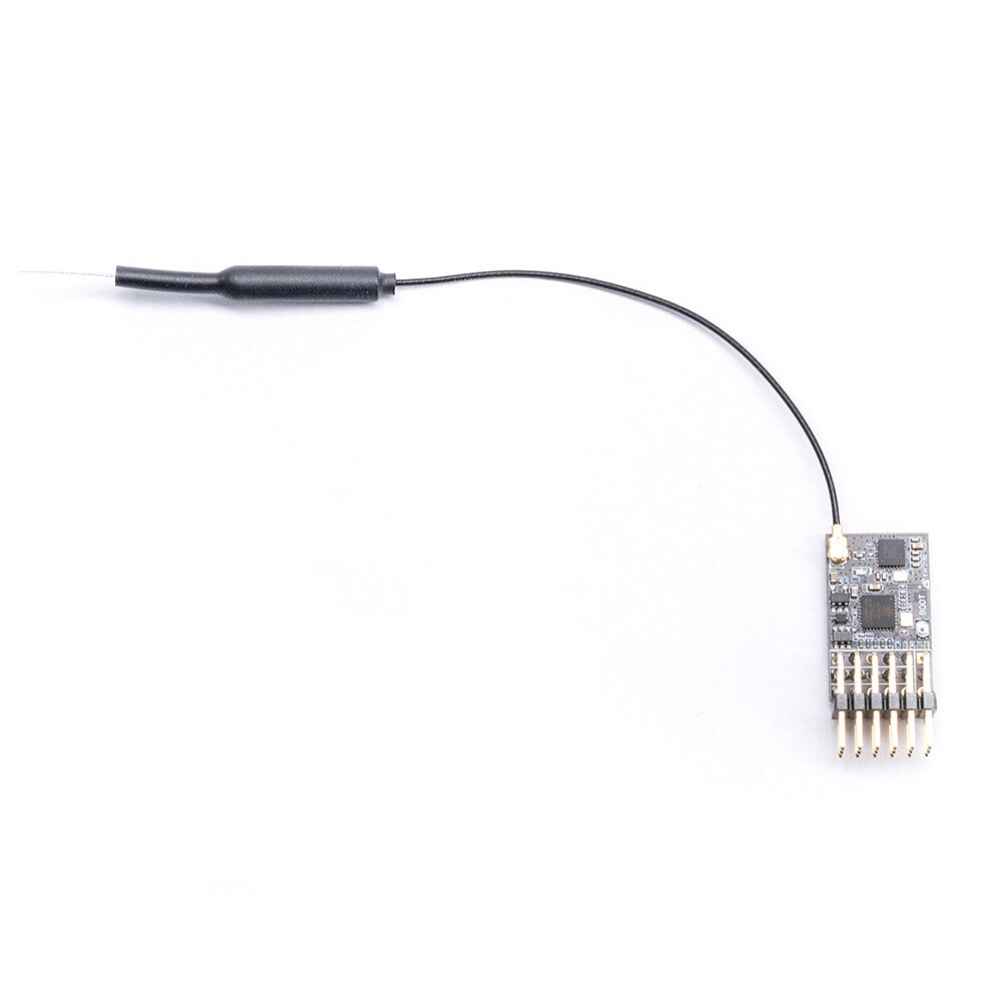

BAYCK ELRS 2.4GHz 5CH PWM Receiver for Aircraft Fixed Wing FPV RC Drone
The BAYCK ELRS 2.4GHz 5CH PWM Receiver is designed for FPV RC drones and fixed-wing aircraft, offering reliable performance with a frequency of 2.4GHz. This receiver, model BK-2.4G-5CH, features a SX1281+ESP8285 chip and supports both PWM and CRSF output protocols. It operates with a telemetry power of 12dbm and supports a maximum voltage of 34V backhaul with firmware version 3.0.0 or above. The receiver is lightweight at 4.7g, including the antenna, and has a compact PCB size of 15.5mm x 25.5mm. It operates efficiently with a power consumption of 45mA in a connected state and 85mA during WIFI upgrades.
BAYCK ELRS 2.4GHz 5CH PWM Receiver for Aircraft Fixed Wing FPV RC Drone
Specification:
Brand: BAYCK
Model: BK-2.4G-5CH
Frequency: 2.4Ghz

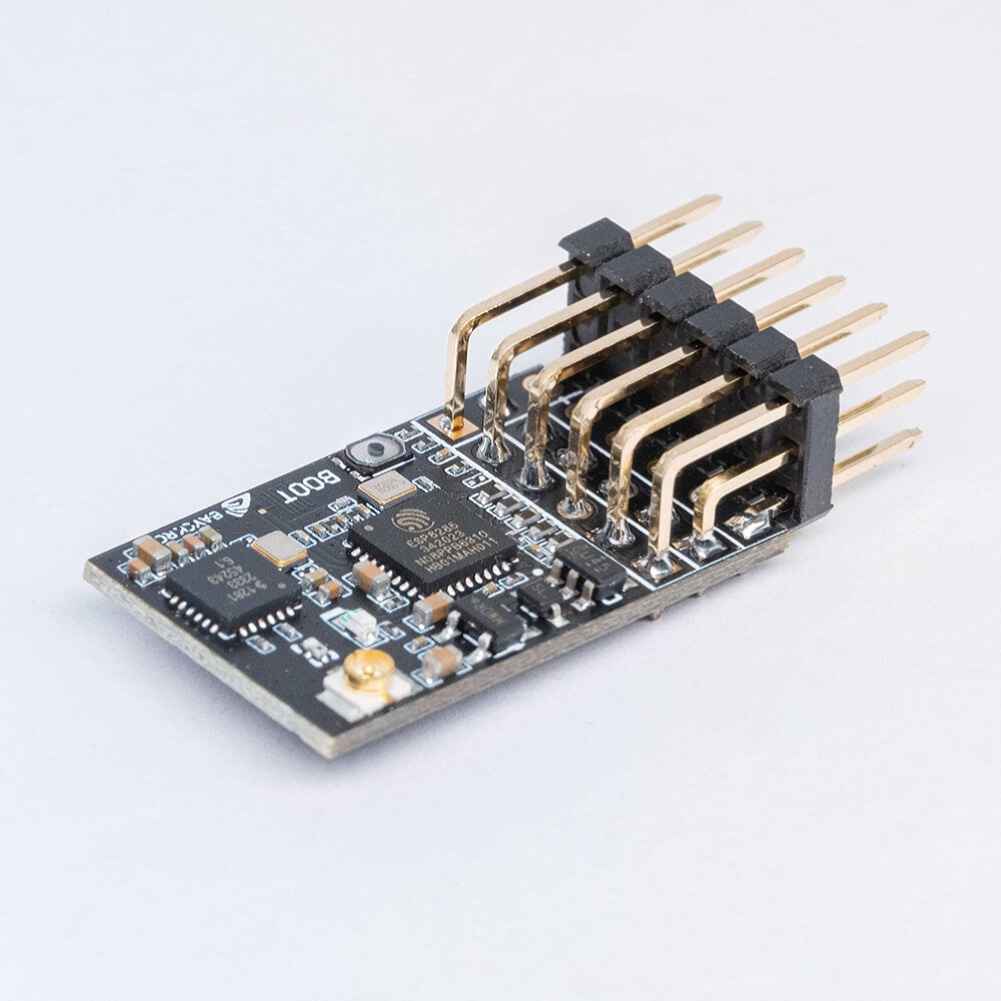

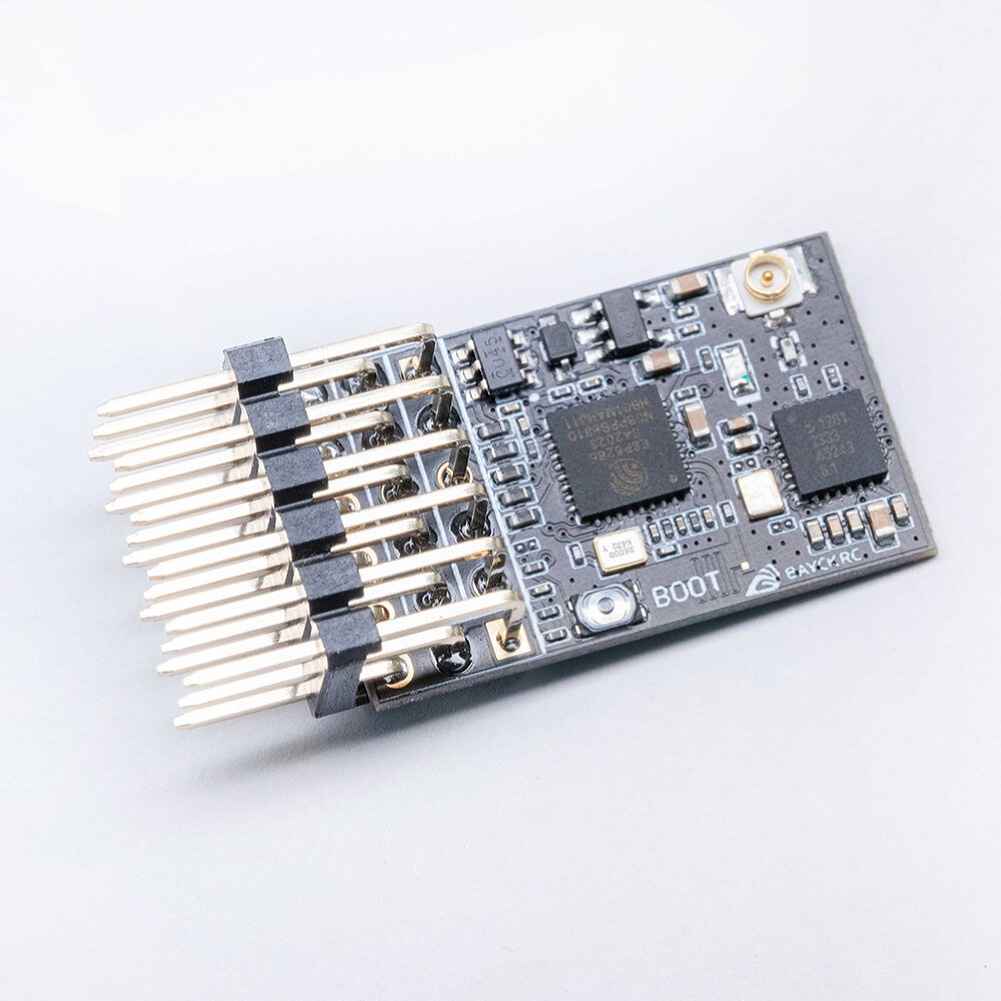

Chip: SX1281+ESP8285
Telemetry power: 12dbm
PCB color: black

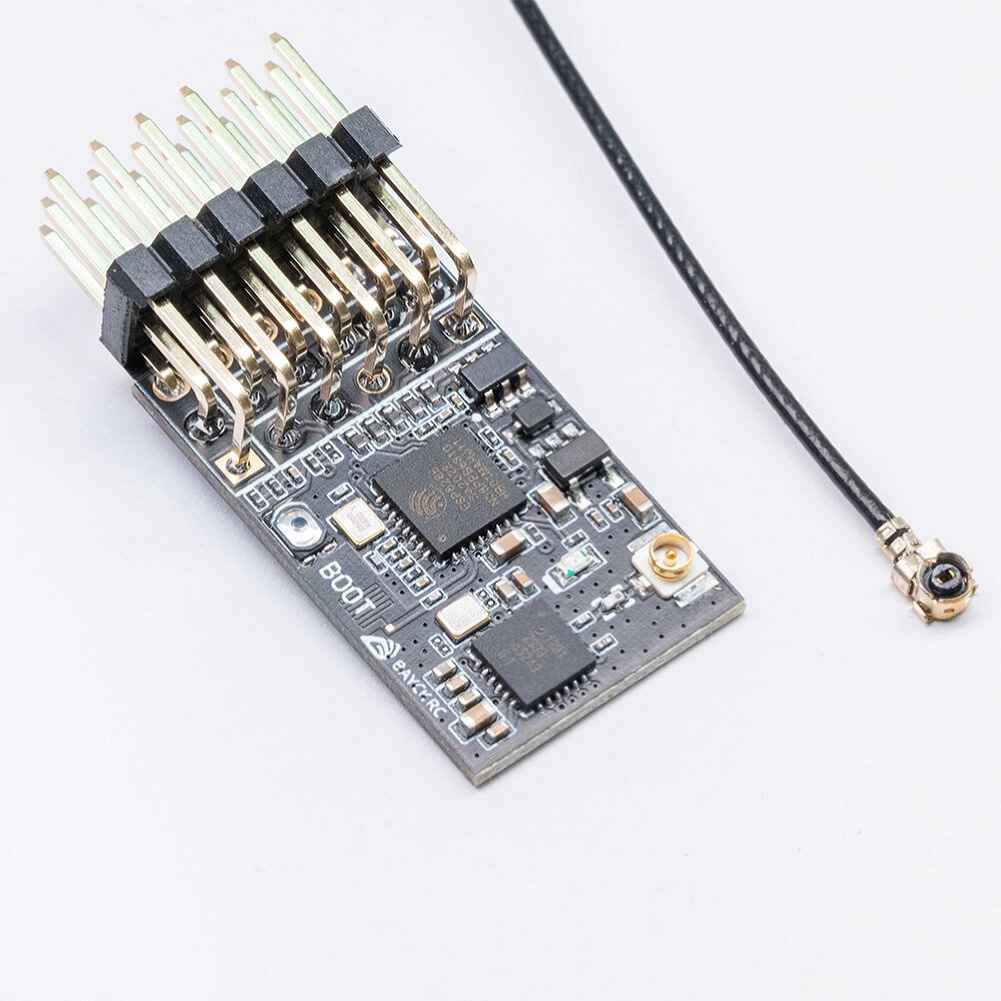

RF connector: IPEX1
Input voltage: 4-10V
PWM channel: 5 channels
Supports a maximum voltage of 34V backhaul (requires firmware version 3.0.0 and above)
Receiver output protocol: PWM or CRSF
Power consumption: 45mA@5V (connected state), 85mA@5V (WIFI upgrade state)
Weight: 4.7g (receiver plus antenna)
PCB size: 15.5mm*25.5mm

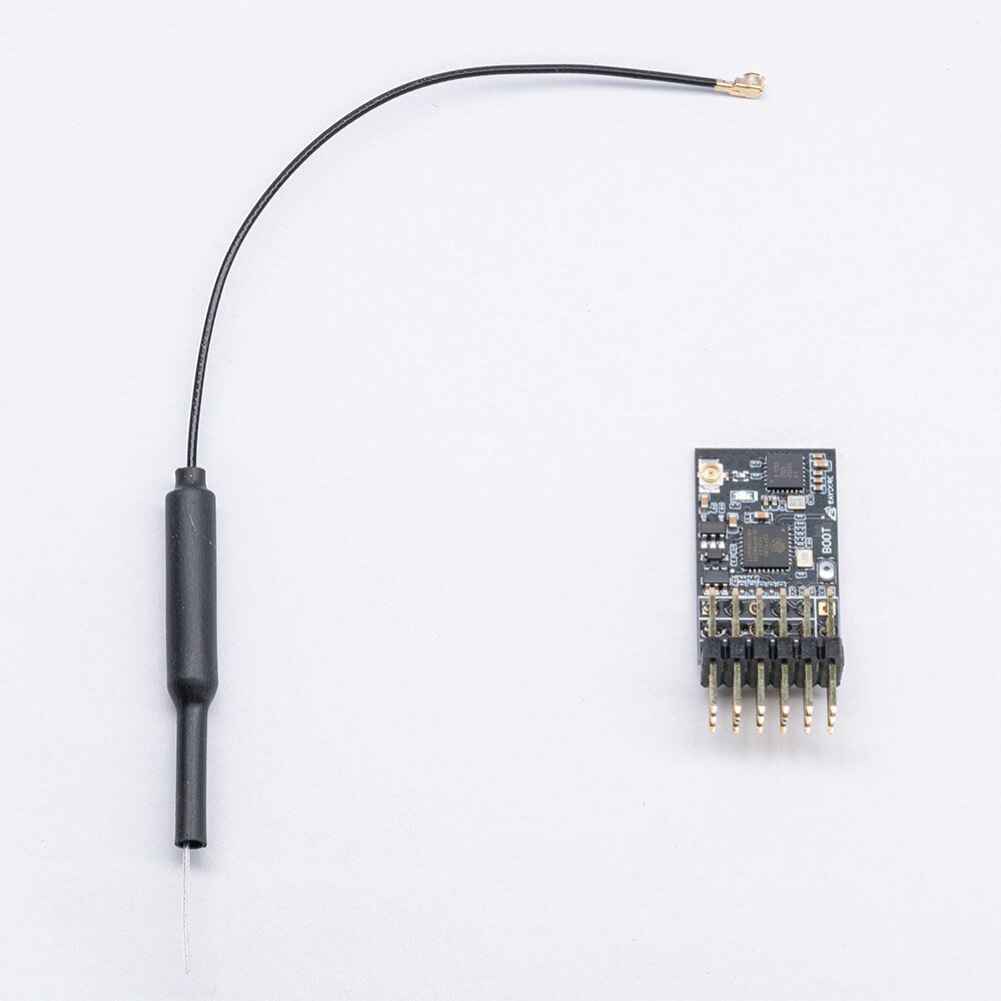

Package Included:
1x Nano Receiver
1x Antenna
