DumboRC X6PM-350 2.4GHz 6CH Mini Radio Transmitter with Gyro Support and Optional Receiver for RC Models

Description

DumboRC X6PM-350 2.4GHz 6CH Mini Radio Transmitter Support Gyro With X6FG/X6DCG/X6FP/X4FMG/BL3F Receiver for RC Car Boat Tank Model Parts

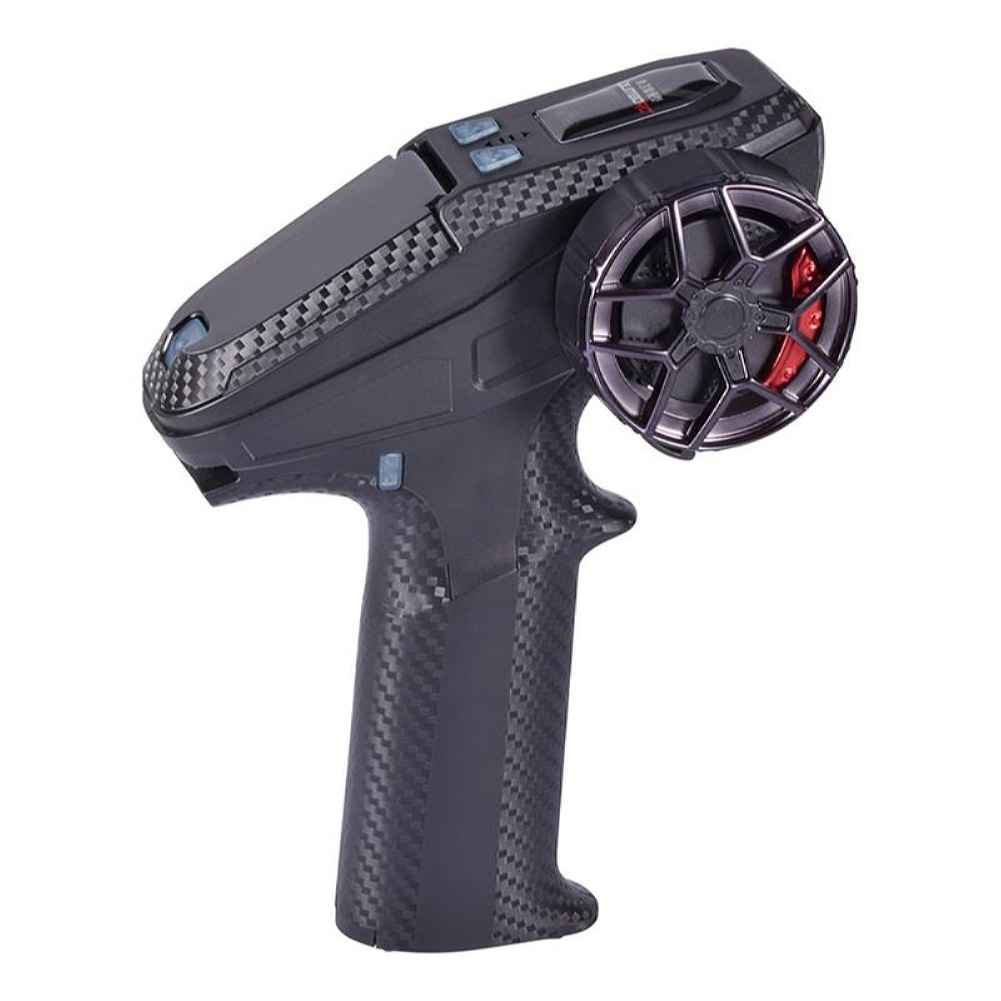

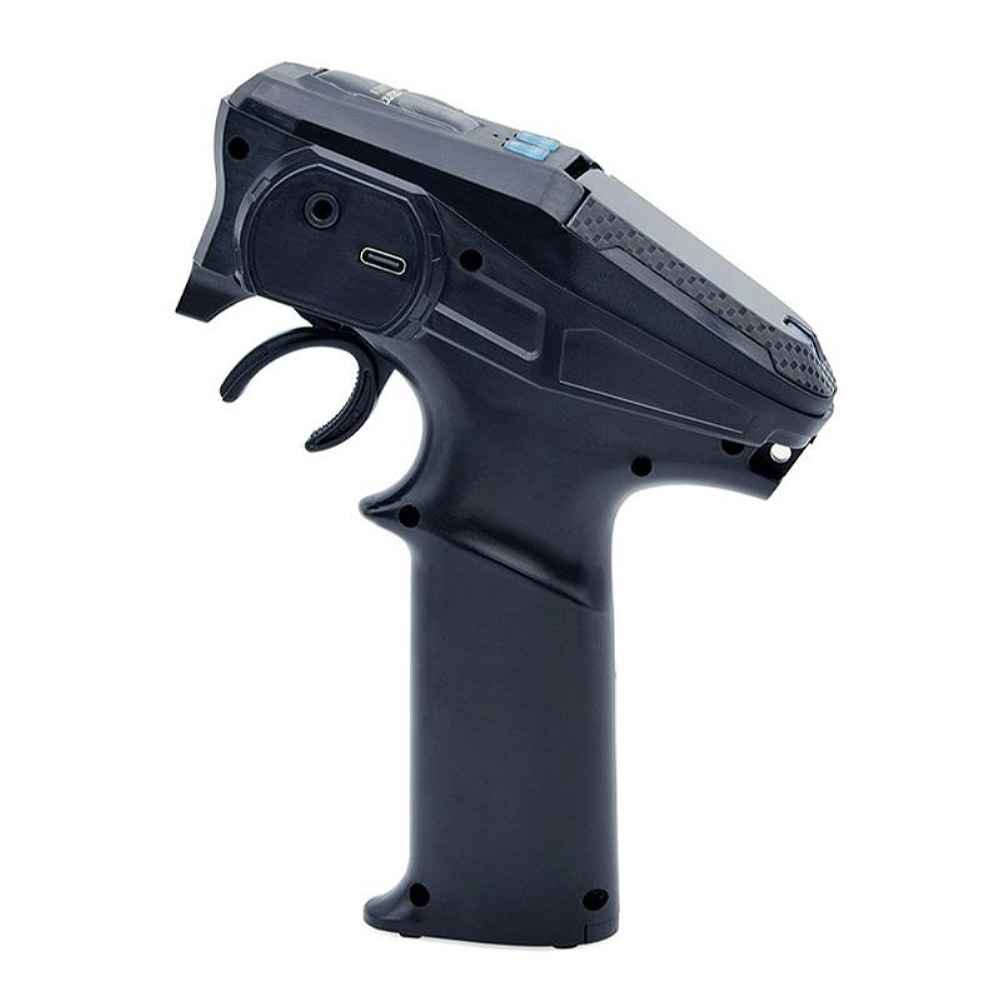

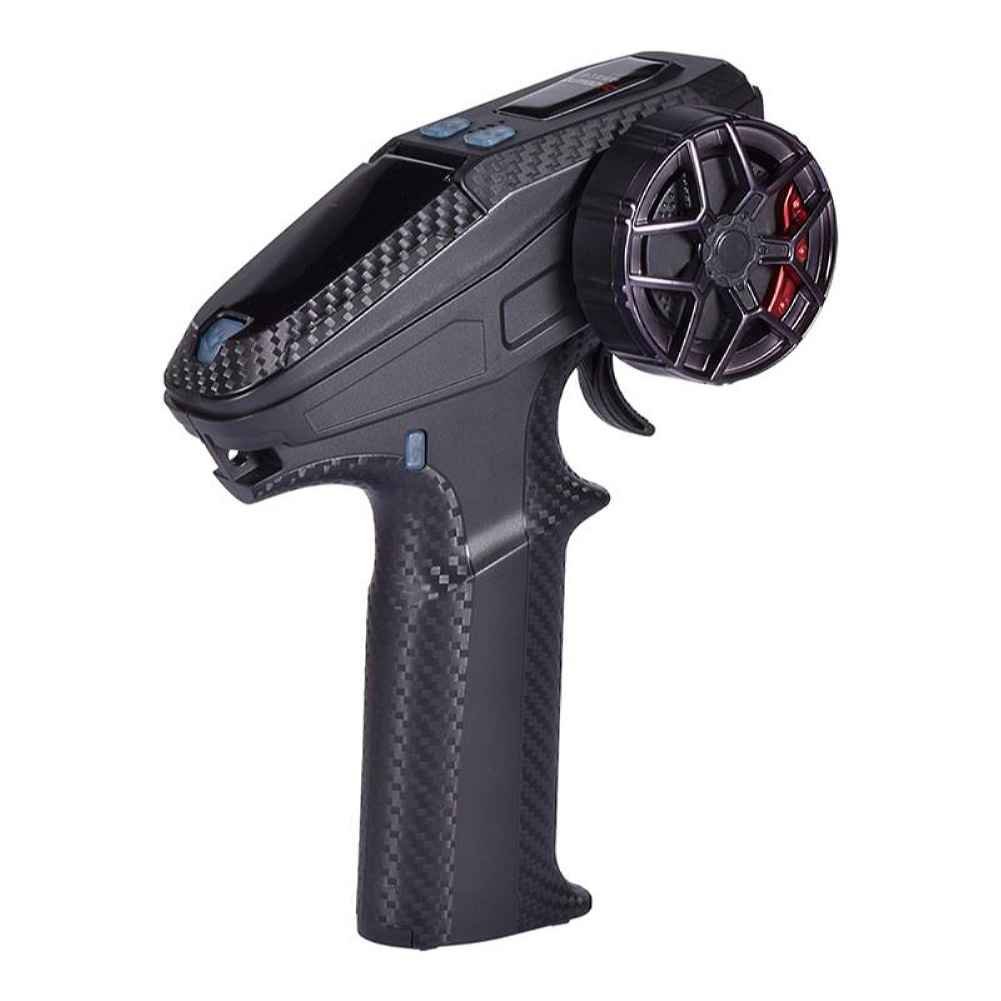

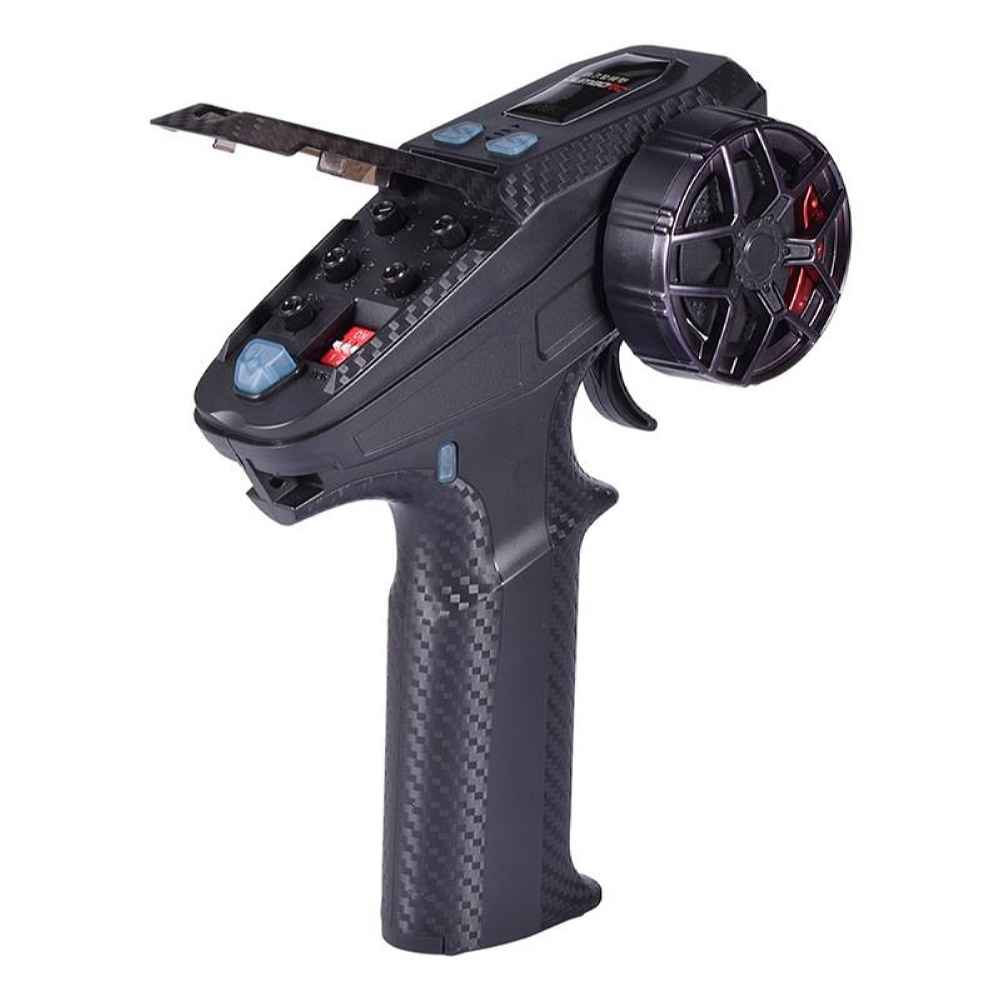

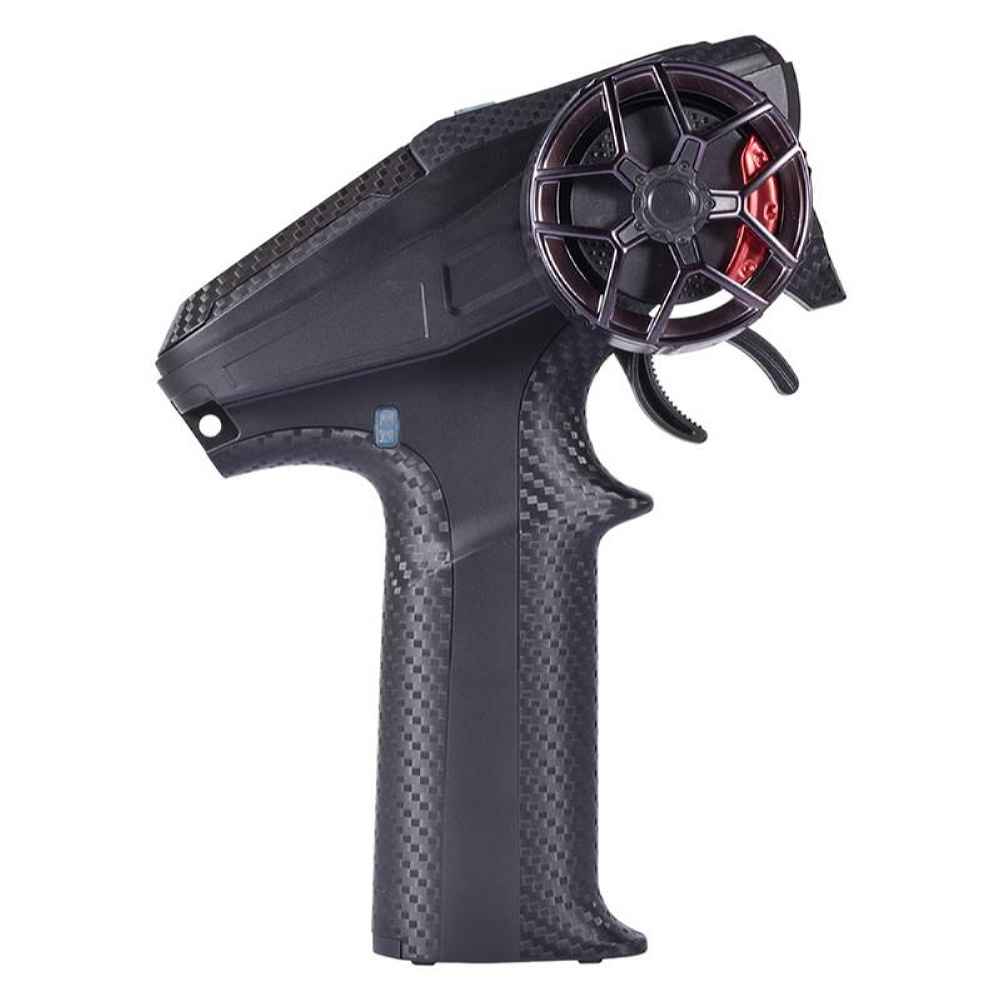

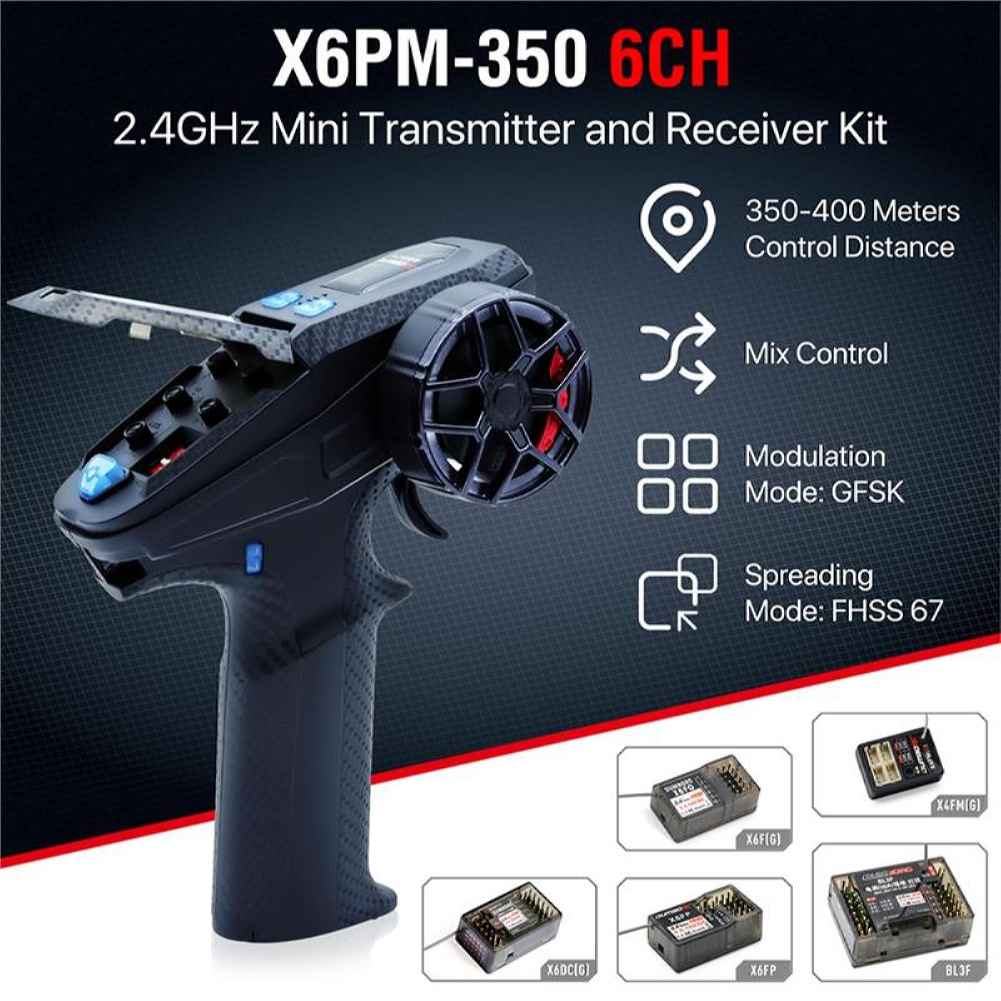

The DumboRC X6PM-350 is a 2.4GHz 6-channel mini radio transmitter designed for RC cars, boats, and tanks. It offers a control distance of 350-400 meters and operates with a modulation mode of GFSK. The transmitter is powered by four AA batteries (not included) and supports a voltage range of 4.8-12V. It features a voltage alarm and a spreading mode of FHSS with 67 channel pseudo-random frequency hopping. The optional X6F/X6FG/X6DC/X6DCG/X6FP/X4FM/X4FMG/BL3F/BL3FG receivers are compatible, offering different configurations for your RC needs. The transmitter is compact, measuring 180x130x65mm and weighing 168g.

DumboRC X6PM-350 2.4GHz 6CH Mini Radio Transmitter Support Gyro With X6FG/X6DCG/X6FP/X4FMG/BL3F Receiver for RC Car Boat Tank Model Parts
Description:
Brand: DumboRC
Model: X6PM-350

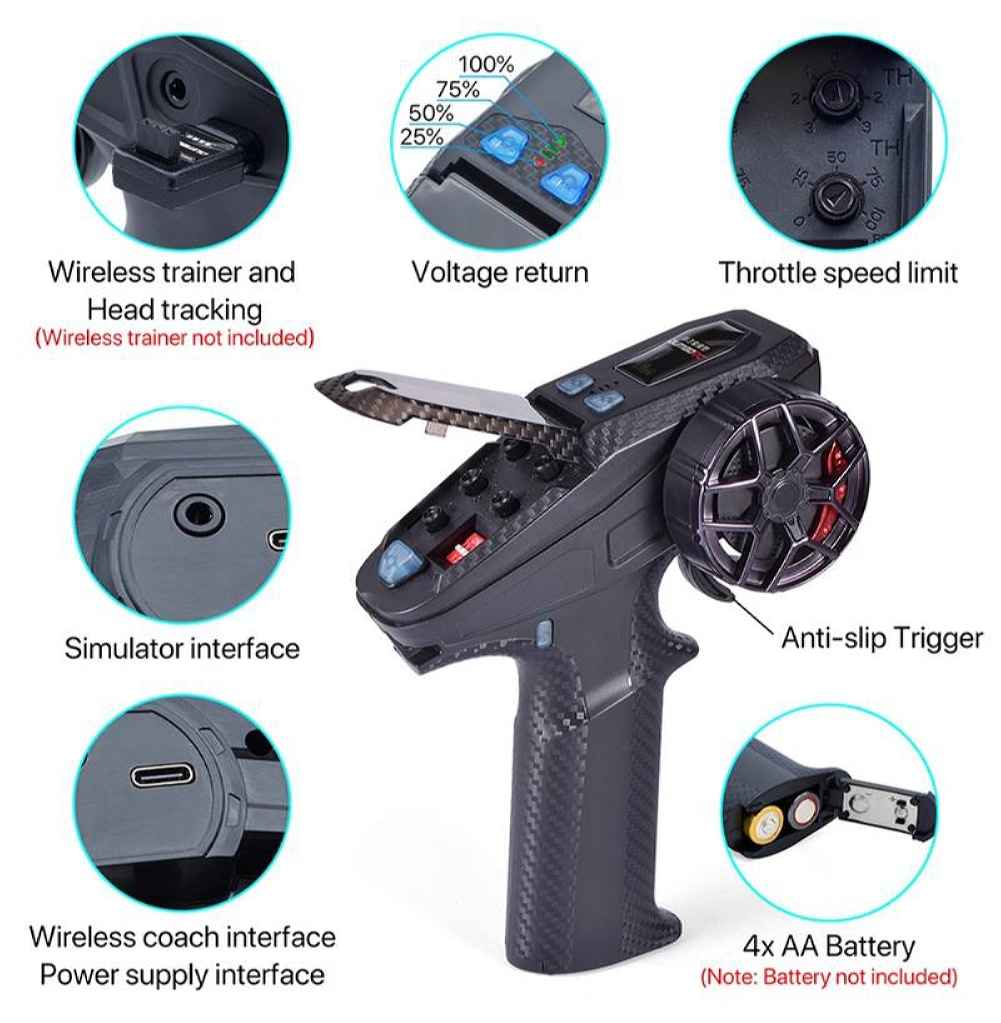

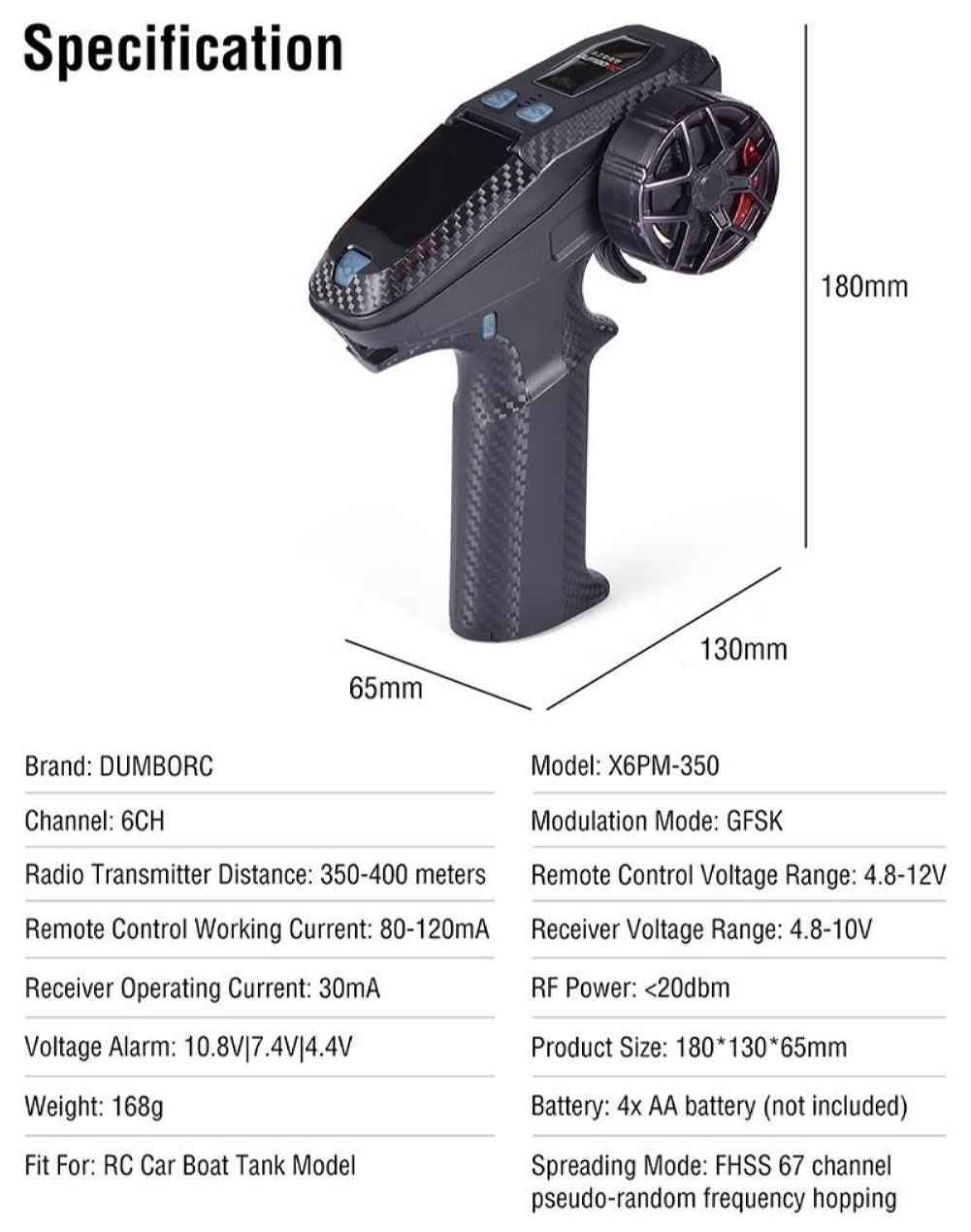

X6PM-350 Transmitter Specification:
Channel: 6CH
Radio Transmitter Distance: 350-400 meters
Remote Control Working Current: 80-120mA
Receiver Operating Current: 30mA
Modulation Mode: GFSK
Remote Control Voltage Range: 4.8-12V
Receiver Voltage Range: 4.8-10V
RF Power: <20dbm
Voltage Alarm: 10.8V7.4V/4.4V
Product Size: 180*130*65mm
Weight: 168g
Battery: 4x AA battery (not included)
Fit For: RC Car Boat Tank Mode
Spreading Mode: FHSS 67 channepseudo-random frequency hopping

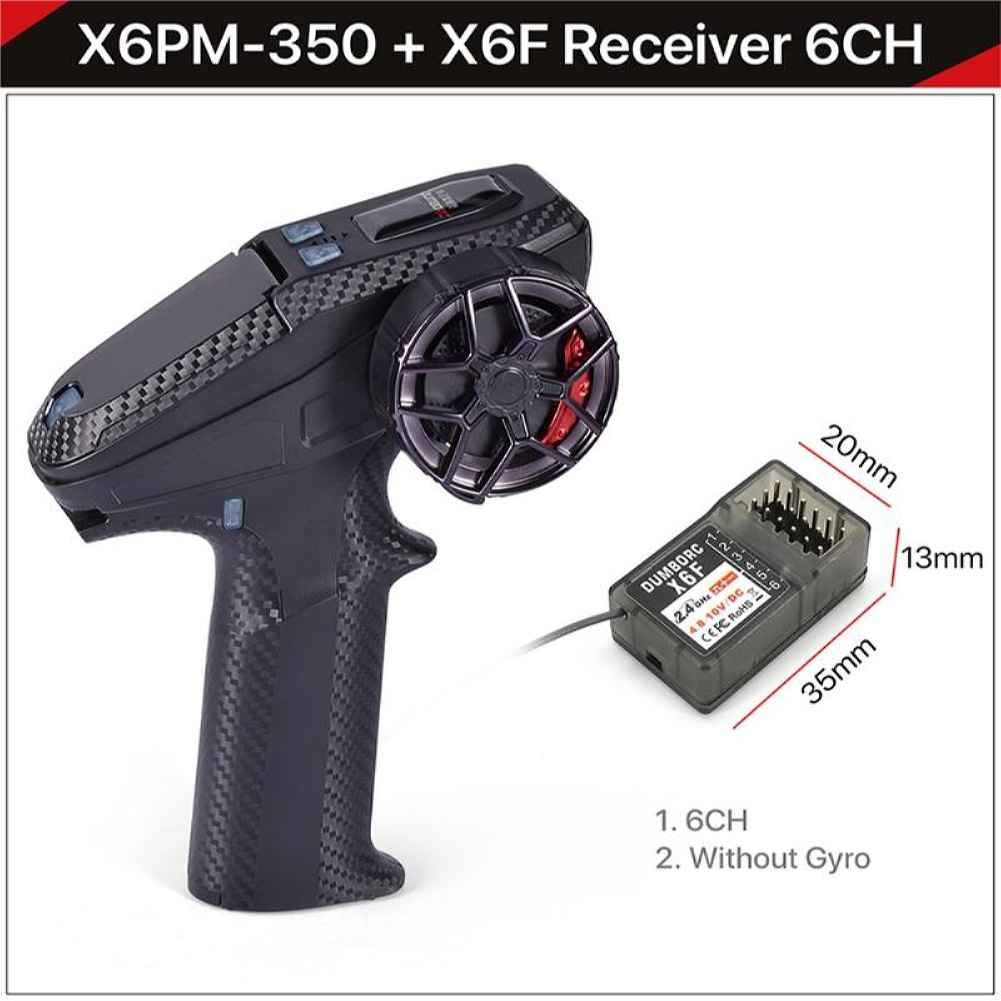

X6F Receiver Specification:
Channel: 6CH
Version: Without Gyroscope
Modulation Mode: GFSK
Spread Spectrum: FHSS
Control Distance: More than 400 meters
Voltage Range: 4.8-10V
Working Current: 30mA
Product Weight: 6.1g
Product Size: 35*20*13mm, antenna length 106 mm

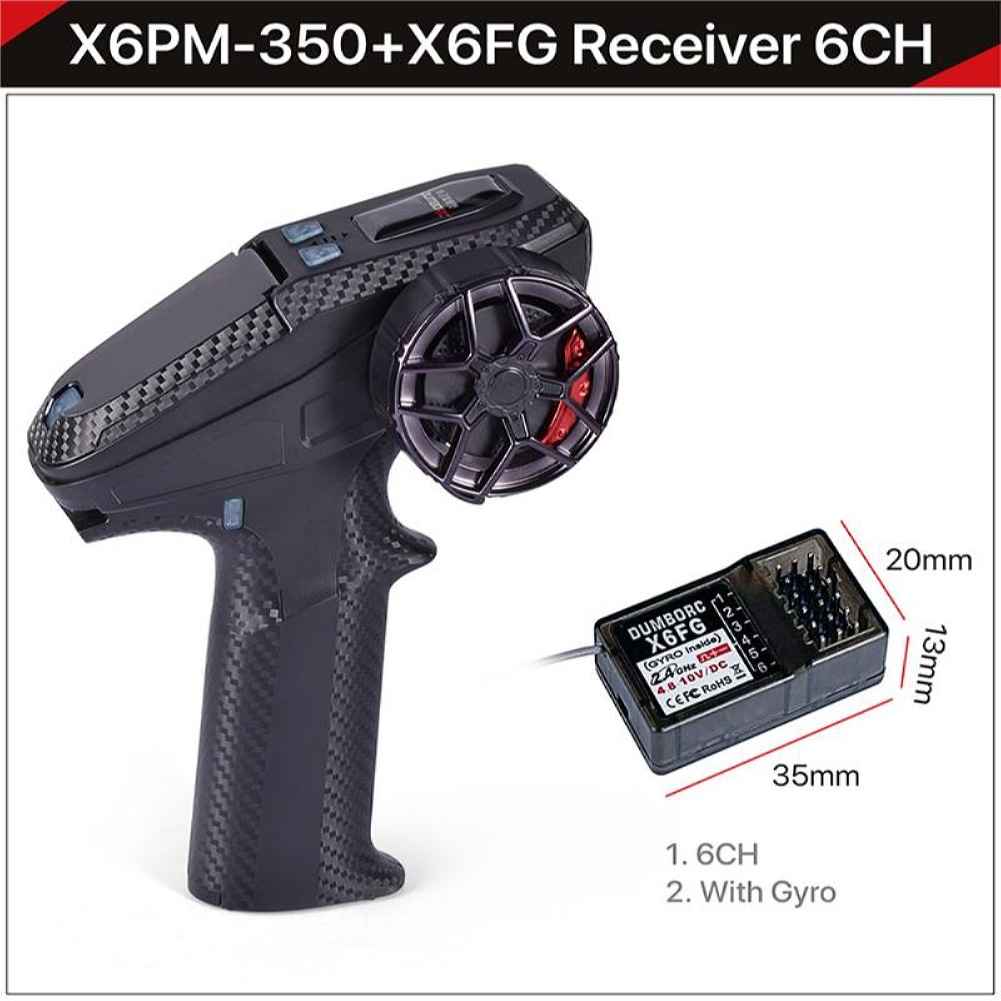

X6FG Receiver Specification:
Channel: 6CH
Version: With Gyroscope
Model: Car/boat/tank
Modulation Mode: GFSK
Spread Spectrum: FHSS
Control Distance: More than 400 meters
Voltage Range: 3.3-10V
Working Current: 30mA
Product Weight: 6.1g
Product Size: 35*20*13mm, antenna length 106 mm

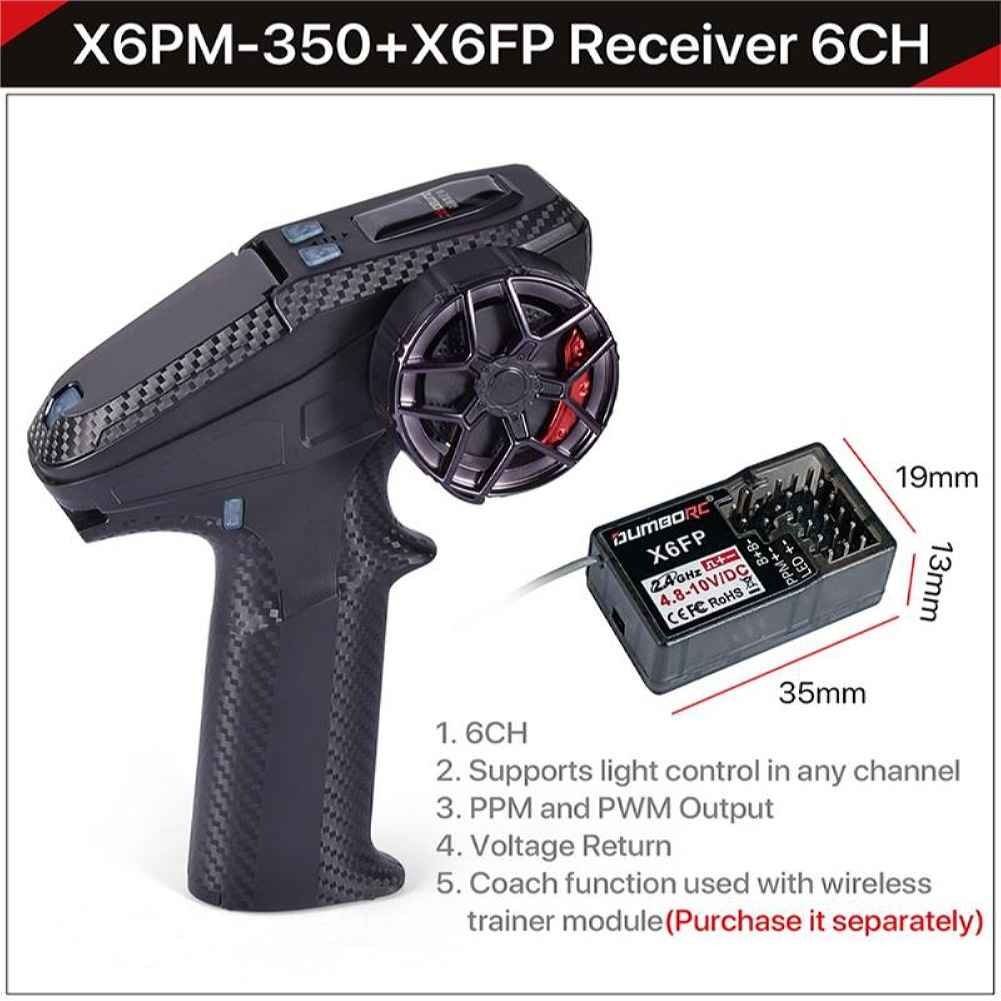

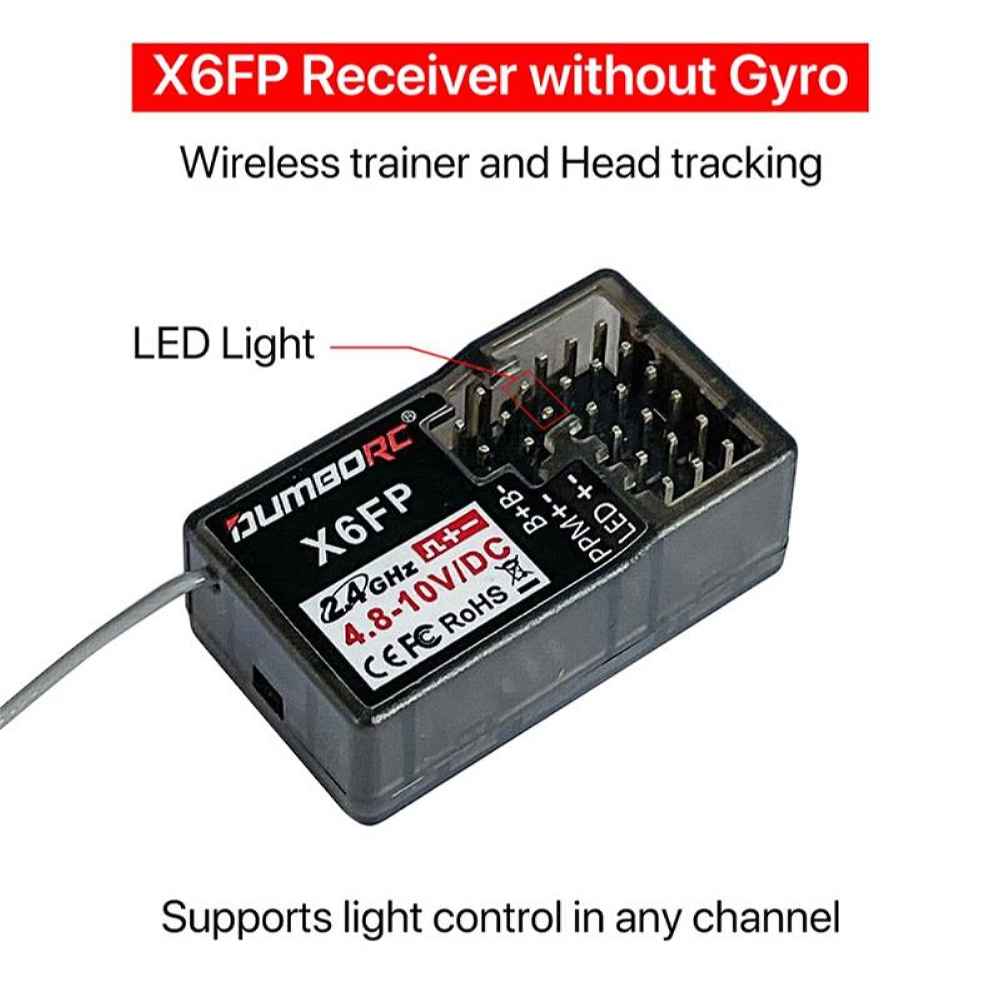

X6FP Receiver Specification:
1. Channel: 6CH
2. Supports light control in any channel
3.PPM and PWM Output
4. Voltage Return
5. C0ach function used with wirelesstrainer module (Purchase it separately).

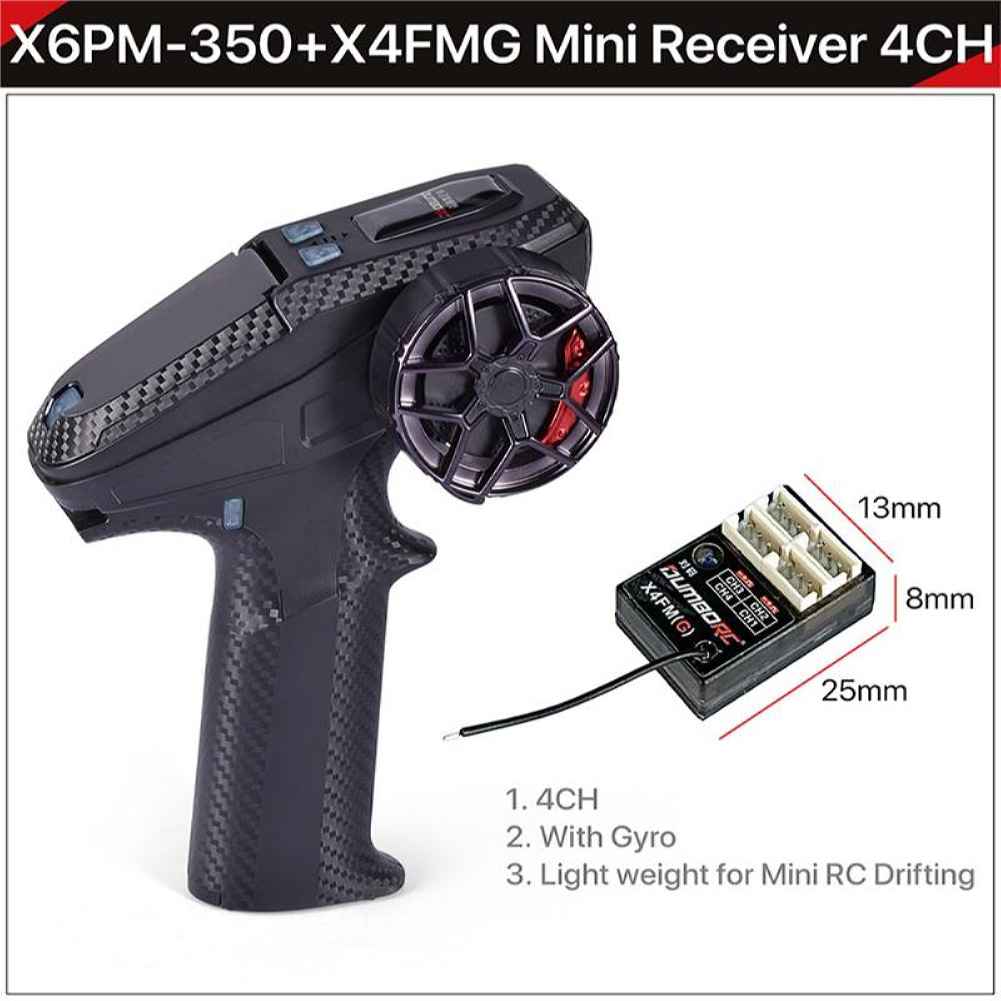

X4FMG Receiver Specification:
Signal: PWM
Channel: 4CH
Version: With Gyroscope
Voltage Range: 3V-10VDC
Size: 25*13*8mm
Weight: 2.3g
Working Current: 30mA@5V
Spread Spectrum: FHSS (67 channel pseudo-random frequency hopping)
X4FM Receiver Specification:
Signal: PWM
Channel: 4CH
Version: Without Gyroscope
Voltage Range: 3V-10VDC
Size: 25*13*8mm
Weight: 2.3g
Working Current: 30mA@5V
Spread Spectrum: FHSS (67 channel pseudo-random frequency hopping)

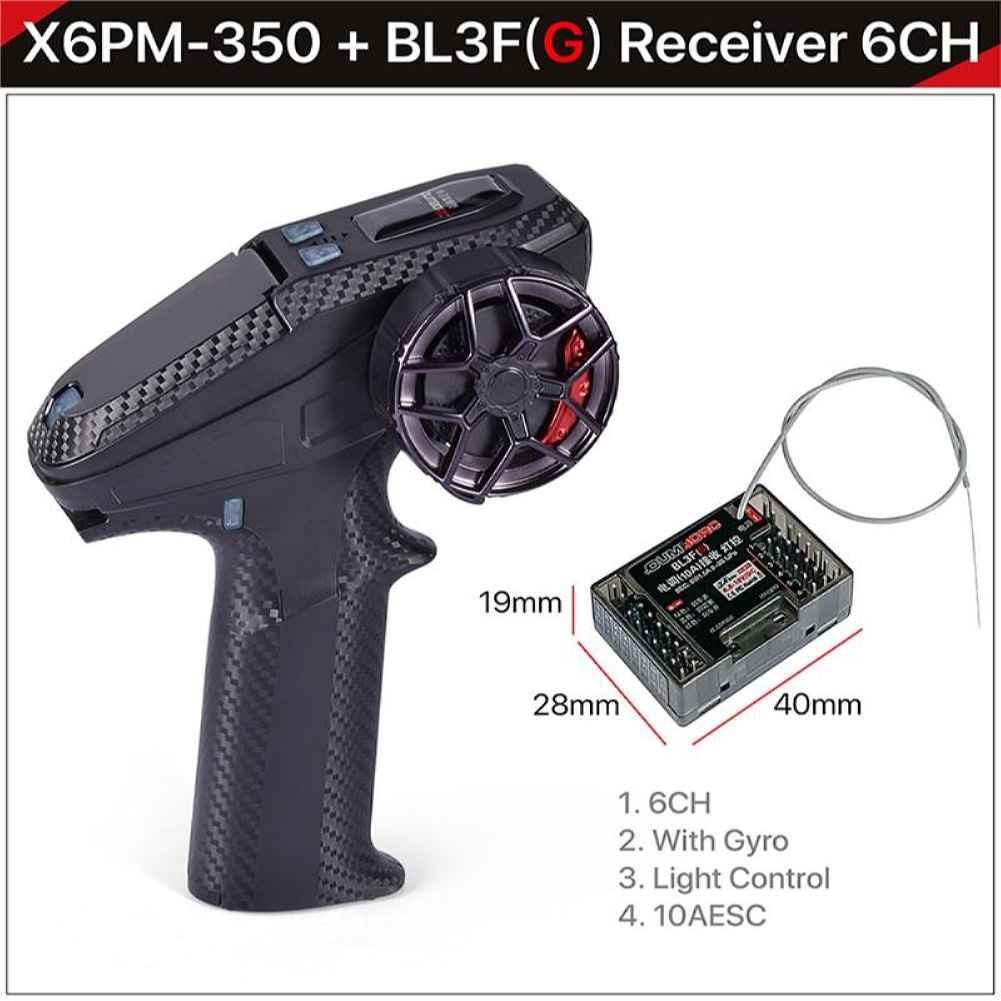

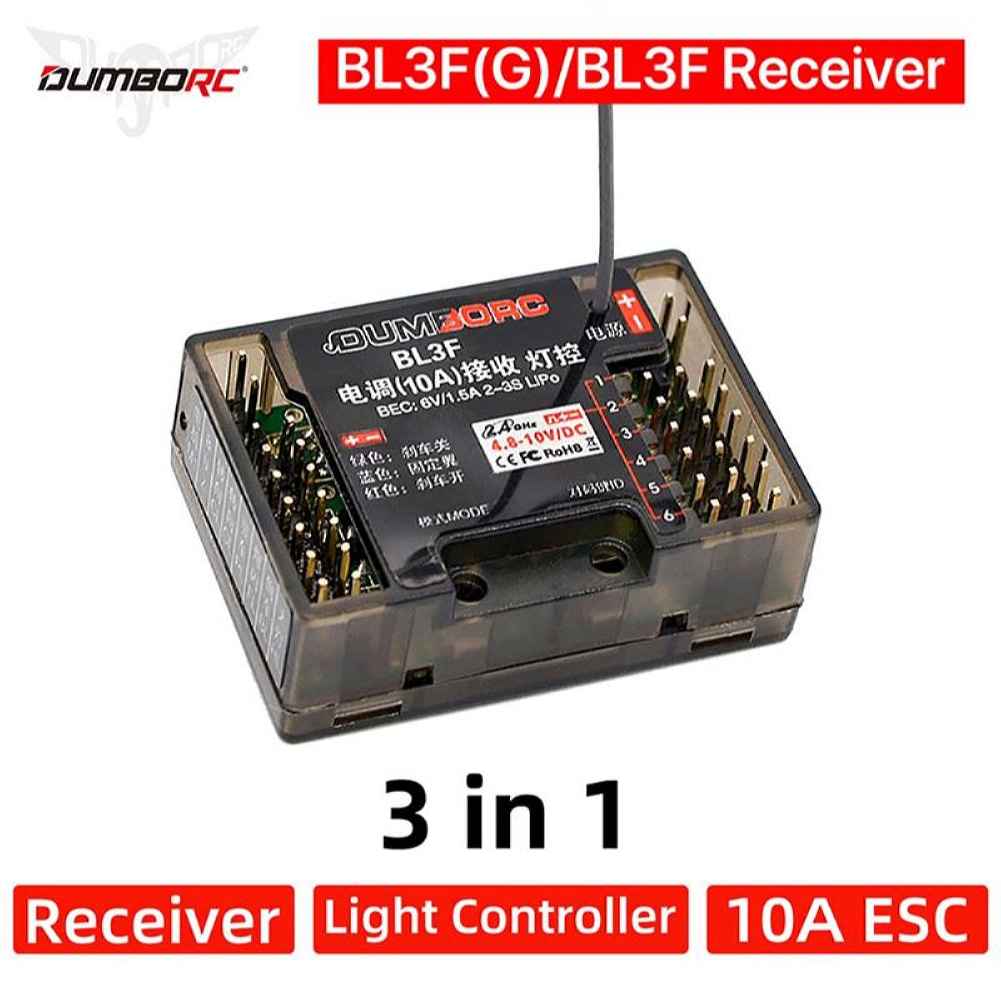

BL3F(G) Receiver Specification:
Channel: 4CH
Version: With Gyroscope
Light Control
10A ESC
Modulation Mode: GFSK
Spread Spectrum: FHSS
Control Distance: More than 400 meters
Receiver Voltage Range: 4.8-10V
ESC Voltage Range: 2-3S
Compatible with: X4 X5 X6 X6A X6P Transmitter
Product Size: 40*28*19mm, antenna length 160 mm

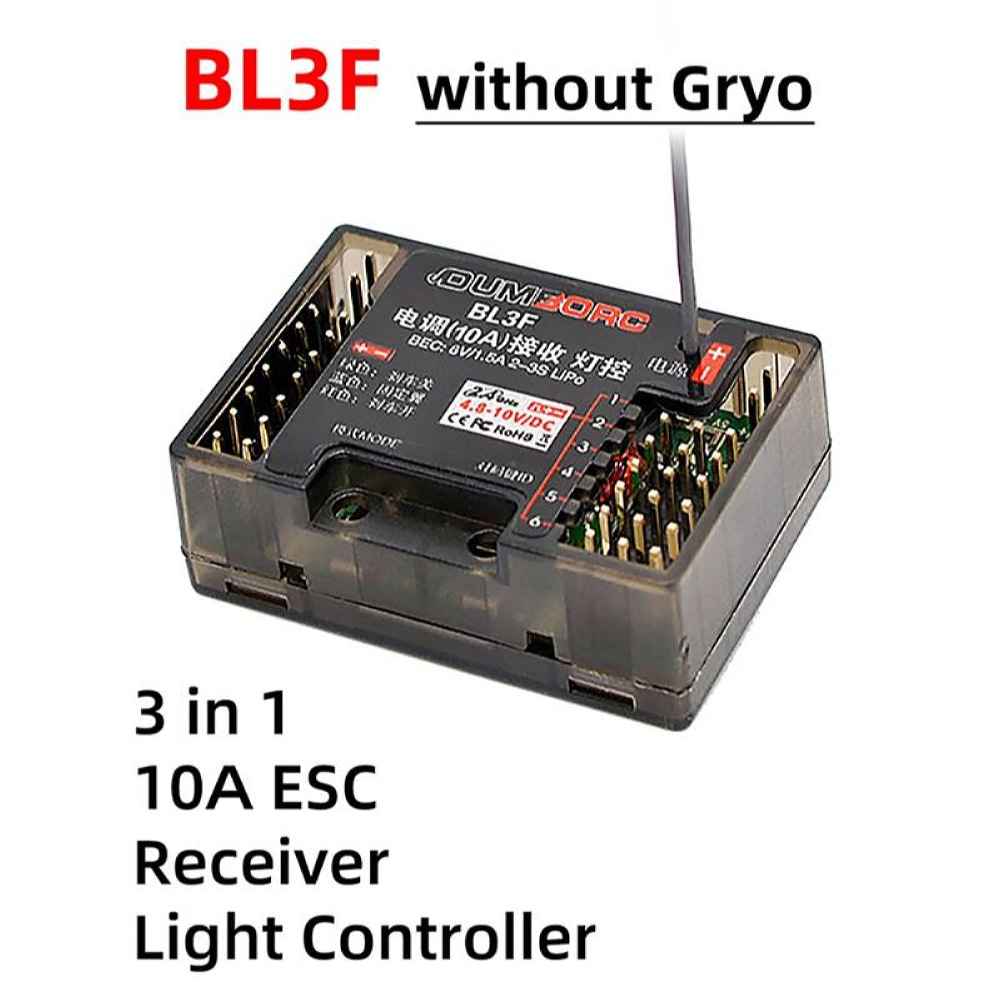

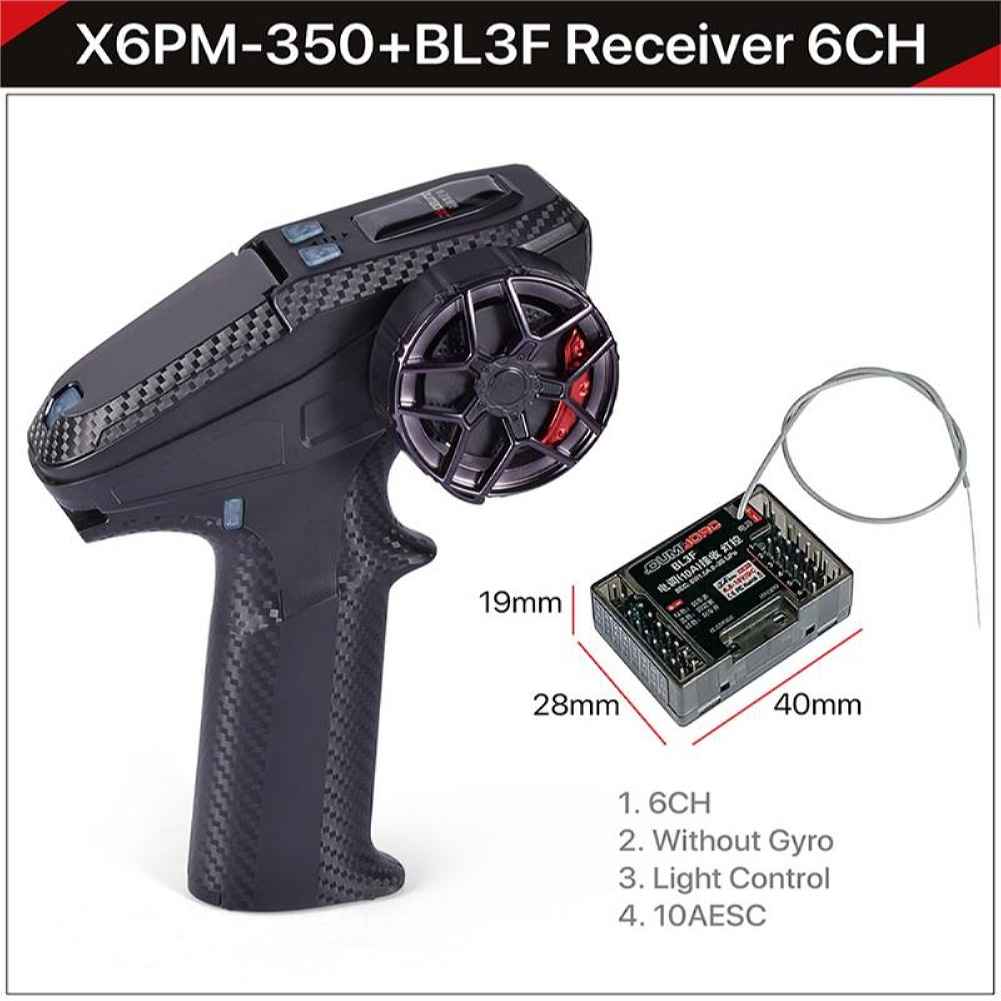

BL3F Receiver Specification:
Channel: 4CH
Version: Without Gyroscope
Light Control
10A ESC
Modulation Mode: GFSK
Spread Spectrum: FHSS
Control Distance: More than 400 meters
Receiver Voltage Range: 4.8-10V
ESC Voltage Range: 2-3S
Compatible with: X4 X5 X6 X6A X6P Transmitter
Product Size: 40*28*19mm, antenna length 160 mm

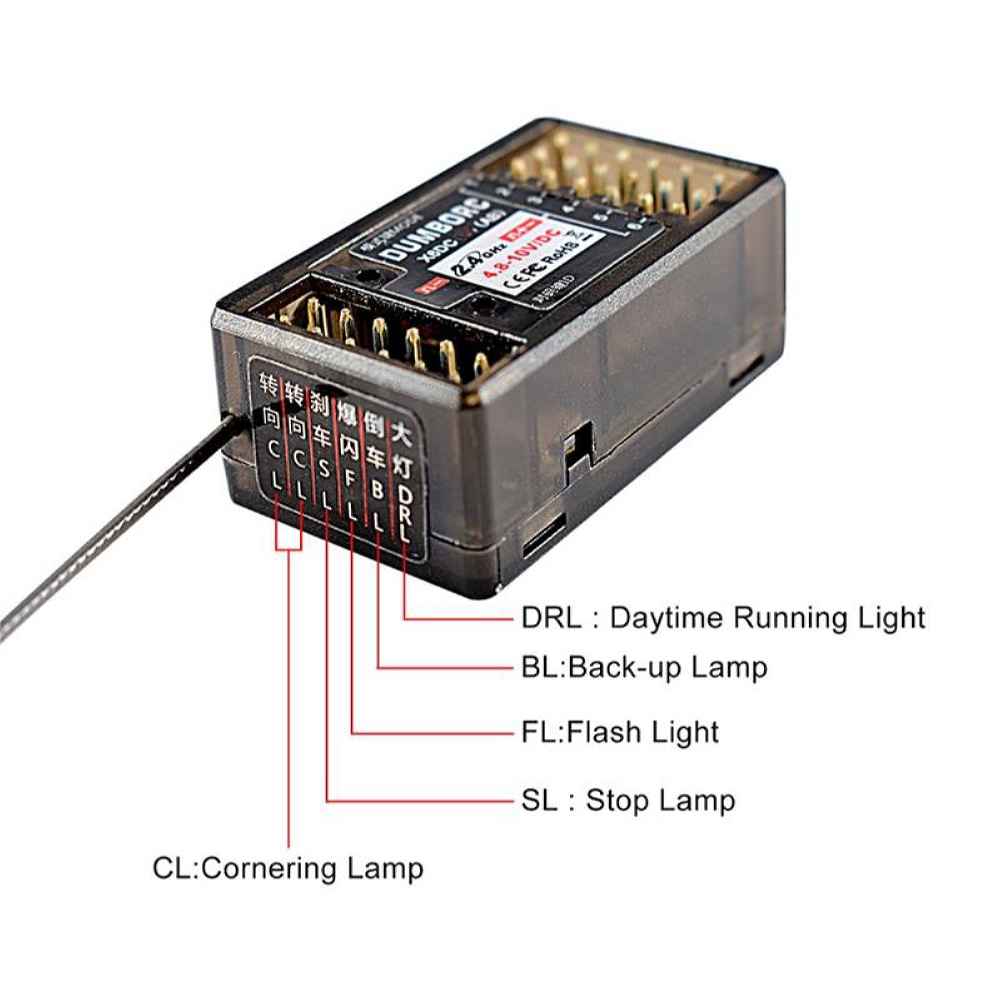

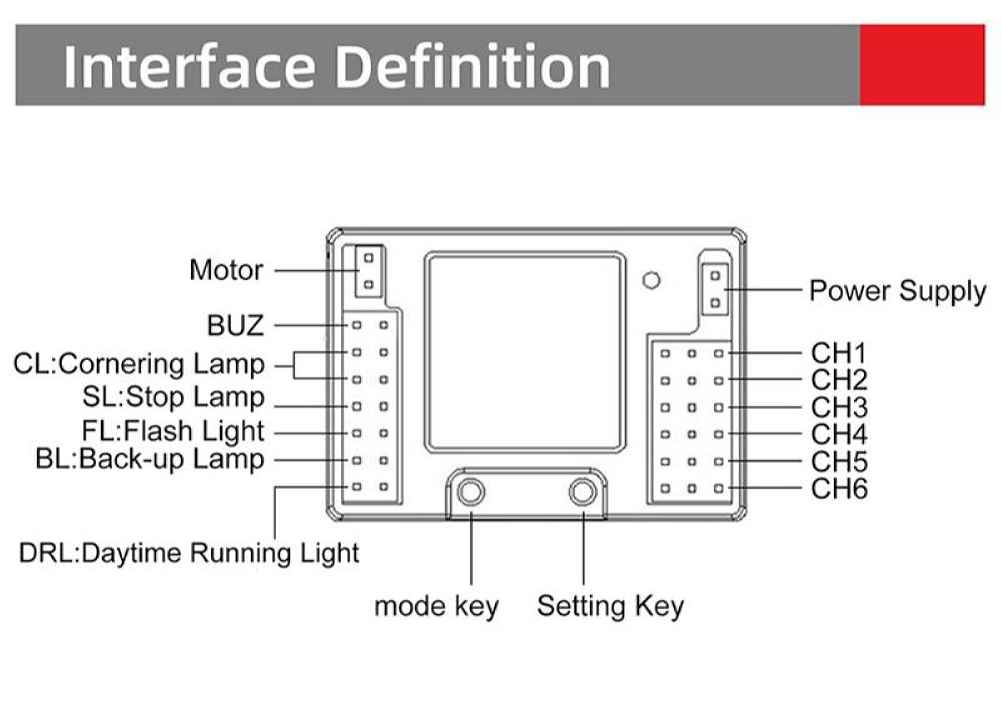

X6DC(G) Receiver Specification:
Channel: 6CH
Version: With Gyroscope
Light Control
Product Size: 35*21*14mm
Voltage: 4.8-10V
Product Weight: About 8g

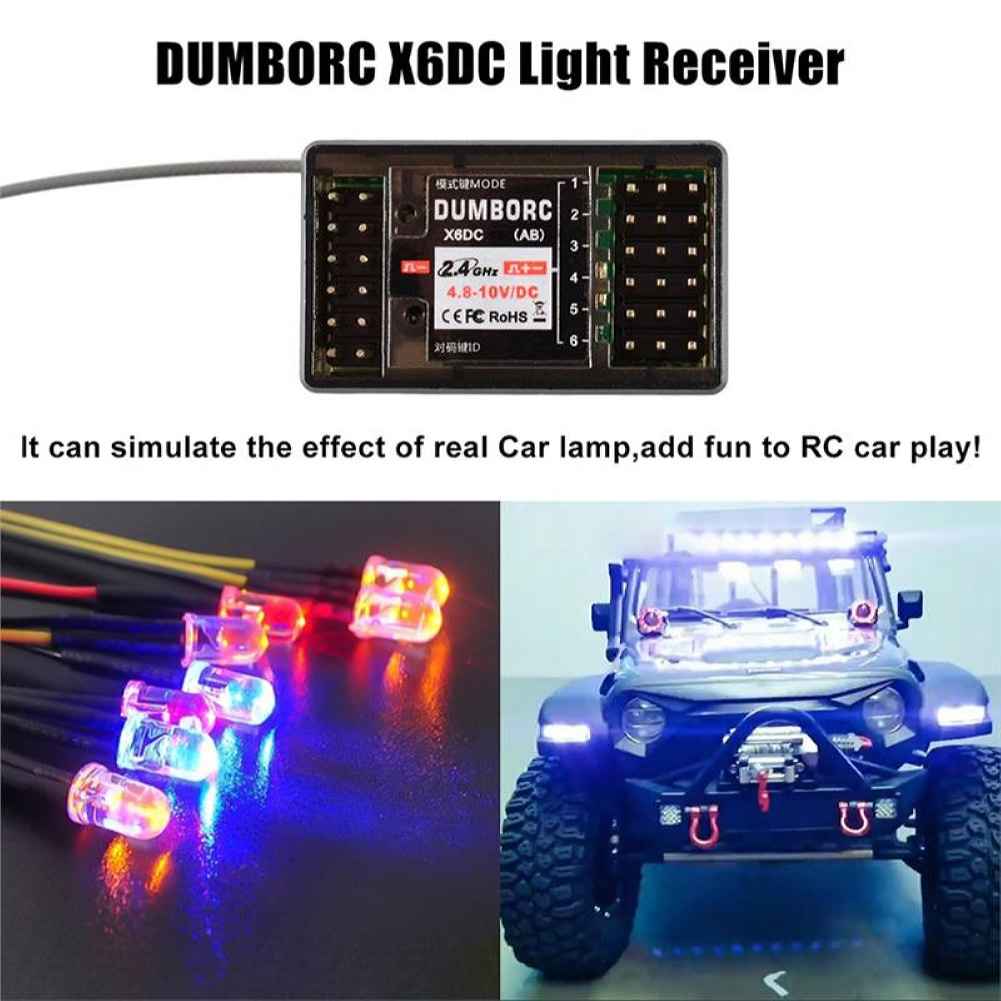

X6DC Receiver Specification:
Channel: 6CH
Version: Without Gyroscope
Light Control
Product Size: 35*21*14mm
Voltage: 4.8-10V
Product Weight: About 8g
DumboRC X6PM-350 Transmitter Manual, Click here

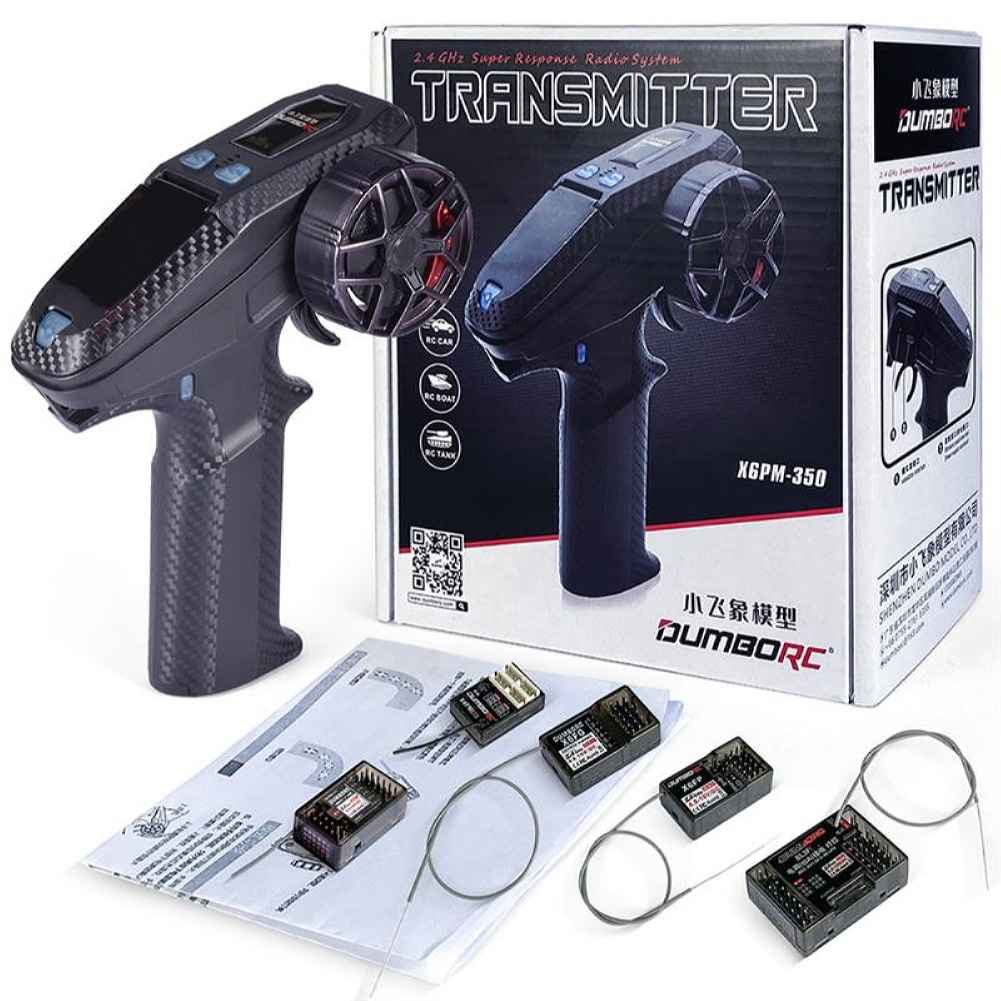

Package Included:
1 x DumboRC X6PM-350 Transmitter
1 x X6F/X6FG/X6DC/X6DCG/X6FP/X4FM/X4FM(G)/BL3F/BL3F(G) Receiver (Optional)
1 x Manual
