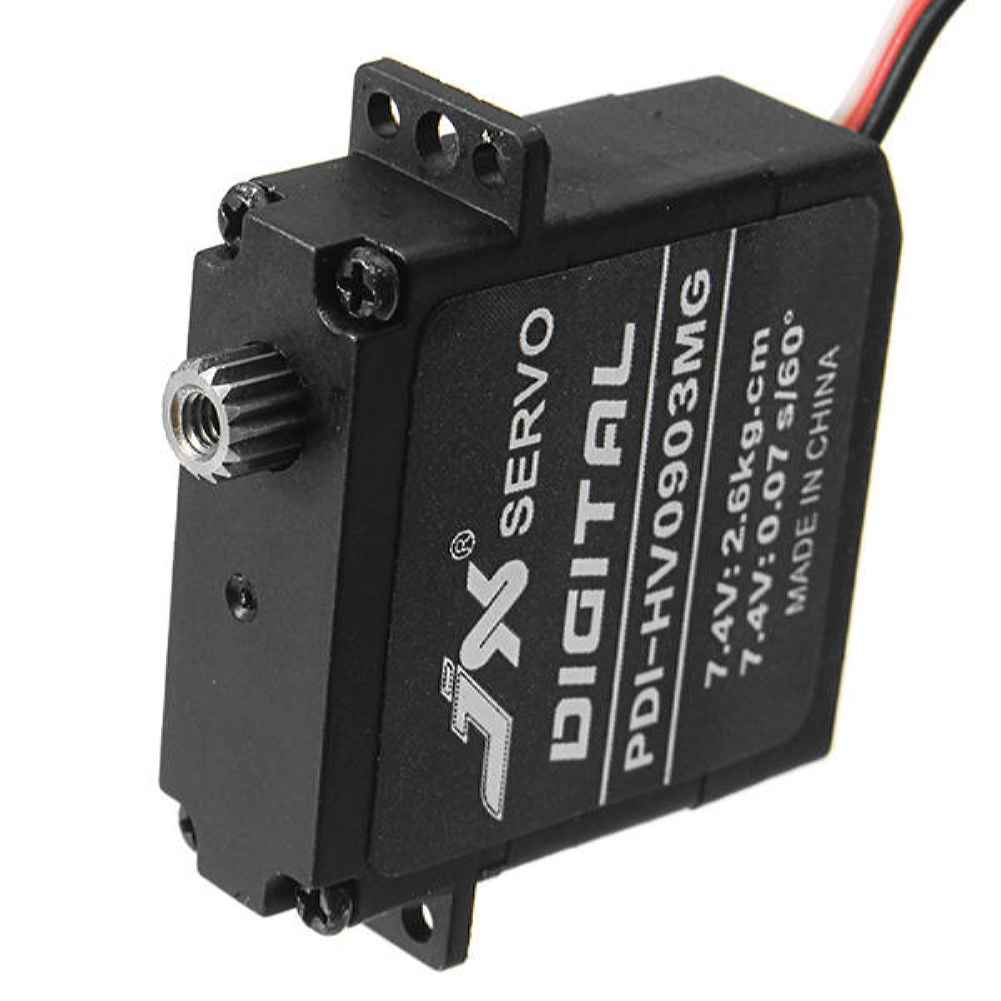

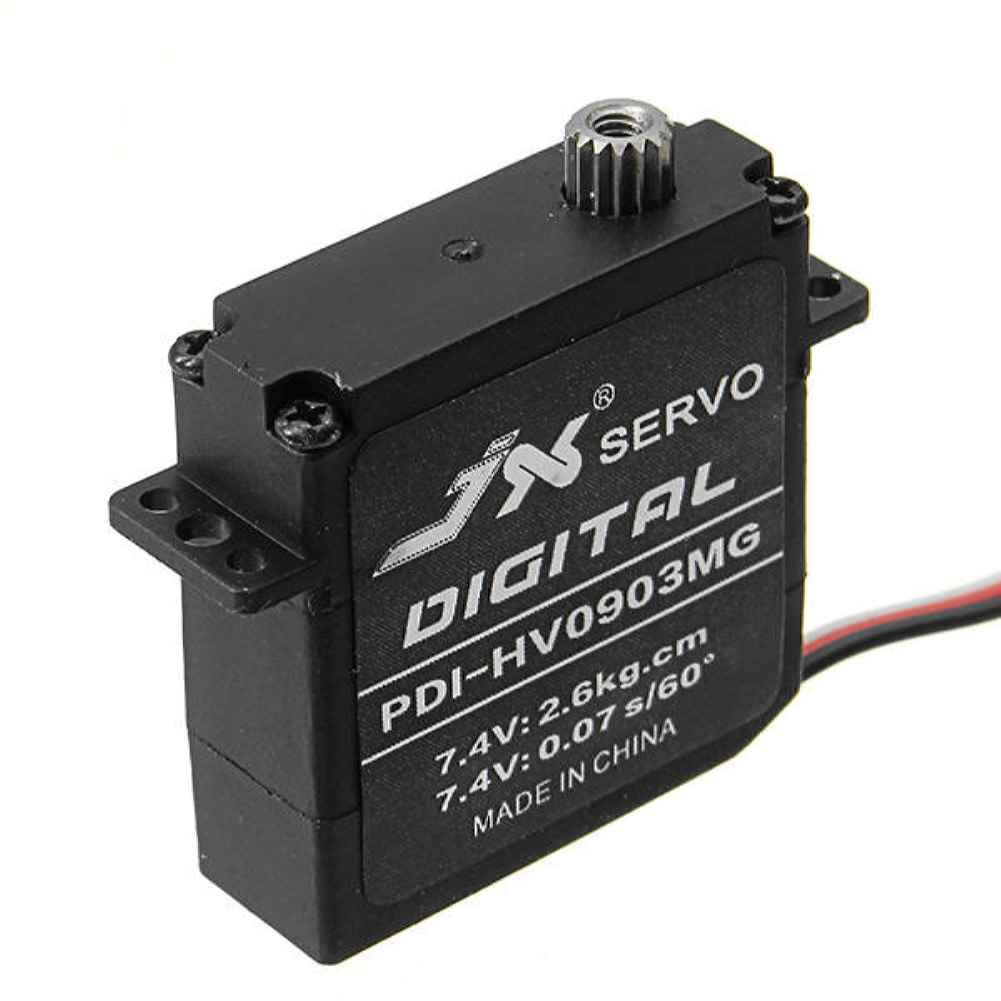

JX Servo PDI-HV0903MG 9.4g High Torque Digital Standard Servo For RC Model 2pcs
The JX Servo PDI-HV0903MG is a high-performance digital standard servo designed for RC models. Weighing just 9.4g, this servo offers exceptional torque and speed, making it ideal for precise control in RC airplanes. It features a dead band of 2渭s and operates on a pulse width control system with a frequency of 1520渭s / 330hz. Compatible with DC6~7.4V, it delivers a stall torque of 2kg.cm at 6V and 2.6kg.cm at 7.4V. The operating speed is 0.09sec/60掳 at 6V and 0.07sec/60掳 at 7.4V. Built with a direct drive potentiometer and 2BB bearings, this servo ensures durability and reliability. The package includes two servos, each with a JR/Futaba 150 mm connector wire.
JX Servo PDI-HV0903MG 9.4g High Torque Digital Standard Servo For RC Model 2pcs
Description:
Brand name: JX
Item number: PDI-HV0903MG 9.4g High Torque Digital Standard Servo
Dead band: 2μs
Control System: +Pulse Width Control
Working frequence: 1520μs / 330hz
Operating Voltage: DC6~7.4 V
Operating Temperature Range: -10 to + 60°C
Operating Speed (6V): 0.09sec/60°
Operating Speed (7.4V): 0.07sec/60°
Stall Torque (6V): 2kg.cm
Stall Torque (7.4V): 2.6kg.cm
Potentiometer Drive: Direct Drive
Dimensions: 23.5X8X24mm
Weight: 9.4g (0.33oz)
Connector Wire Length: JR/Futaba 150 mm
Bearing: 2BB
Package Included:
2 x JX PDI-HV0903MG 9.4g High Torque Digital Standard Servo
