Matek Systems F722-WING STM32F722RET6 Flight Controller Built-in OSD for RC Airplane Fixed Wing
The Matek Systems F722-WING Flight Controller is engineered for RC airplane fixed wings, featuring the powerful 216MHz STM32F722RET6 MCU. It includes an MPU6000 IMU, BMP280 barometer, and AT7456E OSD. This controller supports dual camera inputs and offers switchable 5V/9V power for cameras and VTX. With high-precision current sensing and multiple outputs for motors and servos, it ensures optimal performance. The controller is compatible with INAV and BetaFlight firmware and is designed to accommodate a range of accessories including GPS modules and LED strips. It supports a voltage input range of 9-36V and is equipped with BEC outputs for various components.
Matek Systems F722-WING STM32F722RET6 Flight Controller Built-in OSD for RC Airplane Fixed Wing
Description:
Brand name: MatekMCU: 216MHz STM32F722RET6
IMU: MPU6000 (SPI)
Baro: BMP280 (I2C)
OSD: AT7456E (SPI)
Blackbox: MicroSD card slot (SPI)
5x Uarts (1,2,3,4,6) with built-in inversion
1x Softserial-Tx
2x Motors, 6x Servos outputs
1x I2C
4x ADC (VBAT, Current, RSSI, AirSpeed)
3x LEDs for FC STATUS (Blue, Red) and 3.3V indicator(Red)
Switchable Dual Camera Inputs
Switchable 5V/9V for Camera/VTX
High-precision Current Sense
TR/SA VTX control: Yes
WS2812 Led Strip : Yes
Beeper : Yes
RSSI: Yes
Analog Airspeed sensor: Yes
Digital Airspeed sensor: Yes
FC Firmware
INAV Flight/BetaFlight
Target: MATEKF722SE
PDB
Input voltage range: 9~36V (3~6S LiPo) w/TVS protection
2x ESC power pads
Battery Voltage Sensor: 1:10 (Scale 1100)
Current Senor: 132A, 3.3V ADC, Scale 250
BEC 5V output
Designed for Flight controller, Receiver, OSD, Camera, Buzzer, 2812 LED_Strip, Buzzer, GPS module, AirSpeed
Continuous current: 2 Amps, Max.3A
BEC 9V /12V output
Designed for Video Transmitter, Camera, Gimbal ect.
Continuous current: 2 Amps, Max.3A
12V option with Jumper pad
BEC Vx output
Designed for Servos
Voltage adjustable, 5V Default, 6V or 7.2V via jumper
Continuous current: 5 Amps, Max.6A
Output Ripple: 50mV (VIn=24V, VOut=5V@5A load)
BEC 3.3V output
Designed for Baro / Compass module and Spektrum RX
Linear Regulator
Continuous current: 200mA
Physical
Mounting: 30.5 x 30.5mm, Φ4mm with Grommets Φ3mm

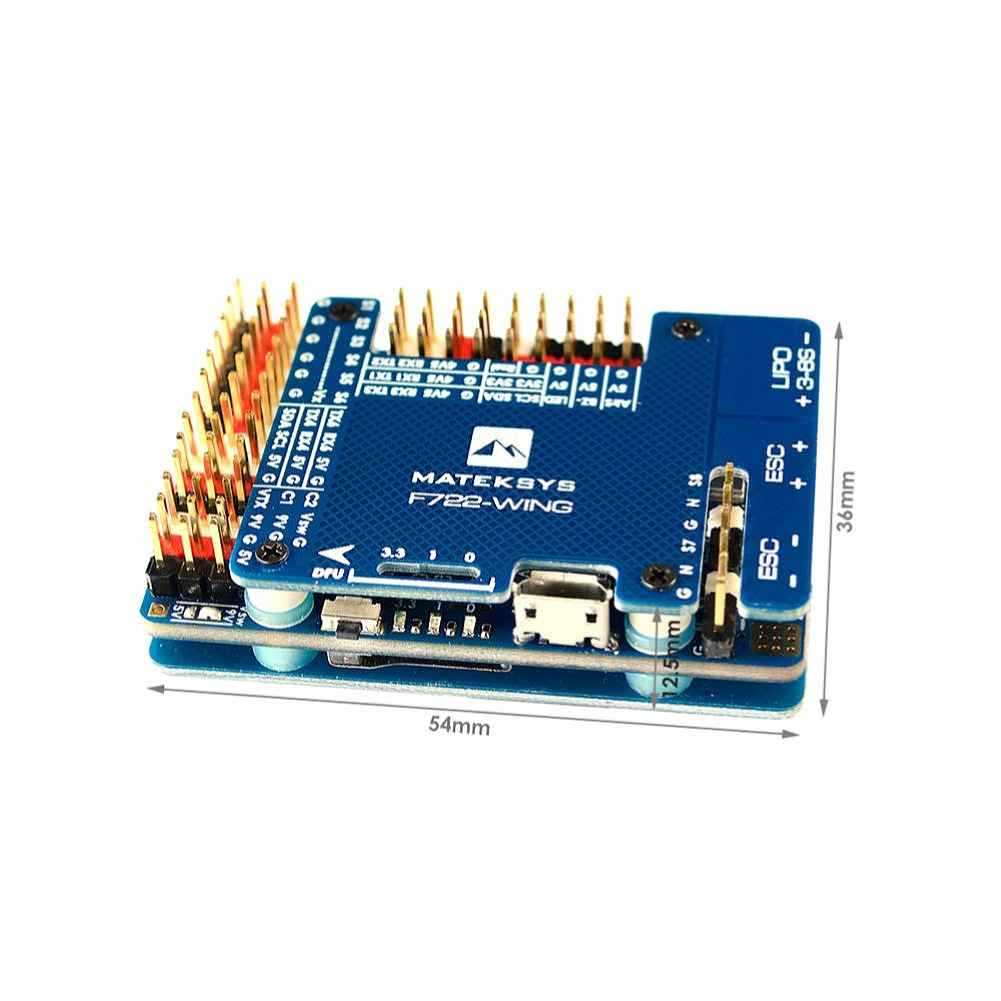

Dimensions: 54 x 36 x 13 mm
Weight: 25g
F722-WING VS F405/F411-WING
Matek Systems F722-WING Flight Controller Manual, click here
Package Included:

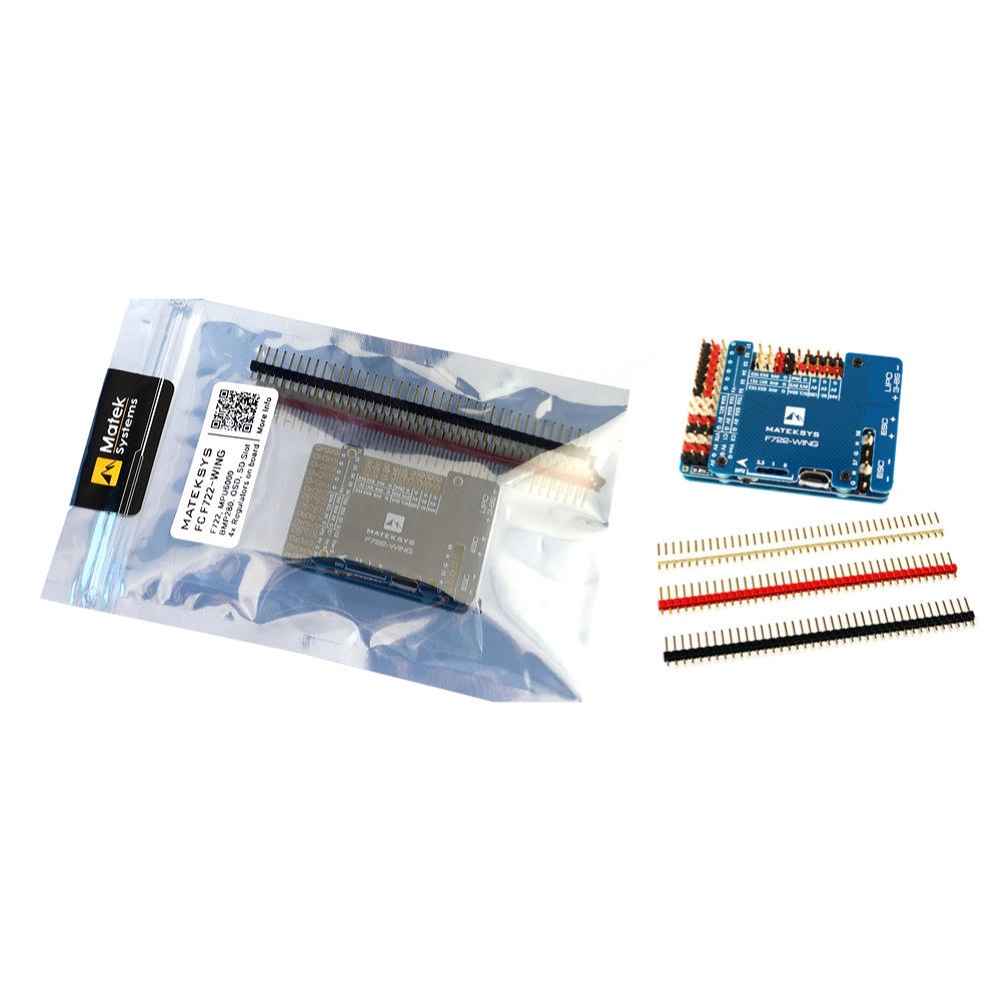

1 x Matek Systems F722-WING STM32F722RET6 Flight Controller
