Description

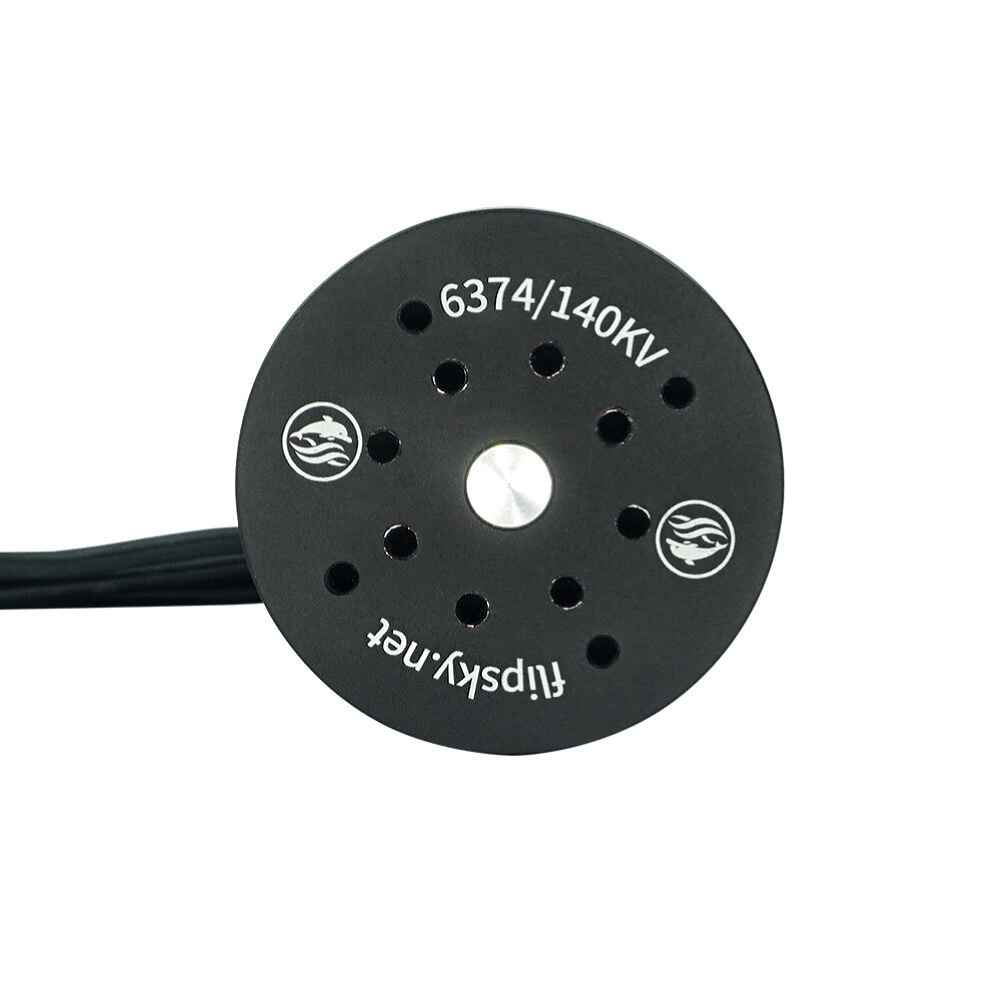

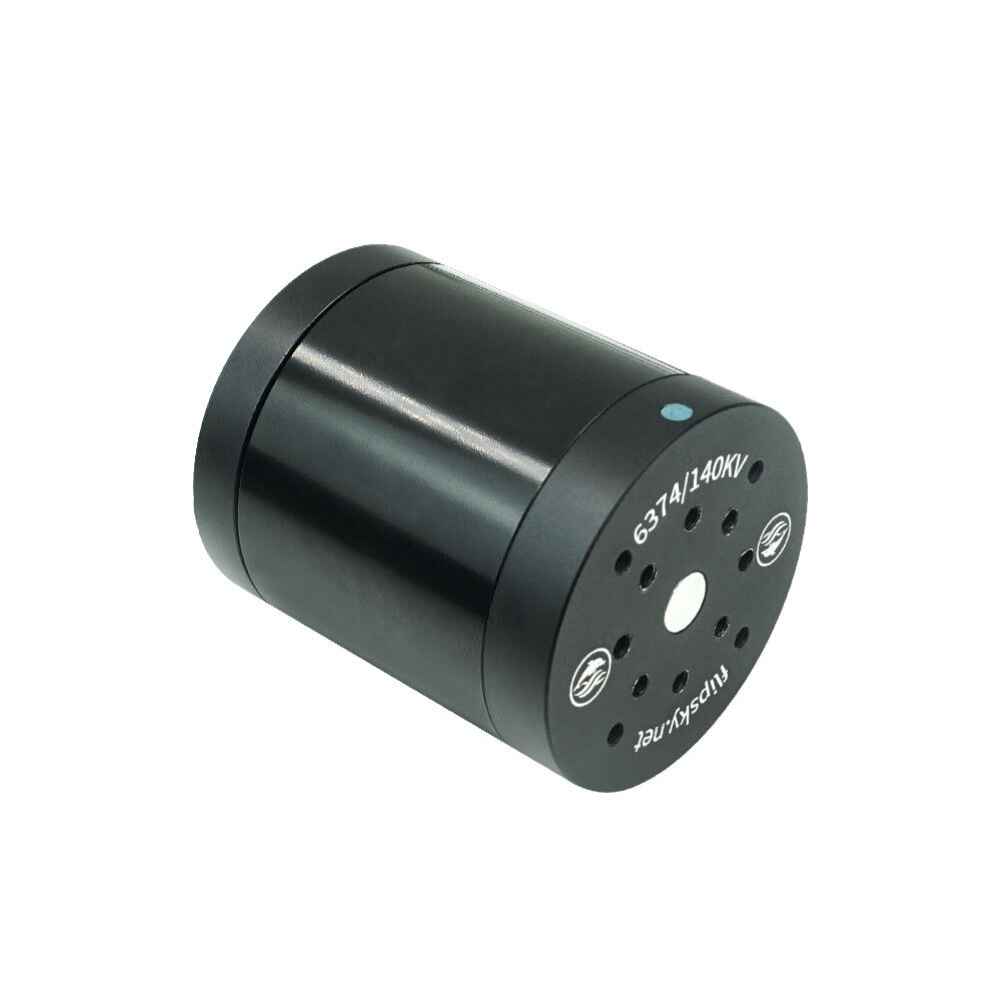

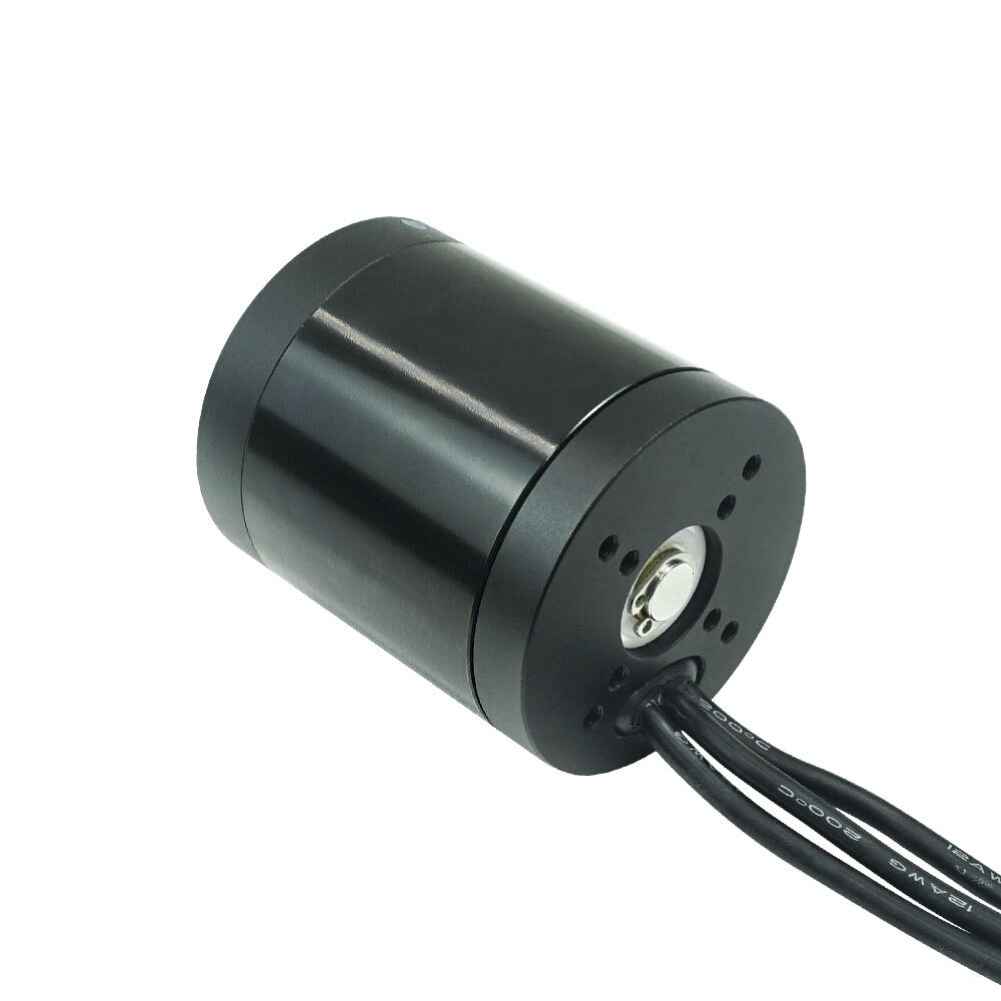

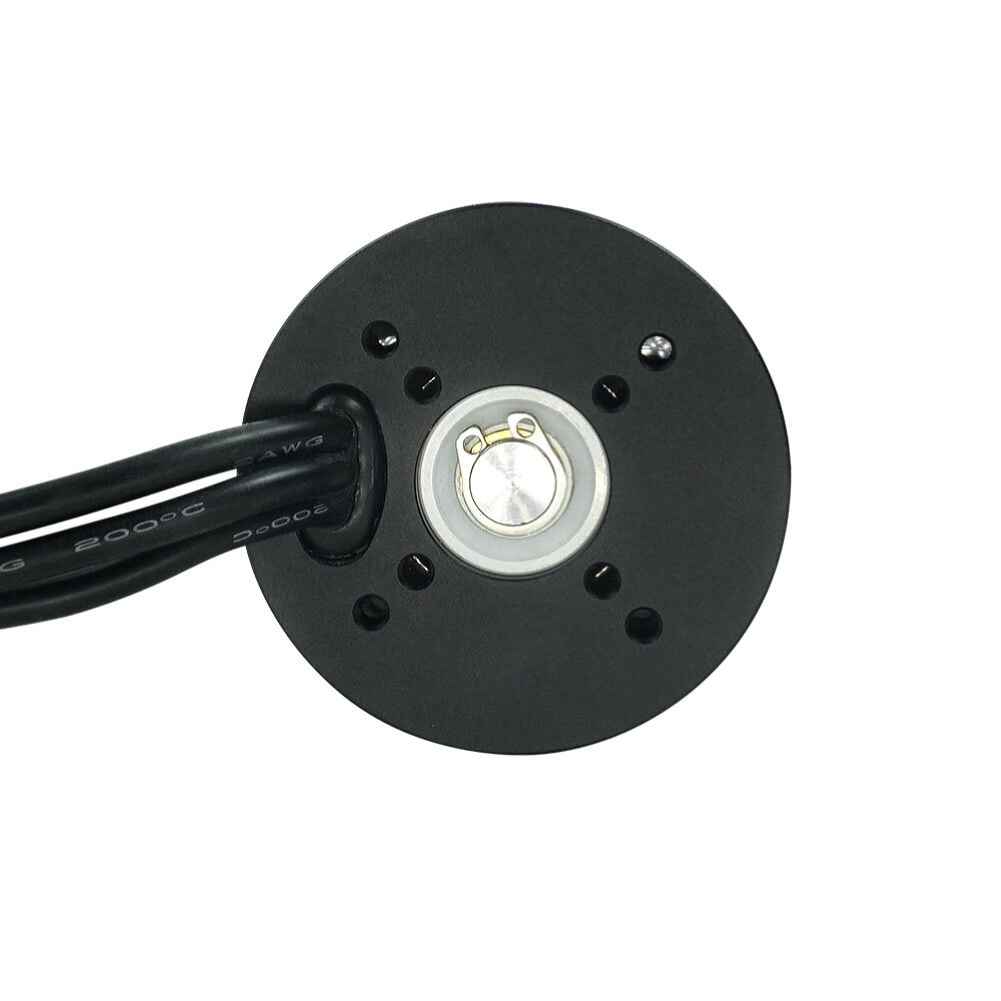

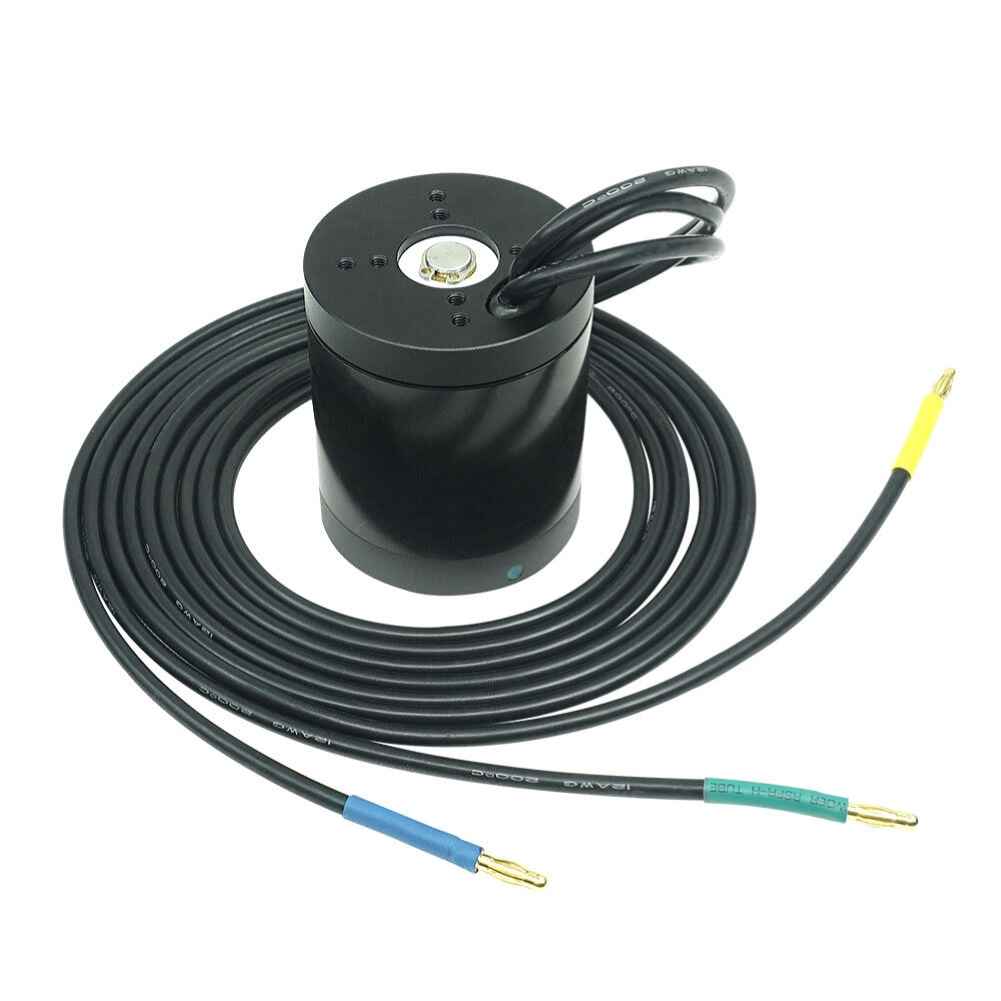

Flipsky Waterproof Brushless DC 6374 Motor 140KV 3600W for Surfing Boat Underwater Thruster Hydro Efoil RC Boats Vehicles Models Parts
The Flipsky Waterproof Brushless DC 6374 Motor delivers a powerful 3600W performance, ideal for surfing boats and RC models. Engineered for durability, this motor features a robust internal structure with 12N/14P configuration and a 10mm shaft. It operates efficiently on 8-16S voltage, with a maximum current of 75 Amps and a rated power of 2400 Watts. The motor includes a 4mm banana head plug and is designed with a three-phase lead of 3x 12AWG (4.5mm). With a resistance of 44.9 and an inductance of 28.6 uH, this motor ensures reliable and efficient performance for your aquatic and RC projects.
Description:
Specification:
Model:63.0℅L74.
Shaft:朴10
KV:140KV
Volts:8-16S
Max Power:3600Watts;Rated power:2400Watts.
Max Current:75 Amps;Rated current I/A:50Amps
Insulation Current:AC500v/50Hz/1mA/3S
Resistance R/m次:44.9
Inductance L/uH:28.6
Three-Phase Lead:3*12AWG (4.5mm)
Plug:4mm banana head (male)
Internal Structure:12N/14P
Package Included:
1 x 6374 140KV Brushless Motor
