STARTRC 3-in-1 Fast Charging Hub with LED Display for DJI Mini 4 PRO/Mini 3 PRO Drones, Intelligent Battery Charger

Description

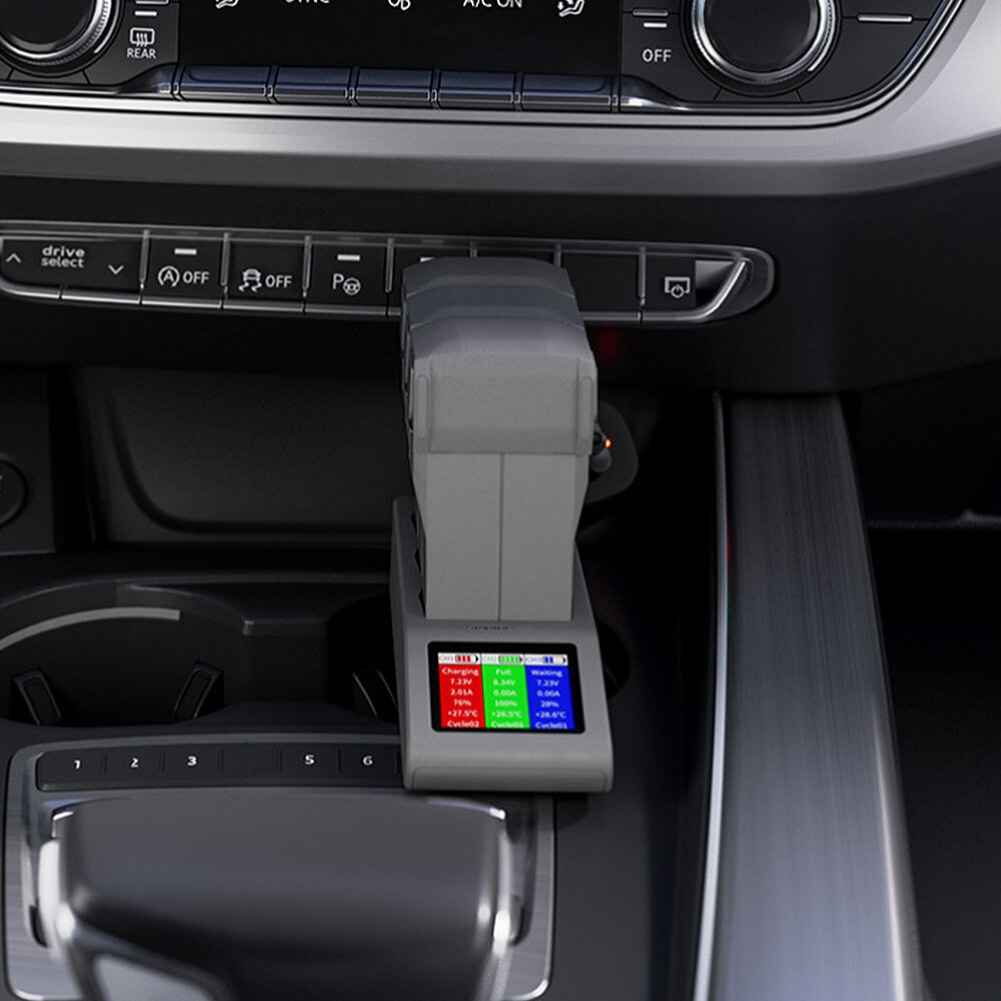

STARTRC 3-in-1 Intelligent Fast Charging Hub Battery Car Charger LED Screen Digital Display Housekeeper Power Supply Station for DJI Mini 4 PRO / Mini 3 PRO RC Drone Quadcopter

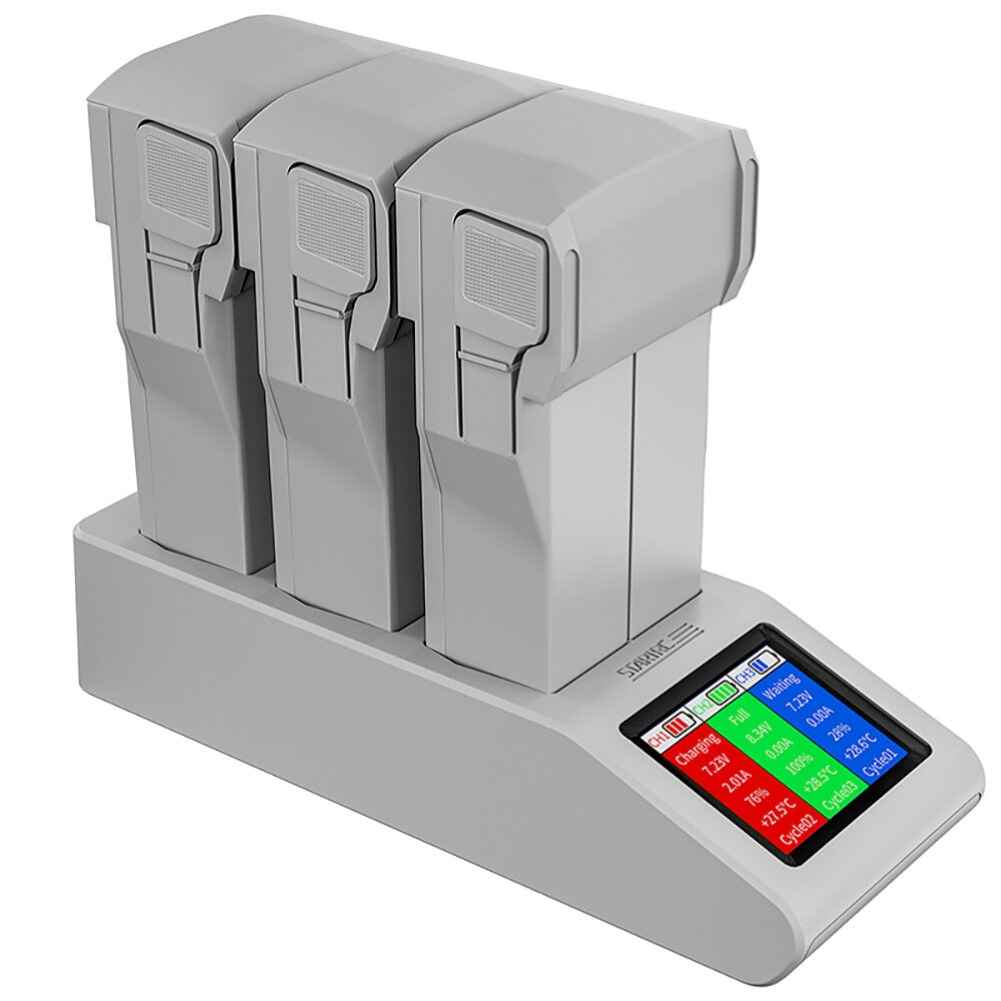

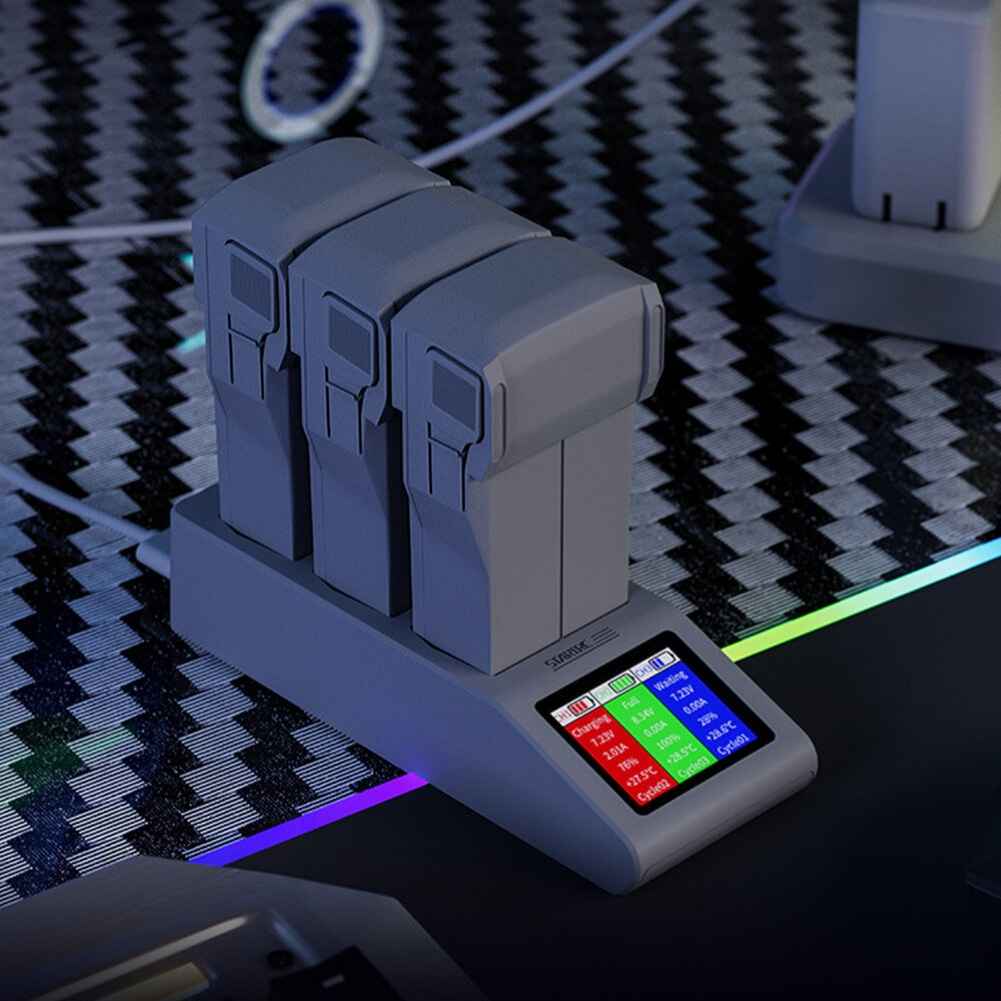

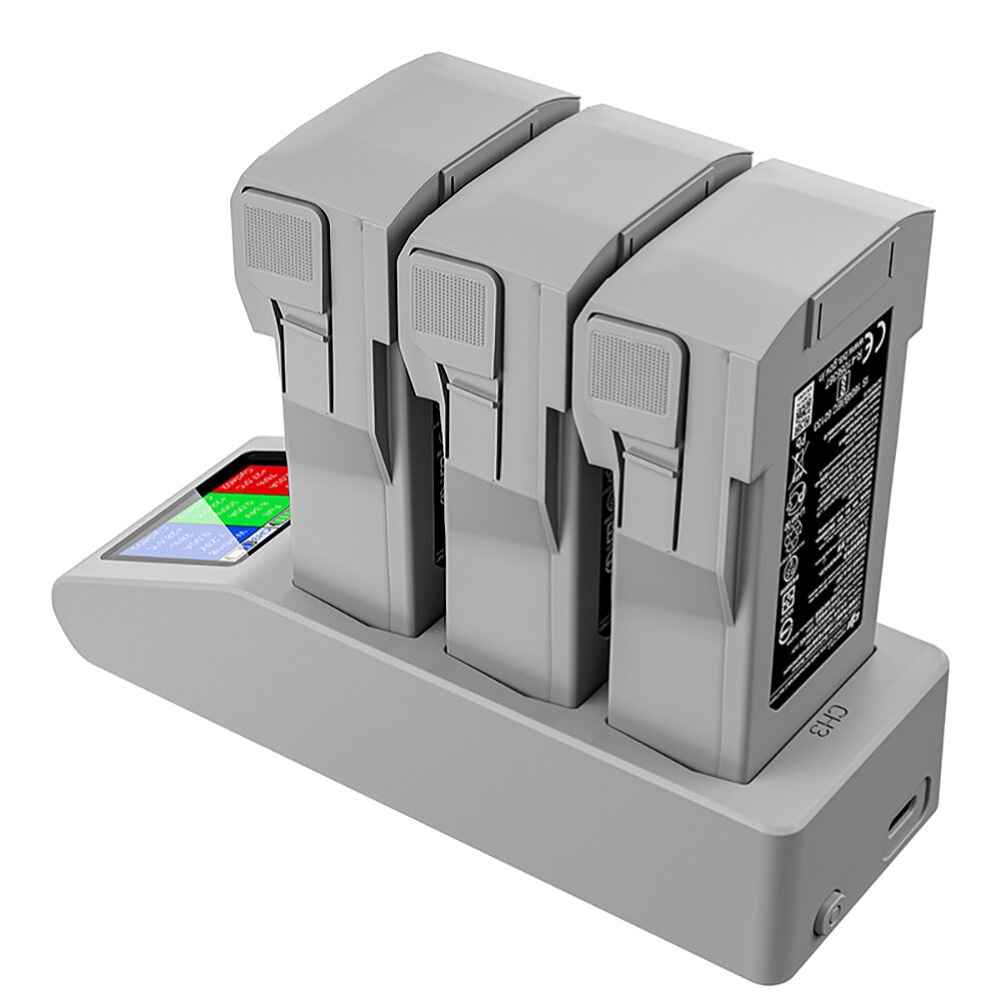

The STARTRC 3-in-1 Intelligent Fast Charging Hub is designed for DJI Mini 4 PRO and Mini 3 PRO drone batteries. This compact charger supports PD fast charging with an input range of 5V to 20V and a maximum output of 8.5V 4.0A. It charges three batteries sequentially, prioritizing those with higher capacity, and features an LED screen that displays voltage, current, battery level, and temperature. The charging hub is easy to use; simply insert the battery and connect the hub. It includes a function button for checking battery levels without additional wiring. Ideal for quick and efficient charging, it ensures safe operation with built-in precautions.

STARTRC 3-in-1 Intelligent Fast Charging Hub Battery Car Charger LED Screen Digital Display Housekeeper Power Supply Station for DJI Mini 4 PRO / Mini 3 PRO RC Drone Quadcopter
Specifications:
Brand Name: STARTRC
Item Name: Screen Charger
Item NO.: ST-1124255
Material: ABS
Color: Grey
Input: 5V / 9V / 12V / 20V 3A, Support PD Fast Charging(Max)
Output: 8.5V 4.0A (Max)
Recommended Charger: DJI 30W USB-C charger or chargers supporting USB PD fast charging protocol
Operating Temperature Range: 7～C-40～C

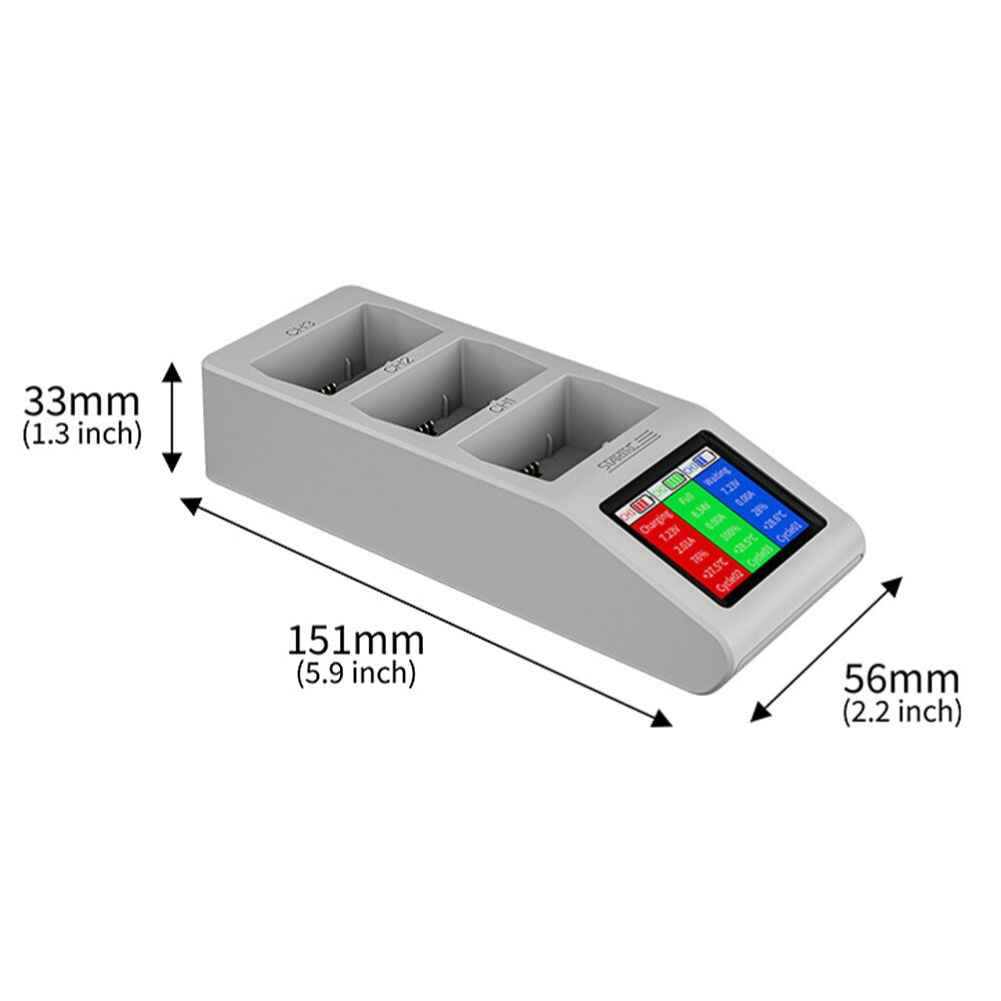

Size: 151 x 56 x 33mm
Net Weight: 109g
Package Size: 125 x 40 x 175mm
Package Weight: 195g
Usage: for DJI Mini 4 PRO / Mini 3 PRO / Mini 3 Drone Batteries
Features:
– Compatible with the Mini 3 series battery, including intelligent flight batteries.
– Compact size for easy storage and transportation.
– Charges three batteries sequentially with automatic detection, prioritizing higher battery capacity.
– On-screen charging manager displays voltage, current, battery level, and temperature during charge.
– Easy battery level check via function button 每 no wiring required.
How to Use:
Install the battery into the charging hub, and it works after connecting it (Prioritize charging batteries with high remaining power) .
1. Charging time: single battery with capacity of 2453mAh– 45 minutes.
2. Charging time: single battery with capacity of 3850mAh– 65 minutes.
3. Simultaneously insert 3 batteries with a capacity of 2453mAh–3X45=135 minutes.
4. Simultaneously insert 3 batteries with a capacity of 3850mAh–3X65=195 minutes.
5. Insert the battery into the charging manager and press the function button to check the battery level, without the need for wiring.
Cautions:
1: When charging, please place the charging hub smoothly and do not cover it with other items to ensure the normal heat dissipation of the charging manager;
2: It is prohibited to charge batteries with surface damage to avoid battery short circuits and fire hazards:
3:This product is only for indoor use and should not be exposed to rain or snow;
4: Do not disassemble or assemble the charging manager without permission;
Note:
Package Only the Charger. NOT Included the Batteries!

Package Included:
1 x Charging Hub with Monitor
1 x Charging Cable (USB-A to USB-C)
1 x Charging Cable (USB-C to USB-C)
1 x User Manual
