PandaRC MINI X 400mW FPV Transmitter, 40CH, 6-36V, OSD Adjustment, 20mm Mount, for FPV Racing Drones

Original price was: 40.94$.Current price is: 36.44$.

Adjustable transmission power: 0-400mW
Wide input voltage: 6-36V
Supports key/OSD parameter adjustment
Compact and lightweight: <3g
40CH output frequency with IPEX interface

SKU: RC2033631 Category: FPV System Tags: 40 channel FPV system, 400mW FPV transmitter, 6-36V FPV transmitter, adjustable FPV transmitter, FPV racing drones transmitter, lightweight FPV VTX, OSD parameter adjustment transmitter, PandaRC MINI X transmitter Brand: PandaRC

Description

Lightweight PandaRC MINI X 400mW 40CH 6-36V FPV Transmitter Support OSD Parameter Adjustment 20mm Hole Spacing Image Transmission for FPV Racing Drones

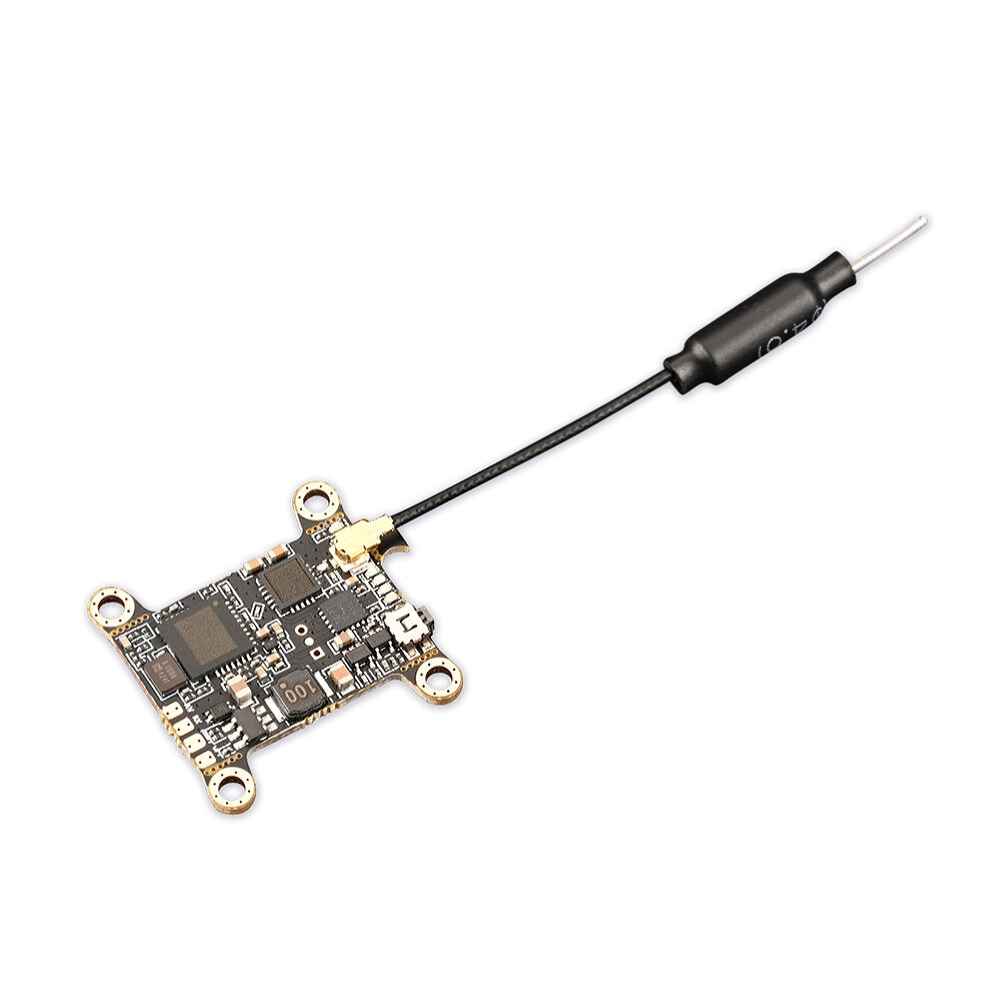

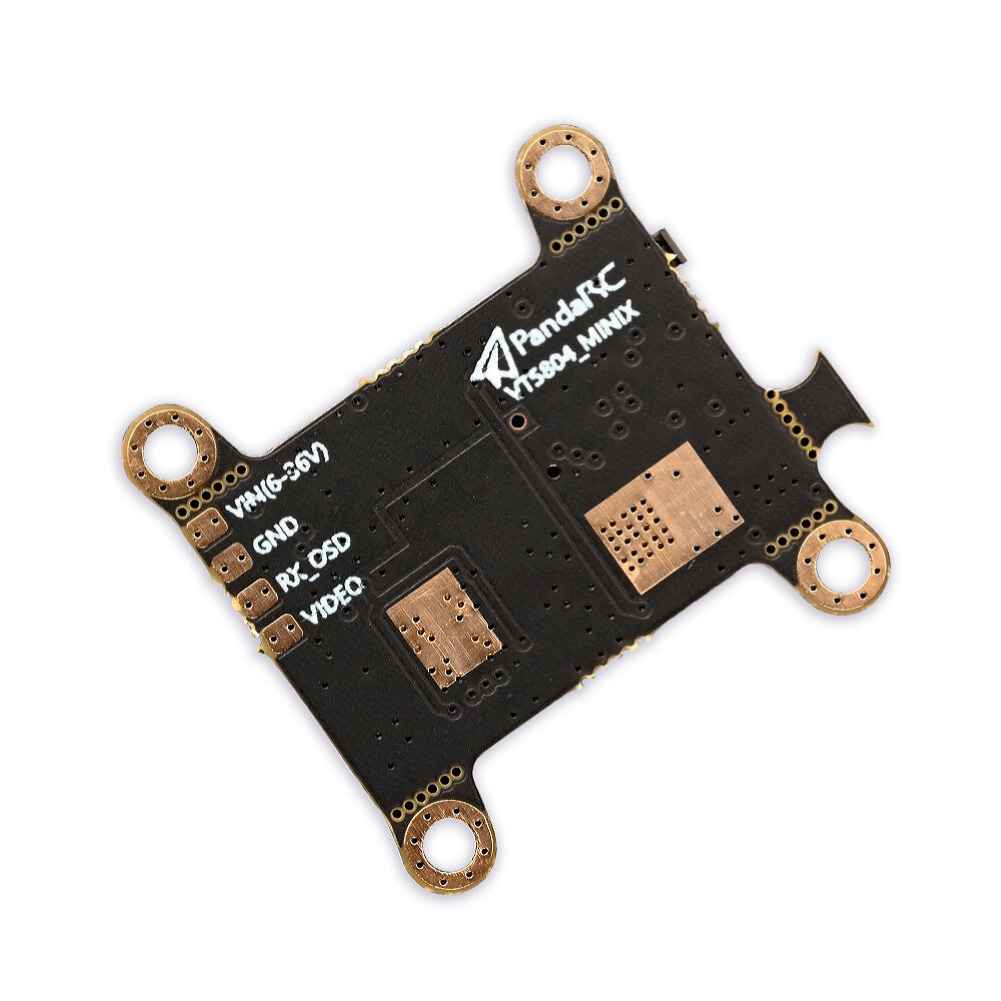

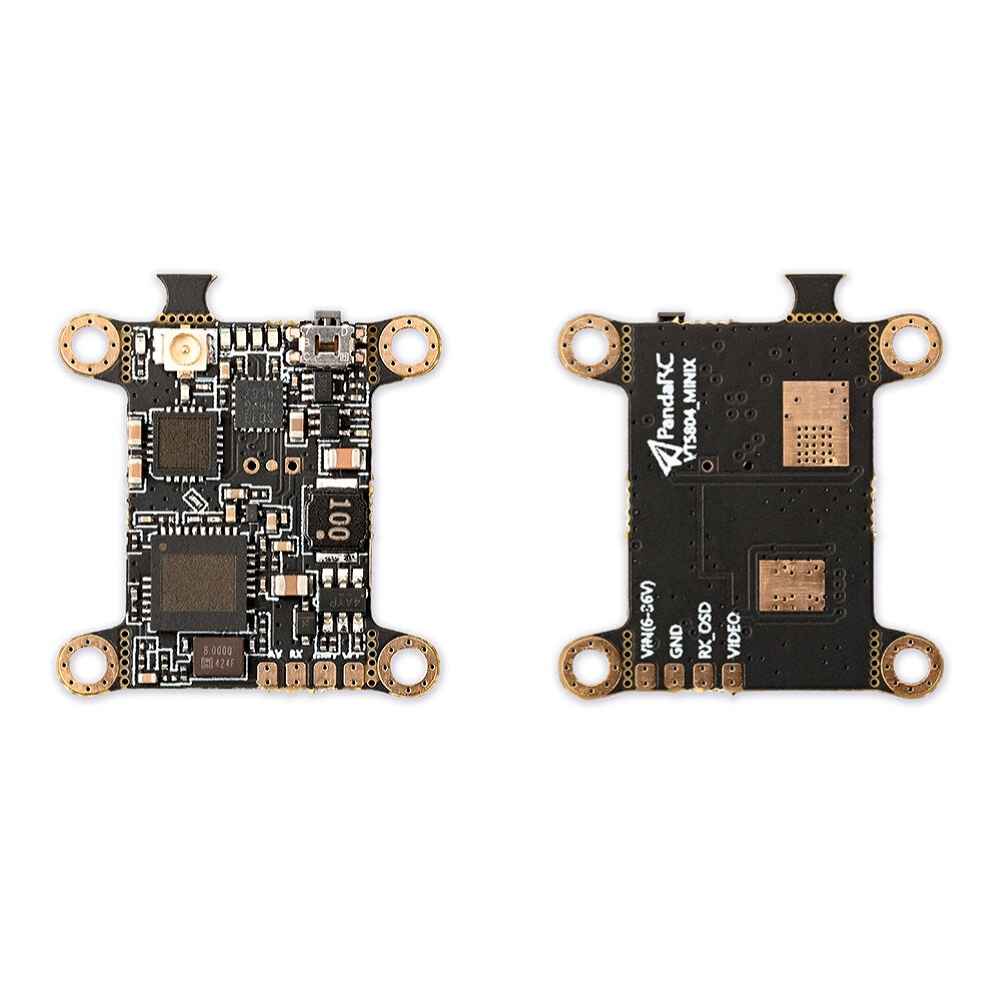

The PandaRC MINI X FPV Transmitter is a lightweight, high-performance device designed for FPV racing drones. It features adjustable transmission power with six settings ranging from 0 to 400mW, allowing for versatile performance. The transmitter operates on a wide input voltage of 6-36V and supports both key and OSD parameter adjustment modes. With a compact design measuring just 24x24x3mm and weighing less than 3g, it includes a 20mm mounting hole for easy installation. The 40-channel output frequency and IPEX antenna interface ensure reliable image transmission. This transmitter is an excellent choice for enhancing your FPV racing experience.

Specification:

Brand:

PandaRC

Product name:

MINI X

Transmission power 6 shift:

0-25-50-100-200-400mW

Input voltage:

6-36V

Parameter adjustment mode:

Key /OSD

Working current:

320mA/12V@400mW

Output frequency:

40CH

Antenna interface:

IPEX

Weight:

<3g

Dimensions:

24*24*3mm

Mounting hole:

20沁 20mm

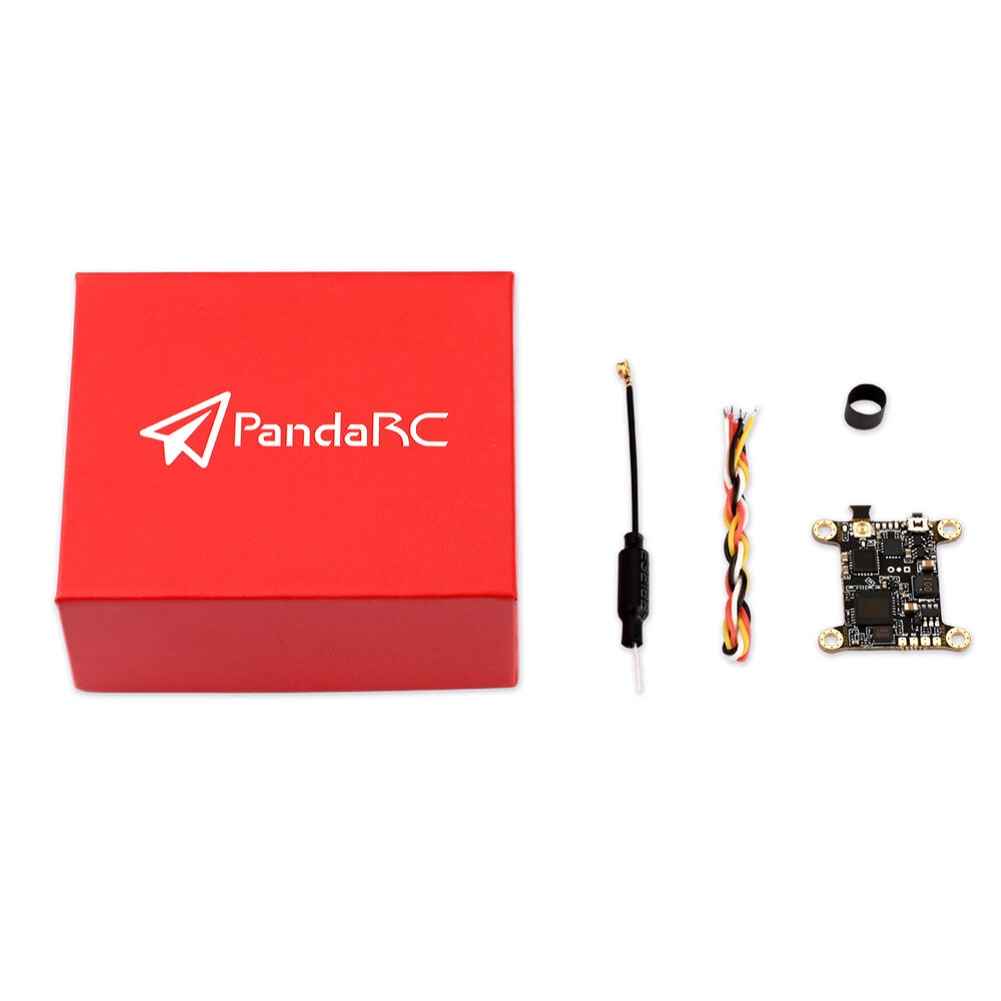

Package Included:
1 x PandaRC MINI X VTX

Recommended Category:
Toys & Games > Remote & App Controlled Vehicles & Parts > RC Vehicle Parts > Radio Transmitter & Receiver Sets

Additional information

Weight	0.031 kg
Model	VTX
