DarwinFPV CineApe 25 Frame 112mm Wheelbase Inverted 2.5 Inch Cinematic Whoop Frame Kit / Replace Bottom Plate Upper Plate for RC Drone FPV Racing
Introduction:
The CineApe 25 frame is the first inverted 2.5-inch cinematic whoop frame of DarwinFPV. Frame is composed of upper and lower layers of carbon plates and high-strength injection molding ring, with an advanced appearance. In addition, to enhance the durability of the frame, we have also added additional reinforcement to the injection-molded boot, which now excels in crash protection. Features:
Comes with high-strength one-piece injection-molded propeller guard, which has higher safety, stronger and more durable frame, also reduce the probability of risk, so you have more confidence to fly.
It is used the front Type-C parameter adjustment port, with DARWIN parameter adjustment adapter board, easy to adjust parameters.

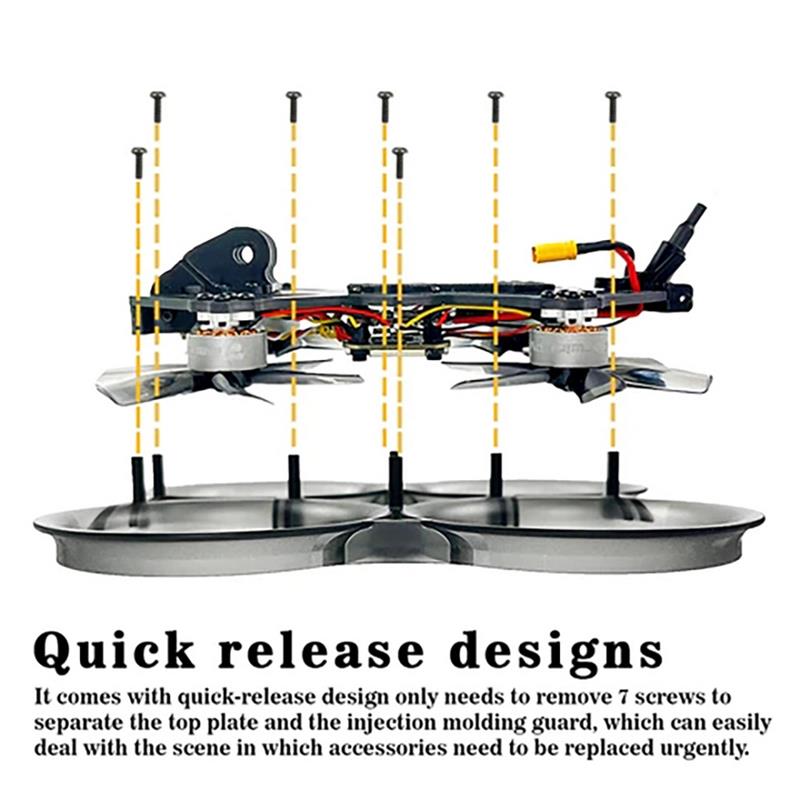

It comes with quick-release frame design only needs to remove 7 screws to separate the top plate and the injection molding guard, which can easily deal with the scene in which accessories need to be replaced urgently.
Compared with the same type of frames, CineApe 25 frame has been added multiple battery strap mounting holes, compatible with 20mm stack mounting holes and 25.5mm AIO mounting holes. The battery anti-skid pad is designed to be extended, which avoids the trouble that the anti-skid pad at the back of the battery is too small to play Anon-slip effect when installing the gobro.
The arms use the strong triangular structure, which is more durable.

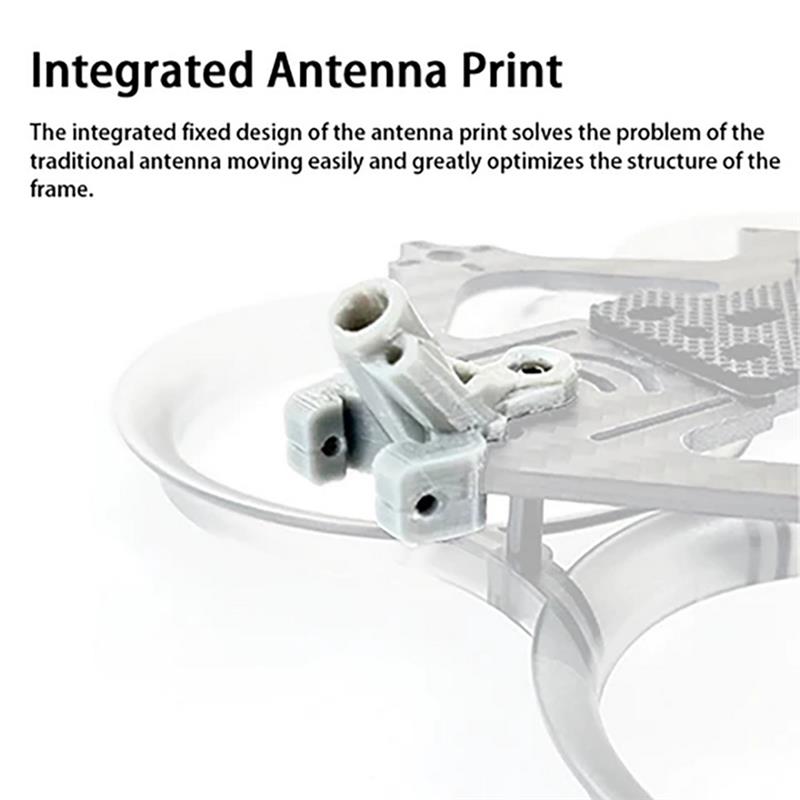

The integrated fixed design of the antenn Aprint solves the problem of the traditional antenn Amoving easily and greatly optimizes the structure of the frame.
Specifications:
Wheelbase: 112mm
Top Plate Hole: 20mm x 20mm5.5mm x 25.5mm
Bottom Plate Hole: 28mm x 15mm holes????20mm x 20mm5.5mm x 25.5mm
Motor Mounting Hole: 9mm2mm
Carbon Plate Camer AMounting Hole: 19mm
3D Print Camer AHole : 14mm
Weight: 66.7g
Top Plate Thickness: 2.5mm
Package Included:
Frame Kit Version:
1x top plate2.5mm
1x bottom plate 2mm
1x injection molding guard
1x camer Amount
1x antenn Amount
1x battery anti-skid pad
2x battery cable tie10 x 170mm
7x M2 x 12mm copper standoff
4x M2 nylon nut
6x M2 x 6 hexagon socket head screw
5x M2 x 7 hexagon socket head screw
3x M2 x 10 hexagon socket head screw
4x M2 x 14 hexagon socket head screw
1x sticker
Propeller Guard Version:
1x Propeller Guard
Top and Bottom Plate Version:
1x Top Plate
1x Bottom Plate
