RadioMaster Boxer Transparent 2.4GHz ELRS RC Transmitter, EdgeTX Open System for FPV Racing Drone, RC Airplane, Helicopter

Description

Radiomaster Boxer Radio Controller Transparent 2.4GHz ELRS RC Transmitter EDGETX Open System for FPV Racing Drone Quad RC Airplane Helicopter

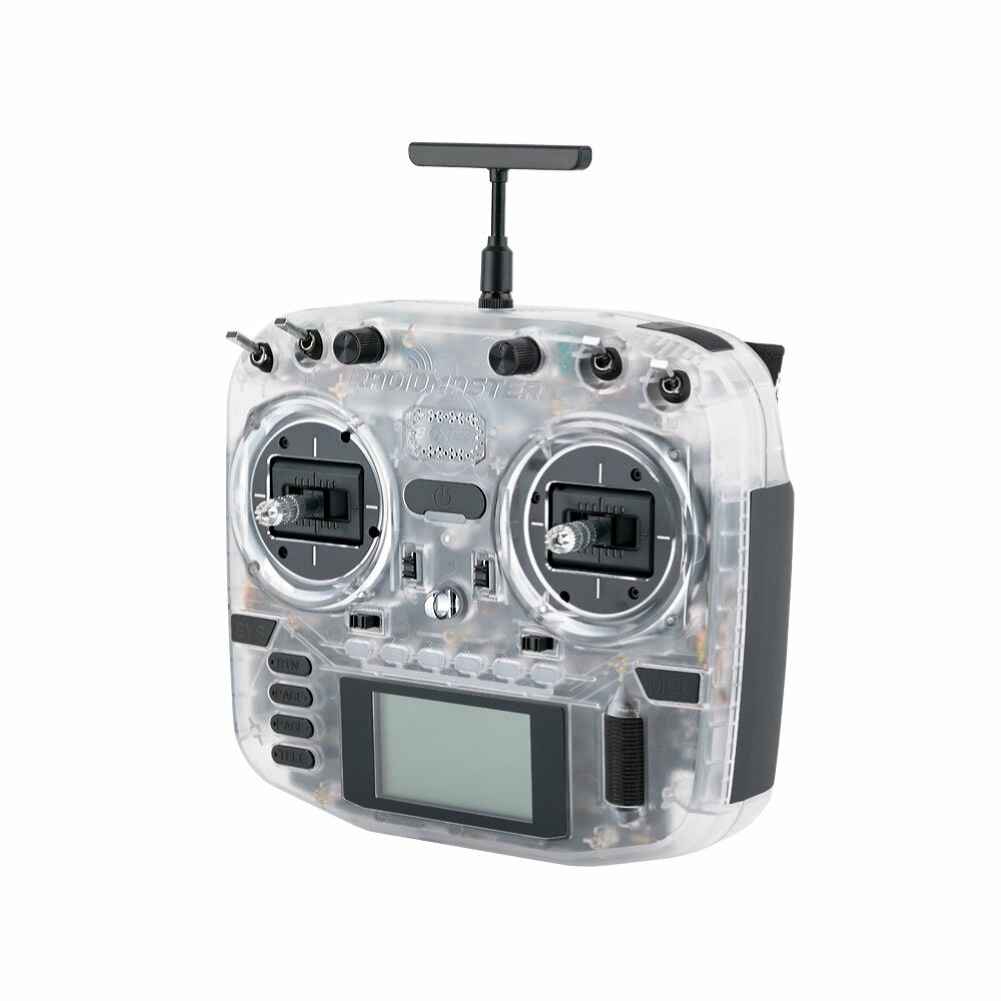

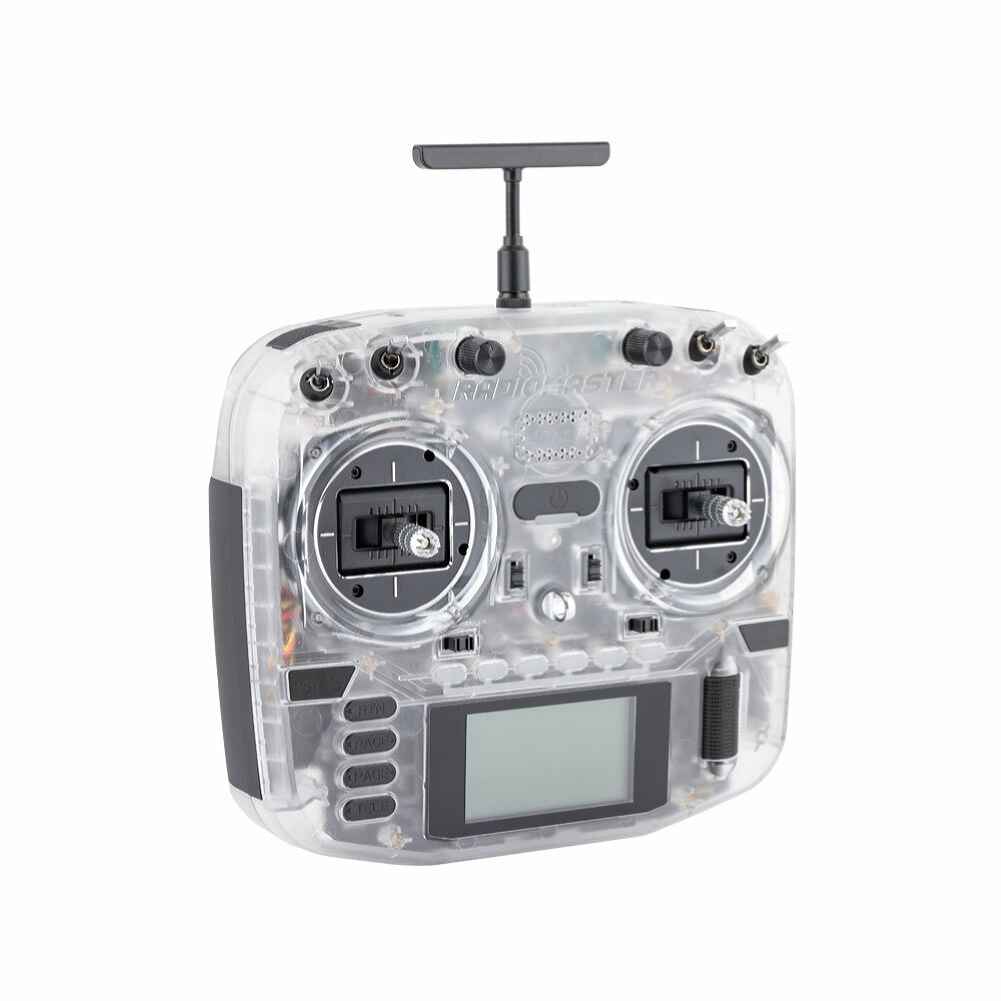

The RadioMaster Boxer Transparent Edition is a cutting-edge 2.4GHz ELRS RC Transmitter designed for FPV racing drones, RC airplanes, and helicopters. This sleek, durable radio controller features a transparent design and includes a customizable white LED kit. It supports up to 16 channels and offers a built-in cooling fan, high-precision Hall gimbals, and a powerful STM32F407VGT6 processor. The EdgeTX firmware and ExpressLRS RF system are pre-installed, ensuring optimal performance. With a compact design, ergonomic grips, and versatile switch options, this transmitter is ideal for both professional and hobbyist pilots.

Radiomaster Boxer Radio Controller Transparent 2.4GHz ELRS RC Transmitter EDGETX Open System for FPV Racing Drone Quad RC Airplane Helicopter
Our popular Boxer radio is now available in a Transparent Edition?an electrifying fusion of style and performance that is sure to set the RC community ablaze! Unleash the perfect balance of sleek design and high durability, all wrapped up in a premium transparent package. Prepare to be mesmerized with the bonus White LED kit included allowing you to customize the look of your radio even further! We have even included a bonus neck strap to complete the set with style and comfort!
Description:
Brand: RadioMaster
Item: BOXER Radio
Size: 235*178*77mm
Weight: 532.5g
Frequency: 2.400GHz-2.480GHz
Internal RF Options: CC2500 multi-protocol / 4-in-1 multi-protocol / ELRS 2.4GHz
Supported protocols: Module dependent
Transmitting Power ExpressLRS: Max 30dBm (international) / Max 20dBm (EU LBT)
Cooling fan: Built in (ELRS version)
Voltage Range: 6.6-8.4V DC
Radio Firmware: EdgeTX (Transmitter) / Multi-Module (RF module) / ELRS
Channels: Max 16 channels (Receiver dependent)
Battery: 7.4V 2-cell Lithium-Polymer / Two 3.7V 18650 Lithium-Ion cells (batteries not included)
Display: 128*64 Monochrome LCD display
Gimbal: High precision 4.0 Hall gimbals as standard (AG01 Optional)
External module: JR/FrSKY/Crossfire compatible
Upgrade Method: USB/SD card & EdgeTX Companion PC software
Features:
* Special transparent version radio with white Gimbal LED set and RadioMaster Neck Strap included.
* You can DIY your personalized and unique radio anytime.
* Available with built-in ExpressLRS RF modules.
* Featuring a powerful STM32F407VGT6 with 1MB Flash and 192KB RAM.
* Preinstalled EdgeTX firmware.
* Internal ELRS module capable of 1,000Hz refresh rate.
* Adjustable ELRS RF output (30dBm max FCC or 20dBm Max EU LBT).
* QC3.0 fast charging support 2.0A MAX.
* Compact design with excellent ergonomics.
* New low-profile latching SE switch and momentary SF switch.
* Oversized battery compartment- Space for a 2S 6200mAh pack, up to 20-hour duration (Batteries not included).
* Full sized V4.0 Hall effect gimbals as standard, upgradable to AG01 CNC Hall effect gimbals.
* Standard JR module compartment.
* Internal module cooling fan built in (ELRS version).
* RadioMaster standardized button layout.
* Versatile 6-position switch for flight mode access.
* Adjustable and Removable T-shape Antenna.
* Industry first fabric handle for improved portability.
* Changeable, ergonomic grips.
* Redesigned SD card slot with pre-loaded SD card included.
* External module power slots in battery cover.
* RadioMaster signature carry case and gimbal protector are included as standard to ensure your radio stays safe while on the move
EdgeTX Operating System and ExpressLRS RF system pre-installed
Preinstalled with EdgeTX and ExpressLRS, the BOXER has cutting edge software fit for its class-leading hardware. RadioMaster works closely with the EdgeTX and ExpressLRS teams to develop features and optimize the user experience. We will continue to contribute and support projects like EdgeTX and ExpressLRS, ensuring the concepts of open standards are carried forward into the future.

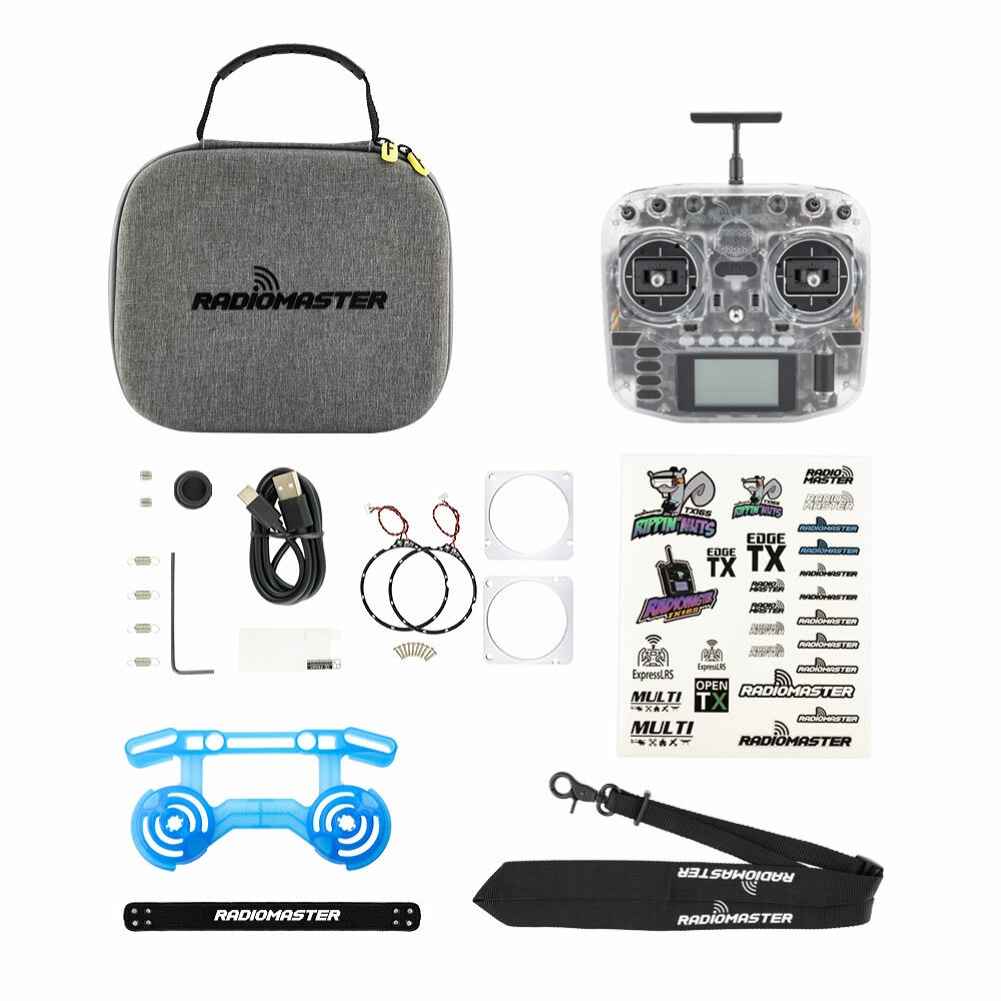

Package Included:
1 x BOXER Radio Transparent Version
1 x Signature Carry Case
1 x T Antenna
1 x USB-C Cable
1 x Gimbal Protector
1 x 1.5mm Allen Key
2 x M4 4 Screws
4 x Low Tension Springs
1 x 18650 Battery Tray (Batteries not included)
1 x Stickers
1 x Manual
1 x White Gimbal LED Set
