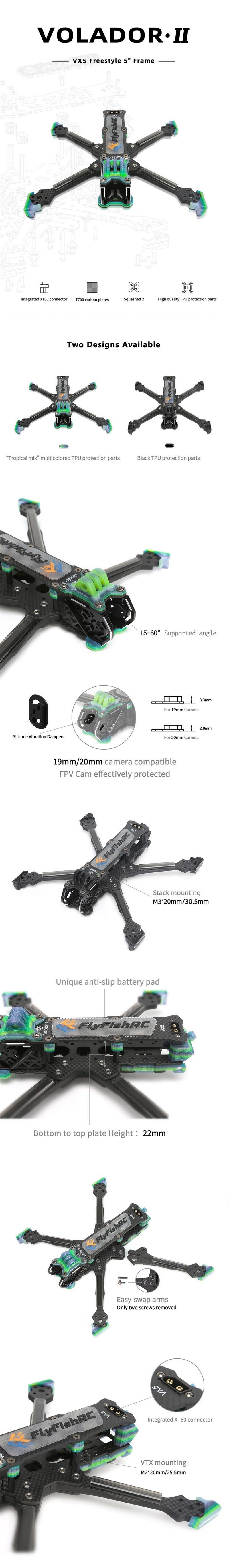

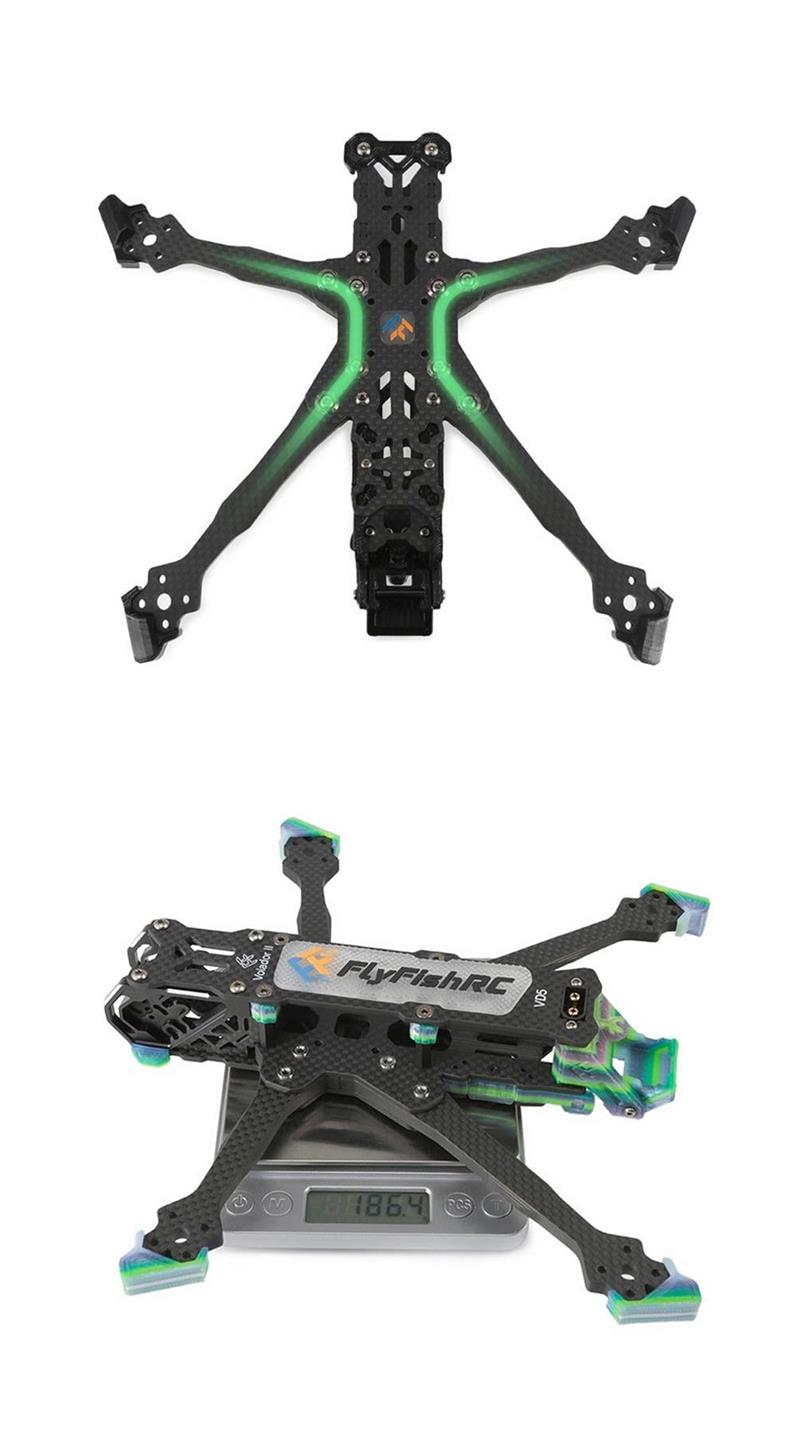

FlyFishRC Volador II VX5 / VD5 V2 225mm Wheelbase T700 Carbon Fiber 5 Inch Deadcat Freestyle Frame Kit Support DJI O3 Air Unit for RC Drone FPV Racing
The FlyFishRC Volador II VX5 / VD5 V2 is a high-performance 225mm wheelbase frame kit designed for FPV racing enthusiasts. Crafted from premium T700 carbon fiber, this kit offers a robust yet lightweight structure. It features CNC aluminum camera plates for enhanced camera protection and silicone shock absorbers to eliminate vibrations. The integrated XT60 connector ensures safety and reliability, while innovative anti-slip battery pads secure your power source. Compatible with both analog and HD builds, it supports 19/20mm cameras and includes high-quality TPU parts for added durability. With pre-applied Loctite threadlocker on 12.9-grade hardware, it promises a secure build.
Notice: 1. Comes unassembled. Need build by buyers.
2. The frame kit support DJI O4 version clink here: VX5 O4 / VD5 O4
V2 Features:
High-end T700 carbon fiber
Tight structure design minimizes resonance
The new CNC aluminum camera plates effectively protect the camera
The silicone shock-absorbers for the DJI O3 AU eliminate jello
Integrated XT60 connector for safety and reliability
High-quality TPU parts
Innovative anti-slip battery pads
New motor wire protection tubes
Compatible with both 19/20mm cameras
Equipped with all accessories needed for analog and HD builds
12.9-grade strength hardware with Loctite threadlocker pre-applied
High electronics compatibility
Specification:
Brand: FlyFishRC
Model: Volador II VX5 / VD5 V2
Color: Black/Yellow (Optional)

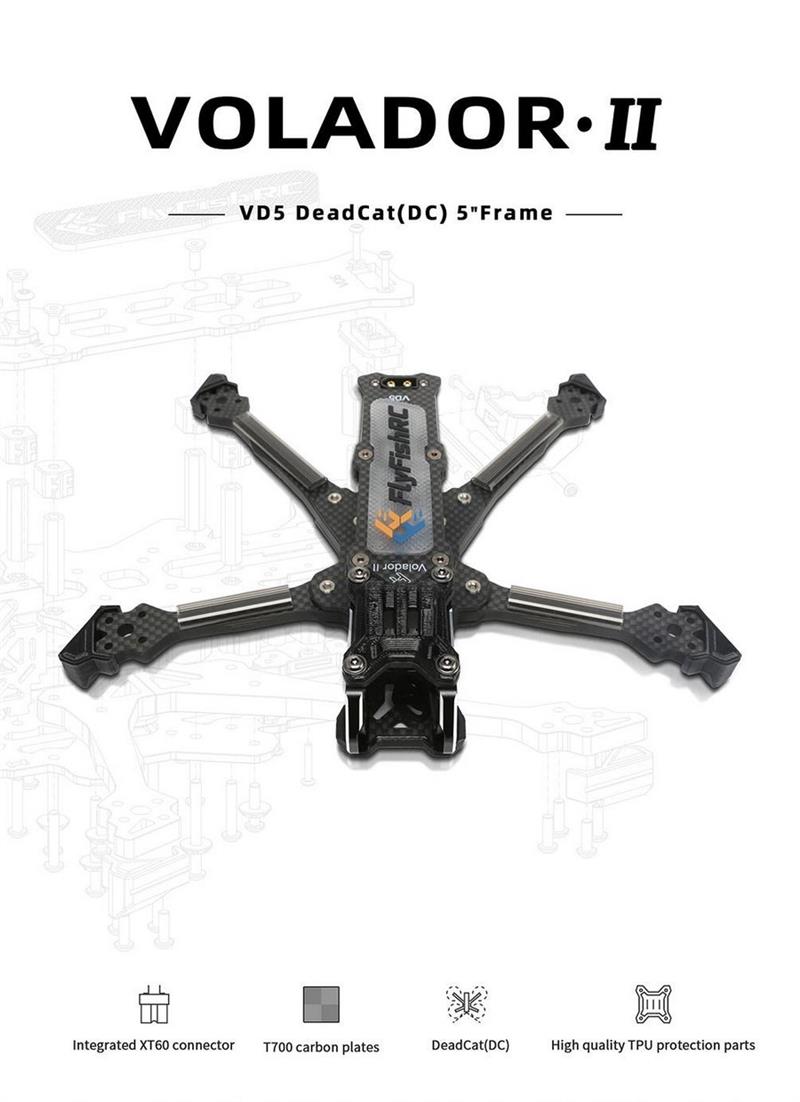

Version: VX5 ( X Type) / VD5 ( Deadcat Type)
Arm Thickness: 6mm
Top plate thickness: 2.5mm
Middle plate thickness: 2.5mm
Bottom plate thickness: 2.5mm
Keystone thickness:5mm
Side plate thickness:2mm
CNC Side plate thickness:5mm
Material: T700 carbon plate
FPV cam spacing: 19mm/20mm
Propeller size: recommend 5 Inch – 5.1 Inch
Stack mounting holes: 20mm*20mm/30.5mm*30.5mm(M3)
VTX mounting holes: 20mm*20mm/25.5mm*25.5mm(M2)
Recommend Parts: ( NOT Included)
FC & ESC: 30.5×30.5mm iFlight BLITZ F7 FC & BLITZ 45A BL_S 4In1 2-6S ESC Stack
Brushless Motor: FlyFishRC Flash 2207 1850KV 6S / 2750KV 4S Motor
iFlight XING-E Pro 2306 1700KV 3-6S / 2450KV 2-4S Brushless Motor
Propeller: 6 Pairs iFlight Nazgul F5 5.1Inch 3-Blade 5mm Hole Propeller
VTX & Camera: DJI O3 Air Unit
Lipo Battery: ZOP Power 22.2V 1500mAh 100C 6S LiPo Battery XT60 Plug
Package Included:

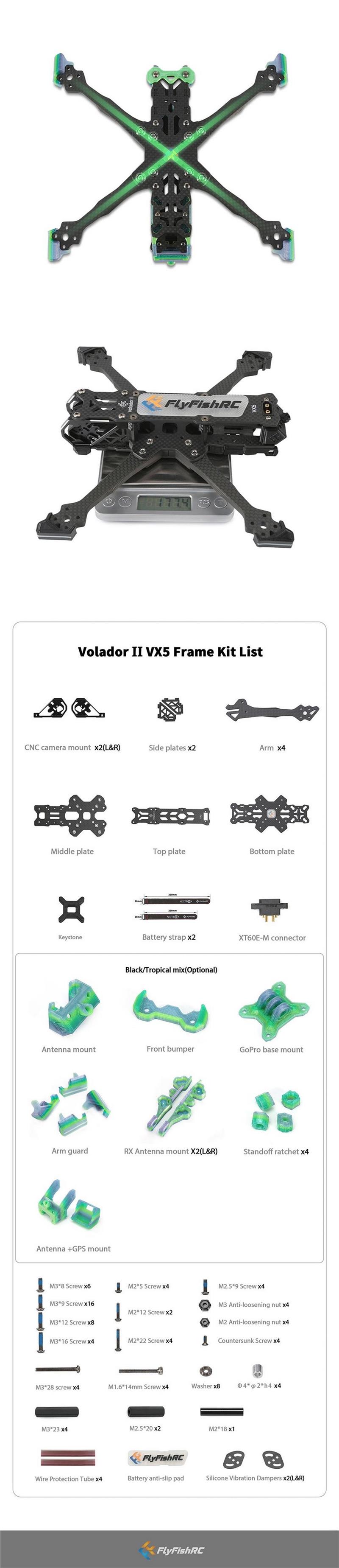

1 x Frame Kit
