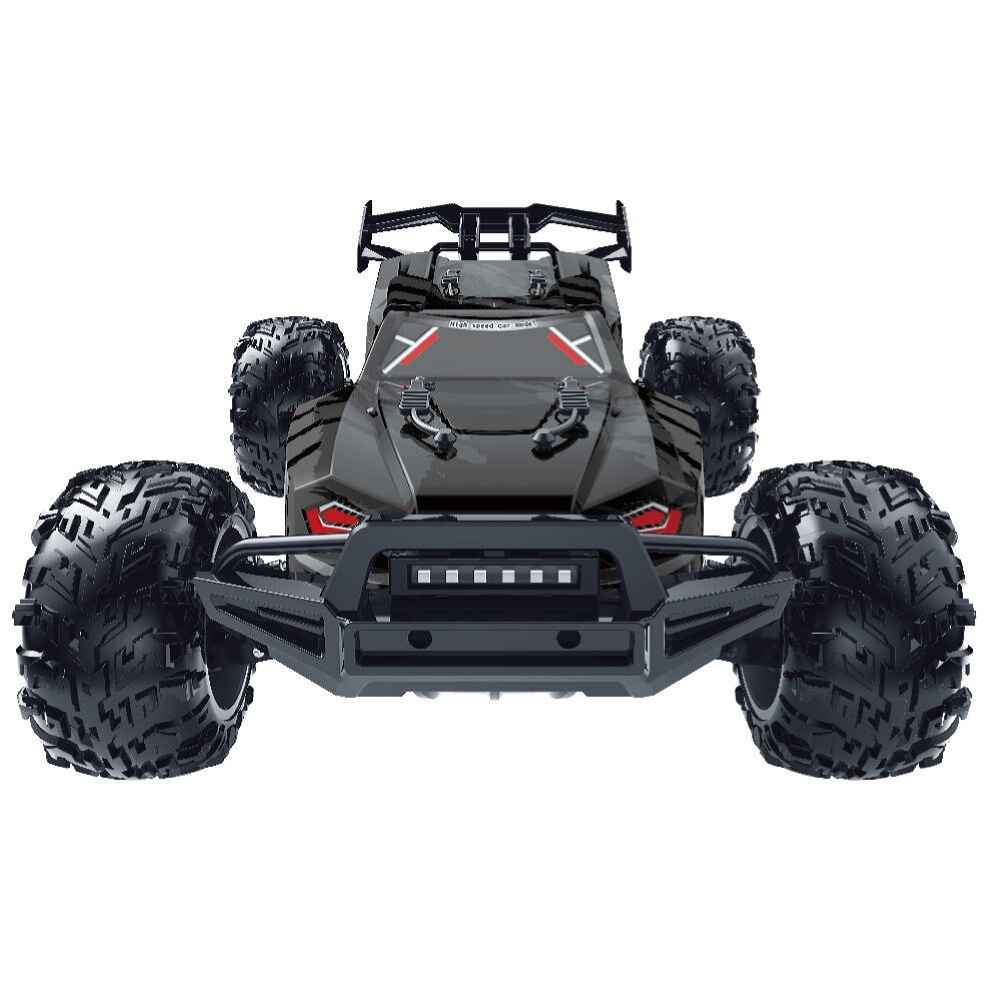

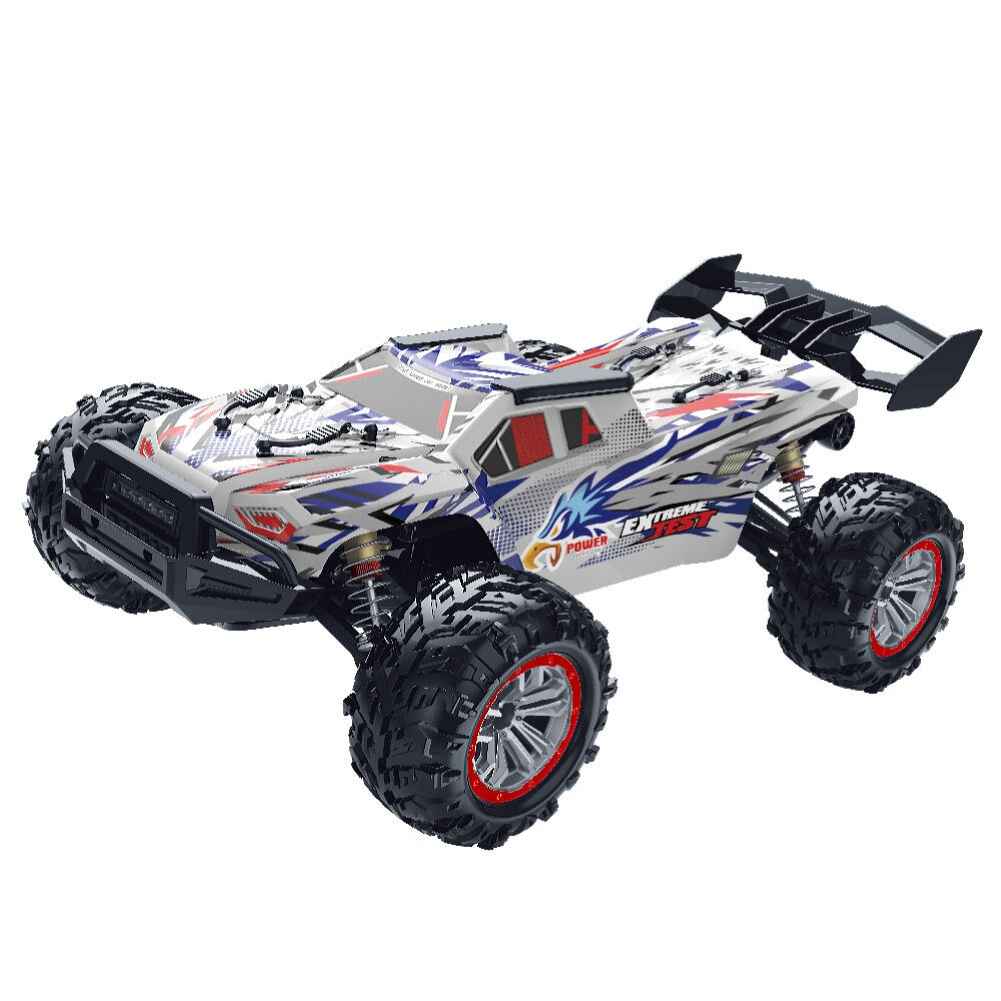

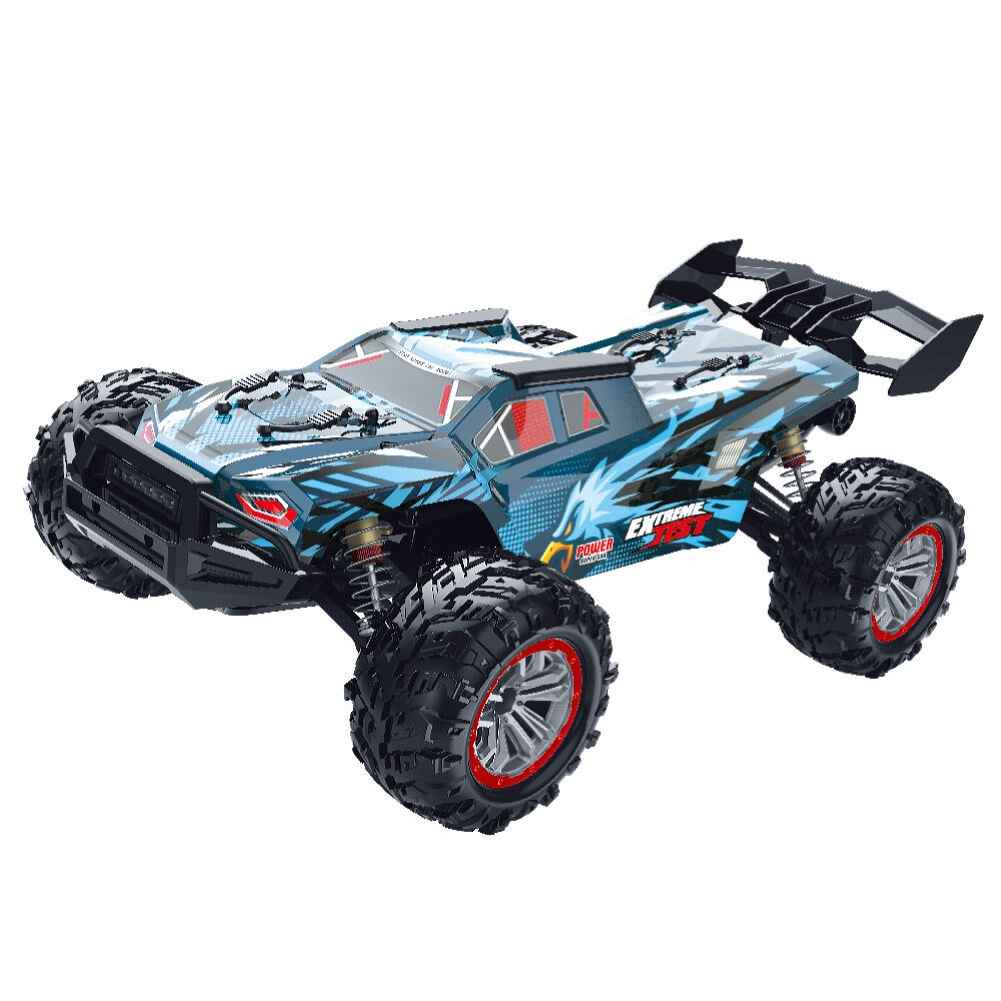

XLF F28 1/10 4WD Brushless RC Car, Waterproof Off-Road Truck, 68km/h High-Speed, Full Proportional Control, 2.4Ghz Remote

Description

XLF F28 4WD RTR 1/10 2.4G 4WD RC Car Brushless Waterproof Off-Road Truck Full Proportional Vehicles Models Toys

The XLF F28 1/10 4WD RC Car offers an exhilarating off-road experience with its high-torque, sensorless brushless 3660 motor, reaching speeds of up to 68km/h. This robust model is constructed with a full metal structure and a nylon anti-collision head-up wheel, ensuring durability. It features a 2.4GHz full-proportional synchronous control system, allowing precise steering and throttle adjustments. The vehicle is equipped with a waterproof digital servo and a powerful 11.1V 2200mAh lithium battery, providing approximately 10 minutes of run time. Designed for various terrains such as flat roads, cement, and asphalt, it includes a double wishbone independent suspension system and oil shock damping for stable high-speed driving.

Description:

Item No.:F28
Product Name: 1/10 Monster Truck
Speed:68km/h
Material: hardware, engineering nylon, electronic components

Power system

ESC/RX: ESC/RX integrated control (waterproof)

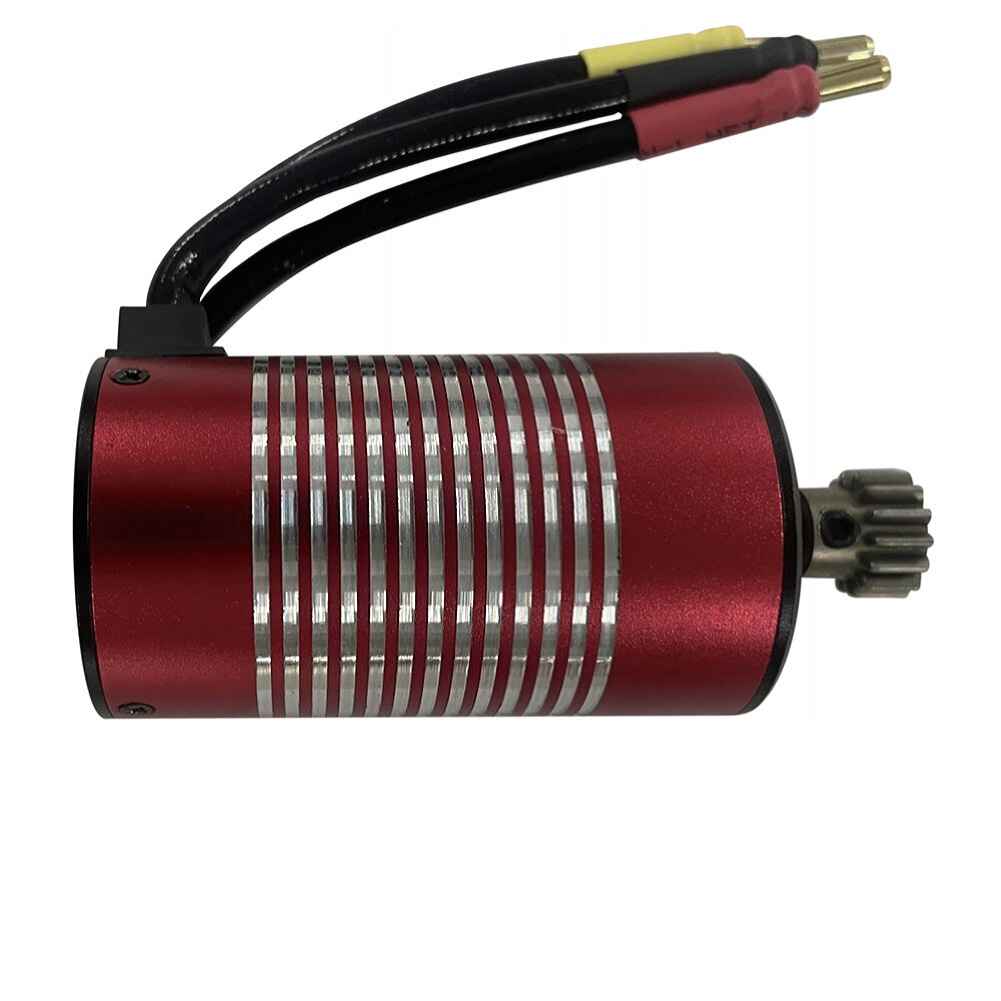

Motor: High torque sensorless brushless 3660 motor, 3100kv
Servos: 3-wire brushless, 9.0KG steel gear waterproof digital servos

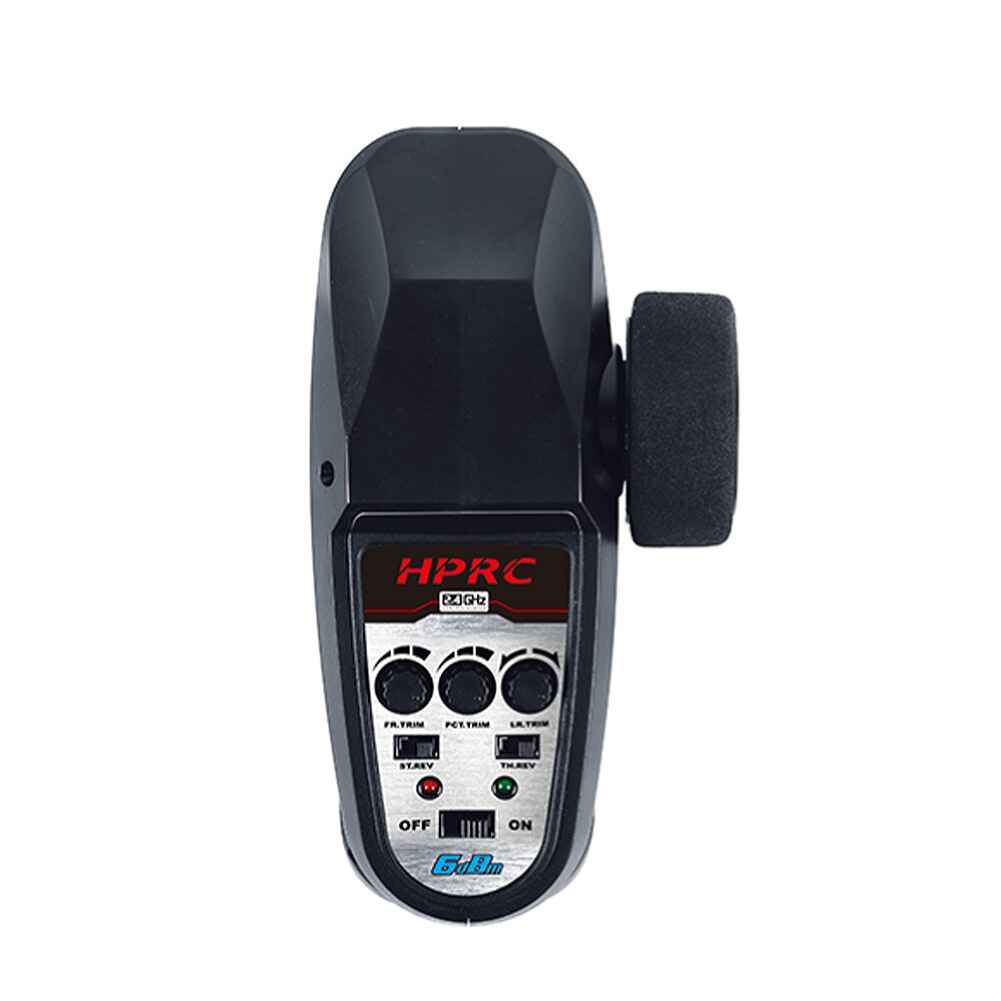

Transmitter

Frequency:2.4 GHZ
Remote control battery: 4 ‘AA’ (not included)

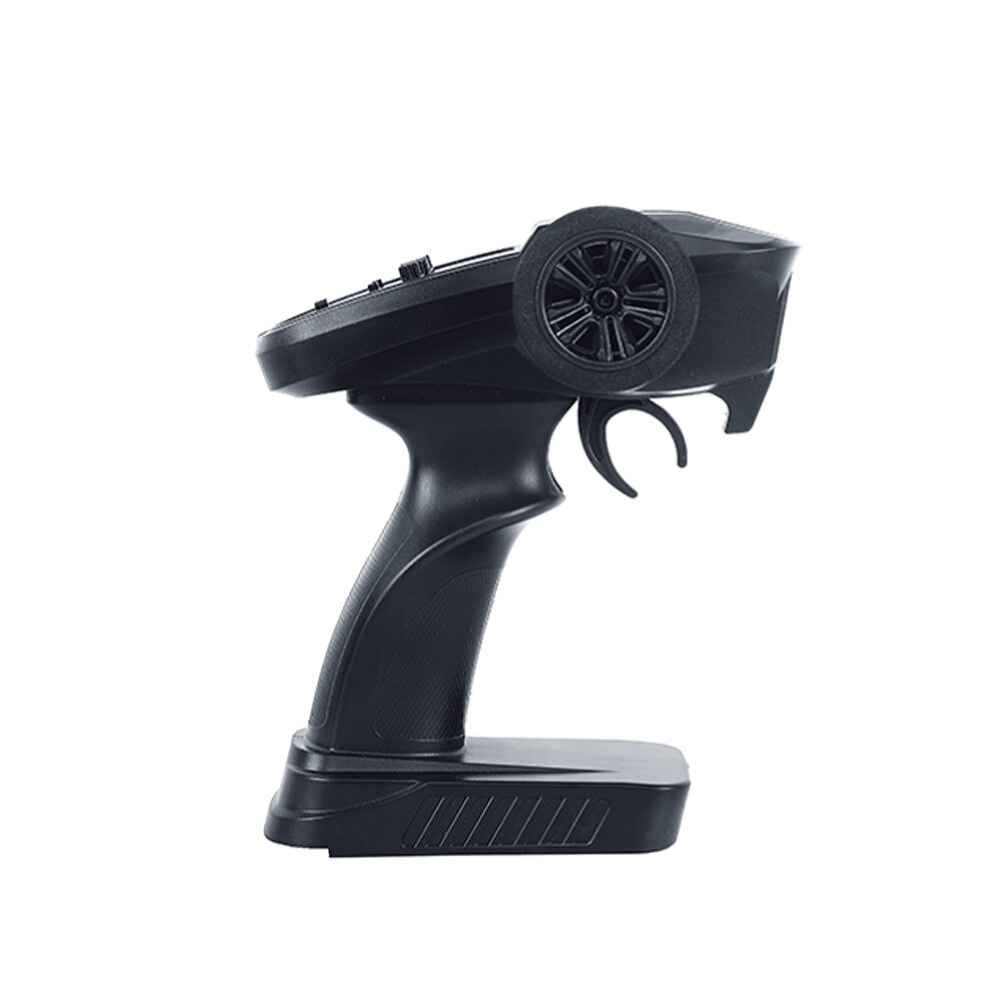

Remote control type: full-proportional synchronous control system (gun control)

Battery:

Battery: 11.1V 2200mAh lithium battery with protective shell (T plug)
Charger: 11.1v USB cable charger (red and green double light prompt)

others

Charging time: 3-3.5 hours (USB balance charging)
Using time:about 10 minutes
Control distance:√200 meters
Function:Driving at high speed, rapid acceleration, deceleration, braking, reversing, left turn, right turn
Proportional control:proportional control

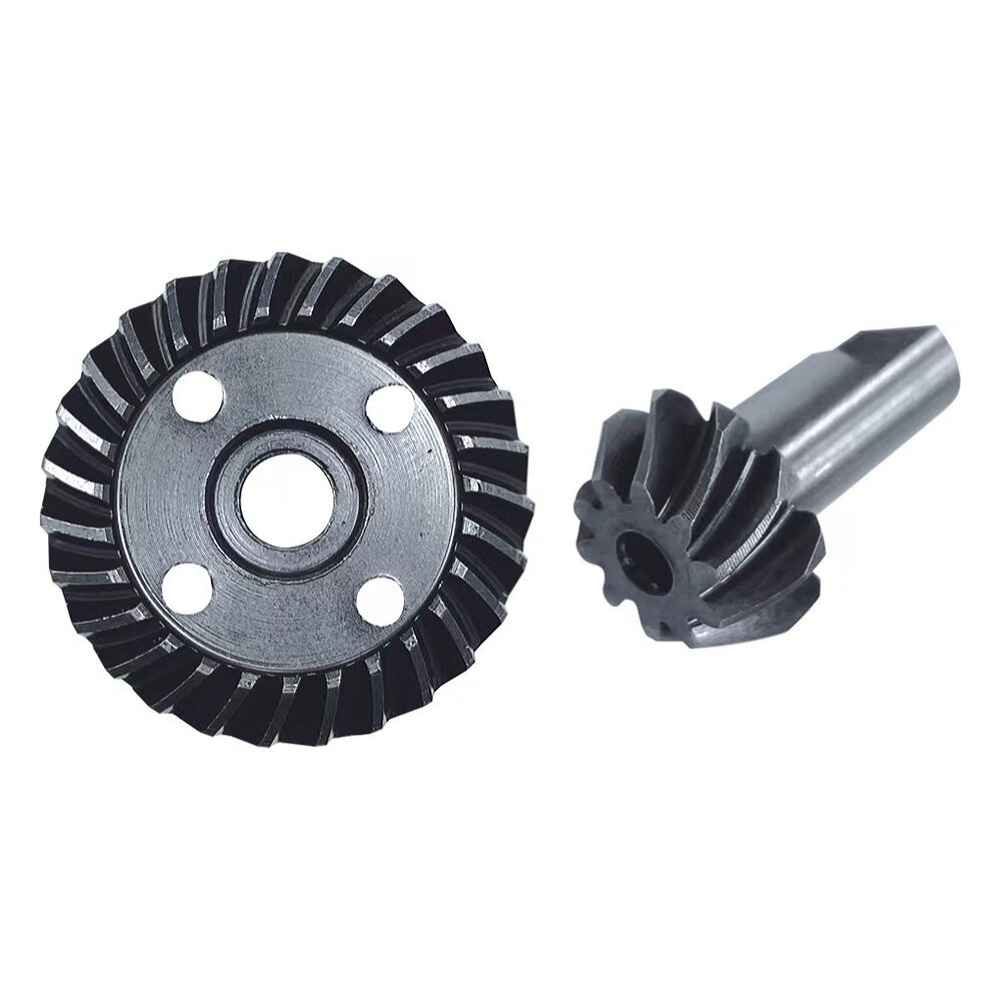

Differential structure: The whole car uses 3 full metal differentials. Adopting 40Cr chrome steel and Gleason helical gear structure, the engagement is more precise.

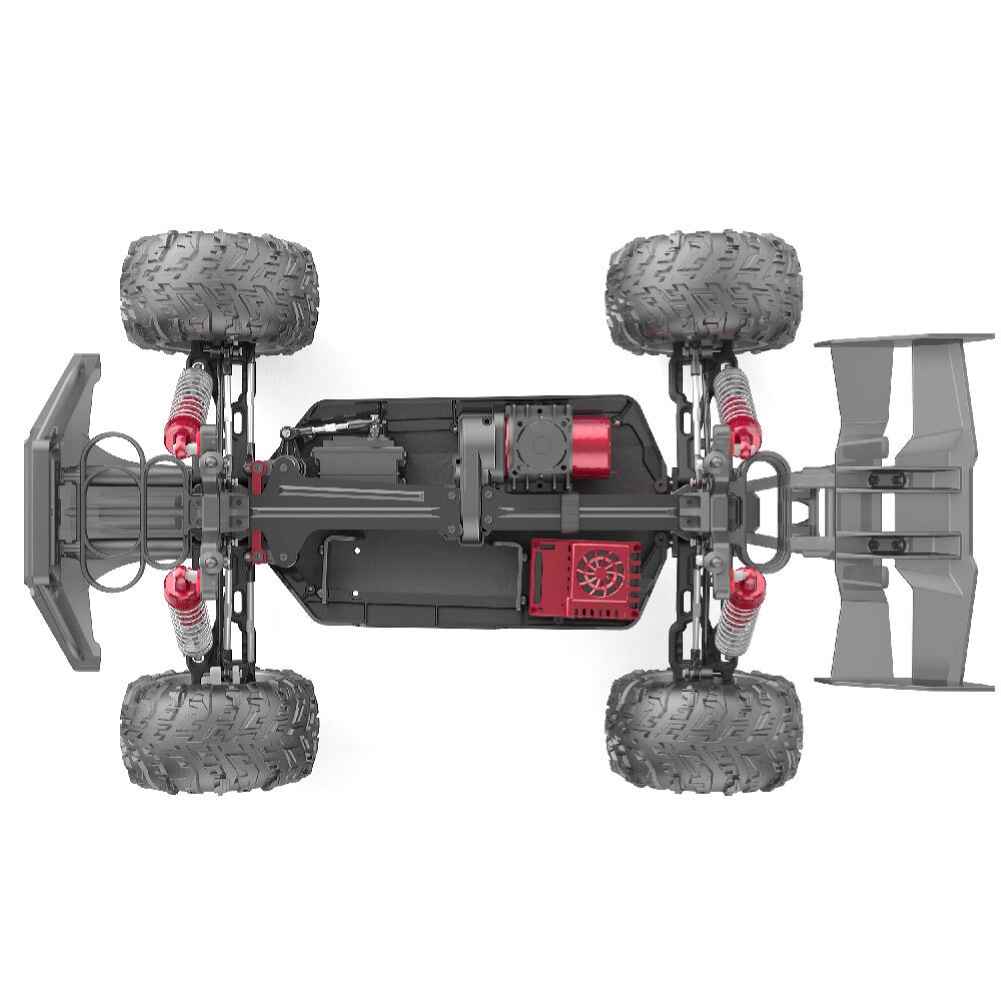

Body configuration: full metal structure with nylon anti-collision head-up wheel

Dimension

wheelbase: 285mm
wheel base: 158mm;

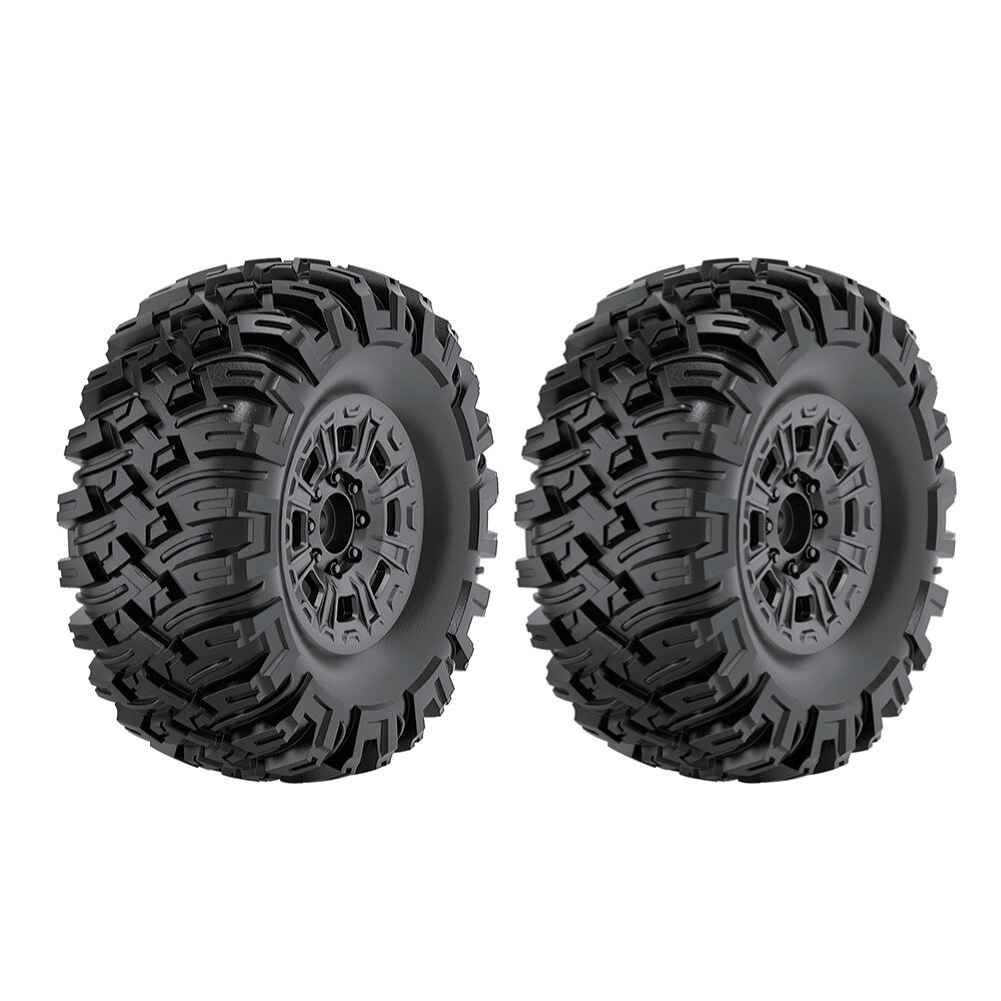

wheel diameter: 110mm
Packing method: color box
Product specifications: 52cm沁31cm沁17.5cm
Remote control specifications: 13沁7.5沁21 cm
Color box specifications: 54.5cm沁32.5cm沁20cm
Vehicle weight: 2.4KG
Including packaging weight: 3.4KG

Feature:
1. The simulated structure design has the control feeling of a real car, realizing full-proportional stepless speed change, high-speed driving, sudden acceleration, deceleration, braking, reversing, left turn, right turn;2. Applicable sites: flat roads, cement roads, asphalt roads, racetracks;3. Special aluminum metal intermediate gearbox, three differential transmissions in front, middle and rear, using 40Cr chrome steel and Gleason helical gear structure, high-speed driving is more stable and more powerful.4. Four-wheel drive: front and rear oil shock damping spring shock absorption, double wishbone independent suspension system;5. 2.4G full-proportional synchronous remote control system. Steering, throttle can be fine-tuned, high and low speed can be limited by yourself, full-proportional throttle/steering;6. 2.4G waterproof 85A integrated electric adjustment/receiver;7. The drive shafts of the whole vehicle are made of medium carbon steel.8. 3-wire 9KG steel-tooth brushless waterproof digital servo;9. Super strong battery power: 11.1V, 2200mAh protective shell lithium battery, (T plug);11. Metal second floor plate, metal front and rear swing arms, metal drive shaft, metal gears throughout the vehicle (including planetary differential);12. The vehicle shell adopts high-toughness explosion-proof PVC vehicle shell;13. Rubber tires with sponge liner, strong grip, wear resistance and high speed resistance;15. Multiple power ports are reserved on the electric board for consumers to upgrade other accessories (lights and fans, etc.);
Notes:
1. Charging protection: constant current and constant voltage balanced charging, protection against battery overcharge and overcurrent.
2. Motor anti-stuck protection: when overloaded, the motor stops working.
3. High temperature protection: when the working temperature is higher than the set temperature, the drive control circuit stops working and resumes working after the temperature drops to a safe value.
4. Low voltage power-off function of the electric adjustment, the battery is lower than about 6.6V, and the power is automatically cut off to prevent the battery from being damaged by over-discharge.

Package Included:
1 x Complete vehicle
1 x Remote control
