Description

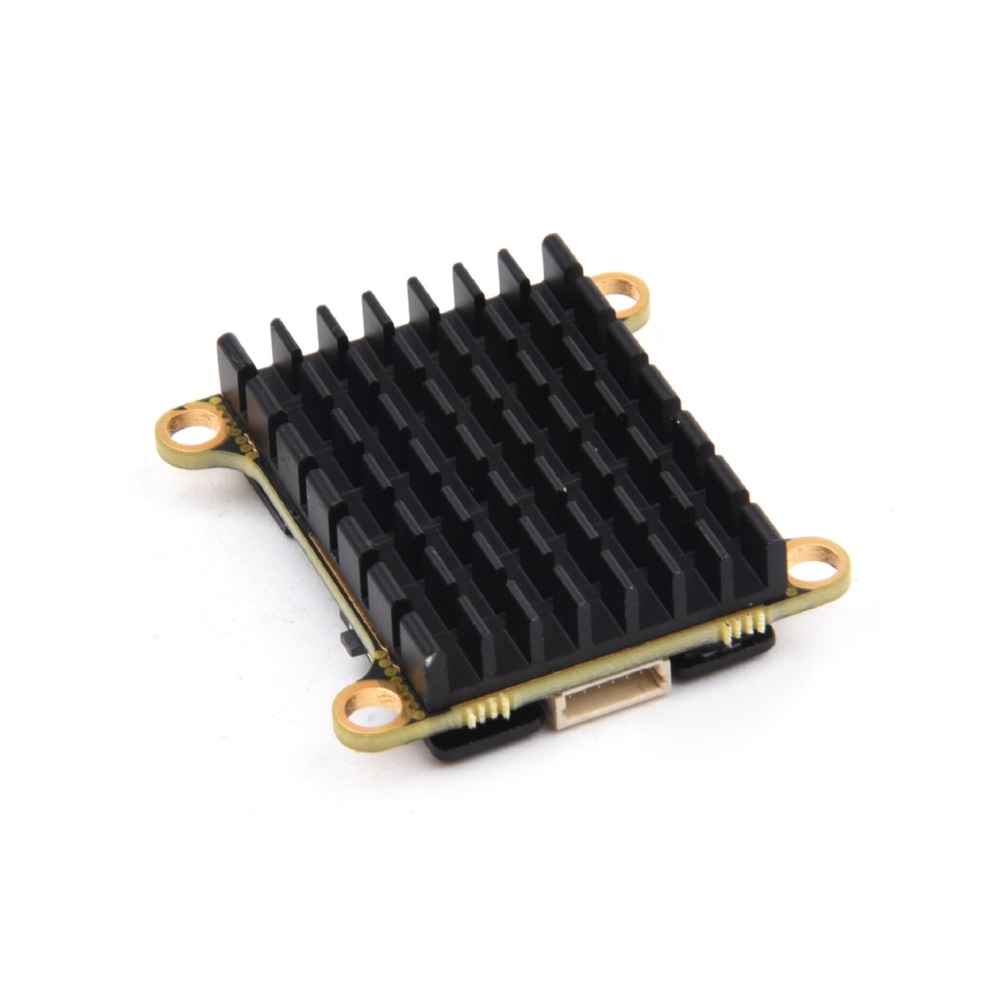

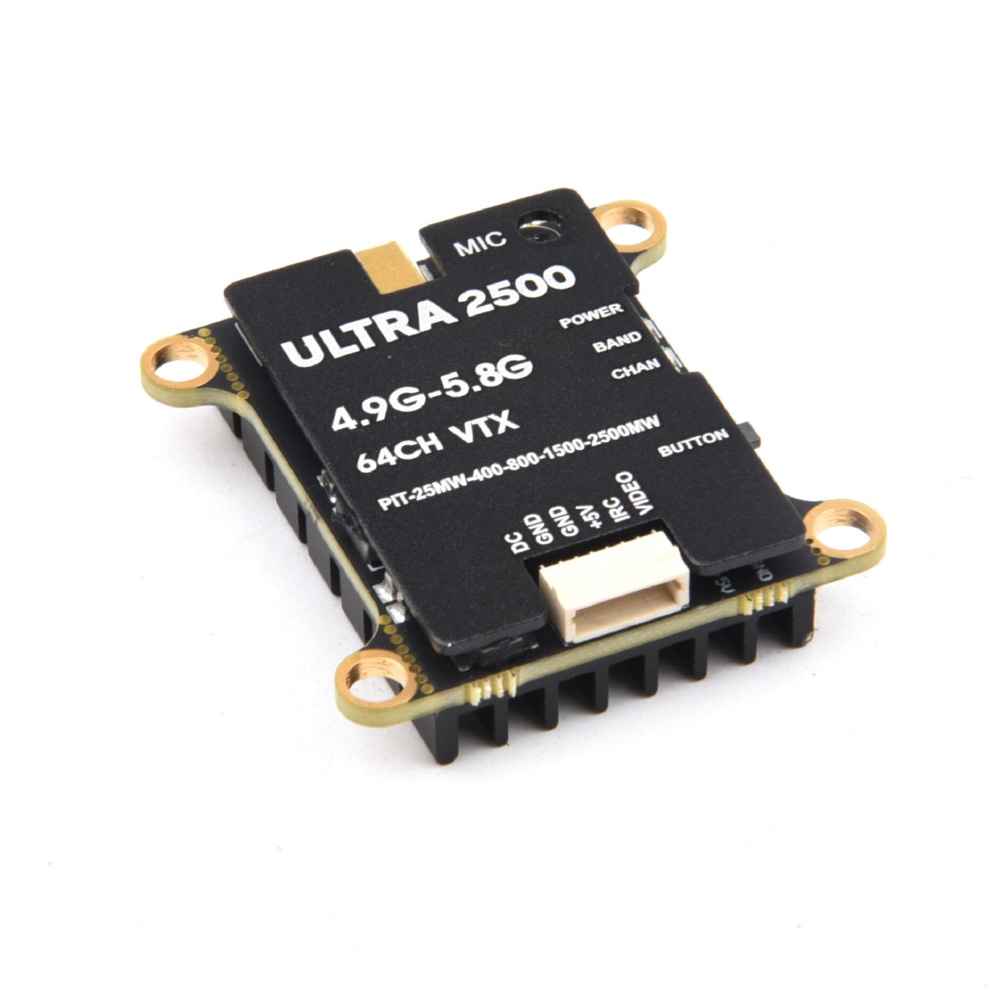

Ultra2500 4.9-5.8Ghz 64CH 25mW/ 400mW/ 800mW/ 1500mW/ 2500mW/ Pit Mode 2.5W FPV Transmitter Built in Mic Support IRC Tramp VTX MMCX for RC Drones
The Ultra2500 64CH FPV Transmitter is designed for RC drones, offering a versatile power range from 25mW to 2500mW, including Pit Mode, to suit various flying conditions. It features a built-in microphone for real-time audio feedback and supports IRC Tramp protocol for easy OSD parameter adjustments. With a wide input range of 7V-36V and a two-layer board cooling structure, it ensures stable performance and reduced interference. The transmitter is compact, measuring 36.5mm x 36.5mm x 12mm, and includes mounting holes sized at 30.5mm x 30.5mm for easy installation. Note: Ensure proper ventilation and antenna installation to prevent overheating.
Specification:
Features:
1. 64CH VTX super-power,suitable for Long Rang fligh with good stability.
2. Six power levels: 25mW/400mW/800mW/1500mW/2500mW/Pit mode.
3. Two-layer board cooling structure,separate power BEC and main-board,reducing and shielding from the insinal interference.
4. Temperature control protection function that can prevent high temperature burning.
5. Wide input, supports 7V-36V input.
6. VTX control protocol is IRC Tramp,supports OSD parameter adjustment.
7. VTX built in microphone,real-time return of Drone’s sounds.
8. Has 3 regional frequency tables to meet the needs of various regions.
9. One function buttons, three indicator lights, easy to operate.
10. Mounting holes is 30.5mmx30.5mm.
NOTE:
For BetaFligh fligh controller firmware above BetaFligh 4.1.0,you need upload a VTX Table to the fligh controller before using the remote control to modify the video transmitter parameters normally.
WARNING:
1. Install antenna before use.
2.To prevent overheating. provide constant airfiow and a well ventilated environment.Install a cooling fan if operating in confined conditions.
3. The 5V Output is just used for a Camera/Cooling Fan! Don’t connect Power Input /Battery to 5V Output port. Otherwise the VTX will be damaged.
Pasckage included:
1 沁 Ultra 64CH VTX
1 x MMCX connector to SMA connector 82cm
1 沁 GH 1.25-6P connector cables 150mm
Package Included:
1 x Ultra 64CH VTX
1 x MMCX connector to SMA connector 82cm
1 x GH 1.25-6P connector cables 150mm
