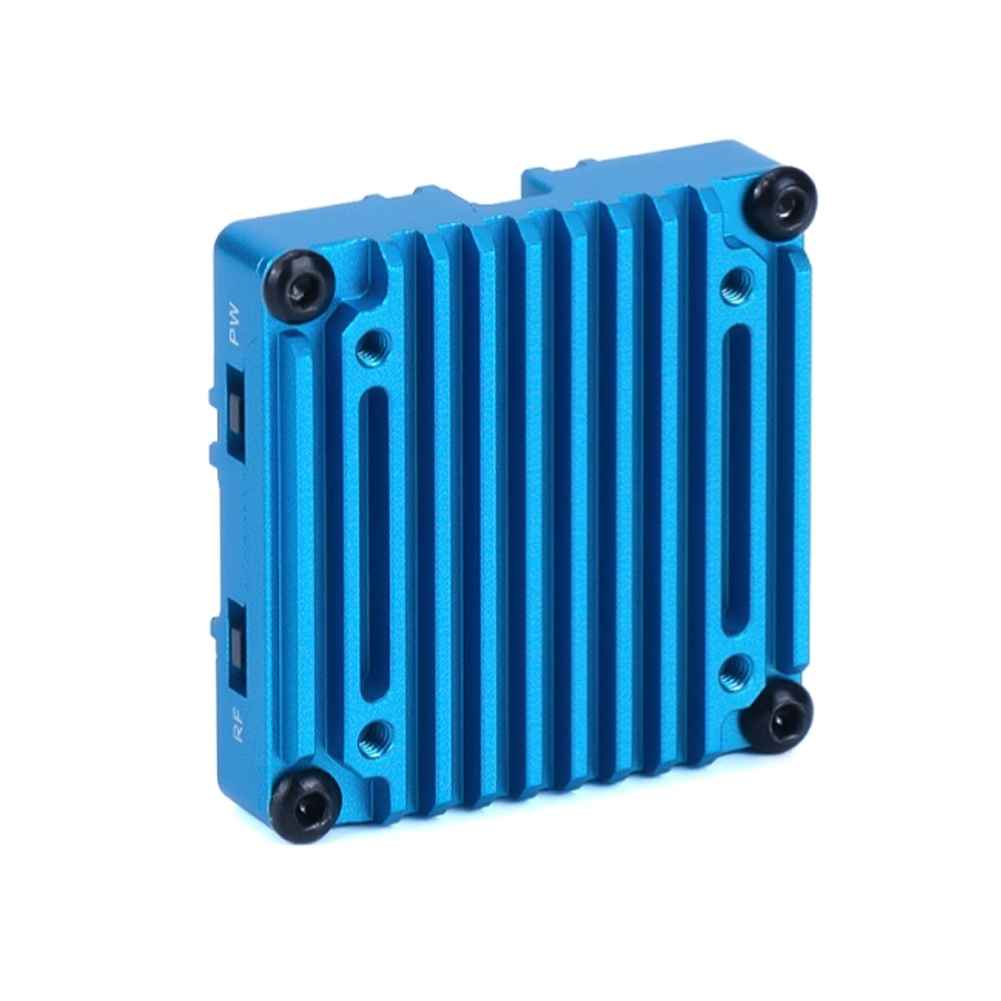

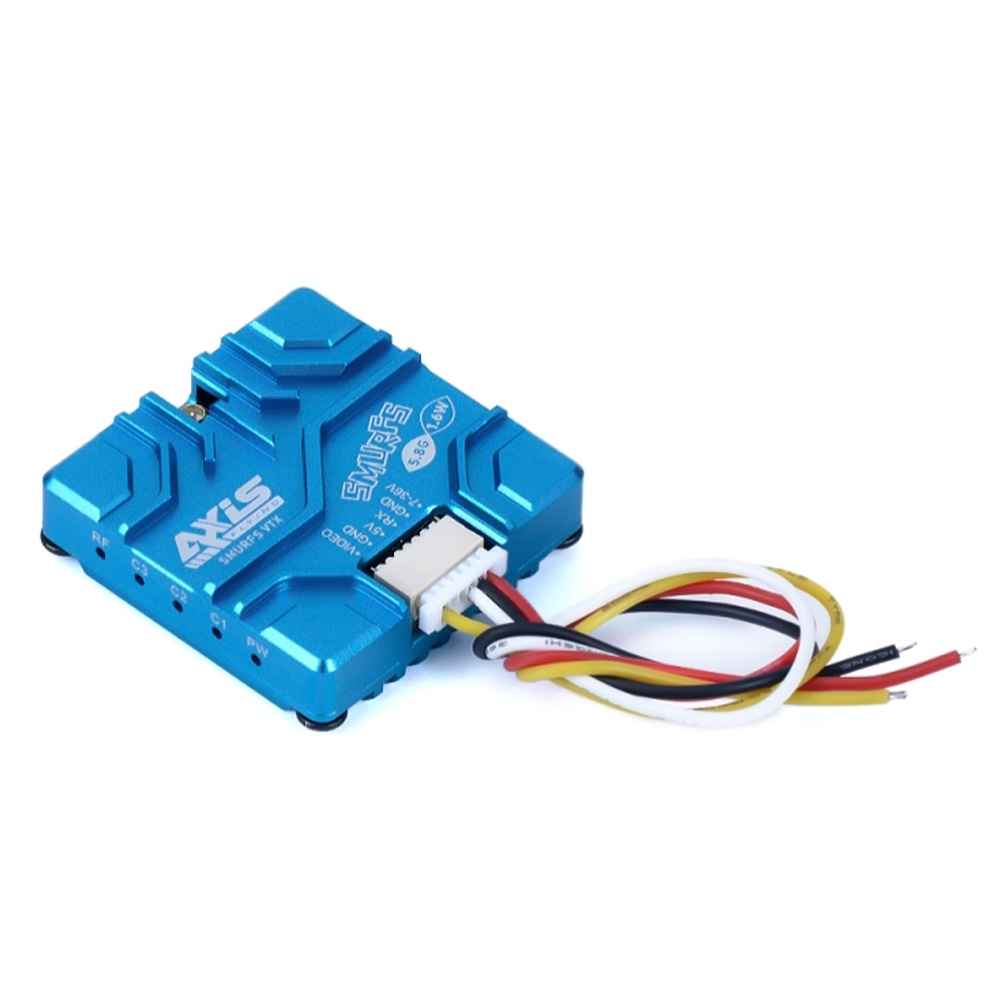

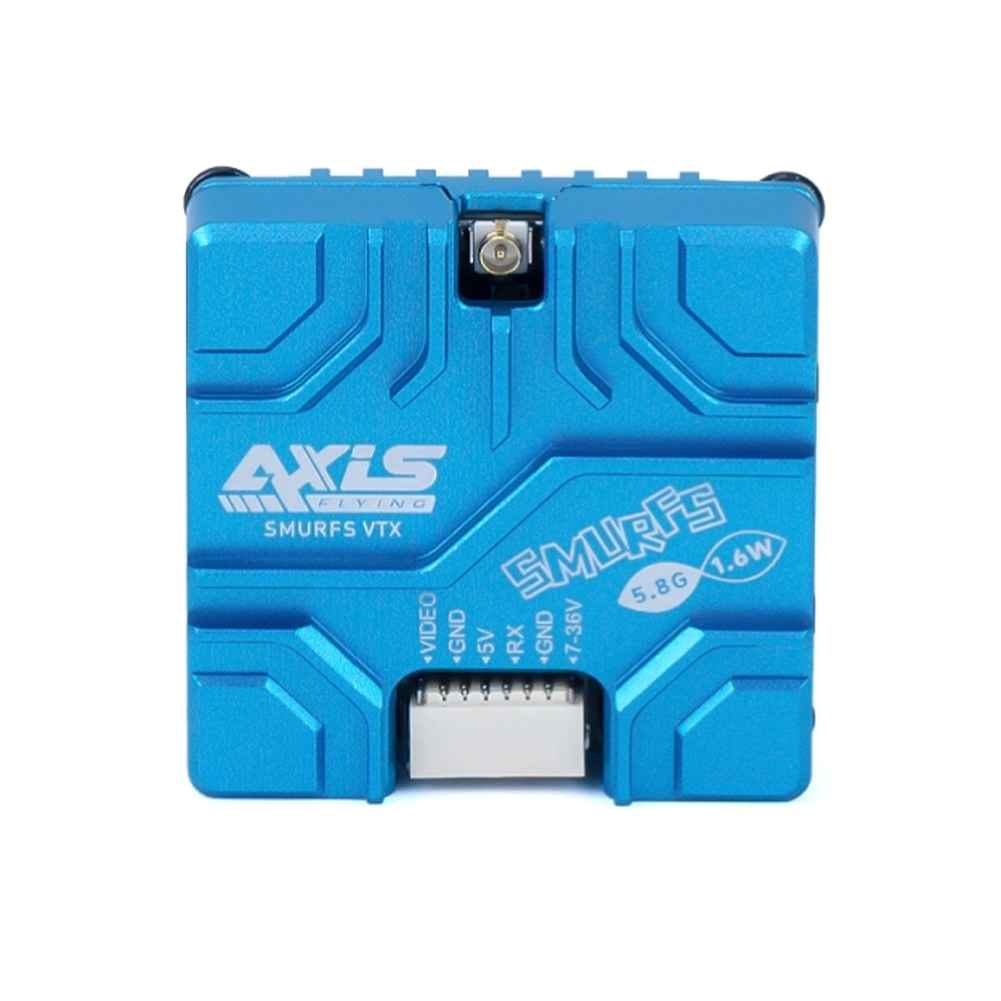

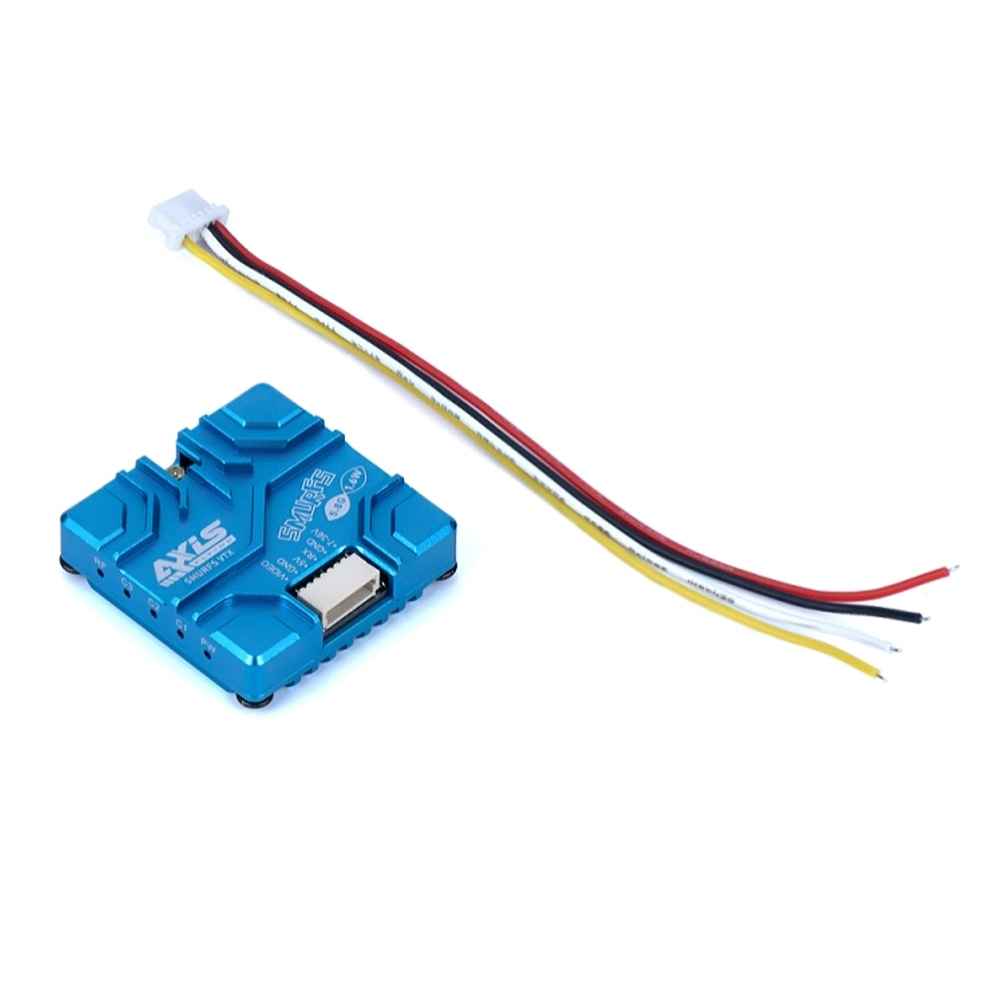

Axisflying SMURFS VTX 5.8G Analog FPV Transmitter, 25W-1600mW Power, IRC Tramp Protocol, for RC Drones

Description

Axisflying SMURFS VTX 5.8G 25W 100W 250W 800W 1.6W Analog IRC Tramp Image Transmission FPV Transmitter for RC Drones

The Axisflying SMURFS VTX 5.8G Analog Image Transmission is designed for RC drone enthusiasts seeking reliable performance. It operates on the 5.8G band with 5 frequency groups and 40 transmission frequencies, ensuring a strong and stable signal. The transmitter offers adjustable power rates from 25mW to 1600mW, catering to various flying conditions. Featuring an IPEX generation 1 interface, it allows easy connection to antennas. With a wide input power range of 7V to 36V, it suits different power setups. Compact at 30x30x9mm and weighing only 12.7g, it minimally impacts drone flight dynamics. Note: Always connect the antenna before powering to prevent damage.

Axisflying SMURFS VTX 5.8G 1.6W Analog Image Transmission for RC Drones
WARNING:
Be sure to plug in the antenna before powering up, or you willburn this product !!!
Specifications:

Brand:

Axisflying

Model:

SMURFS VTX

Frequency:

5.8G band, 5 frequency groups,40 transmission frequencies

Power rate:

25 / 100 / 250 / 800 / 1600mW

Antenna Interface:

IPEX gneration 1 interface

Input Power:

7V~36V

Adjustment Mode:

Button operation, OSD control

Product Dimensions:

30*30*9mm

Product Weight:

12.7g

Mounting Holes:

M2

Mount hole distance:

20*20mm

VTX Protocol:

IRC Tramp

Axisflying Owl Pro Night Vision FPV Camera
Feature:
1. Operates on the 5.8G band with 5 frequency groups and 40 transmission frequencies, ensuring strong and stable signal transmission in various environments.
2. Offers selectable power rates of 25 / 100 / 250 / 800 / 1600mW to meet different flying requirements and environments.
3. Equipped with IPEX generatio 1 interface, facilitating easy and secure connection to various antennas for optimal performance.
4. Supports a wide input power range from 7V to 36V, making it compatible with different power supply setups.
5. With dimensions of 30*30*9mm and a weight of only 12.7g, it is designed for minimal impact on the fligh dynamics of drones.

Package Included:
1 x SMURFS VTX 5.8G 1.6W Analog Image Transmission
