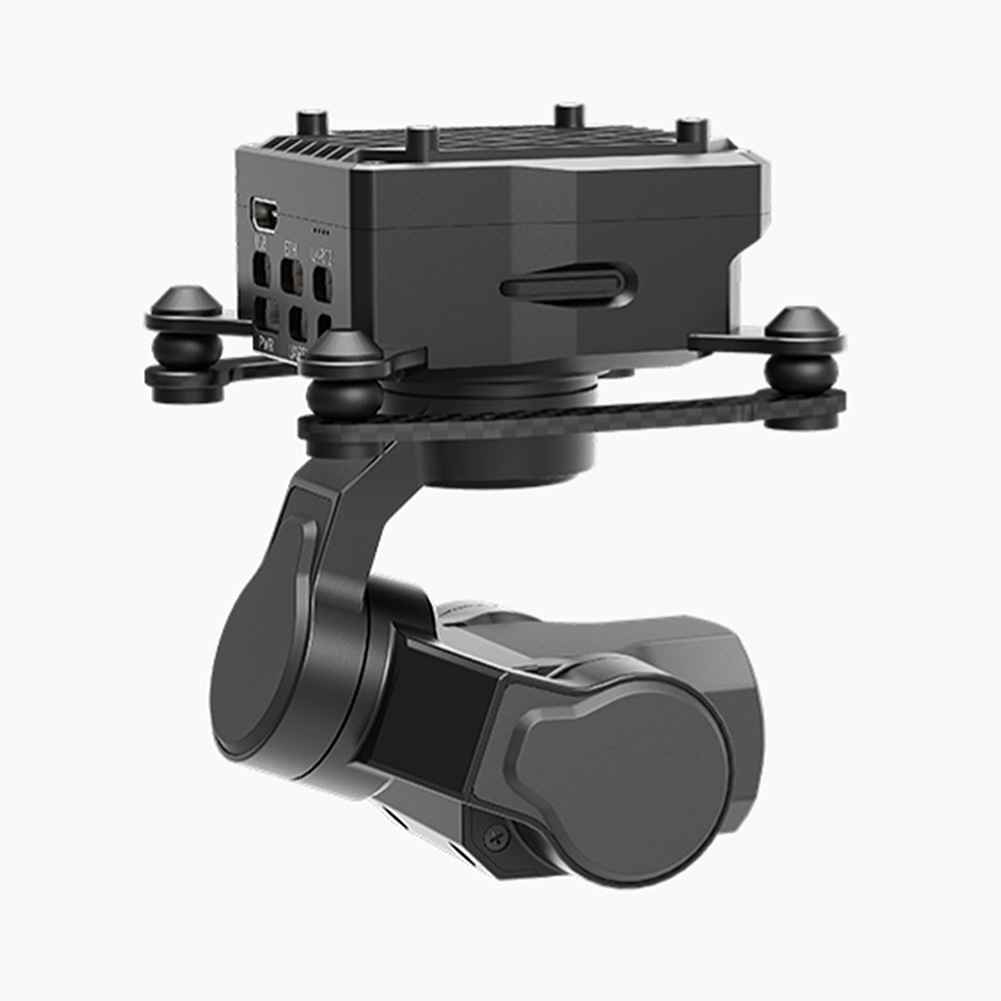

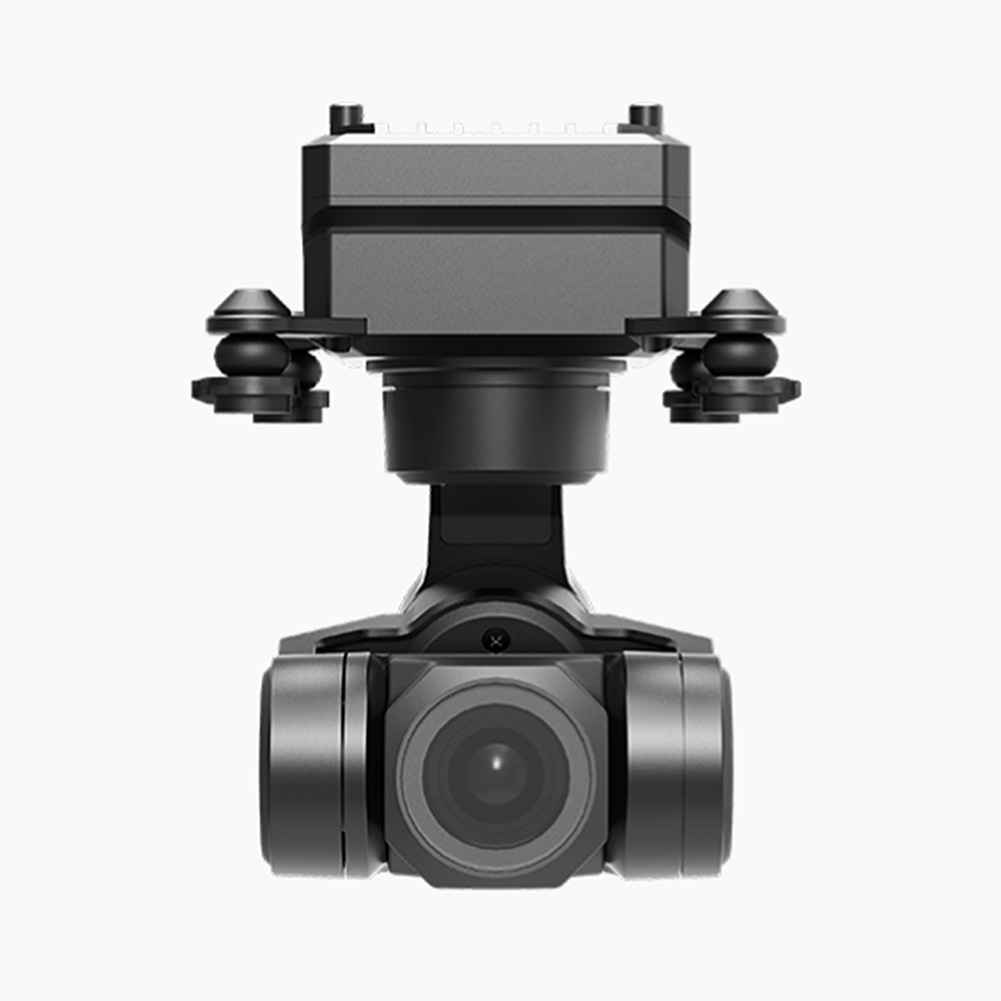

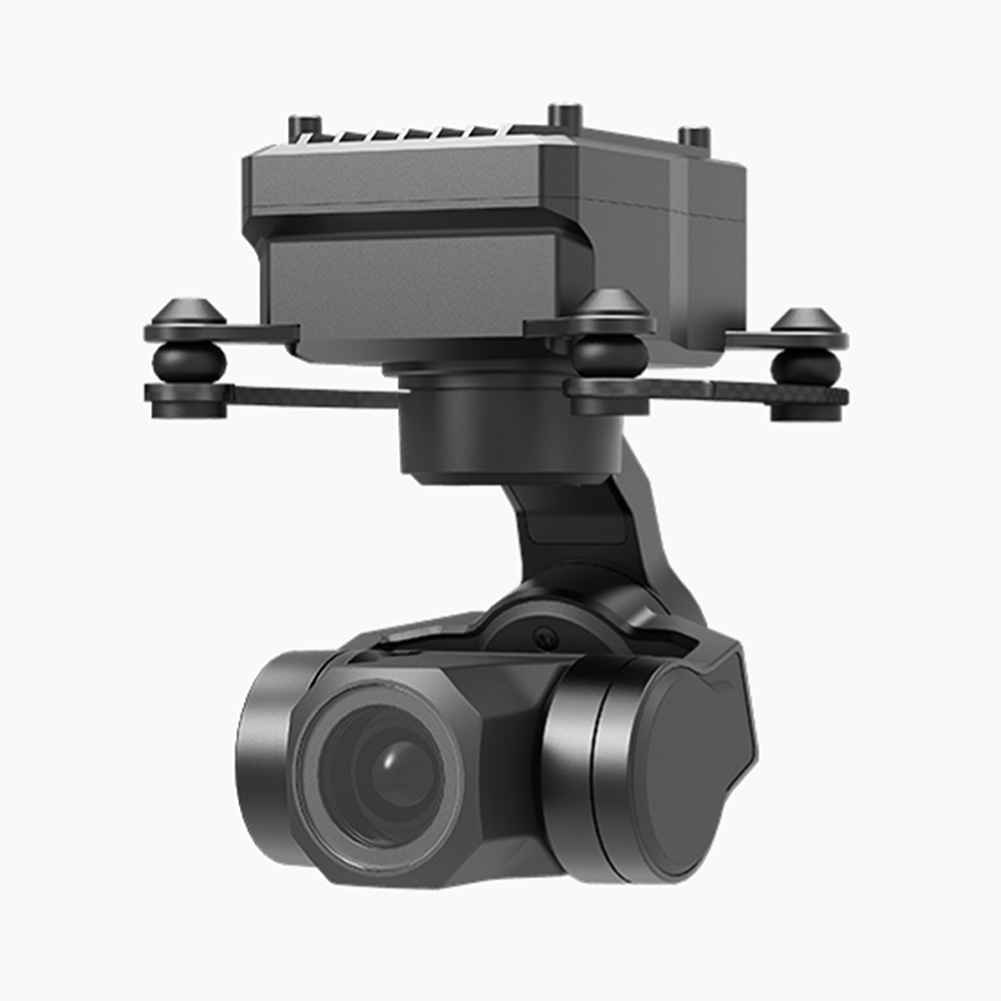

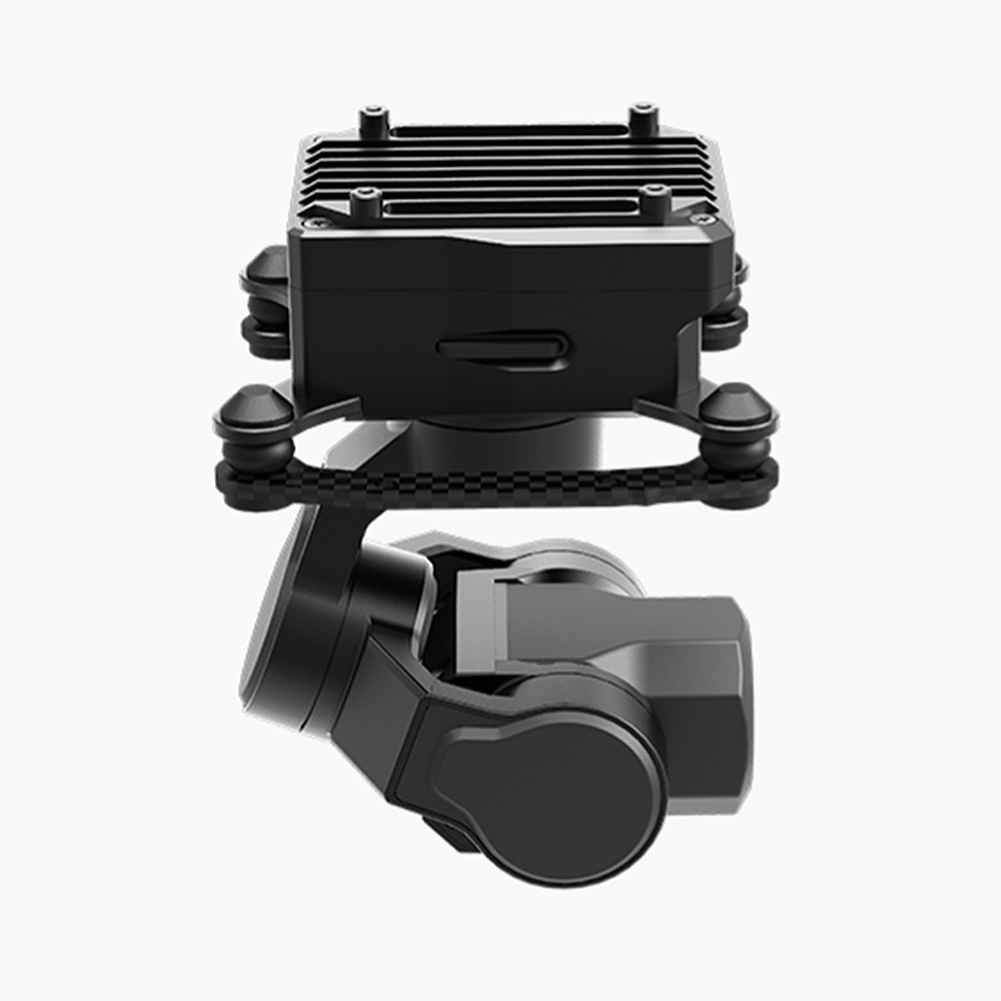

XF Z-1Mini 4K Full-Color Night Vision MicroPod with AI Detection & Gimbal for RC Drones

Description

XF Z-1Mini Intelligent 4K Full-Color Night Vision MicroPod FPV Gimbal Support Network Serial Port and S.BUS Control for RC Drone

The XF Z-1Mini Intelligent 4K Full-Color Night Vision MicroPod is designed for RC drones, featuring a 4K resolution camera with an AI-ISP full-color night vision imaging engine. This enables exceptional night observation in low-light conditions. Equipped with AI multi-object detection and tracking, it can intelligently identify and track persons and vehicles. The 3-axis nonorthogonal gimbal ensures high accuracy and can be mounted either downward or upward. It supports network, UART, and S.BUS control, compatible with private and MAVLink protocols. The Dragonfly software allows real-time image viewing and control, while the customized QGC software integrates with open-source autopilot systems. The gimbal’s stabilization accuracy is enhanced by dual-IMU algorithms.

Description:
The Z-1Mini Intelligent 4K Full-Color Night Visio MicroPod carries a 4K resolution camera empowered with the AlISP full-color night visio imaging engine, which can provide a good full-color night observation performance even in extremely low-light environments such as night time or confined spaces. The Z-1Mini has Al multi-object detectio and tracking function.Thepod can intelligently identify the persons and vehicles in the image, and constantly tracking one of them.
With a high accuracy 3-axls nonorthogonal gimbal, the Z-1Mini can be mounted whether downward or upward. With the Dragonfly software, users can watch the image from the camera and control thepod real-timely on a computer.With the customized QGC software, all the functions of thepod can be achieved in conjunction with an open source autopilot.
Feature:
– 4K resolution and Al-ISP full-color night visio imaging engine empowerment.
– Features Al multl-object detectlon and tracking, which can constantly track one of the persons and vehidles Intelllgently ldentifled In the Image.
– Micro3-axls nonorthogonal mechanical stabilized structure reducing the weight down to 69g.
– Supports network, UART and S.BUS control and compatible with both private protocol and MAVLink protocol. Supports image transmission though network and HDMl.
– Thanks to the Dual-IMU complementary algorithms with IMU temperature control and carrier AHRS fusion, the gimbal provides a stabilization accuracy at +0.01‵.
– Can be mounted onto multiple carriers, whether downward or upward.
– With the Dragonfly software, user can watch the image and control the podwithout protocol ducking.
– Photos and videos can be downloaded online through the ‘Gallery’function of the Dragonfly software.
– With the customized QGC software, all the functions of thepod can be achieved in conjunction with an open source autopilot.
– Screen supports overlaying OSD information such as latitude, longltude and altitude. Image supports shooting point coordinate EXIF save.
– 10~26.4 VDC wlde voltag Input.
Specification:
Brand: XF
Item Name: Z-1Mini Intelligent 4K Full-Color Night Visio MicroPod

Specification

General

Product Name: Z-1Mini

Dimensions: 50.2 沁48.4 沁67.4mm

Weight: 69g

Operating Voltag: 10 ~ 26.4VDC

Power: 4.5W (AV) / 18W (Stall)

Mountina: Downward/Upward

Gimbal

Gimbal Type: 3-axls Nonorthogonal Mechanical Stabilization

Angular Accuracy: 呼0.01‵

Controllable Rang: Pitc: 呼120‵, Roll: 呼60‵, Yaw: 呼160‵

Max Controllable Speed: 呼200/s

Fixed Camera

Image Sensor|: 1/2.8-inch CMOS, Effective Pixels:8.29M

Lens:
Actual Focal Length:6.0mm (Equivalent focal length:40.6mm)
Aperture: f/1.0
HFOV:54.7‵
VFOV: 30.2‵
DFOV:63.2‵

Resolution: 3840(H)x2160(V)

Pixel Size: 1.45譙m(H) x1.45譙m(V)

Equivalent Digital Zoom Rate: 8x

Object Detectlon Distance

EN62676-4:2015

Person: 175m
Light vehicle:230m
Large vehicle: 491m

Johnson Criteria

Person:2069m
Light vehicle:6345m
Large vehicle:13517m1 x Z-1Mini Intelligent 4K Full-Color Night Vision MicroPod
