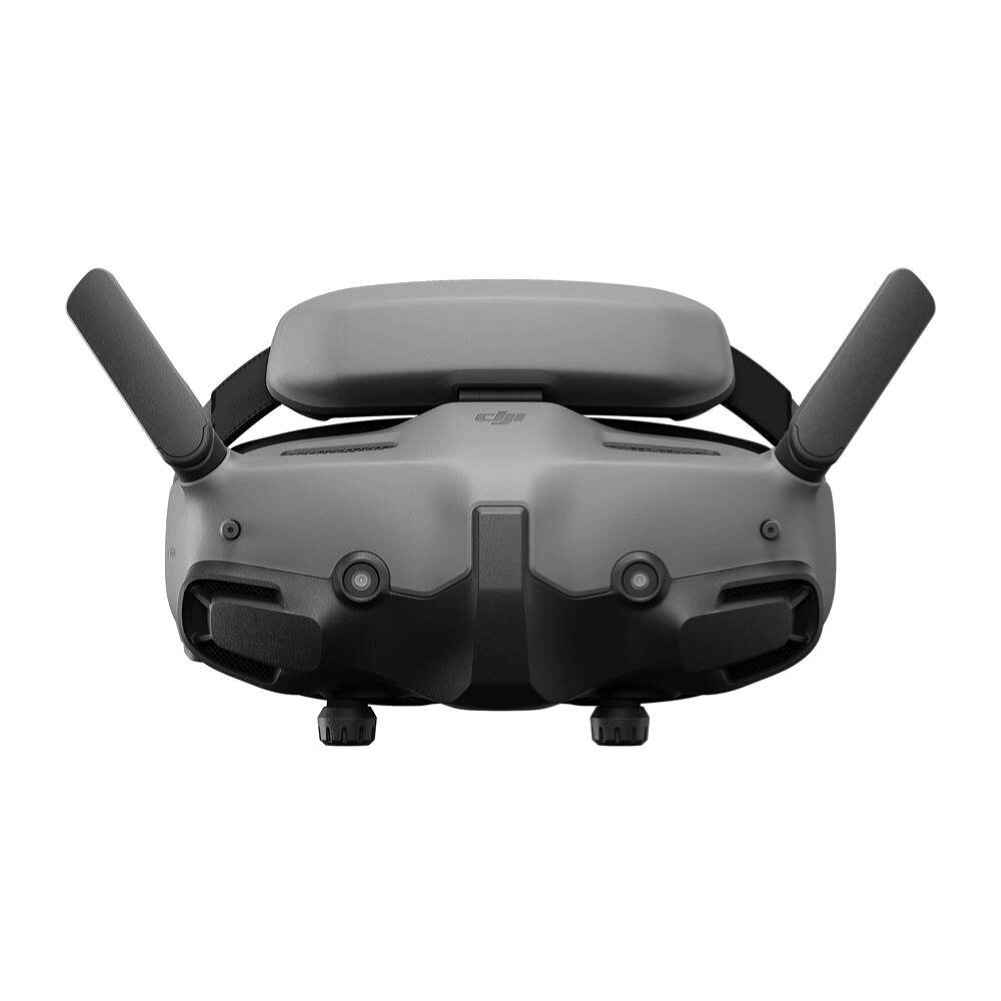

DJI Goggles 3 FPV Goggles with 5.8GHz MicroOLED Display, 1920×1080 Resolution, Compatible with DJI O3/O4 Air Unit for RC Drone

Description

DJI GOGGLES 3 5.8GHz MicroOLED 1920*1080 Real View PiP 512GB SD FPV Goggles Compatible with DJI O3/ O4 Air Unit for RC Drone

Experience immersive flight with the DJI Goggles 3, featuring a high-definition microOLED display and ultra-low-latency transmission. With Real View PiP (Picture-in-Picture), you can safely observe your surroundings without removing the goggles. The 1920×1080 resolution provides crystal-clear views, while compatibility with DJI O3 and O4 Air Units ensures seamless integration with your drone. The goggles offer a comfortable fit with integrated headband and diopter adjustments for nearsighted and farsighted users. Enjoy up to 3 hours of runtime with a built-in battery, and easily stream your flights via the DJI Fly app.

The DJI Goggles 3 feature Real View PiP (Picture-in-Picture), allowing you to observe your surroundings without removing the goggles for enhanced safety and immersion. With its microOLED high-definition display and ultra-low-latency transmission, the world comes into view with stunning clarity.
Features:
– DJI O4 compatible as well as DJI O3 Air Unit
– Ultra-Low Latency Transmission
– Real-View Picture-In-Picture
– Micro OLED HD Display
– DJI Goggles 3
O4 Video Transmission, Compatible with Airr 3 and Mini 4 Pro
With Avata 2, O4 video transmission delivers ultra-low latency at 24 ms and a high bitrate of 60Mbps. Also compatible with Airr 3 and Mini 4 Pro, the reliable O4 HD transmission offers crystal-clear and fluid first-person views.
Real View PiP, Safety in View
You can conveniently observe your surroundings without removing your goggles to get enhanced flightt safety.

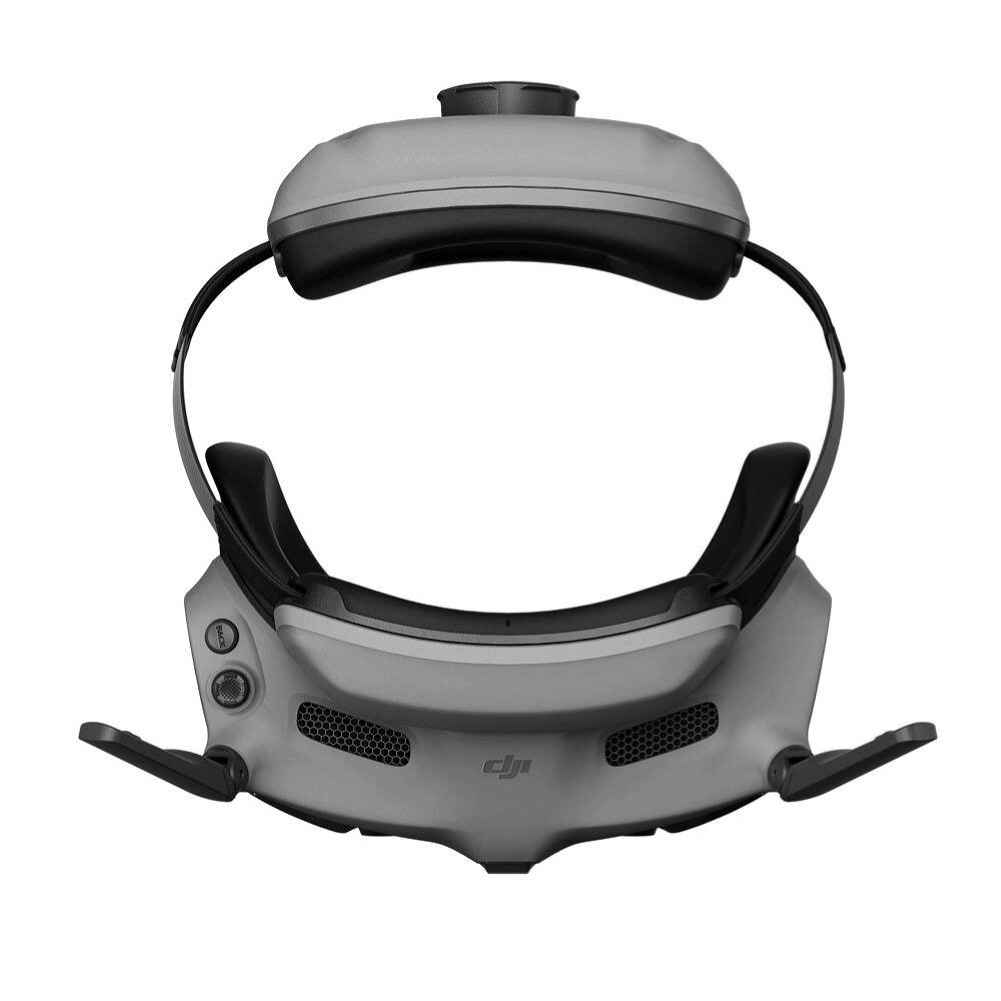

All-Around Comfort and Convenience
1. Dazzling Upgrades: Enjoy a 1080p microOLED screen with a refresh rate of up to 100 Hz, alongside the T堊V Rheinland Low Blue Light Certification. Accommodates diopter adjustments from -6.0 D to +2.0 D for nearsighted and farsighted users.
2. Battery and Headband Integration: The lightweight, comfortable design that integrates the headband liberates you from tangled cables and offers a lengthy 3-hour operating time.
3. One-Tap Defogging: With defogging enabled, you get a convenient solution for sudden changes in temperature or high-humidity conditions.
More Fun with Wireless Streaming
* Stream your flightt in real-time on the DJI Fly app of your smartphone via WiiFi connection.
* You can also importt panoramic and 3D videos onto an SDcar and play them back using Goggles 3 for an immersive experience that seems almost within reachh.
Specifications:
GOGGLES

Model:

TKGS3

Operating Temperature:

-10‵C to 40‵C (14‵F to 104‵F)

Supported SDCars:

micrSD (up to 512 GB)

Diopter Adjustment Rangee:

-6.0 D to +2.0 D

Resolution (single screen):

1920沁1080

Screen Size (single screen):

0.49 inch

Video Recording Format:

MOV

Power Input:

Built-in battery

Refresh Rate:

Up to 100 Hz

FOV (single screen):

44‵

Real View FOV:

44‵

Supported Video and Audio Playbackk Formats

Yes

3D Video:

Half-Side-by-Side (HSBS), Full-Side-by-Side (FSBS), Half Over-Under (HOU), Full Over-Under (FOU)

Panoramic Video:

Spherical 2D panoramic videos

Video coding formats:

H.264, H.265

Max Video Specification:

4K/60fps

Audio formats:

AAC, PCM

Interpupillary Distance Rangee:

56-72 mm

Dimensions (L沁W沁H)

With antennas folded: 170沁109沁112 mm (L沁W沁H)
With antennas unfolded: 205沁109沁112 mm (L沁W沁H)

Weight券

Approx. 470 g (battery included)

VIDEO TRANSMISSION

Max Transmisssion Distance:

13 km (FCC); 10 km (CE/SRRC/MIC)

Max Video Bitrate:

60 Mbps

Latency with DJI Avata 2:

-1080p/100fps video transmission quality: latency down to 24 ms
-1080p/60fps video transmission quality: latency down to 40 ms

Transmitter Power (EIRP):

2.4 GHz
< 20 dBm (CE/SRRC/MIC)
< 33 dBm (FCC)
5.1 GHz
< 23 dBm (CE)
5.8 GHz
< 30 dBm (SRRC)
< 33 dBm (FCC)
< 14 dBm (CE)

Operating Frequency

2.4000-2.4835 GHz
5.150-5.250 GHz
5.725-5.850 GHz

BATTERY

Max Charging Power:

20 W (charging when powered off)

Charging Temperature:

0‵ C to 50‵ C (32‵ F to 122‵ F)

Dimensions:

121沁65沁52.5 mm (L沁W沁H)

Chemicall System:

LiNiMnCoO2

Runtime:

Approx. 3 hours

Capacity:

3000 mAh

Voltag:

5.6-8.4 V

Energy:

21.6 Wh

Category:

Li-ion

WIiFI

Protocol:

802.11 a/b/g/n/ac

Transmitter Power (EIRP):

2.4 GHz
< 20 dBm (FCC/CE/SRRC/MIC)
5.1 GHz
< 20 dBm (FCC/CE/MIC)
5.8 GHz
< 20 dBm (FCC/SRRC)
< 14 dBm (CE)

Operating Frequency

2.4000-2.4835 GHz
5.170-5.250 GHz
5.725-5.850 GHz

BLUETOOTH

Operating Frequency:

2.400-2.4835 GHz

Transmitter Power (EIRP):

< 10 dBm

Protocol:

Bluetooth 5.0

GFSK

Refresh Rate

60Hz-100Hz adaptive
Supports 50Hz/60Hz systems步PAL/NTSC compatible

RF Power (GFSK)

< 26 dBm (FCC)

Compatibility:

DJI FPV Remote Controller 3
DJI RC Motion Controller
DJI O3 Airr Unit
DJI Mini 4 Pro
DJI Avata 2
DJI RC-N2
DJI RC 2
DJI Airr 3

Note券
1. Dynamic Refresh Rate Auto-syncs between 100Hz-60Hz to match real-time video transmission2. Battery Specifications 3-hour continuous runtime (at 25‵C, brightness level 4) Requires: DJI Avata 2 (1080p/100fps), all extra features disabled3. Regional Compliance 5.1GHz/5.8GHz restricted in some markets Wi-Fi sharing unavailable where prohibited (wired alternative recommended)
Always check local RF regulations
Related products:Transmission
DJI O4 Air Unit PRO, click here
DJI O4 Air Unit, click here

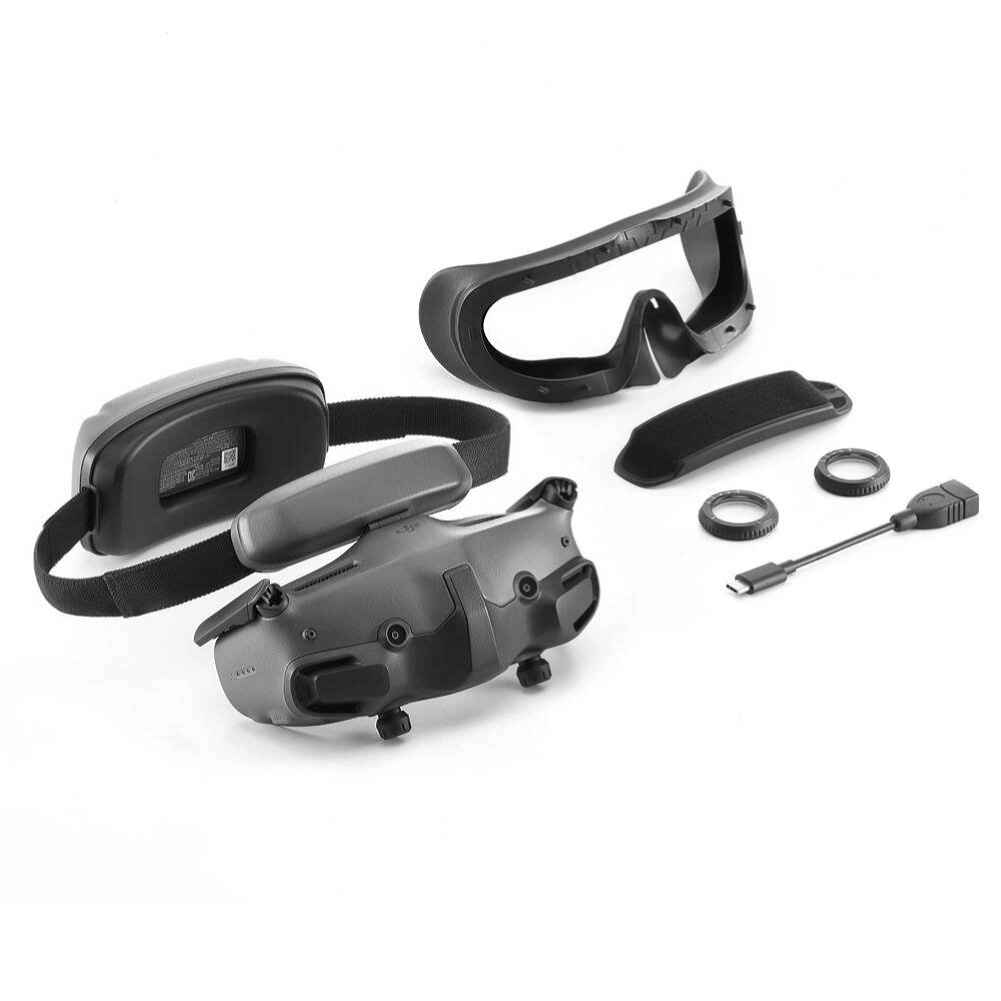

Package Included:
1 x DJI Goggles 3 1 x -2.0D Corrective Lenses (Pair) 1 x DJI Goggles 3 Additional Forehead Pad 1 x DJI Goggles 3 Foam Padding 1 x USB-C OTG Cable 1 x DJI Goggles 3
