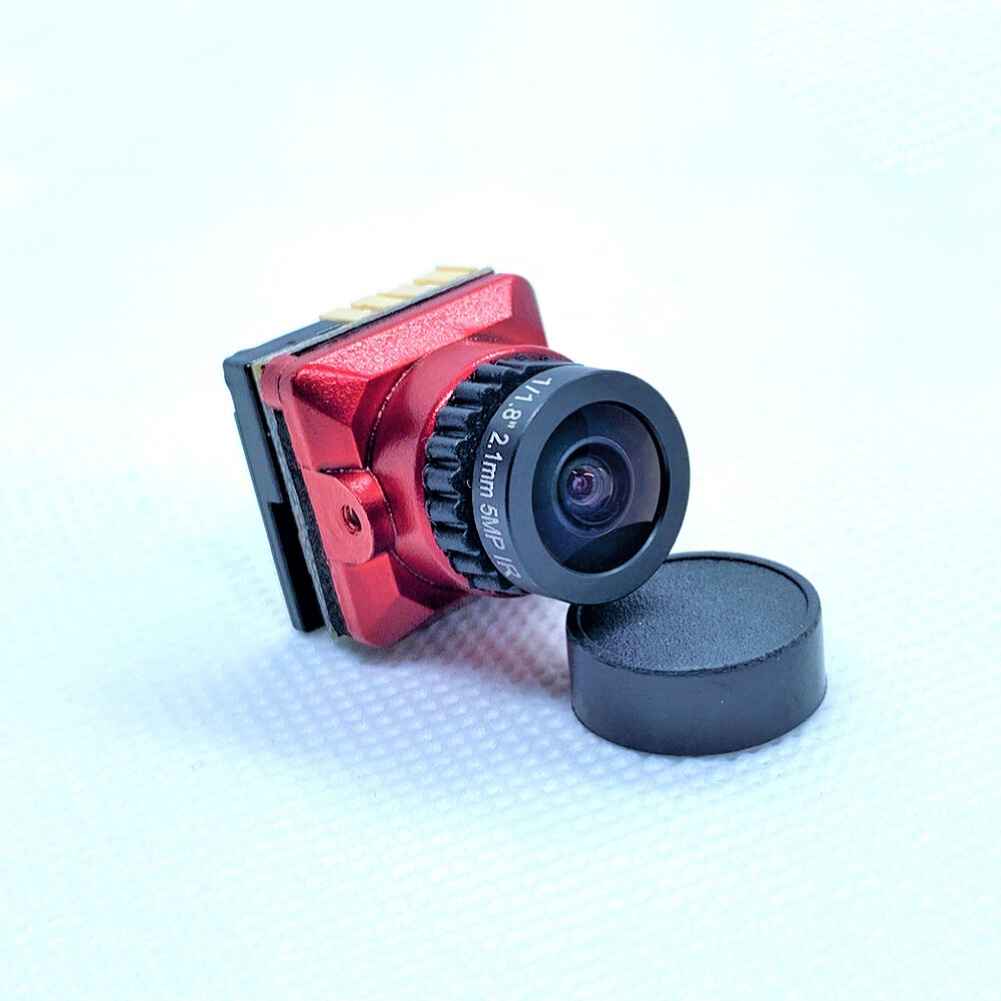

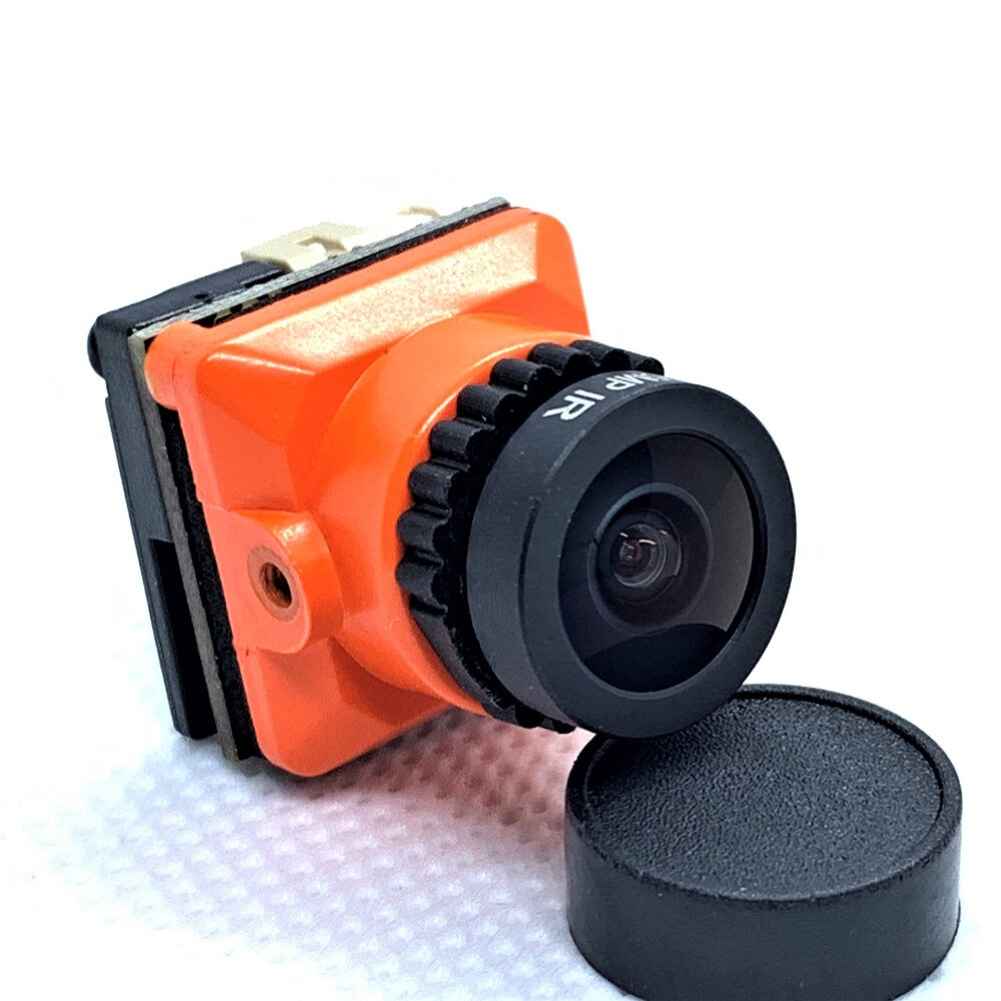

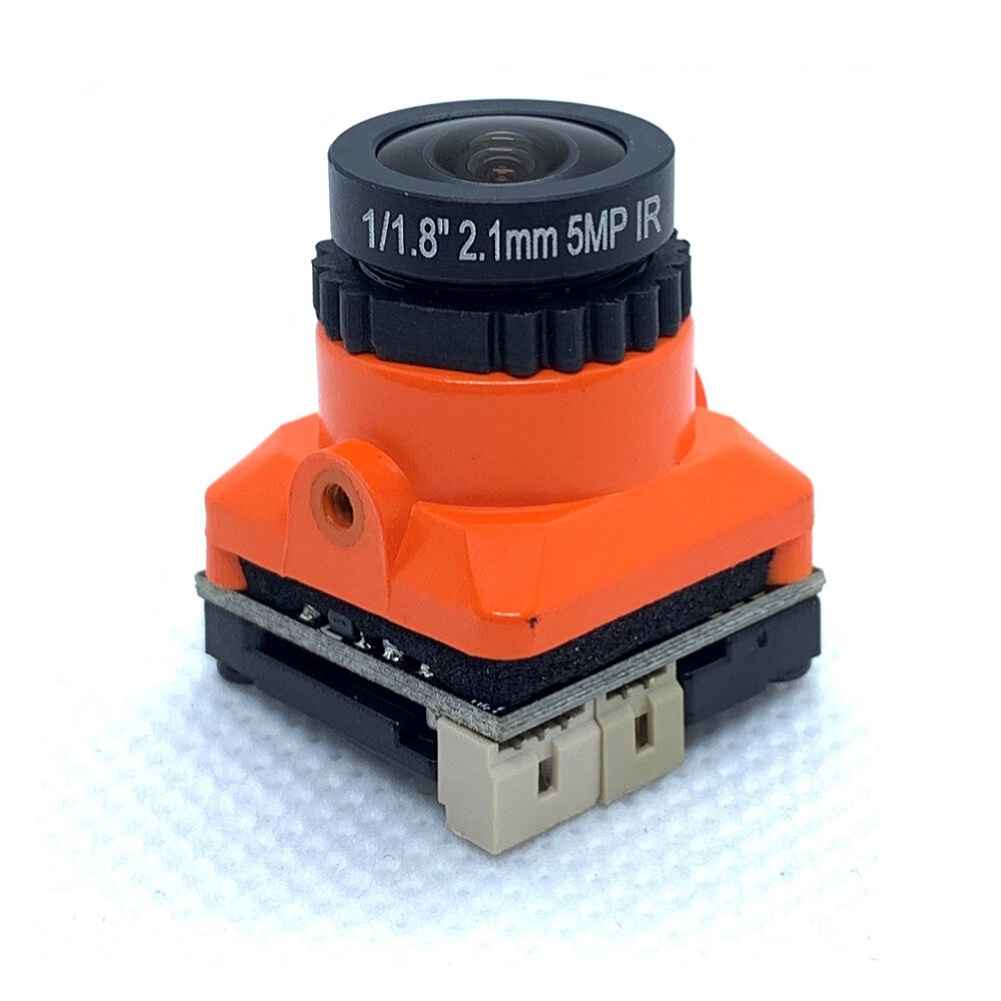

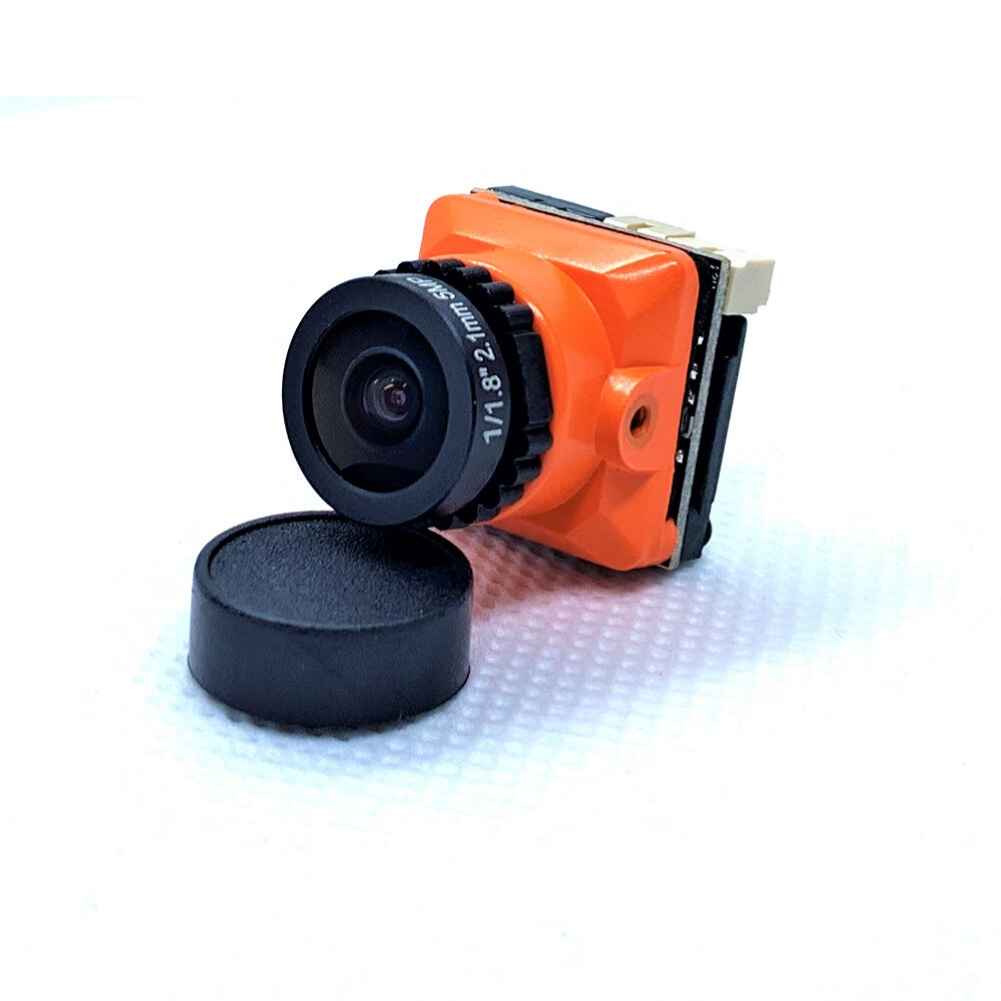

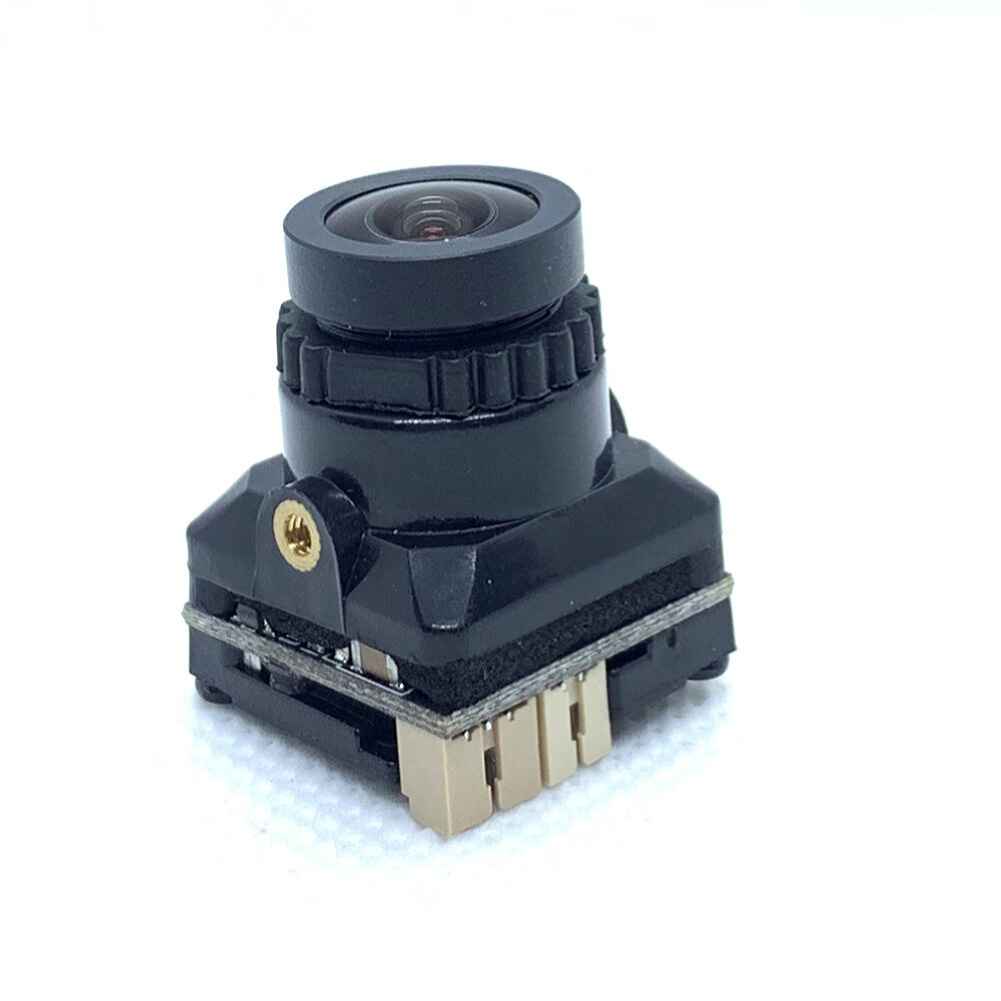

JJA MINI B19 1500TVL 1/3 CMOS FPV Camera with OSD Board, 2.1mm Lens, PAL/NTSC for RC Drone

Description

JJA B19 1500TVL 1/3 CMOS 2.1mm Lens Mini FPV Camera With OSD Configuration Board PAL/NTSC for RC Drone

The JJA MINI B19 FPV Camera is equipped with a 1/3″ CMOS image sensor and offers a high horizontal resolution of 1500TVL. It features a 2.1mm lens and supports both PAL and NTSC signal systems, with internal OSD configuration for easy adjustments. The camera ensures optimal performance with a signal-to-noise ratio greater than 60dB and offers electronic shutter speeds of PAL: 1/50-100,000 and NTSC: 1/60-100,000. It supports auto gain control, backlight compensation, and a minimum illumination of 0.001Lux/1.2F. The camera is versatile with automatic day/night modes and a wide dynamic range. It is powered by DC 5V-30V and comes in color options of red, orange, and black.

Description:Brand: JJAModel: MINI B19Image Sensor: 1/3′ CMOS
Horizotal Resoulution: 1500TVL
Lens: 2.1mm
Signal System: PAL/NTSC (OSD Internal adjustable)
S/N Ratio: >60Db(AGC OFF)
Electronic Shutter Speed: PAL: 1/50-100.000, NTSC:1/60-100,000
Auto Gain Control(AGC): LOW/MIDDLE/HIGH
Back light compensation(BLC): YES
Min lllumination: 0.001Lux/1.2F
WDR: D-WDR
DNR: 3DNR
Day/Night: Auto/Color/B*W
Power: DC 5V-30VColor: Red, Orange, Black (Optional)
Net weight: 6.g
Dimensions: 19mm*19mm*19mm
OSD
exposure: Brightness/exposure mode/gain
The white balance: Automatic tracking white balance
Day and night mode: Internal automatic/color mode/black and white mode
Video Settings: Contrast/sharpness/saturation/digital noise/video format (N/P)/digital wide dynami.
language: Chinese/English/German/Italian/Russian
Restor the factory Settings: OK
Save the exit: OK

Package Included:
1 x JJA MINI B19 FPV Camera
1 x OSD Control Board
