SunnySky A2216 Brushless Motor for Fixed-Wing RC Airplane, 880KV-2400KV, 3-4S, Angel Series

Sale!

SunnySky A2216 Brushless Motor for Fixed-Wing RC Airplane, 880KV-2400KV, 3-4S, Angel Series

Price range: 19.20$ through 20.64$

Available KV options: 880KV, 1250KV, 1400KV, 2400KV
Designed for fixed-wing RC airplanes
Compatible with 3-4S LiPo batteries
Lightweight motor: 65g to 71g
Maximum continuous power: 370W to 437.5W

SKU: RC1995434 Category: RC Airplane Parts Tags: 2400KV RC airplane motor, 3-4S Lipo motor, 880KV brushless motor, A2216 motor for RC, Angel Series motor, fixed-wing airplane motor, RC airplane parts, SunnySky brushless motor Brand: SUNNYSKY

Description

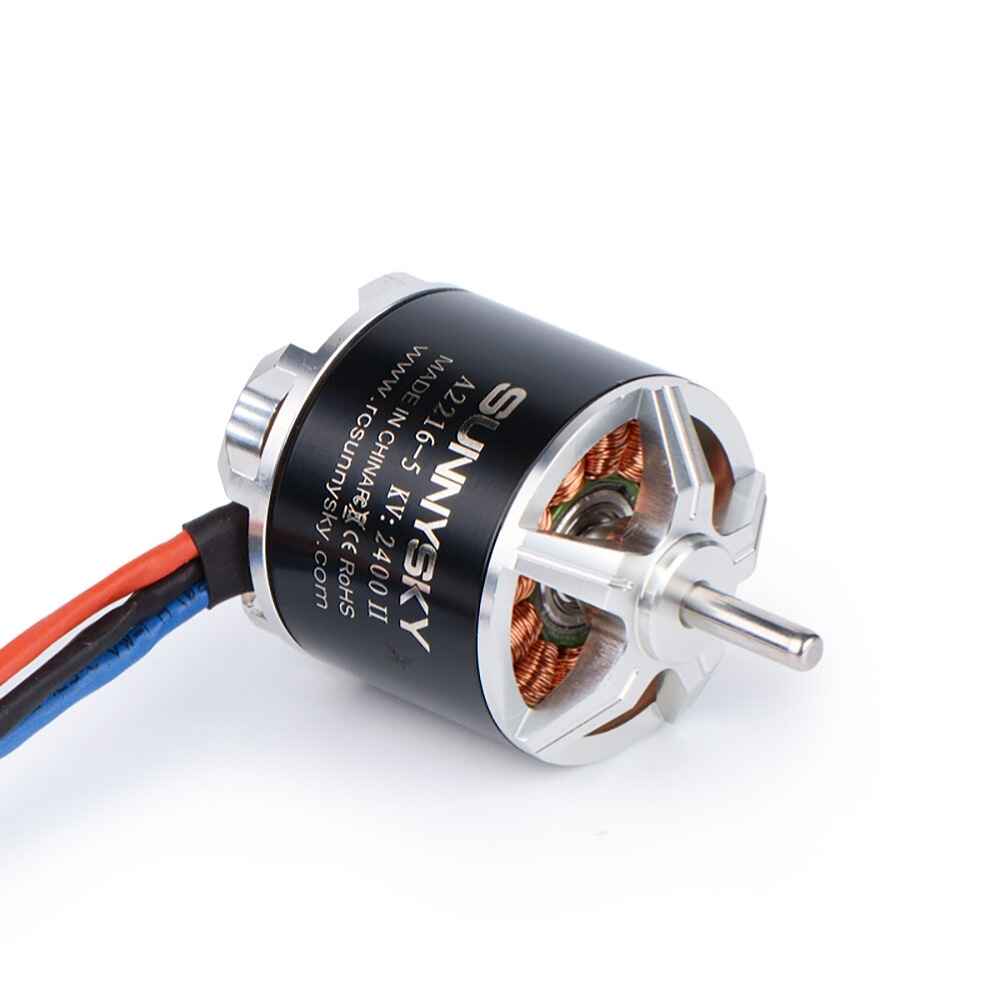

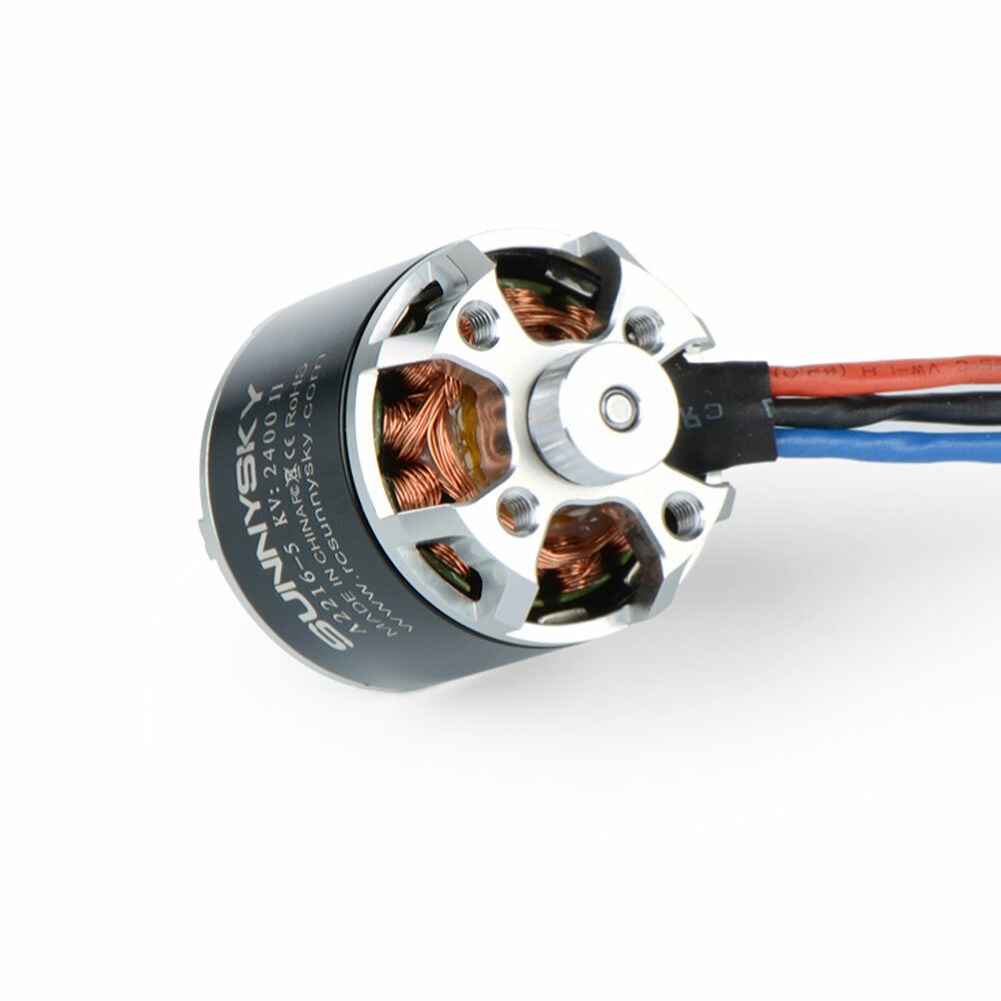

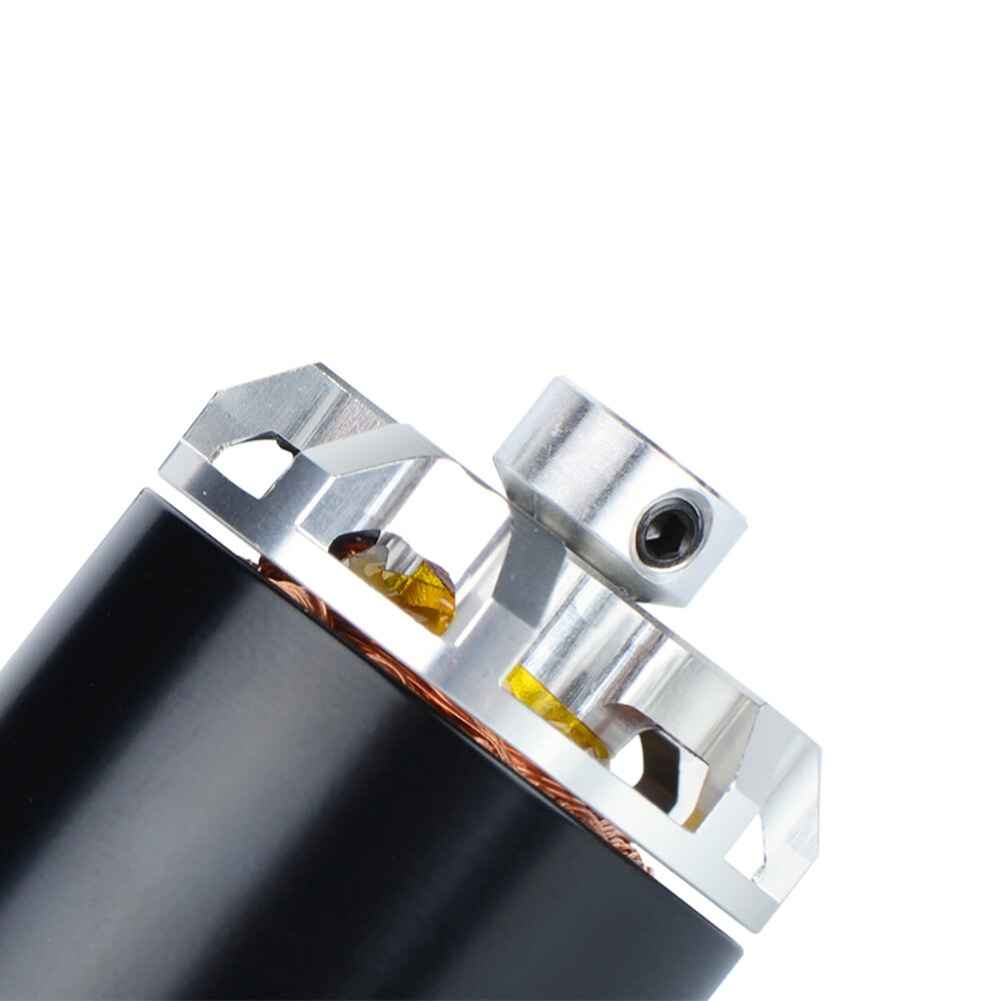

SunnySky A2216 880KV 1250KV 1400KV 2400KV 3-4S Angel Series Brushless Motor For Fixed-Wing RC Airplane

The SunnySky A2216 Angel Series Brushless Motor is designed for fixed-wing RC airplanes, offering a range of KV options from 880KV to 2400KV to suit various flying needs. This motor features a 12N14P pole configuration, with the 2400KV variant having a 12N10P configuration. It operates efficiently on a 3-4S LiPo battery, providing a maximum continuous power output between 370W and 437.5W. The motor’s lightweight design, with a weight range of 65g to 71g including wire, ensures optimal performance. It has a shaft diameter of 27.7mm and a motor length of 34mm, making it a versatile choice for different propeller and ESC combinations.

Overview:
Brand Name: SunnySky
Item Name: A2216
KV: 880KV, 1250KV, 1400KV, 2400KV (optional)
Specifications:

KV880

KV1250

KV1400

KV2400

Poles

12N14P

12N10P

Interphase Internal Resistance

112m棒

66m棒

32m棒

28m棒

Motor Length

34mm

Shaft Diameter

27.7mm

Motor Weight (including wire)

68g

67g

71g

65g

Rated Working Voltage (Lipo)

3-4S

No-load Current

0.5A

0.9A

1.2A

1.6A

Maximum Continuous Power

370W

487W

425W

437.5W

Maximum Continuous Current

22A/30s

29A/30s

34A/30s

35A/30s

Recommended ESC

30A

30-40A

40A

Recommended Propeller

1038/1047

8060/9060

7050/7060/8060/9060

6040

Package Included:
1 x SunnySky A2216 Motor
