Description
HGLRC SPECTER 90A 2-8S 32.9 BLheli_32 Single ESC / 30.5×30.5mm 5V 12V BEC Distribution Board for FPV Racing Drone
The HGLRC SPECTER 90A ESC is designed for FPV racing drones, featuring a robust double-sided CNC shell for superior heat dissipation and protection. It supports a continuous current of 90A and can handle peaks up to 100A. The ESC includes BL32 telemetry for real-time monitoring and stability. Equipped with a high-performance STM32G071 MCU, it operates at a frequency of up to 64MHz, ensuring efficient performance. The distribution board supports up to 8 ESCs, with telemetry feedback and a 5V BEC at 5A and a 12V BEC at 4A. It is compatible with Dshot150, Dshot300, Dshot600, Oneshot, and Multishot drive signals.
Features:
1. Double-sided fully wrapped CNC shell, efficient heat dissipation, isolation of foreign matter.
2. Dual MOS parallel solution, supports 90A continuous current, can withstand up to 100A peak current.
3. Support BL32 ESC telemetry, more stable ESC firmware, real-time monitoring of ESC parameters.
4. High-performance MCU G071, operating frequency up to 64MHz.
Specification券
Brand: HGLRC
Model: SPECTER
Item Name: 90A 2-8S Single ESC / 5V 12V BEC Distribution Board

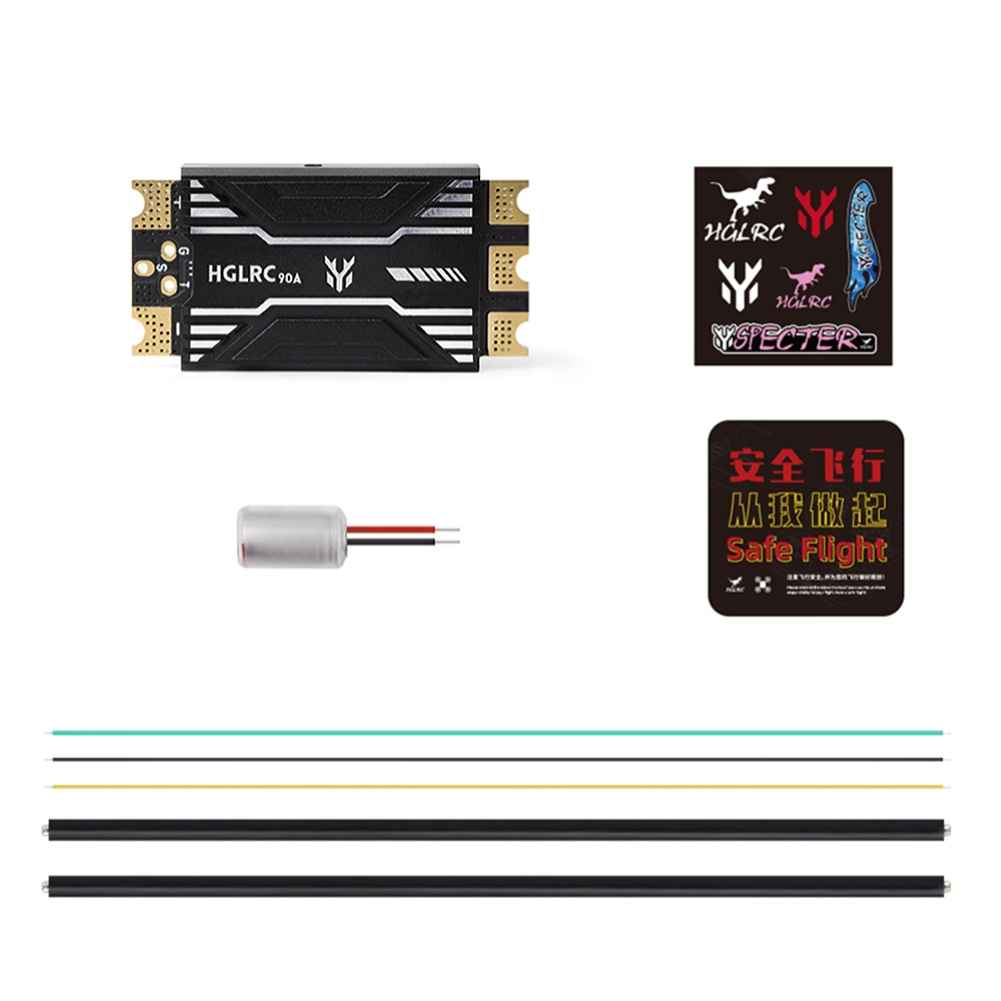

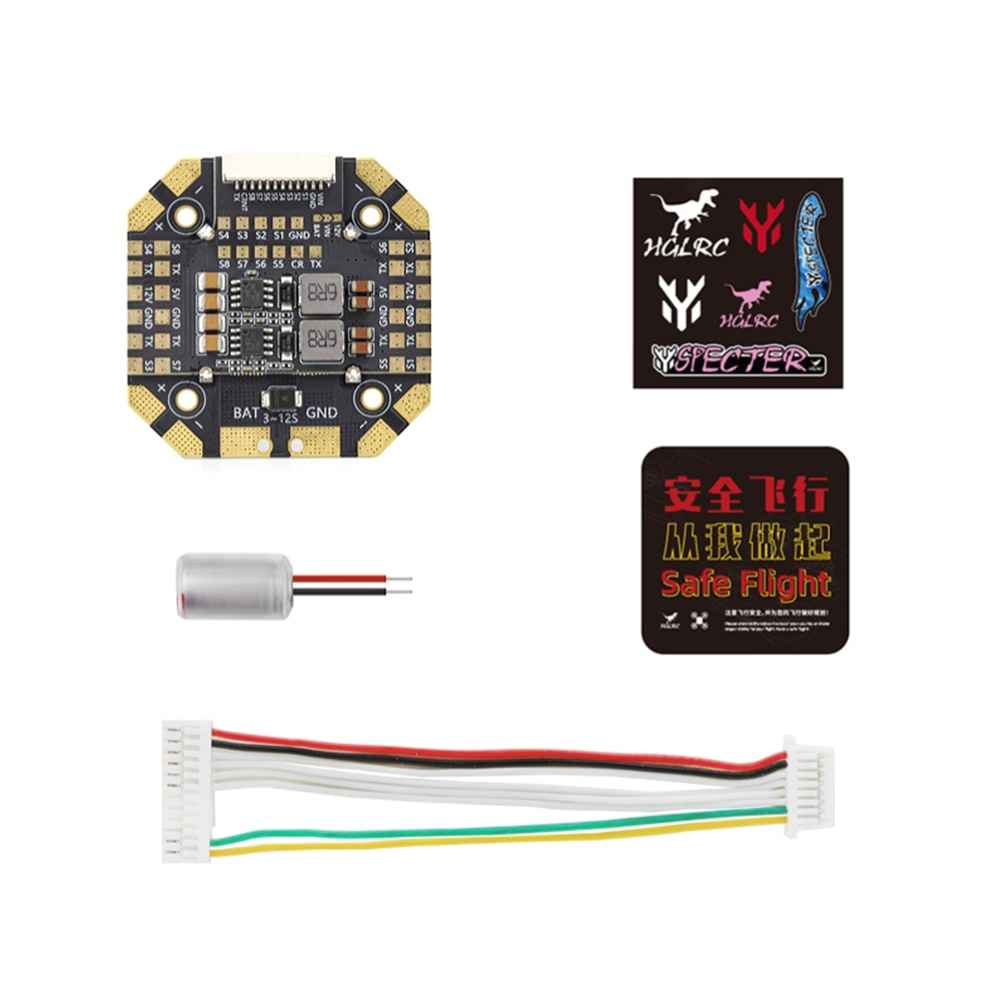

Package Included:

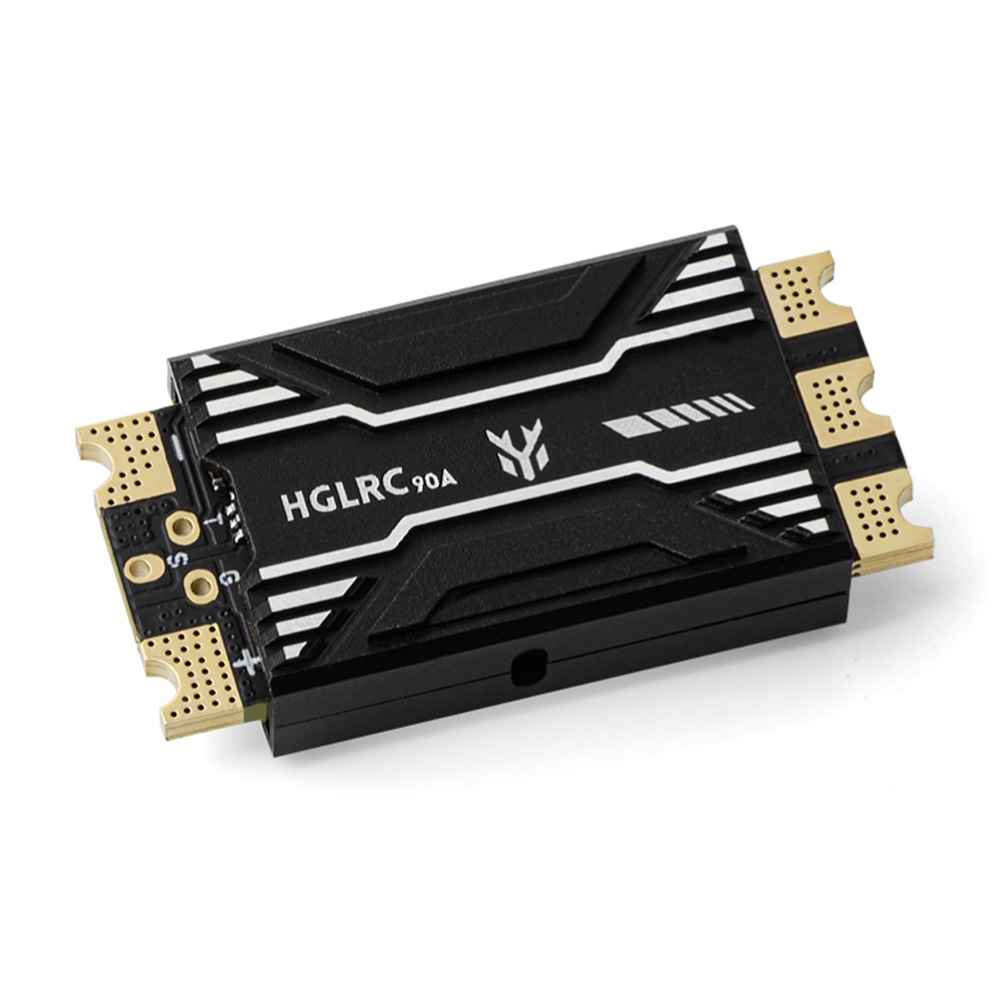

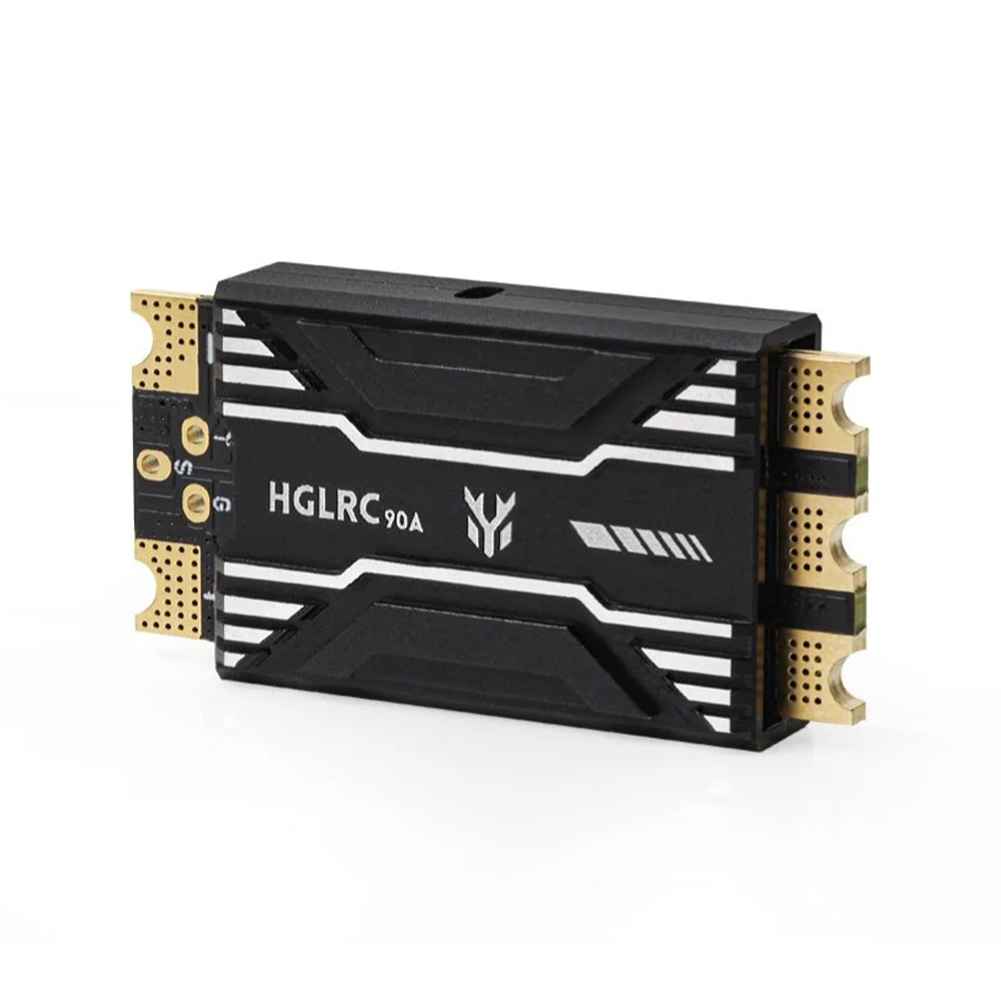

1x HGLRC SPECTER 90A ESC
1x 50V 470UF Solid Capacitor
1x Black, Green and Yellow 30AWG Silicone Wire 20cm

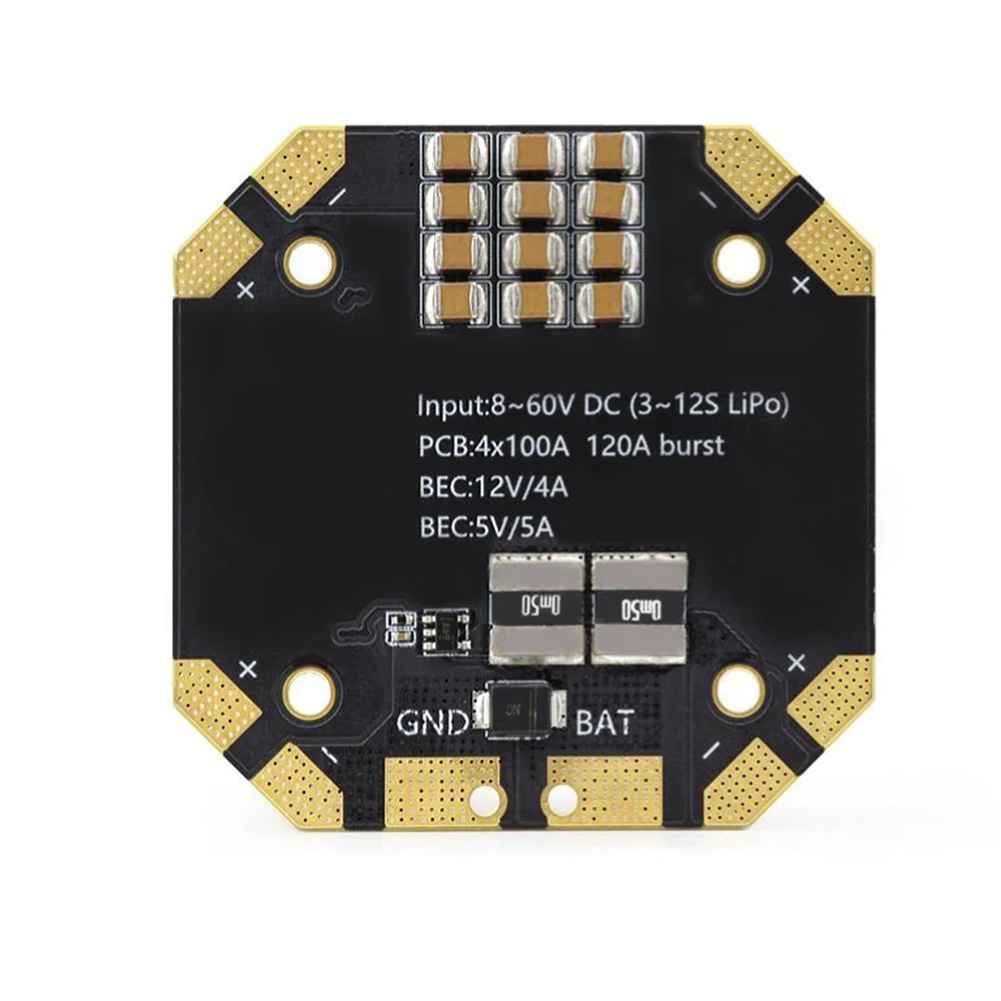

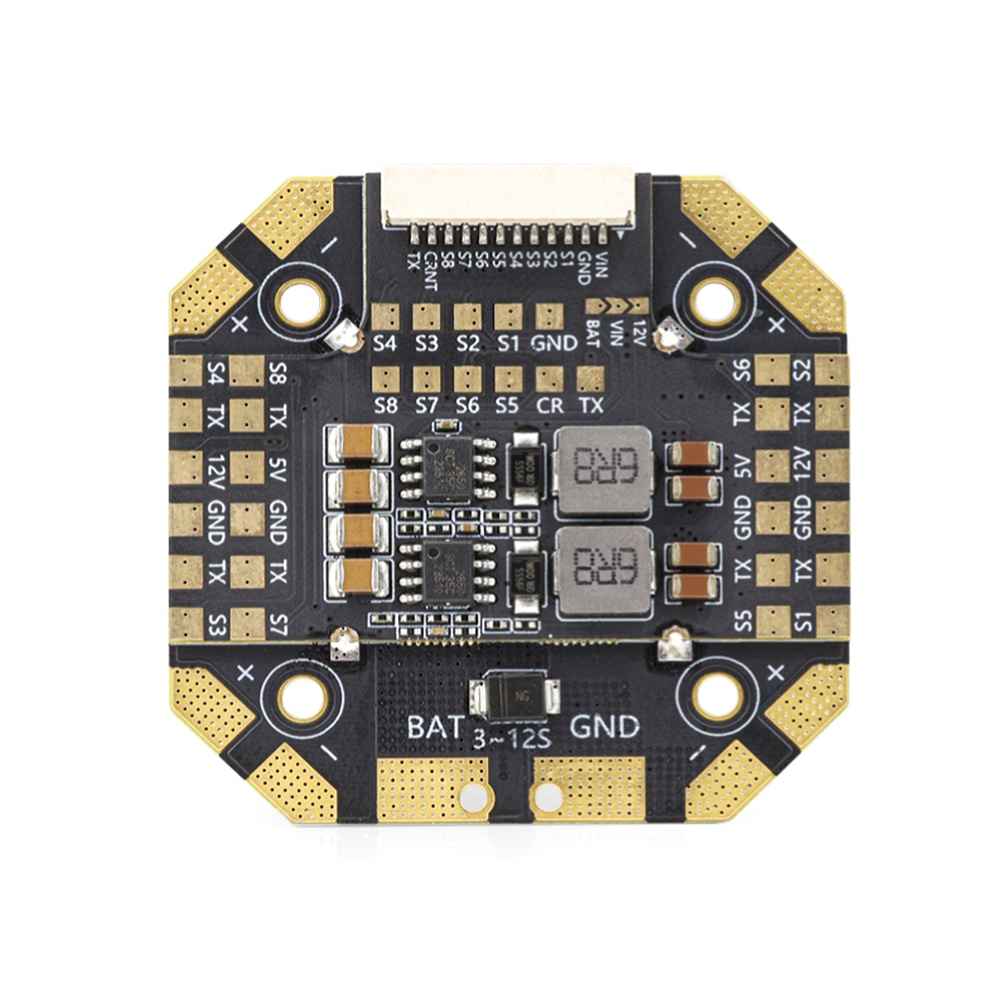

1x Distribution Board
1x Extra Soft High and Low Temperature Resistant Silicone Wire, 30AWG, 70mm, Single Head GH1.25-12P/Single Head SH1.0-8P
1x 50V 470UF Solid Capacitor
