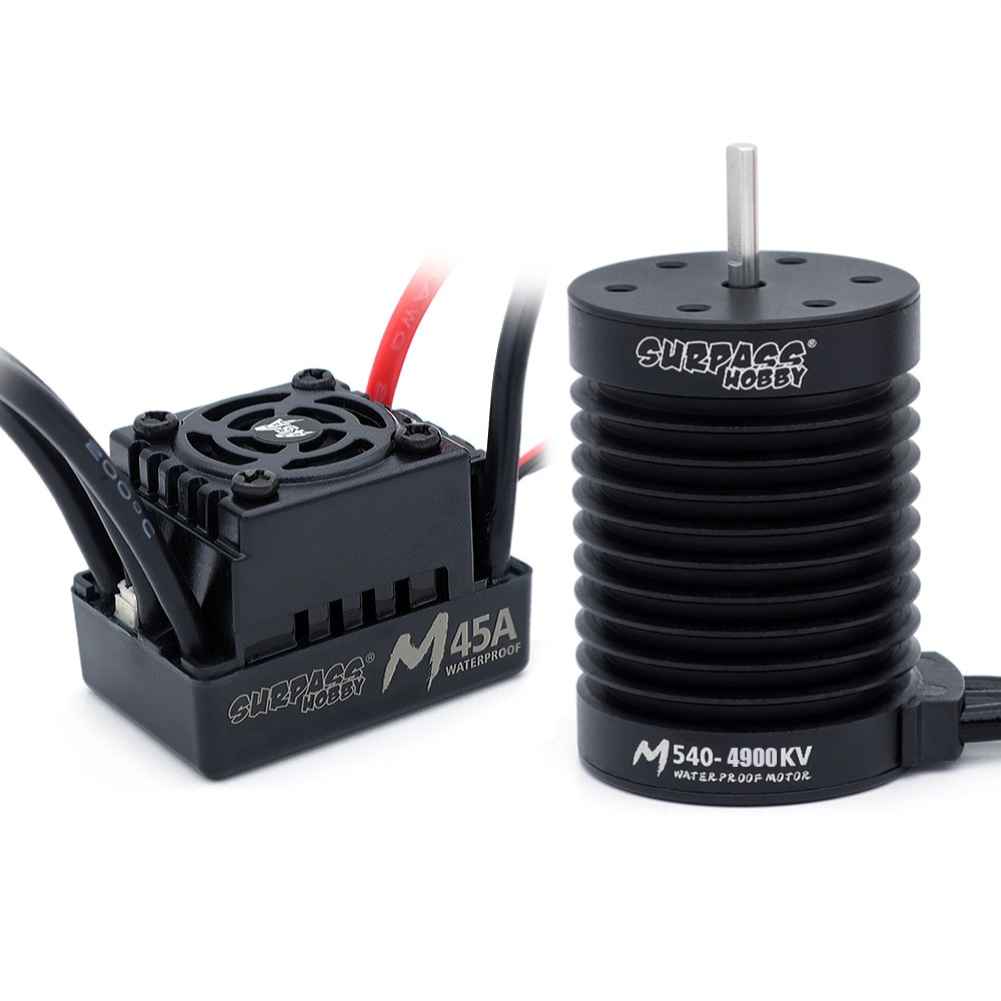

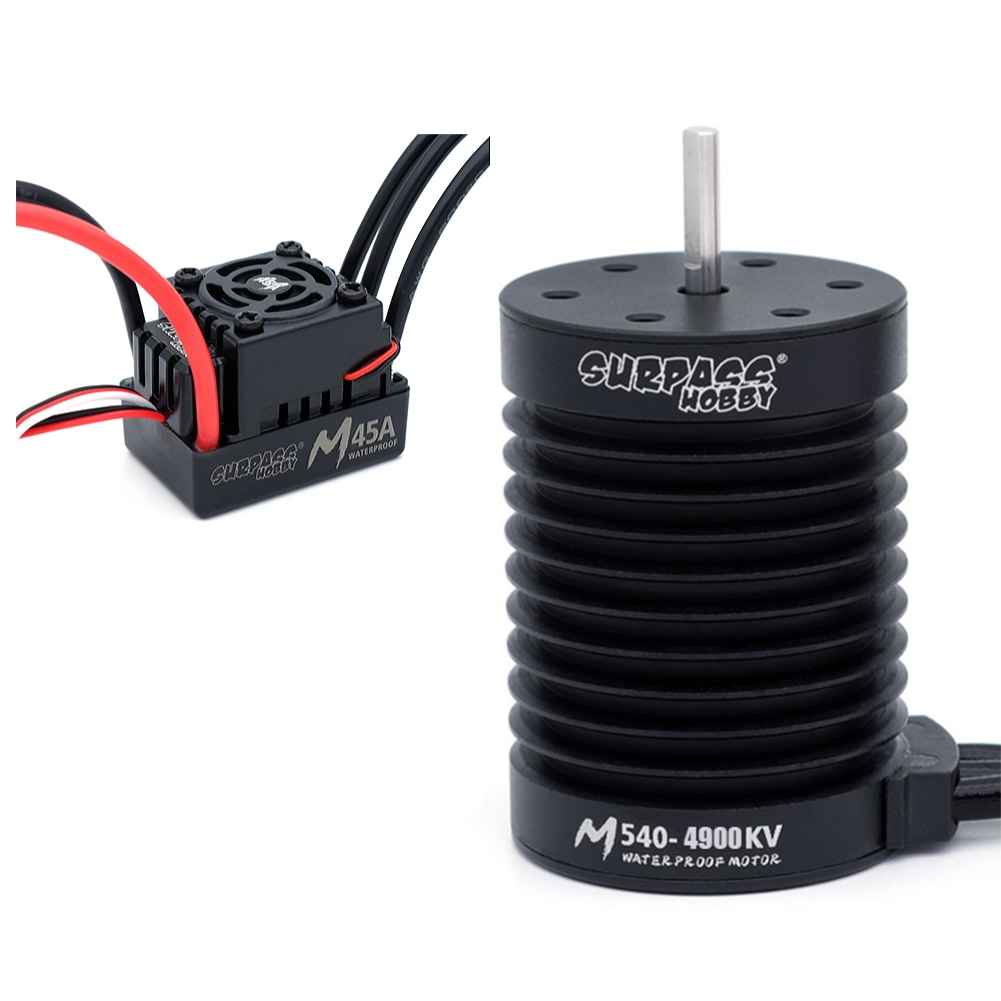

SURPASS HOBBY M2845/M540 All Black Waterproof Brushless Motor W/ M45A Waterproof ESC 4.0 Connector Suitable for 1/14 Model RC Car Parts
The SURPASS HOBBY M2845/M540 waterproof brushless motor, paired with the M45A ESC, offers high performance for RC car enthusiasts. Designed for 1/14 scale models, the motor features a 4-pole, 12-slot high-torque rotor and a high-precision ABEC5 bearing for smooth and efficient operation. The M540 motor delivers 4900KV and 820 watts, while the M2845 motor provides 3800KV and 800 watts. Both motors are equipped with high-purity copper windings and a robust aluminum CNC case. The M45A ESC supports sensorless brushless motors up to 45A continuous current and is compatible with 2S LiPo or 6-cell NiMH batteries.
The Specification of the Motor:
M540 4900KV
KV:4900
Watts:820
Max Voltage:<10.2V
Max Amps:80A
Rotor Poles:4
IO:3.2A
Resistance:0.0137
Max RPM:50000
Stator Size:嫉35.8*50mm
Weight:151g
Shaft:嫉3.175mm
Length of extend shaft:15mm
Connector:4.0mm gold

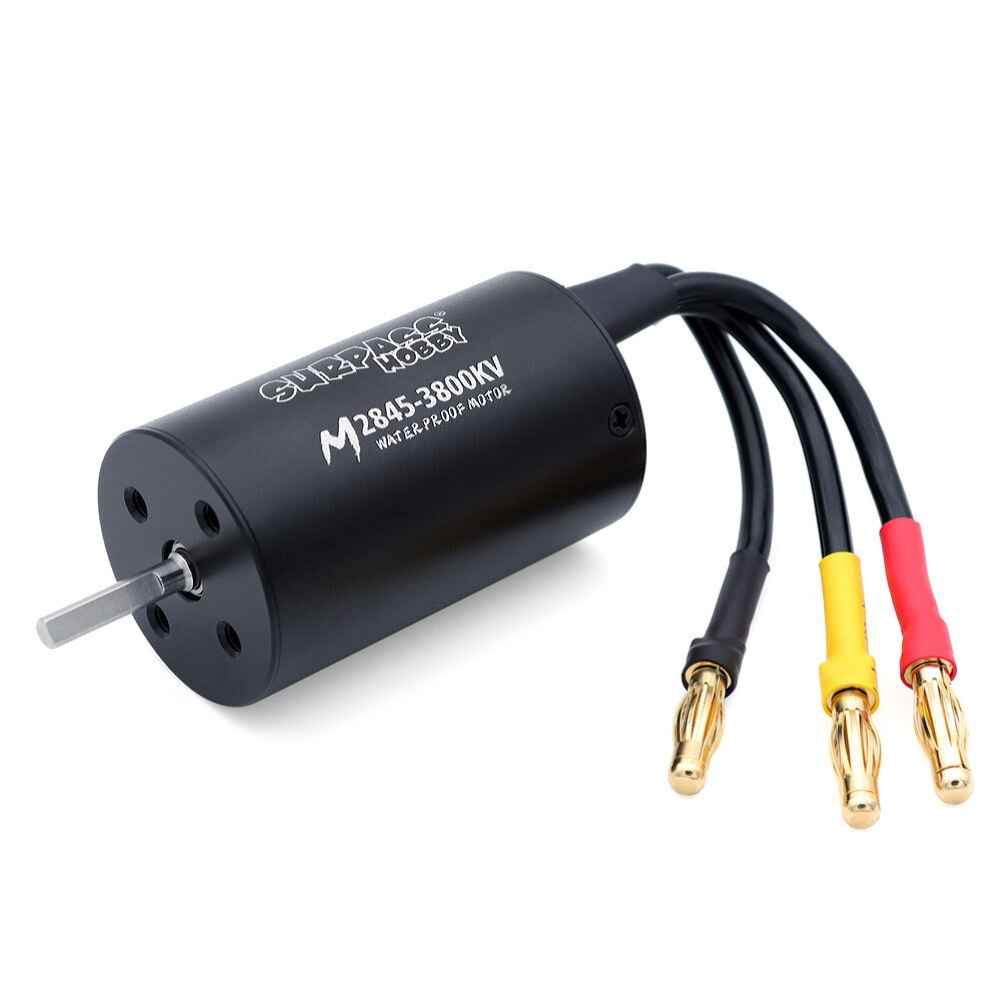

M2845 3800KV
KV:3800
Watts:800
Max Voltage:<13.2V
Max Amps:60A
Rotor Poles:4
IO:2.8A
Resistance:0.0203
Max RPM:50000
Stator Size:嫉28*47mm
Weight:115g
Shaft:嫉3.175mm
Length of extend shaft:15mm
Connector:4.0mm gold

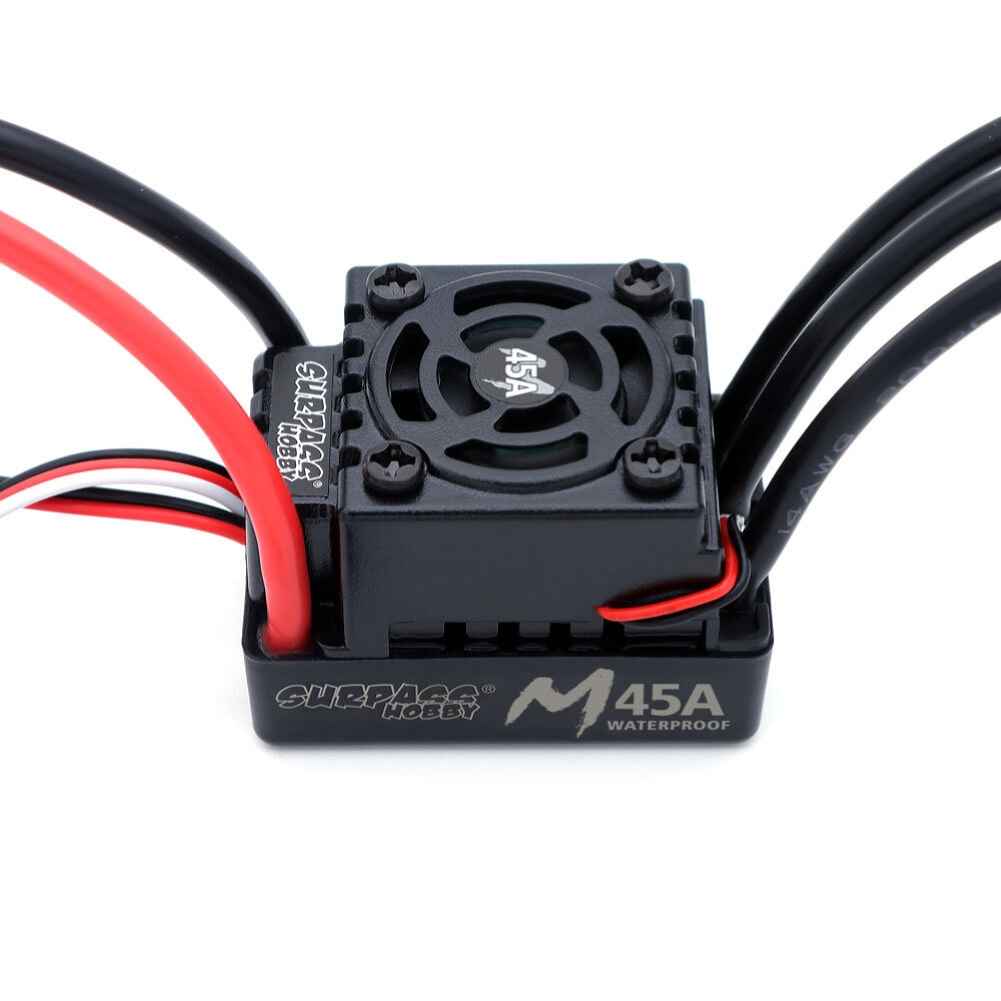

The Specification of the ESC:
M45A:
Cont.Current/ Burst Current:45A/200A
Sensorless Brushless Motor For 2S Lipo or 6 cells NiMH:
On-road:F540 or smaller motor with the KV<6500
Off-road:F540 or smaller motor with the KV<4500
For 3S Lipo or 6 cells NiMH:
On-road:F540 or smaller motor with the KV<4000
Off-road:F540 or smaller motor with the KV<3000.
Suitable Car:1/16, 1/14 car,1/10car
Resistance:0.0014ohm
Battery:2 cells Lipo / 4~6 cells NiMH
BEC Output:5.3V/2A(Switch mode)
Dimensions/Weight:42.5沁29沁30mm /56g
Feature:

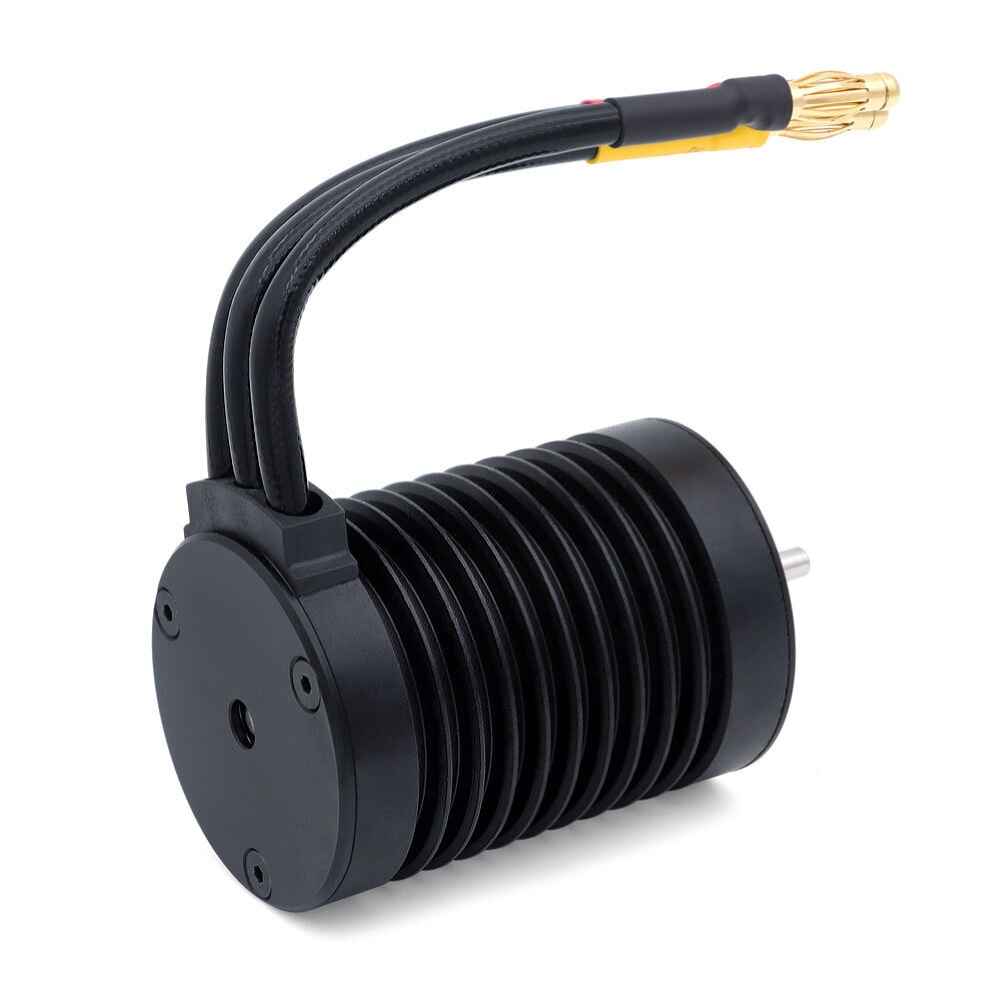

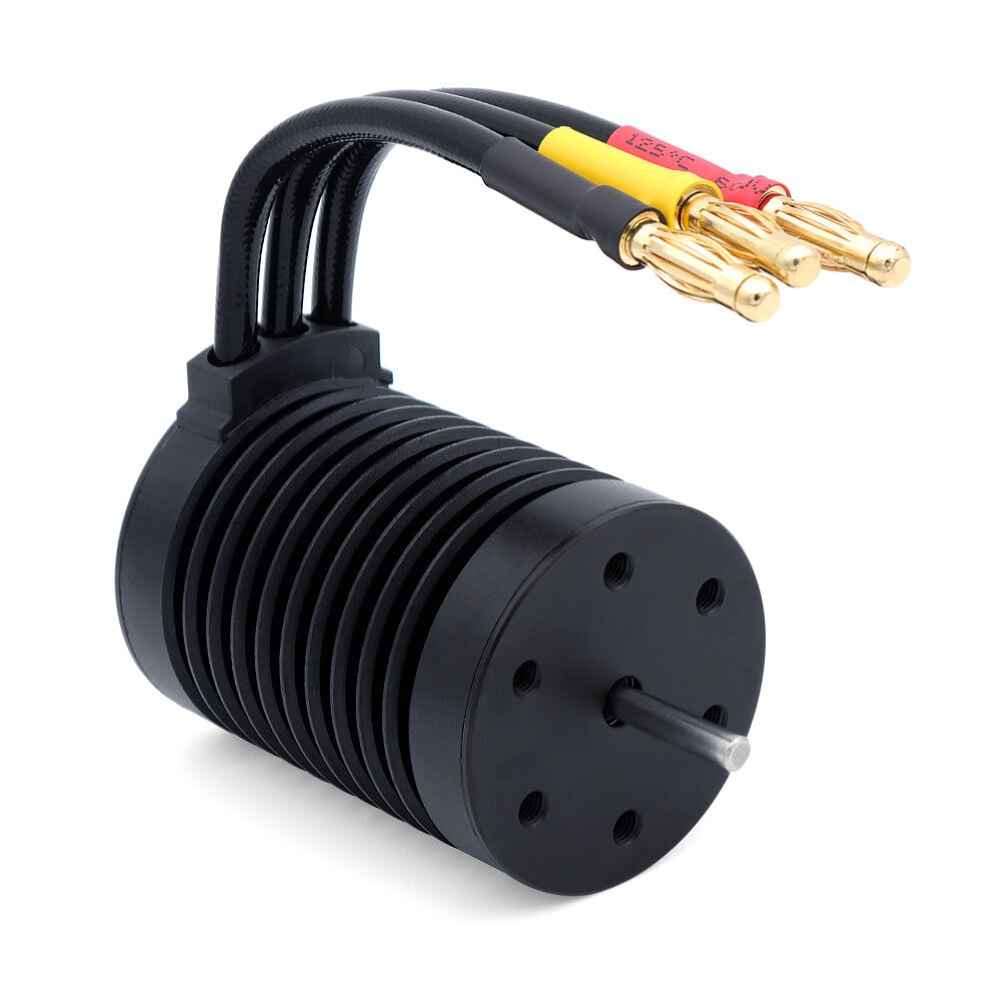

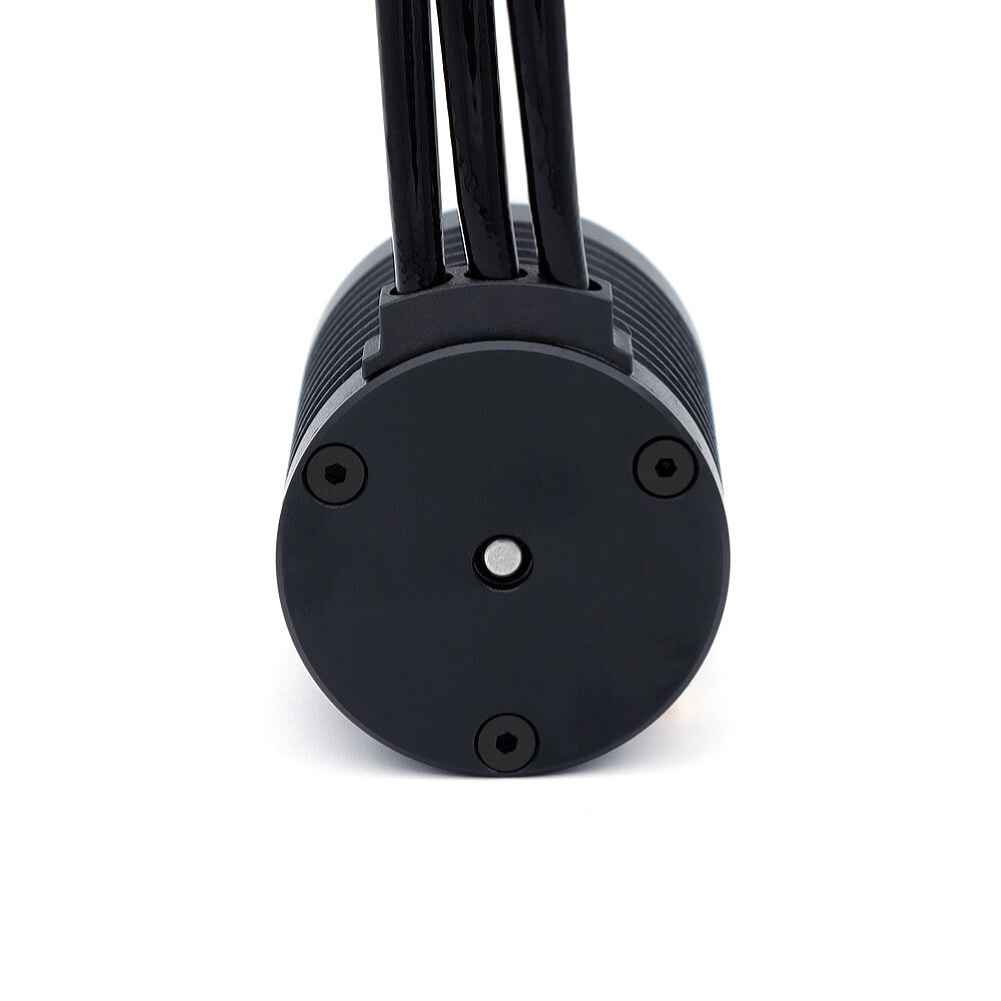

M2845/M540 waterproof brushless Motor:
1.4 Pole 12 Slot Hi-torque rotor design, stable output power.
2.High hardness aluminum CNC case,0.35mm stator.
3.High Purity High temperature resistance Copper Windings Maximizes Efficiency.
4.High precision and high quality ABEC5 large bearing, smooth and wear- resistant.
5.Removable/replaceable explosion-proof high-precision balancing rotor.
6.M540:Fits 1/12 1/14 scale BL cars, 6 of M3 screw mounting holes.
7.M28450:Fits all 1/12 1/14 scale 1 x SURPASS HOBBY M2845/M540 Waterproof Brushless Motor 1 x M45A Waterproof ESC
