Eachine EV800D 5.8G 40CH FPV Goggles with 5 Inch HD DVR, Built-in Battery, Diversity Receiver, and Separable Design

Description

Eachine EV800D 5.8G 40CH Diversity FPV Goggles 5 Inch 800*480 Video Headset HD DVR Build in Battery

Experience immersive FPV racing with the Eachine EV800D FPV Goggles, featuring a 5-inch 800×480 HD display and built-in DVR for high-quality video recording. These goggles come with a built-in 3.7V 2000mAh battery for up to 2 hours of continuous use. The diversity receiver and auto-searching function ensure a stable signal with no frame loss. Designed with a separable screen, the EV800D can also serve as a standalone monitor. The goggles support a wide range of recharging voltages and can use 2S or 3S batteries as backup power. Lightweight and ergonomically designed, they offer a comfortable fit for any user.

New version comes with 3.7V 2000mAh battery佾send randomly
EV800D vs EV800DM

Comparison

EV800D

EV800DM

Weight

362g without antenna

320g without antenna

DVR

720*576px

720*576px

Diversity

Yes

Yes

Screen size

5.0 inch

3.0 inch

Screen resolution

800*480

900*600

Ratio

16:9, 4:3

4:3

Separable Design

Removable screen, can be used as a monitor.

NO

Support Tripod

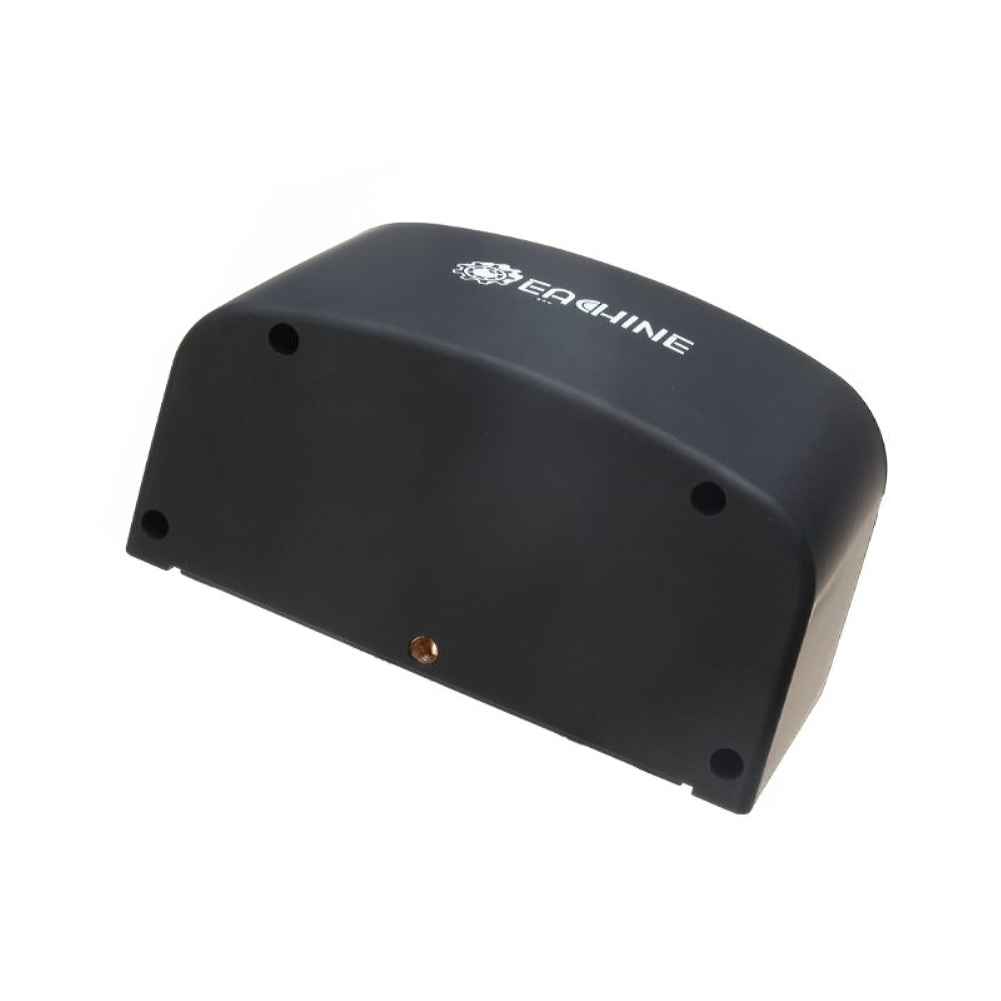

Yes, with 1/4 inch screw hole

NO

Varifocal

NO

20mm focal length adjustable;
Multi-stop points design for vertical individual user adjust;
For more users with different eyesight

Glasses Fit

NO

Fit for wear with 140mm*40mm glasses;

Battery

7.4V/1200mAhor 3.7V/2000mAh

3.7V/2000mAh

Features:
EV800D Goggles
– Built-in with super HD DVR up to 720*576px resolution;
– Diversity Goggles 40ch Auto-Searching;
– Two system (Display/Re cord duo core separated chipsets ) ensure no delay in displaying and no frame lost in recording(please use C10 card to ensure the full frame recording);
– Work friendly with p ilot-OSD, no block on the important flying OSD information;

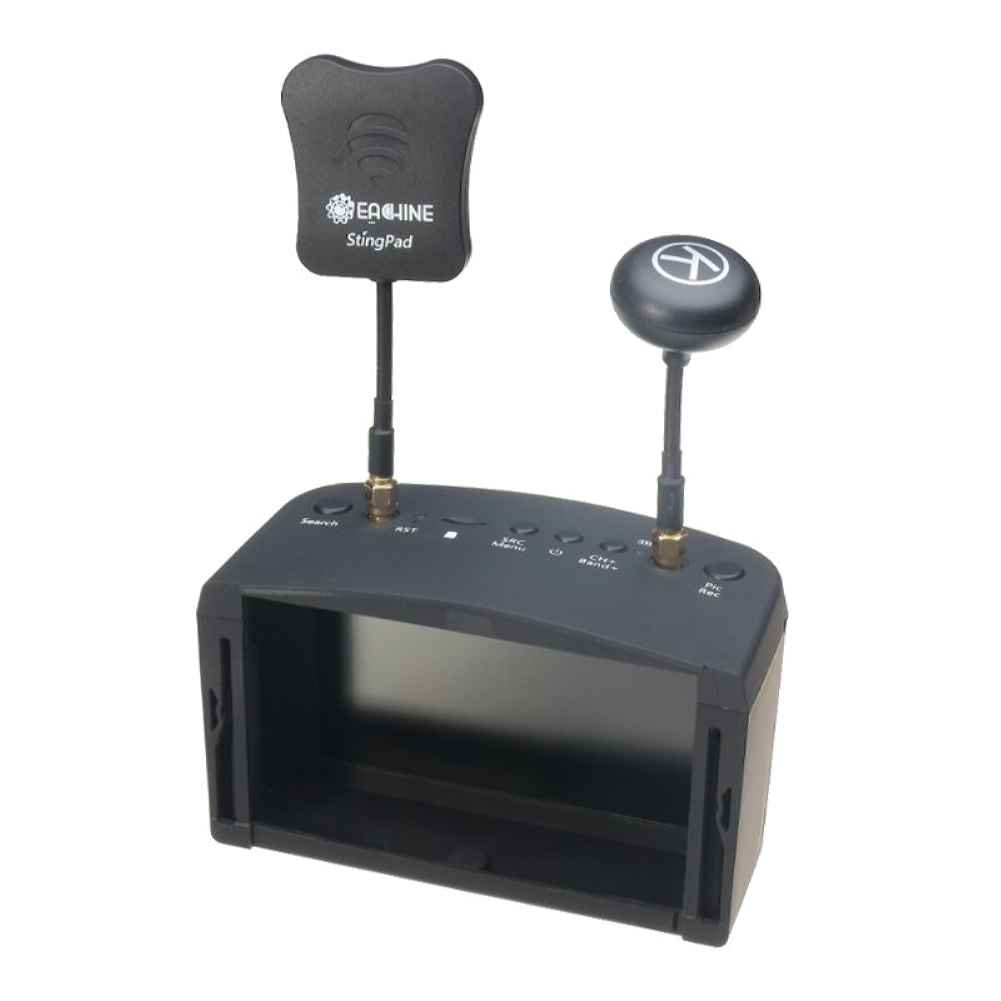

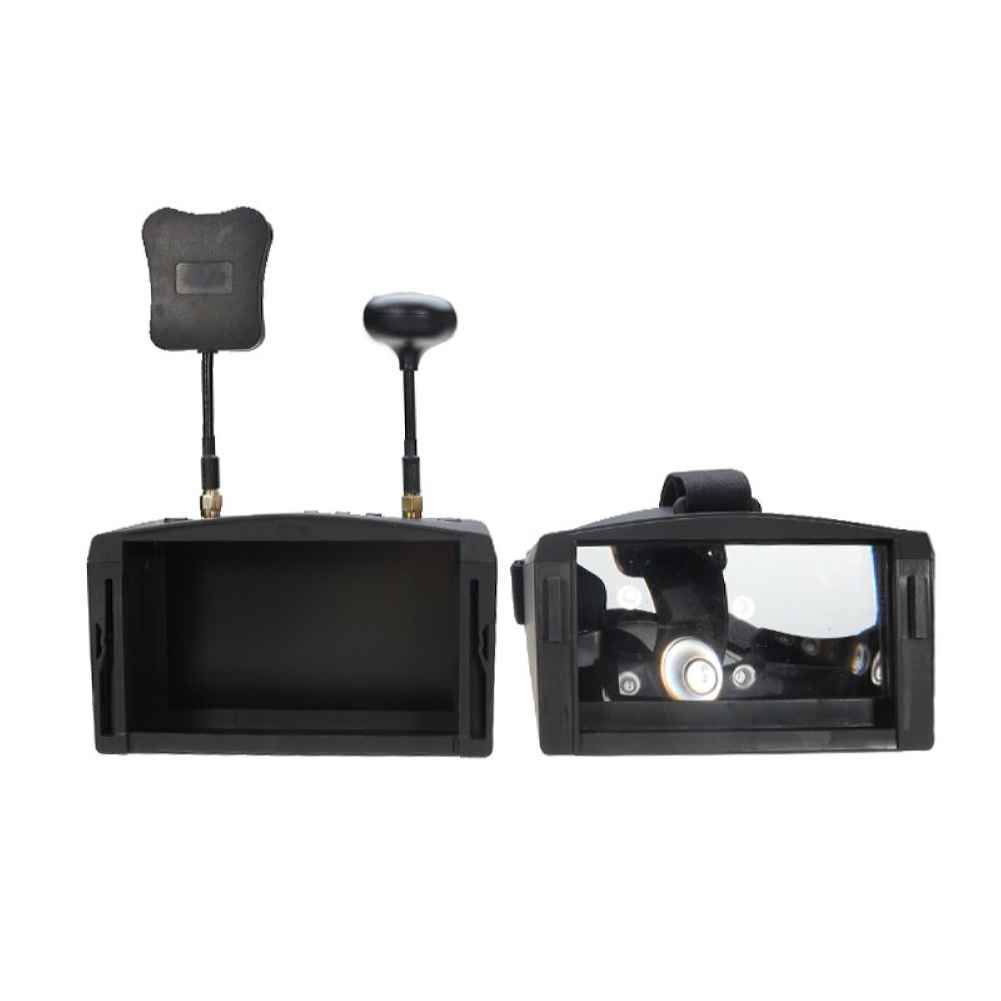

– Separable design, 5 inch screen can be used as small monitor on radio controller or with tripod;
– HD high brightness 5 inch LCD specially tuned for FPV racing;
– Diversity function, Built-in super sensitive 5.8GHz 40ch receiver module;
– Advanced auto-searching function and the working frequency show on screen;
– Built-in 7.4V 1200mAh/3.7V/2000mAh battery, each full charge offer 2 hours working time;
– Wide rang re-charge voltag 11-20V; US plug
– Accept 2S or 3S batteries as back-up power source, to prolong the working time;
– Nice ergonomic design and fit different faces;
– Super-wide visible angle up to 82 degree;
– 92% transparent lens adopted, no distort, no blur on the edge of screen;
– Light weight 375g with 3.5 hr 1200mAh battery, RTF for any scale racing game;
– 5 Inch 800*480px HD high brightness LCD

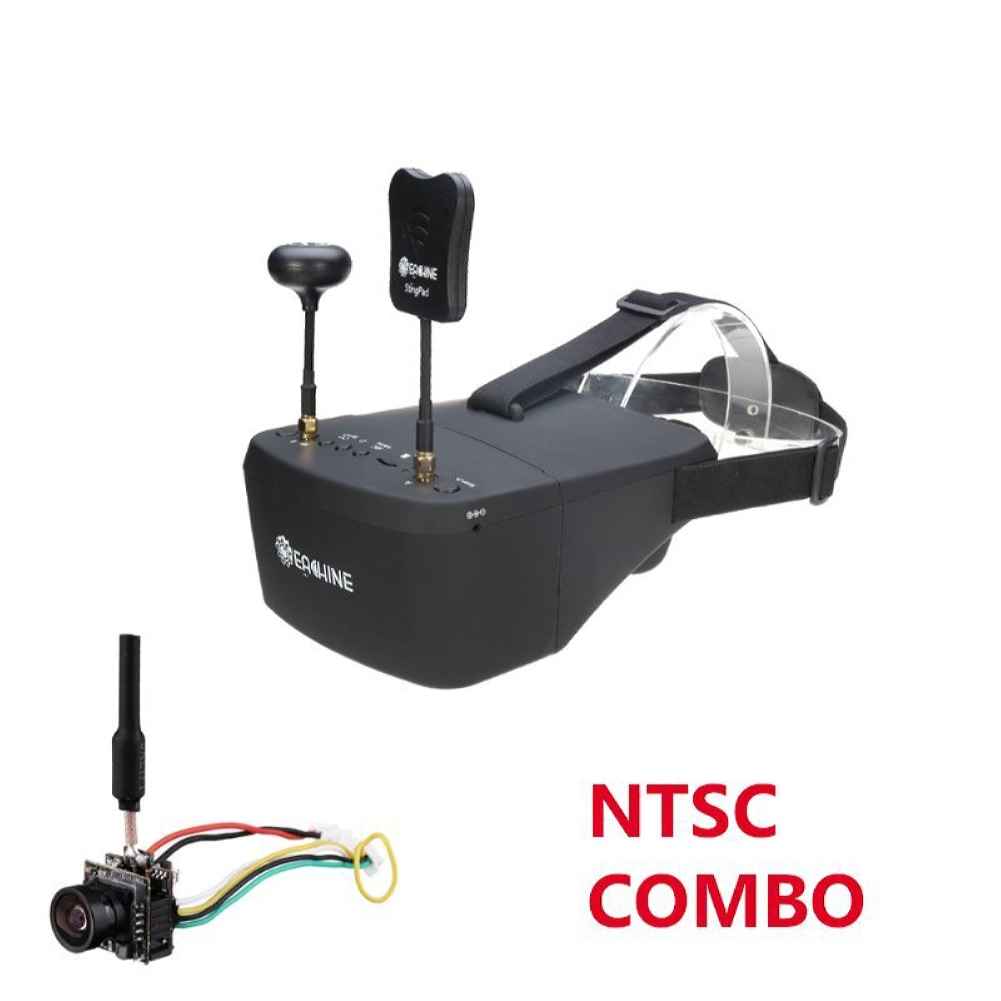

TX06 AIO Camera
– OSD configuration using FC Uart
– Super small and lightweight
– 700TVL high picture quality,Low Power Consumption.
– 48CH channel
– Power by 1S lipo battery
– Plug and play,designed for DIY
– Super Mini 5.8GHz 48CH FPV Transmitter +700TVL FPV Camera+Brass dipole Antenna+OSD
Description :

Model :

EV800D — English manual

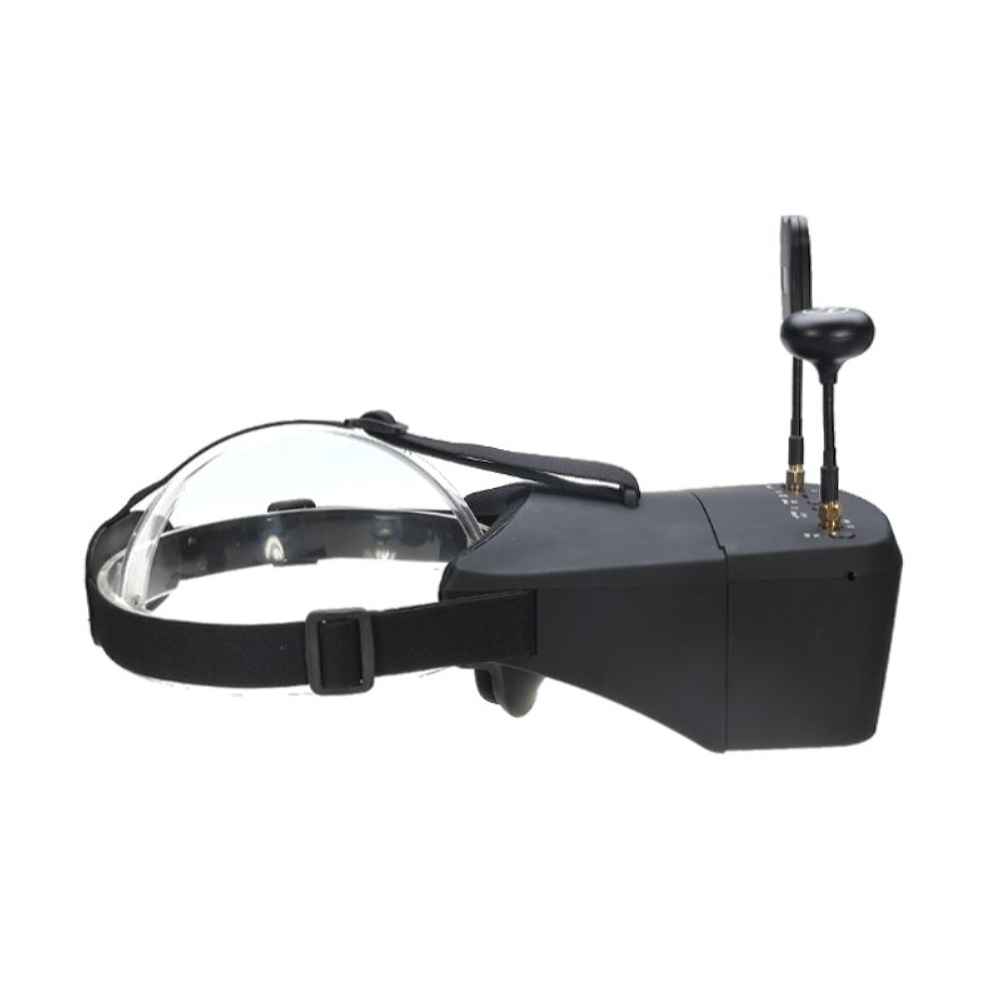

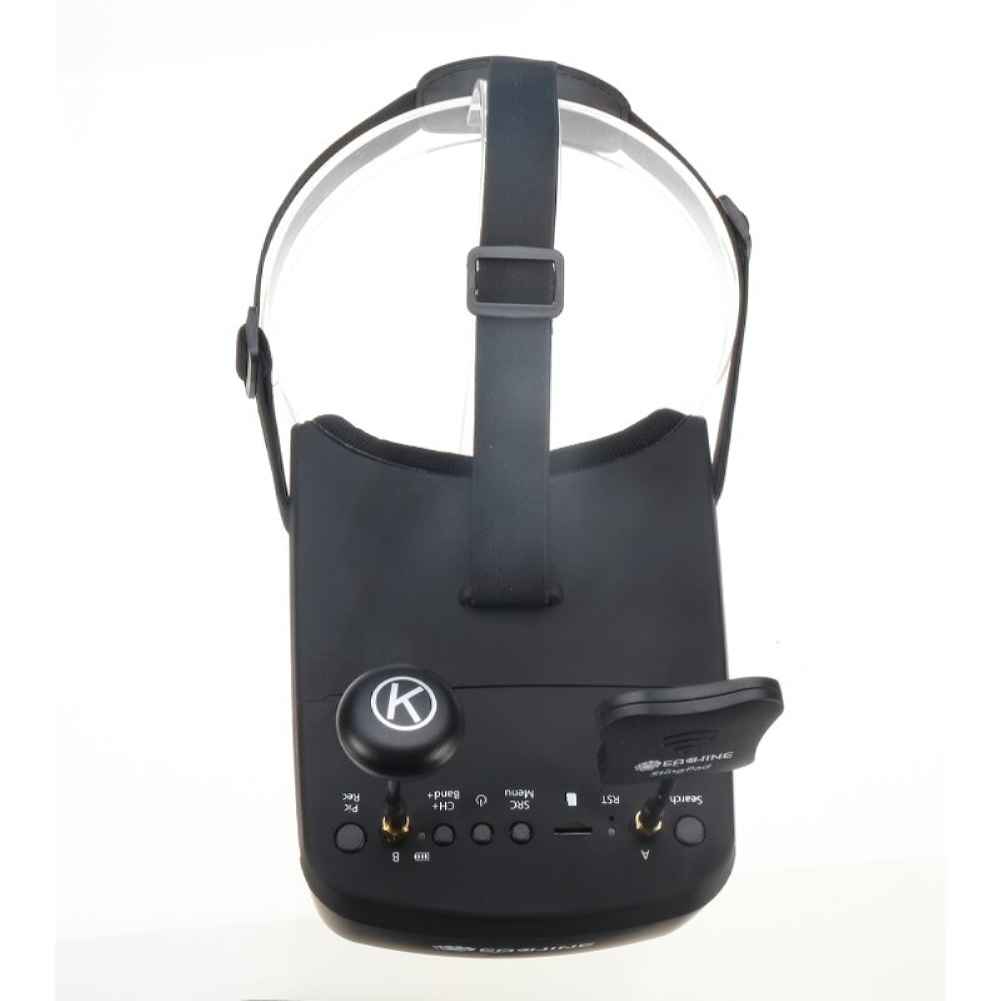

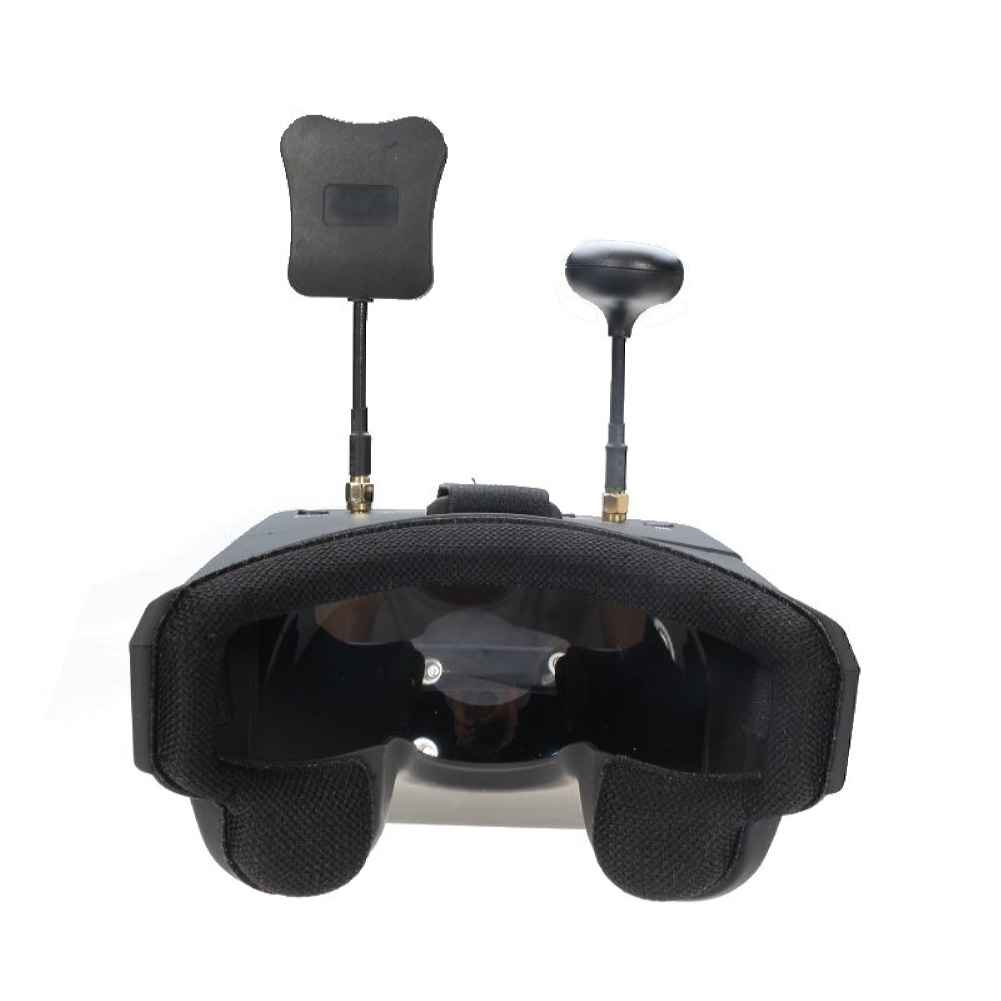

Appearance

Dimension: 180*145*82mm
Weight: 362g without antenna
Belt : three-way adjustable belt

Specification

Build in DVR
Record up to 720*576px full frame rate video, no frame lost
(C10 card required)
Re play in MENU
Require C10 32G SD card to record full frame rate

Diversity

– 90dB Super sensitiveness in 2pcs RX5808 PRO modules

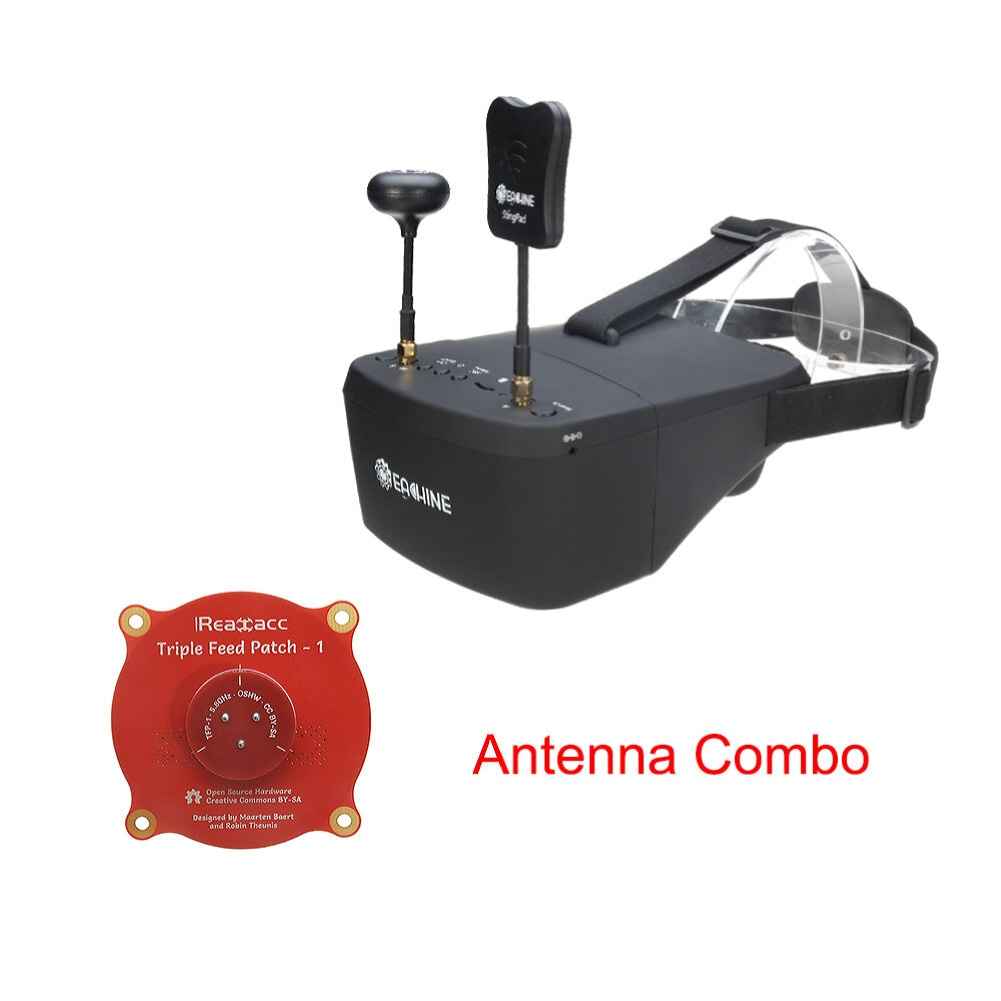

Great performance when two types (Linear and Omni) antennas are used

Display

Screen size: 5.0 inch
Screen resolution: 800*480(No blur after enlarge by the lens)
Screen brightness: 600cd/ m2 with special high brightness backlight LED for outdoor FPV
Ratio : 16:9, 4:3
View Angle: 140/120 degree(Horizontal/Vertical)

Lens

3x boost of the video to acquire intense feel-in-there video;
92% transparent rate distort if light;

Battery

Built-in 7.4V/1200/ 3.7V/2000mAh battery;
Each battery circle offer around 2hr working time;
10-22V wide rang recharging voltag rang,
Typical recharging voltag is 12V
Charger : 12V,2A, DC 2.5mm
2S (7.4 V) /3S(11.1V) battery as back-up power t to have long working time.

TX06 AIO Camera :

Transmitting Power:

25mW

Frequency:

5.8G 48CH

Input Voltag:

3.3-5.5V

Current Consumption:

280mA(Typical)

Camera Resolution:

700TVL

Video Format:

NTSC/PAL

Field of View :

120‵ Viewing Angle

Antenna Dimensions:

35mm*4.2mm diameter

Antenna:

Brass dipole Antenna

Frequency:

5.8GHz 6 bands 48 channels

With Goggles券

5474-5945MHZ

Size:

14*13.8mm(L*W)

Weight:

2.8g

Frequencies (5.8GHz)

CH

CH 1

CH 2

CH 3

CH 4

CH 5

CH 6

CH 7

CH 8

GROUP

A or FR1

5865 MHZ

5845 MHZ

5825 MHZ

5805 MHZ

5785 MHZ

5765 MHZ

5745 MHZ

5725 MHZ

B or FR2

5733 MHZ

5752 MHZ

5771 MHZ

5790 MHZ
