FlyFishRC Osprey 5.8GHz LHCP Stubby FPV Antennas, RP-SMA, for DJI HD Goggles V2/2, 2.6dBi, Compact Design

Description

1Pair FlyFishRC Osprey 5.8G LHCP Stubby 2.6dBi FPV Antennas RP-SMA for DJI HD Goggles V2/ DJI Goggles 2

FlyFishRC, founded by FPV enthusiasts, introduces the Osprey Series, inspired by the osprey’s precision. These antennas feature a compact 3cm design, reducing damage from crashes, and a military-grade fiberglass core that withstands impacts. With LHCP polarization, they minimize interference, providing clearer signals in challenging environments. Optimized for 5.8GHz, they are compatible with both digital and analog VTX systems. The gold-plated RP-SMA connector ensures durability and maintains signal integrity over time. Dual-injection silicone and nylon construction withstands extreme temperatures, while the glow-in-the-dark marker aids in night flights. Proven to reduce video interference and latency, these antennas enhance FPV performance.

Brand Story: FlyFishRC 藩 Engineered for the Obsesseed’Born to Fly, Built to Dominate’FlyFishRC was founded in a garage workshop by a group of FPV (First-Person View) fanatics frustrated with signal dropouts in complex environments. After 6 months of testing 47 material combinations, they launched the Osprey Series?inspired by the ospreyㄙs precision hunting, designed to cut through interference like a raptorr through stormy skies.

Features

1. ‘Compact Size, Zero Compromise’
– 3cm Ultra-Short Design: 60% shorter than traditional antennas, reducing snap-off risks in crashes (critical for racing drones).
– Military-Grade Fiberglass Core: Rebounds to shape after impacts?even against tree trunks.
2. ‘King of Signal Penetration’
– LHCP (Left-Hand Circular Polarization): Minimizes multipath interference for cleaner signals in urban/wooded areas.
– 5.8GHz Optimized: Fully compatible with digital (DJI/Walksnail) and analog (Analog) VTX systems.
3. ‘Engineered Obsessively’
– Gold-Plated RP-SMA Connector: Resists oxidation, maintains signal integrity after 10,000+ insertions.
– Dual-Injection Silicone+Nylon: Withstands -30‵C to 80‵C without cracking.
– Glow-in-the-Dark Marker Ring: Quick orientation checks for night flights (patented).
4. ‘Proof in the Data’
– 42% less video snow in 3km urban tests vs. competitors.
– 17ms lower latency in low-gate races (pro pilot verified).

Specifications:

Brand券

FlyFishRC

Frequency:

5600-5900MHz

Gain:

2.6dbi

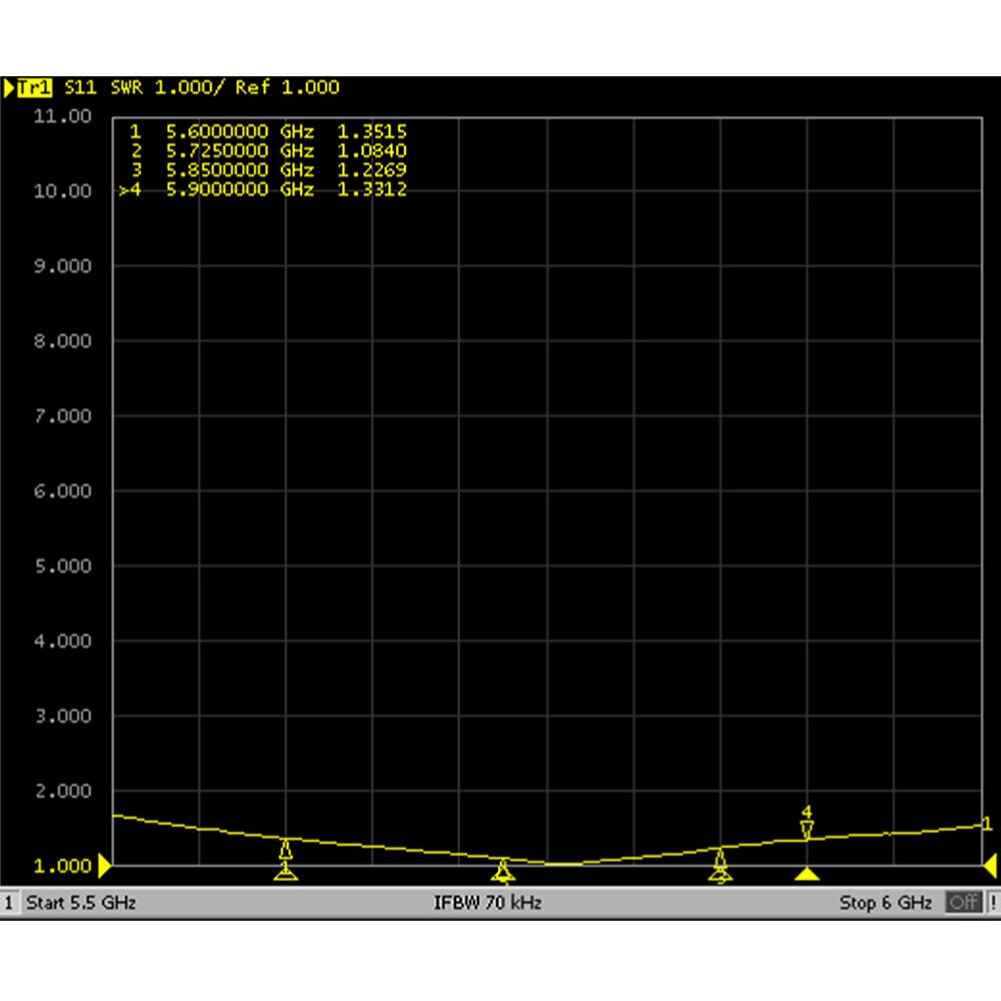

VSWR券

沌1.5

Polarization:

LHCP

Axial Ratio:

0.8

Weight:

4.2g/pc

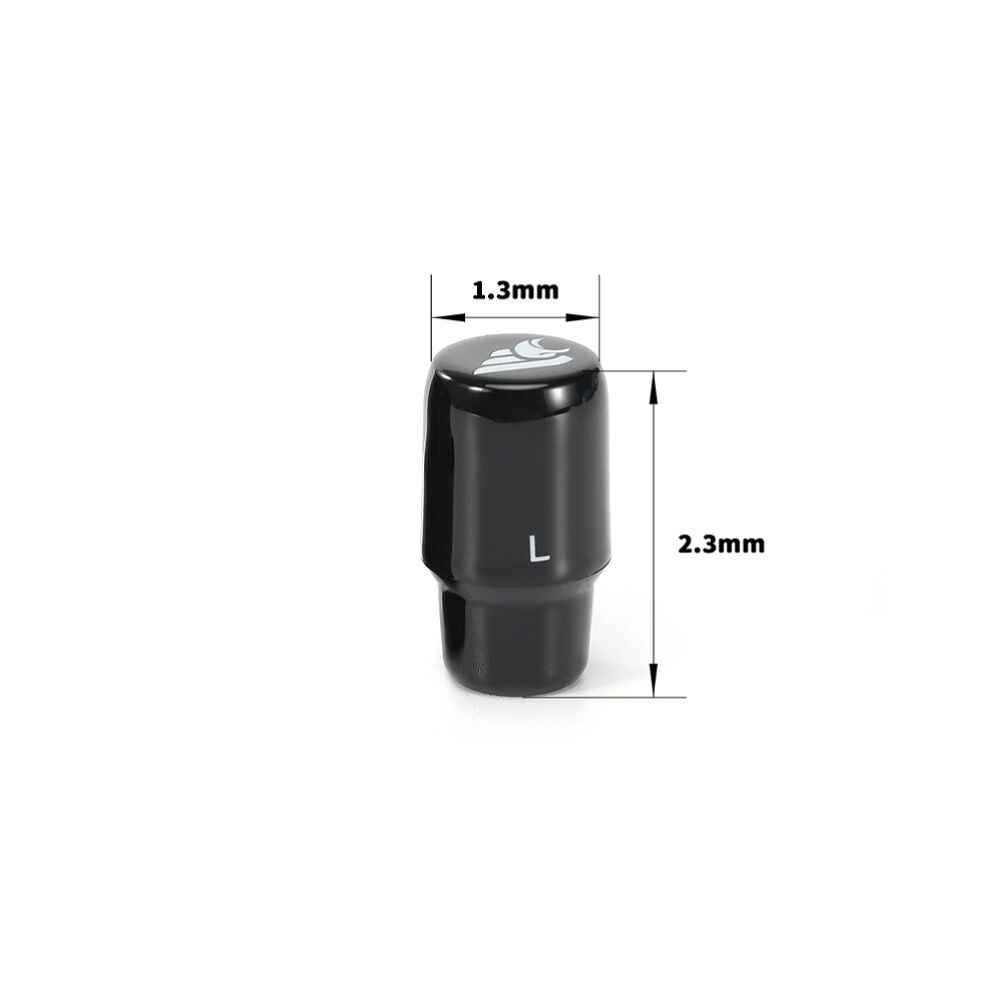

Size:

L2.3mm x H1.3mm

Connector:

RP-SMA

Suit for:

DJI Goggles V2/DJI Goggle2

Package Included:
2 x LHCP Stubby Antennas
