Eachine TX05 AIO FPV Camera with OSD, 0.01-250mW Switchable VTX, 5.8G 72CH, 600TVL NTSC, Mini FPV Camera for RC Drone

Description

Eachine TX05 0.01/5/25/50/100/250mW Switchable w/ OSD AIO 5.8G 72CH VTX 600TVL NTSC Mini FPV Camera for RC Drone

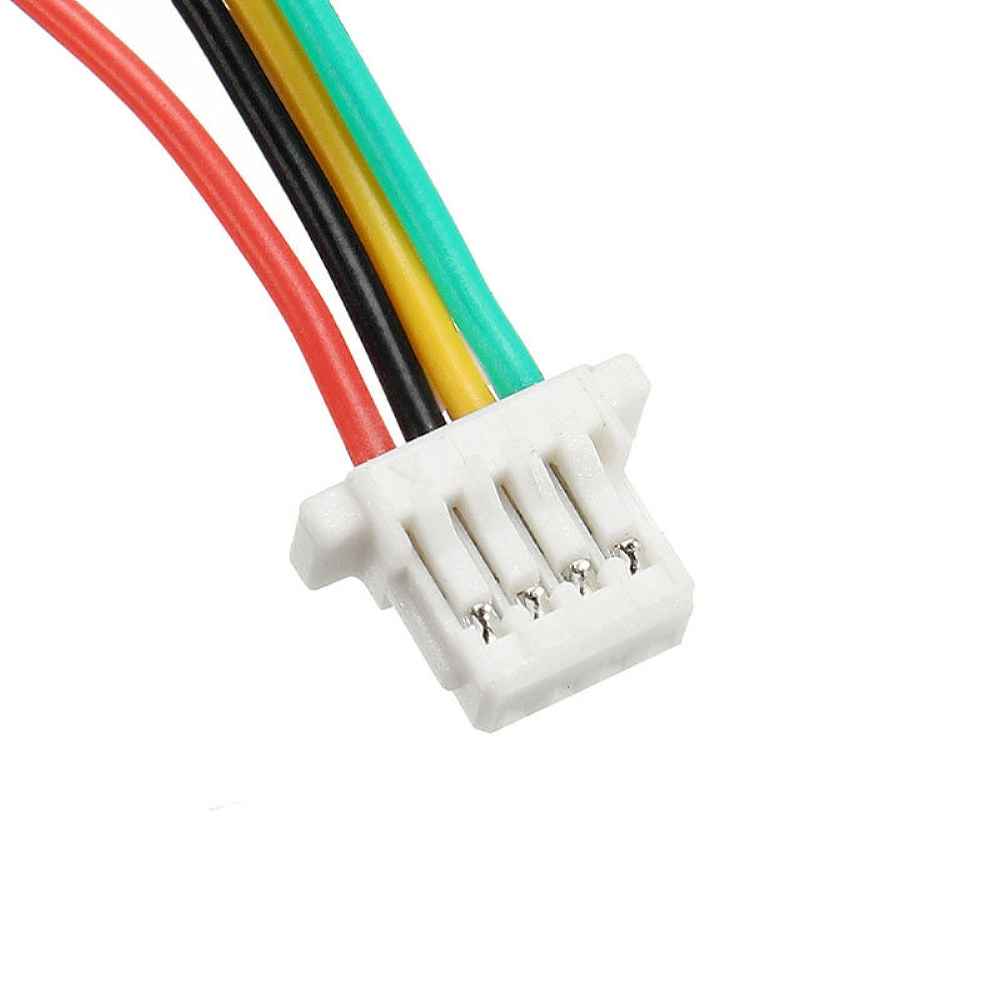

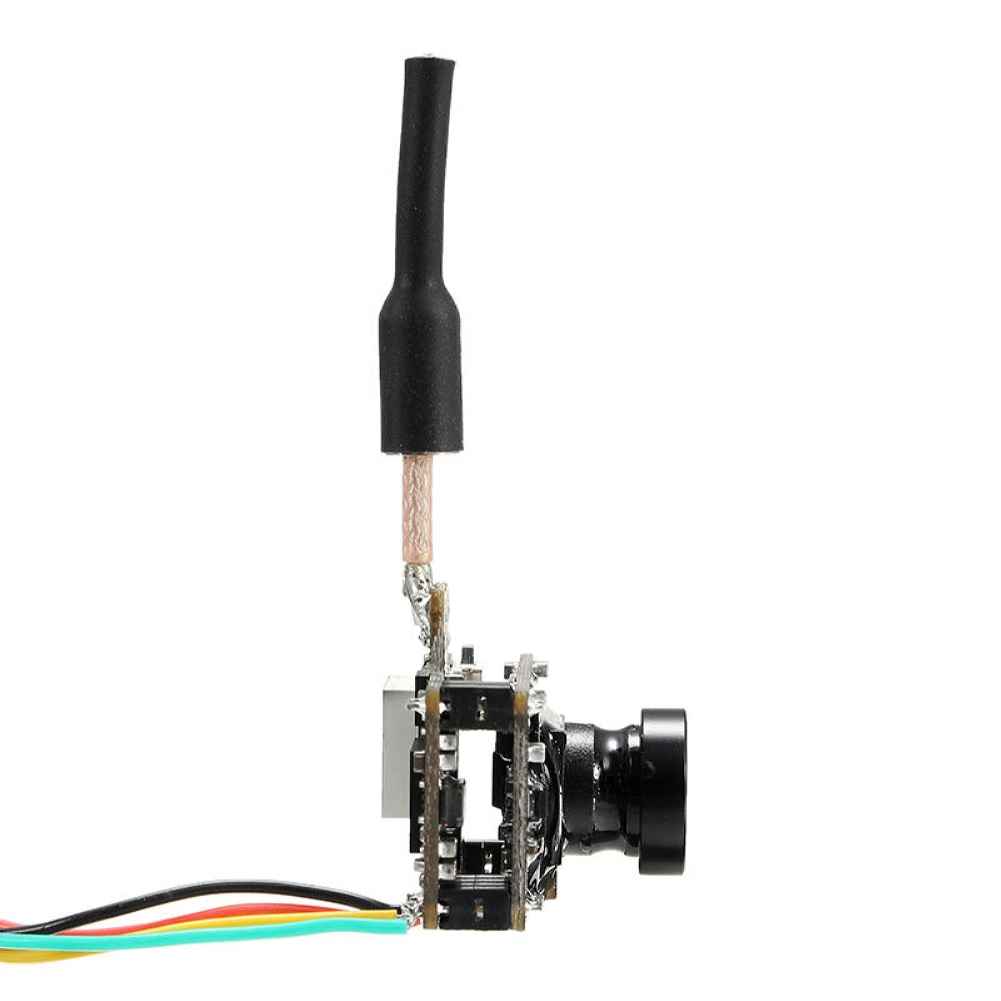

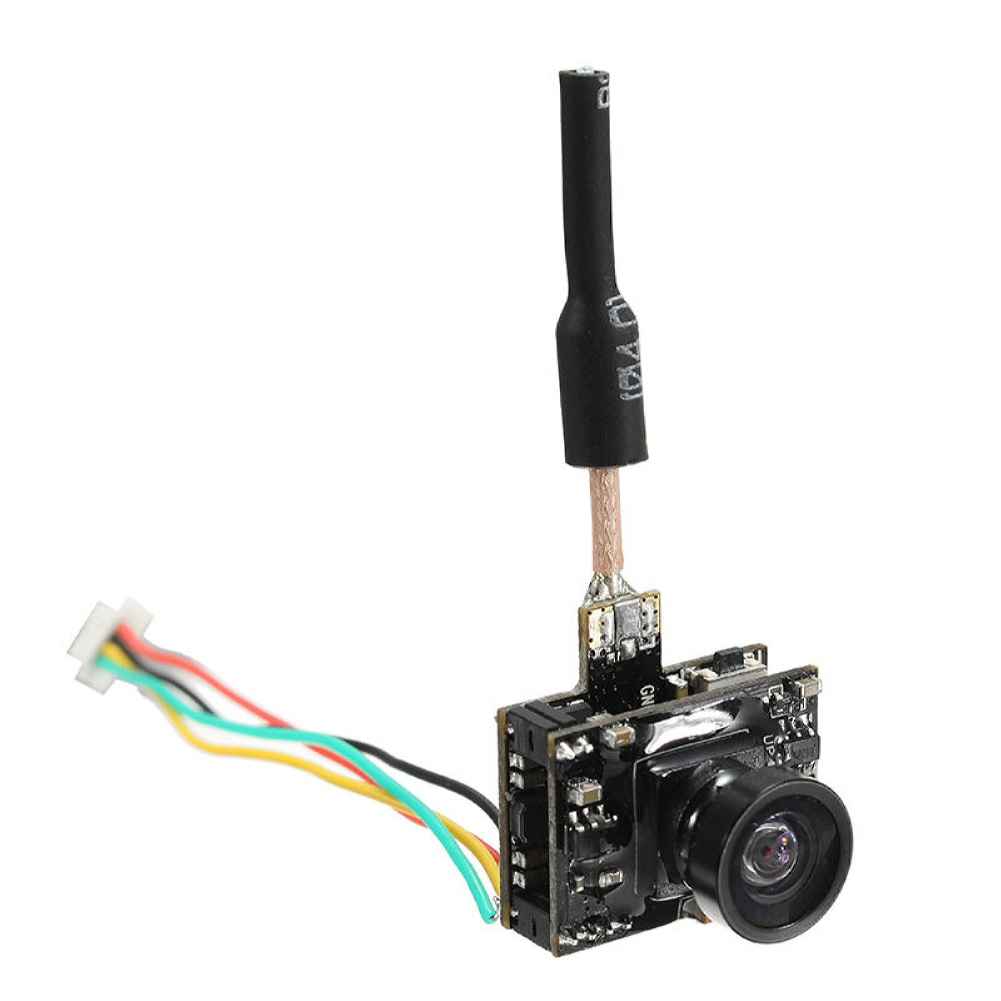

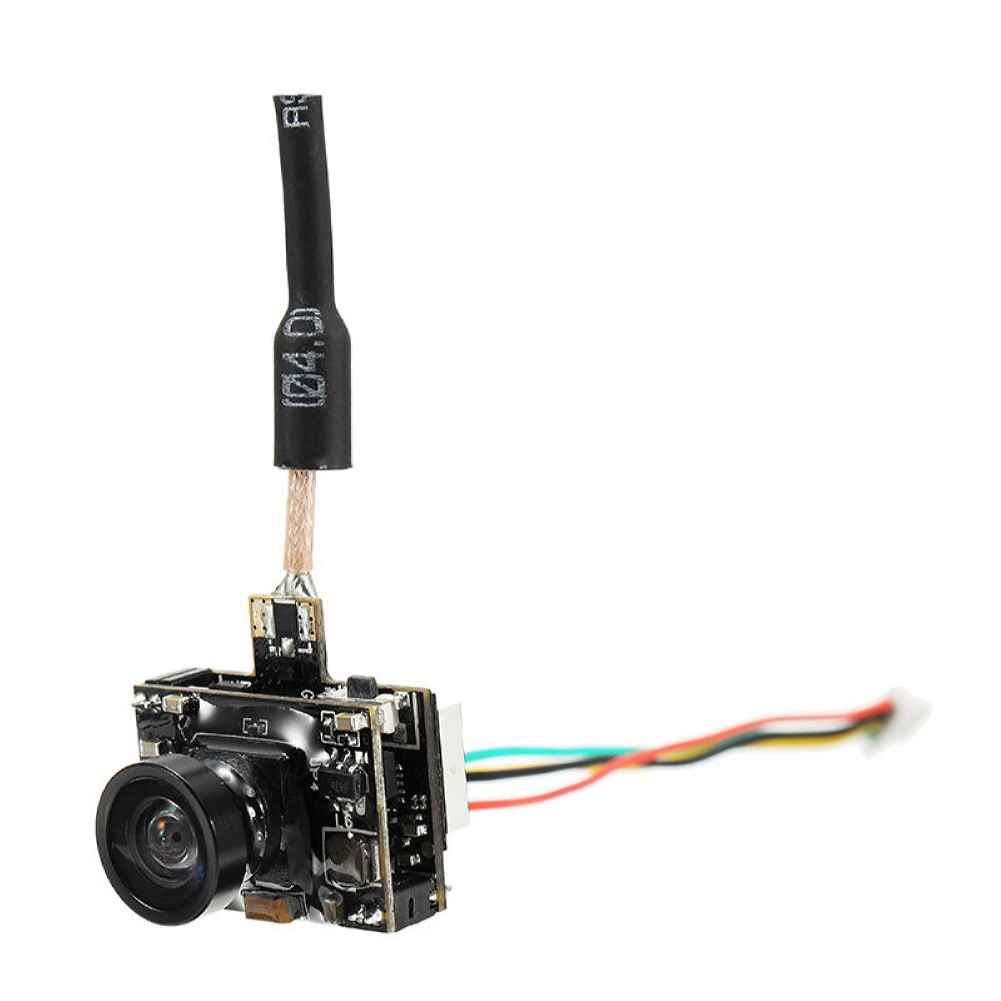

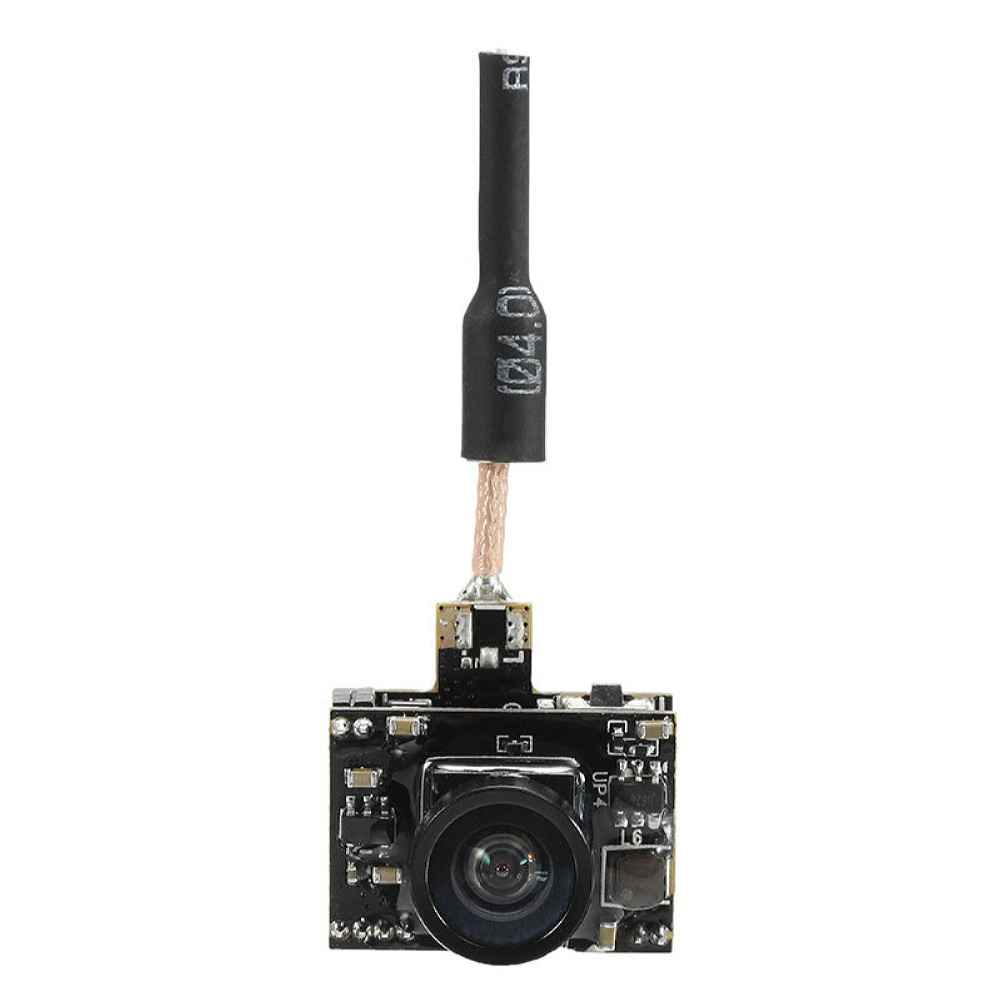

The Eachine TX05 is a compact All-In-One FPV camera designed for RC drones, featuring a switchable VTX with power levels ranging from 0.01mW to 250mW. This camera supports 72 channels across 9 bands, including Raceband, ensuring broad compatibility and minimal interference. With a 600TVL resolution and a 1/3″ CMOS sensor, it delivers clear video output in both NTSC and PAL formats. The 120～ horizontal and 150～ diagonal field of view offers an expansive perspective, while the 5.8G brass antenna provides a strong and reliable signal. The unit is plug-and-play, making it ideal for DIY enthusiasts, and includes an anti-collision EVA case for added durability.

Specification: User Manual

Overall

Brand Name

Eachine

Item NO.

TX05

Item Name

AIO FPV VTX Camera

Size

19.6mm*14mm(L*W)

Weight

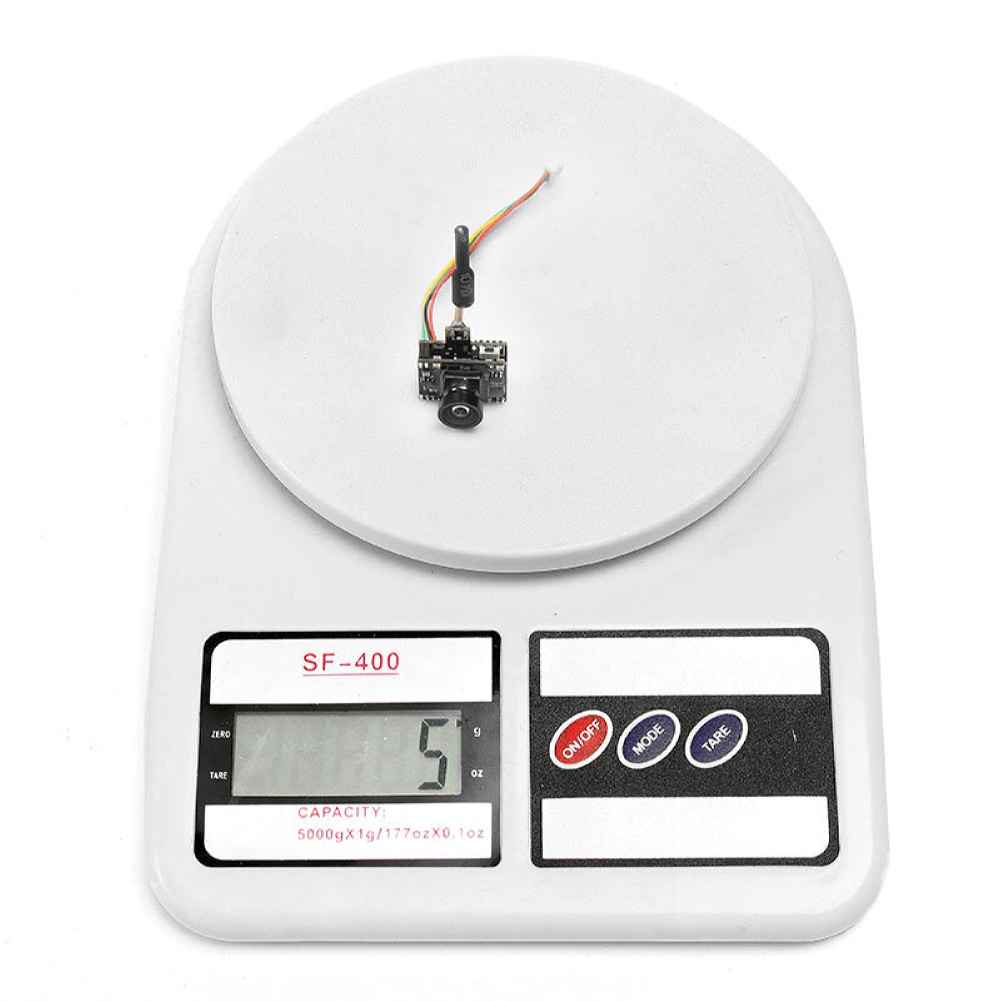

4.9g

FPV Camera

Output power

0.01/5mW/25mW/50mW/100mW/200mW (switchable)
(Let output power on 0, to avoid frequency interference)

Input Power

3.3-5.5V

Power consumption

540 mA

Sensor

1/3 ‘CMOS

Camera Resolution

600TVL

Lens

M7 10mm Lens

Angle

120 ‵ FOV horizontal viewing angle 150 ‵ DFOV diagonal perspective

Mini illumination

1 lux

Format

NTSC/PAL

Transmitter

Support video format

NTSC/PAL

Output Impedance

50 Ohm

Output signal strength

13呼1dbmdBm

Output Power

0.01mW: -20dBm5mW: 8dBm25mW: 15dBm50mW: 17.5dBm100mW: 21dBm200mW: 23dBm

Wireless Channel

72CH

Extents

400m

Antenna

5.8G Brass Antenna

Working Voltag

3.3-5.5 V

Current

0.01mW: 260-99mA5mW: 300-140mA25mW: 370-170mA50mW: 470-220mA100mW: 530-255mA200mW: 800-540mA

Audio carrier

NO

Battery

1S Lipo Battery (3.7-4.2V)

Frequency Table

5.8GHz 9 bands 72 channels
with Raceband: 5325-5945 MHZ

Power Level Instruction:

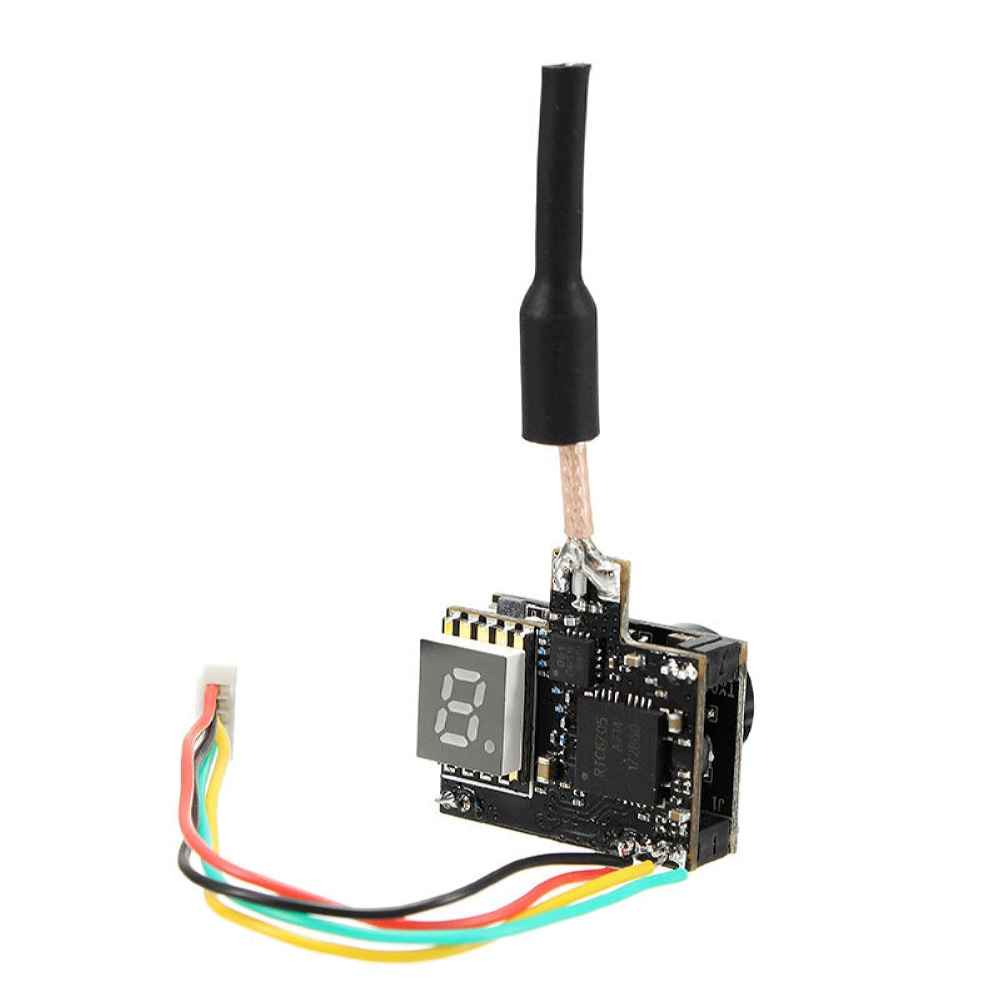

1) 0.01Mw: LED display ‘1’ and blink twice.
2) 5Mw: LED display ‘2’ and blink twice.
3) 25Mw: LED display ‘3’ and blink twice.
4) 50Mw: LED display ‘4’ and blink twice.
5) 100Mw: LED display ‘5’ and blink twice.
6) 250Mw: LED display ‘6’ and blink twice.
Opertio Instruction:1. On the LED display the Letter means BAND, digits means CHs. Digits blink twice quickly means POWER Level.2. The default power is 0.01Mw. Stting will restre the last band, channel and power level if no opretation act within 5 second.3. Short press the button to change CH from 1 to 8.4. Long press the button (about 2s) when letter blink, then short press to change BAND from A to H.5. Long press the button (about 4s) when digit blink twice quickly, then short press the button to change POWER Level from 1 to 6.

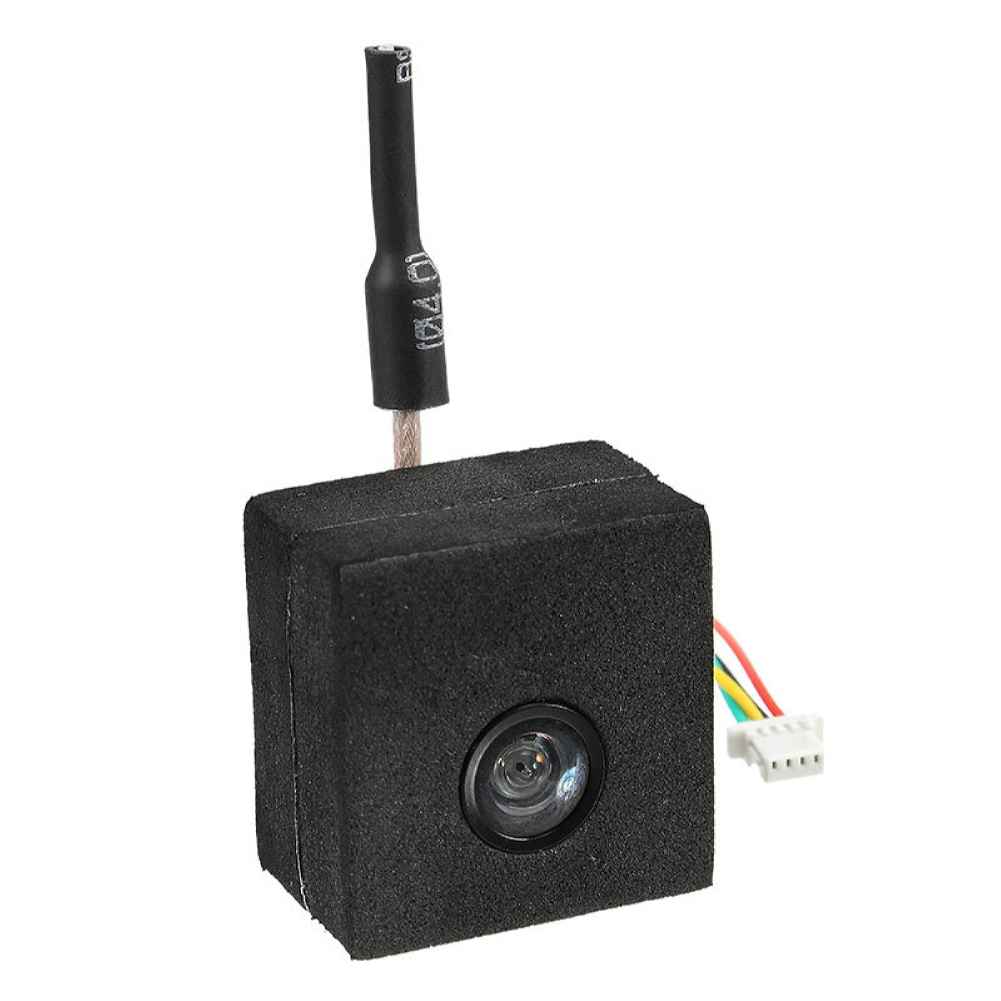

Features:- AIO FPV camera, transmitter , atnenna, OSD 4 in one function limit size and weight.- Output power 0.01mw/5mw/25mw/25mw/50mw/100mw/250mw, 6 level one key to Switchable.- OSD enabled,support video in / video out.- Anticollision EVA case.- 9 bands 72 channels with Raceband.- Power failure memory, remember the frequency channel after powering off.- 120 ‵ FOV horizontal viewing angle of 150 ‵ DFOV diagonal perspective.- 5.8G Brass antenna to Antirust and get strong signal.- Plug and play, designed for DIY.

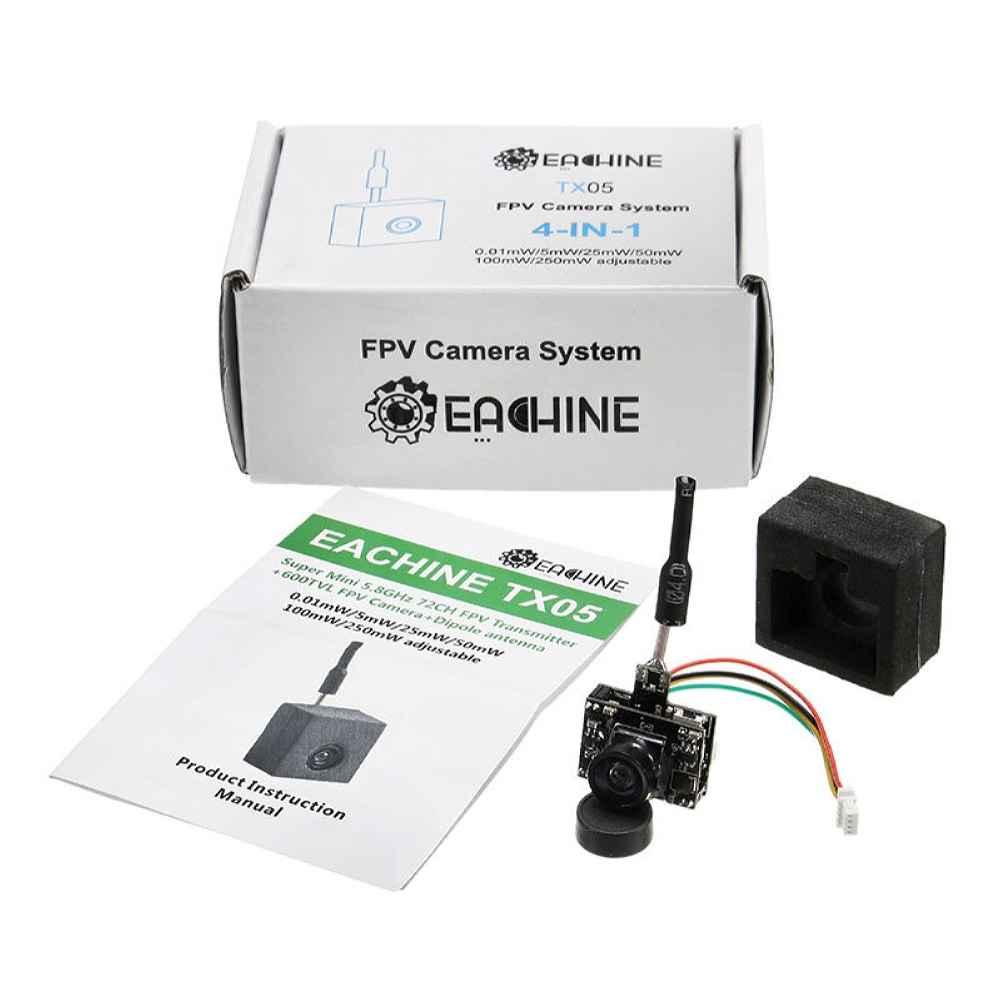

Package Included:
1 x Eachine TX05 Camera
1 x Foam Protection Cover
1 x User Manual
