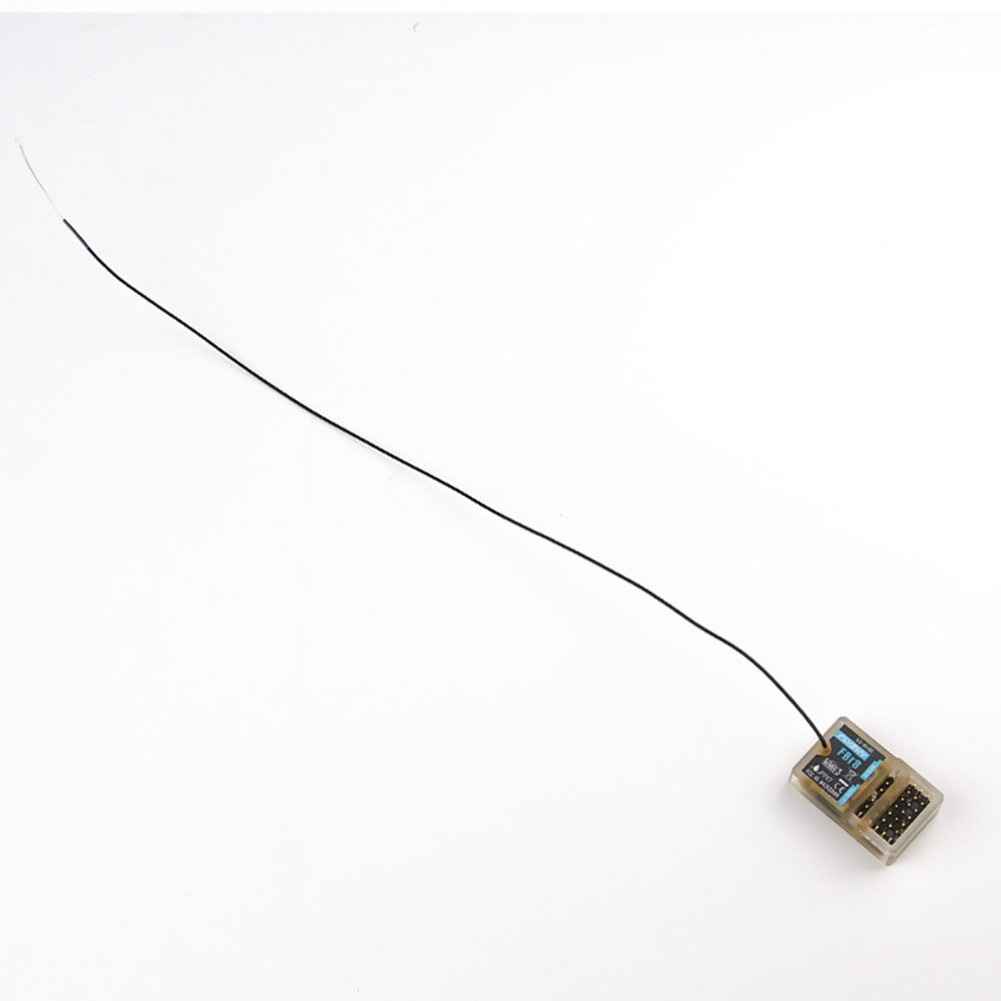

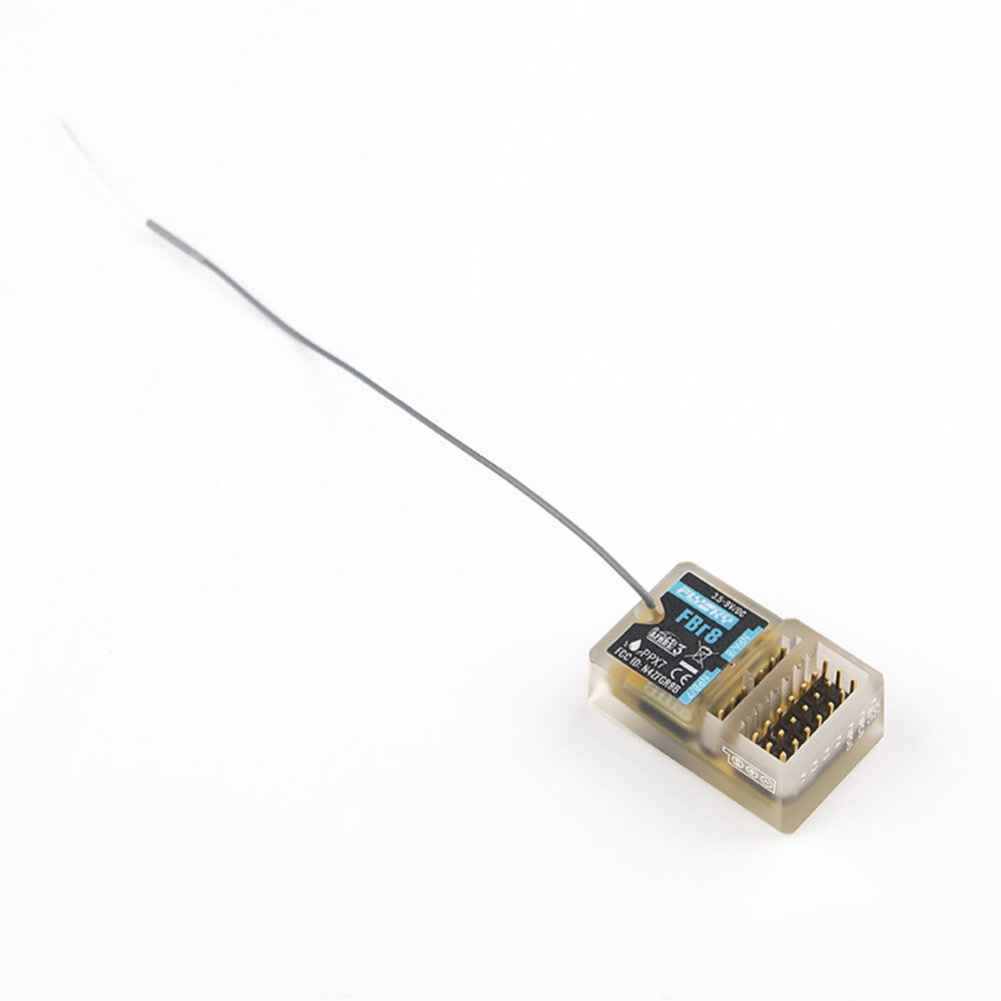

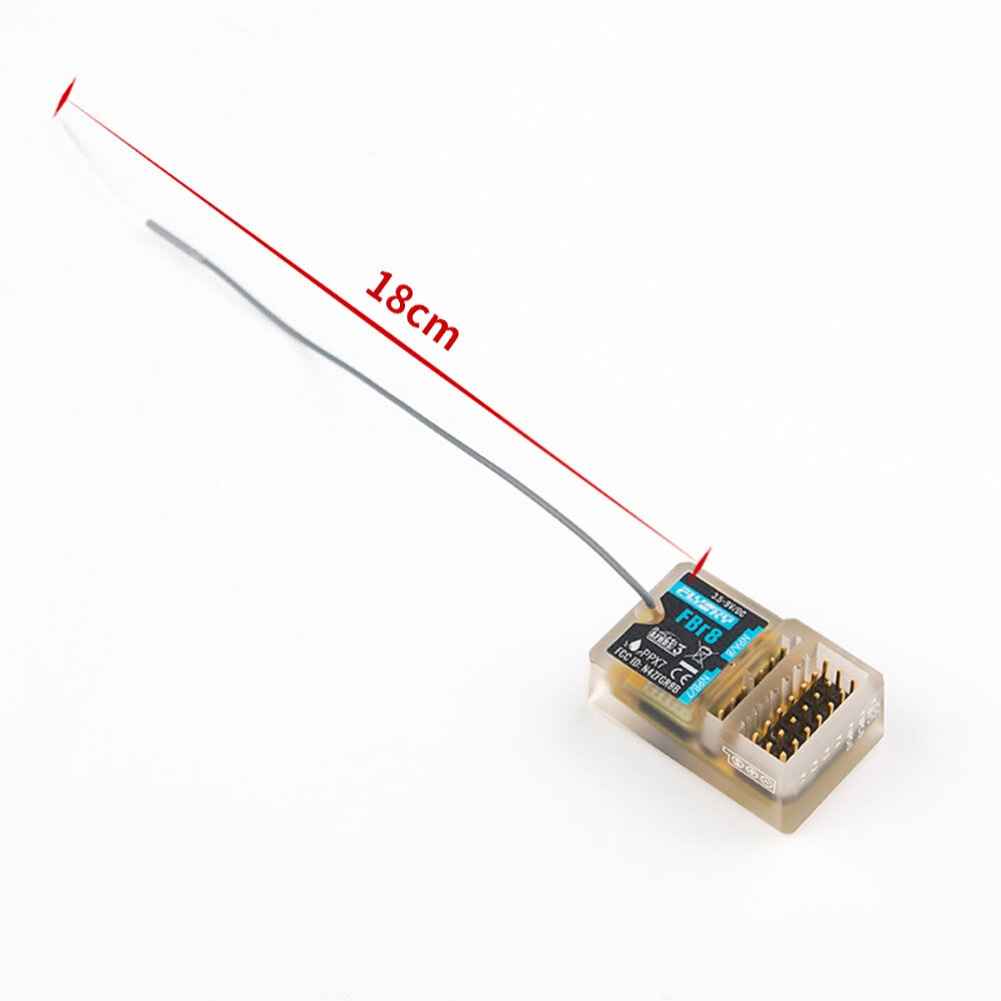

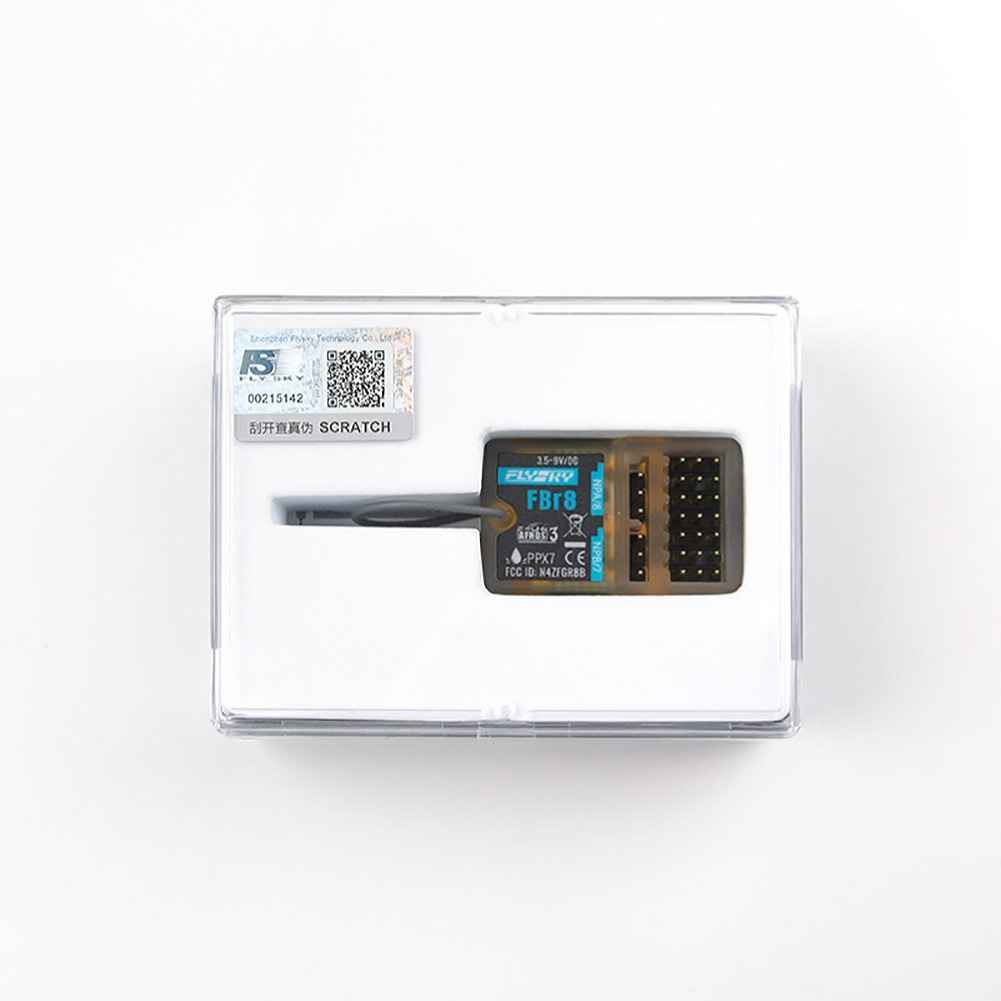

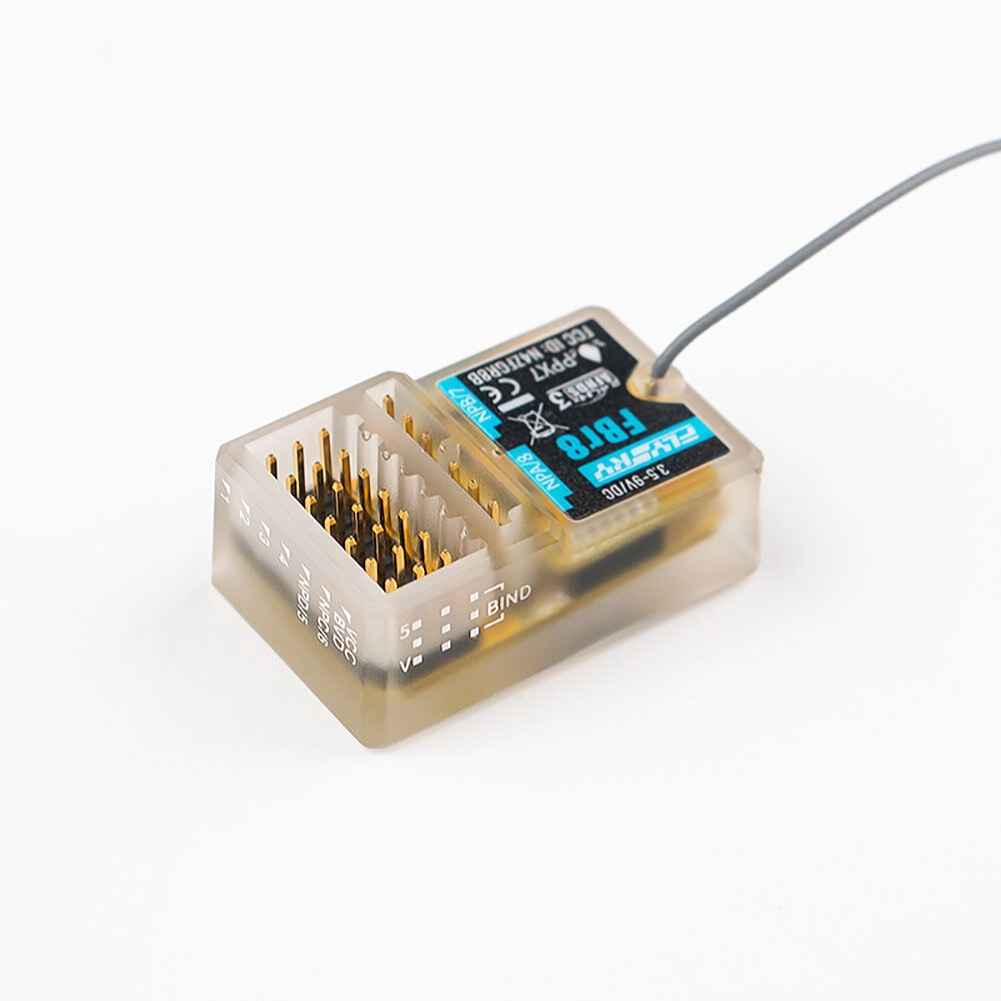

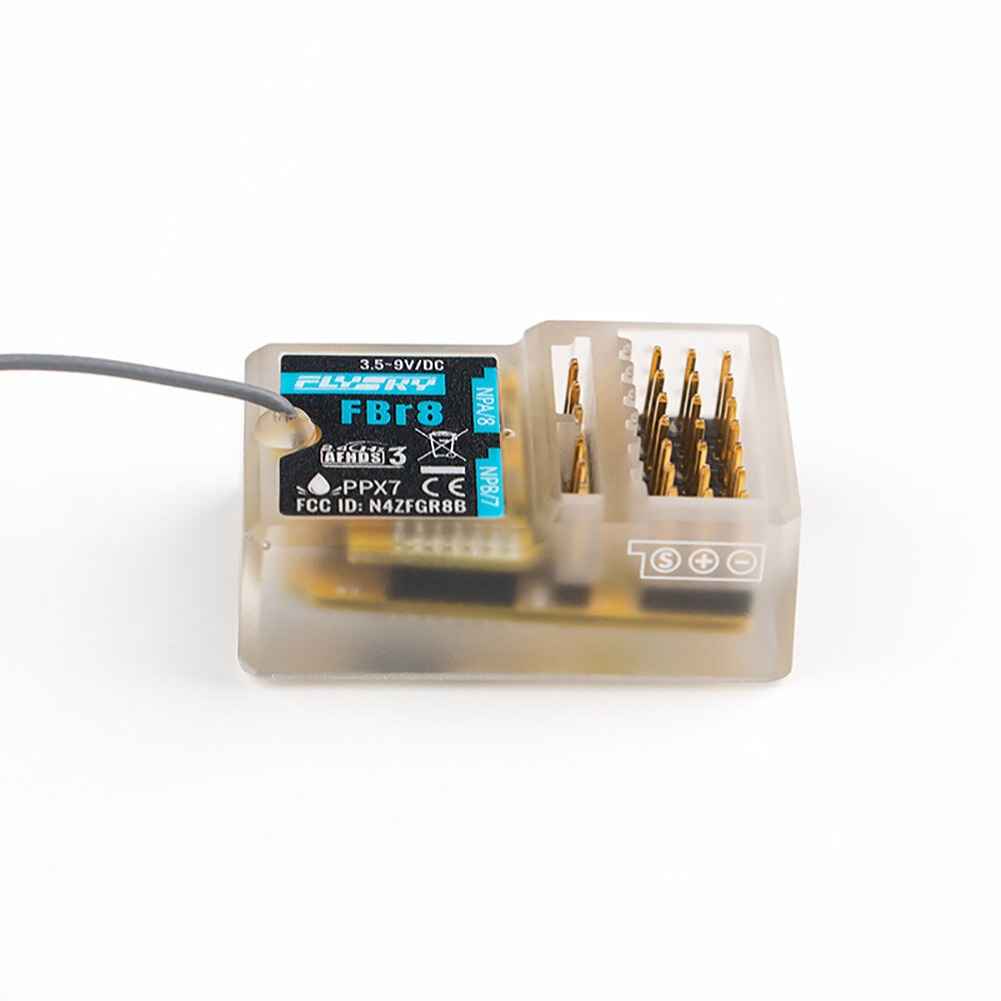

Flysky FBr8 2.4GHz 8CH AFHDS 3 PWM/PPM/i.BUS/S.BUS/i-BUS2 Output RC Receiver for PL18/NB4/NB4 Lite/NB4+ Radio Transmitter RC Racer Car Boat
The Flysky FBr8 is an 8-channel RC receiver designed for use with the PL18, NB4, NB4 Lite, and NB4+ radio transmitters. Operating on the AFHDS 3 protocol, this receiver features a single external antenna and supports both unidirectional and bi-directional transmission. It offers customizable Newports function interfaces for i-BUS2, S.BUS, i-BUS, and PPM signals. The receiver is waterproof with a PPX7 rating and includes a built-in BVD battery voltage detection function. It is compatible with all transmitters or RF modules supporting the AFHDS 3 protocol, making it ideal for use in RC cars and boats.
Flysky FBr8 2.4GHz 8CH AFHDS 3 PWM/PPM/i.BUS/S.BUS/i-BUS2 Output RC Receiver for PL18/NB4/NB4 Lite/NB4+ Radio Transmitter RC Racer Car Boat
FBr8 is an 8-channel receiver based on AFHDS 3 third-generation automatic frequency hopping digital system protocol. This receiver features waterproof level PPX7, a single external antenna, and unidirectional and bi-directional transmission. lt supports four Newports function interfaces. Newports interfaces can be cusomized with the input or output signal type: i-BUS2/S.BUS/i-BUS/PPM, etc. Built-in BVD battery voltage detection function. lt adapts all transmitters or RF modules which support AFHDS 3 protocol.
Description:
Brand: Flysky
Model FBr8
PWM Channels: 8RF: 2.4GHz ISMRF Protocol: AFHDS 3 Antenna: Single External Antenna(Coaxial Antenna)Input Power: 3.5-9V/DCWorking Current: 沌 50mA/5VData Output: PWM/PPM/i.BUS/S.BUS/i-BUS 2Resolution: 4096Temperature Range: -10﹠ to +60﹠ Humidity Limit: 20%-95% Online Update: Yes Dimensions: 37*23*13mm Weight: 14g (Without pin header)Waterproof: PPX7Certification: CE佾FCC ID: N4ZFGR8BModel Type: Car/boatCompatible transmitters: Transmitters or RF Modules which support AFHDS3 protocol.
Package Included:
1 x Flysky FBr8 receiver
