GEPRC MATEN 5.8G 5W VTX PRO FPV Transmitter, 80CH, 7-36V, IRC Tramp Protocol, Built-in Microphone, CNC Aluminum Shell, for FPV Drones

Description

GEPRC MATEN 5.8G 5W 80CH VTX PRO 7-36V IRC Tramp Protocol Support OSD Parameter Adjustment Built-in Microphone Image Transmission FPV Transmitter for FPV Drones

The GEPRC MATEN 5.8G 5W VTX PRO is a high-performance video transmitter designed for FPV drones. It features five adjustable power levels, delivering up to 5000mW for stable signal transmission and superior penetration. Crafted with a high-strength CNC aluminum alloy shell, it offers excellent heat dissipation and impact resistance. The built-in micro turbofan enhances cooling, while the integrated microphone provides real-time audio transmission. Supporting the IRC Tramp protocol, this VTX allows OSD parameter adjustments. It operates within a 7-36V voltage range and includes temperature protection to prevent overheating. With 80 transmission channels and compatibility with 20x20mm and 25.5×25.5mm mounting options, it is ideal for any FPV drone setup.

Description:
The MATEN 5.8G 5W VTX PRO is a high-performance VTX newly developed by the GEPRC team. With five adjustable power options, it delivers up to 5000mW of power, ensuring stable signal transmission and excellent penetration.

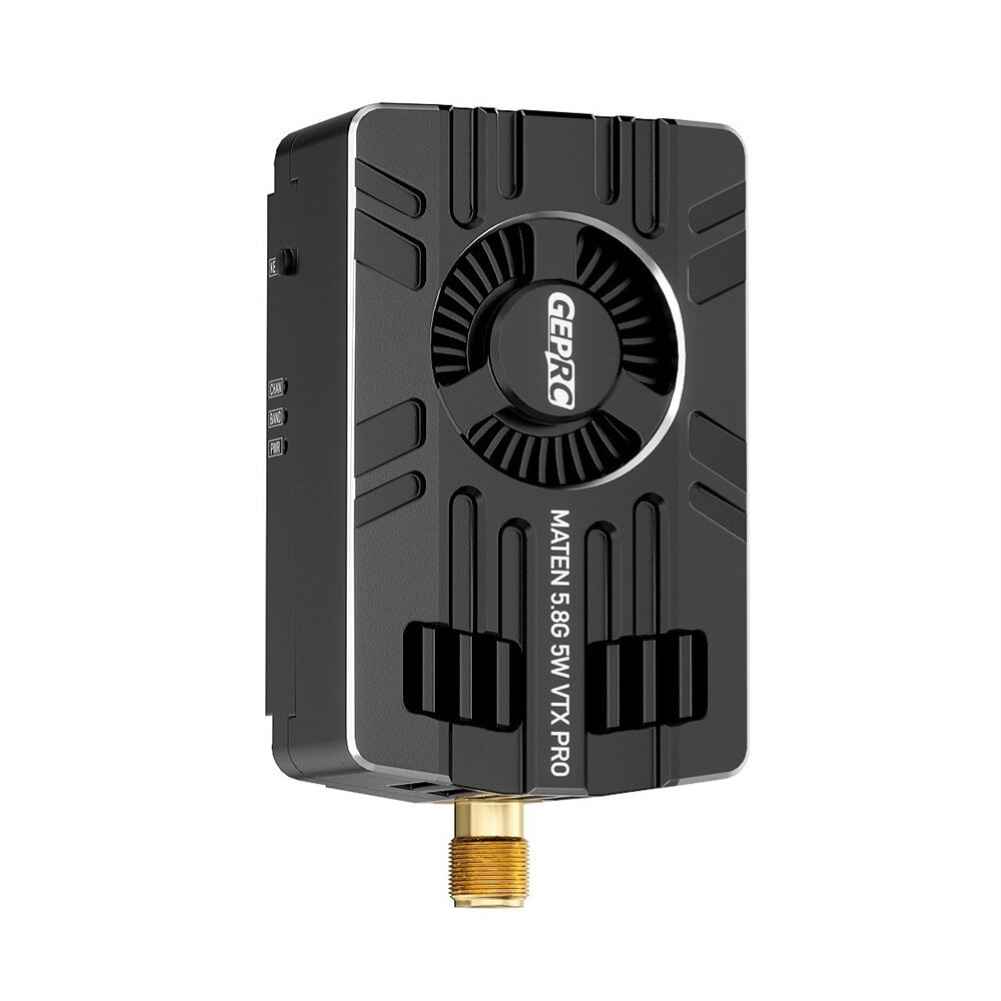

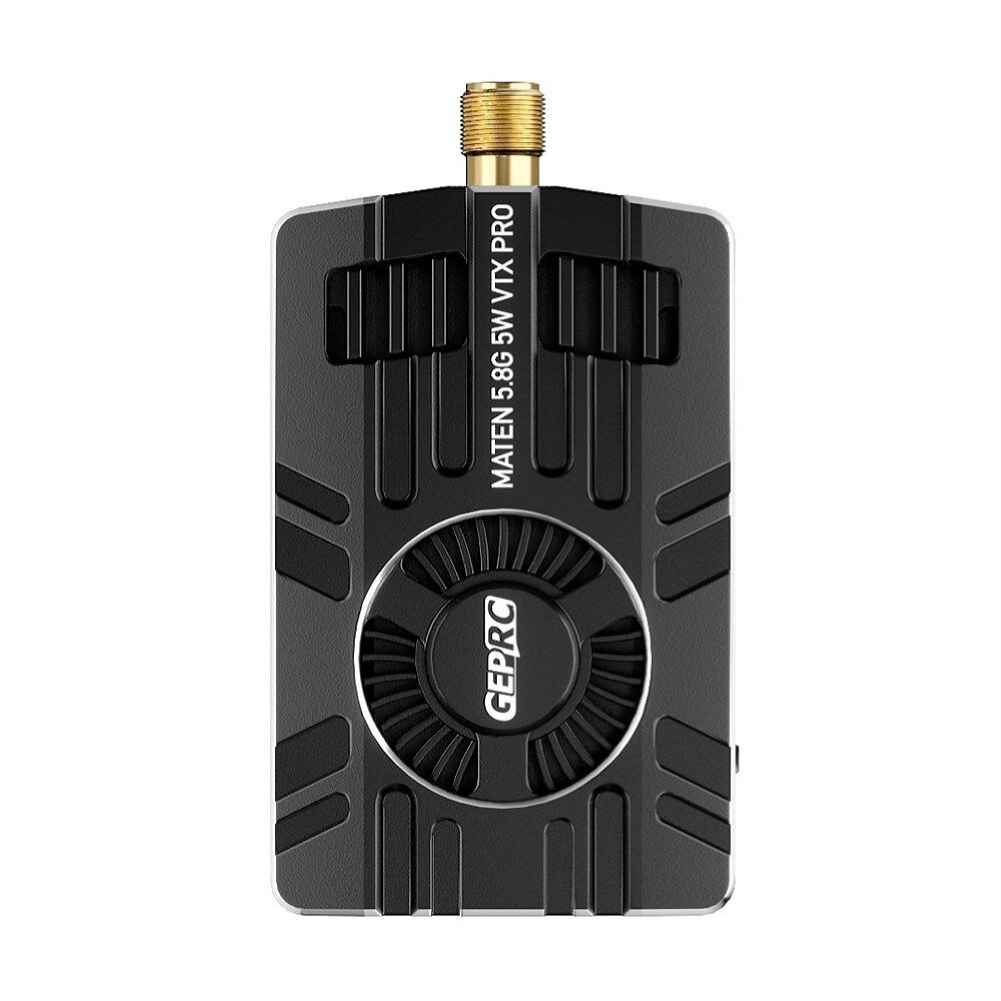

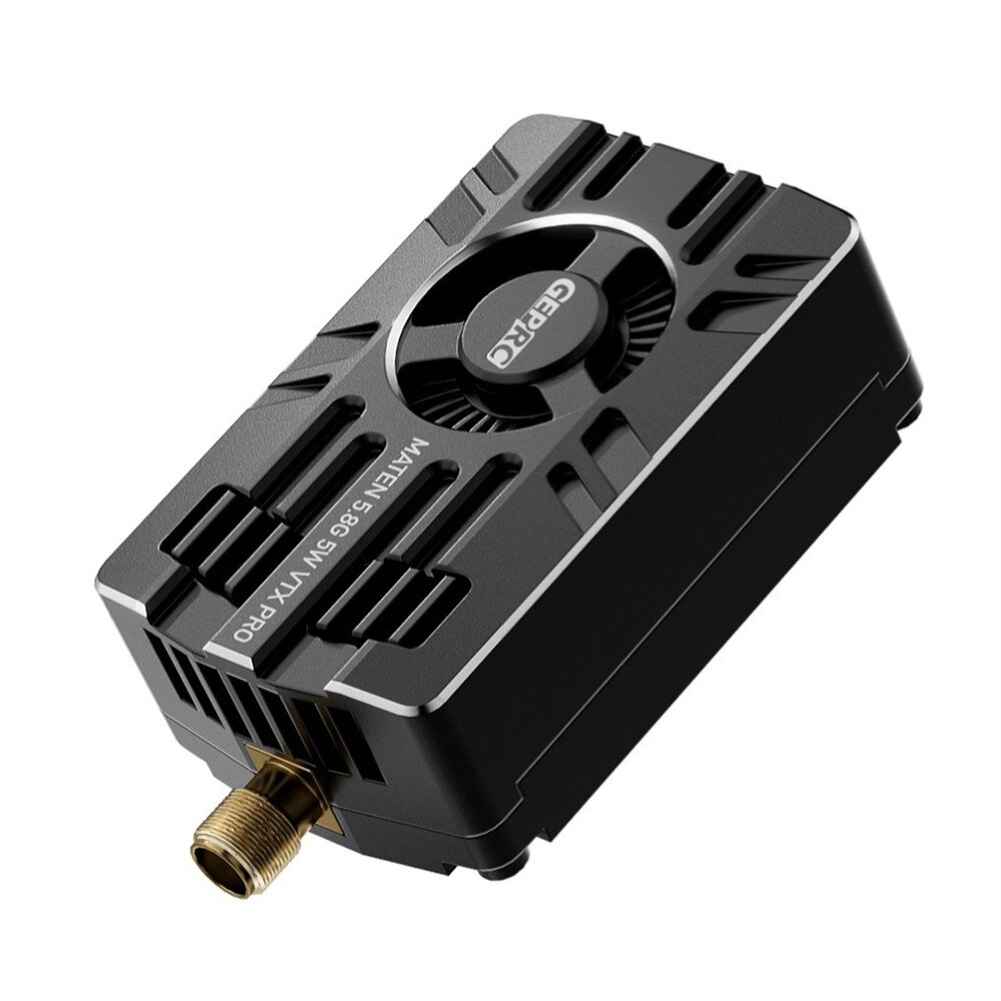

Built with a high-strength CNC aluminum alloy shell, the MATEN 5.8G 5W VTX PRO offers superior heat dissipation and impact resistance. Its sleek design features a fan cooling function for optimal performance, while the built-in microphone transmits real-time audio from the FPV drone.
Supporting the IRC Tramp protocol, it allows you to adjust parameters through OSD. It operates within a voltage range of 7-36V and includes temperature protection to prevent overheating and damage. With 80 transmission channels and two mounting options, 20x20mm (M2) and 25.5沁25.5mm (M2), itㄙs the perfect VTX for any build.
Feature:
– Five adjustable power levels, up to 5000mW, ideal for long-range flights.
– The high-strength CNC aluminum alloy shell aids in heat dissipation.
– The built-in micro turbofan actively dissipates heat.
– Wide voltage input range, supporting 7V-36V.
– One function adjustment button and three indicator lights for easy operation.
– Supports the IRC Tramp VTX control protocol for OSD parameter adjustment.
– Temperature protection function prevents overheating.
– Built-in microphone for real-time audio transmission.
– Supports 80 transmission channels.
– Compatible with 20x20mm (M2) and 25.5沁25.5mm (M2) mounting hole sizes.
Specification:

Brand:

GEPRC

Model:

MATEN 5.8G 5W VTX PRO

Dimension:

60沁33.2沁19.1mm

Mounting Hole Size券

20x20mm(M2),25.5沁25.5mm(M2)

Output Power:

300mW/600mW/1600mW/3000mW/5000mW/Pit mode

Frequency券

4.9-5.8GHz

Channels:

80CH

Input Voltage:

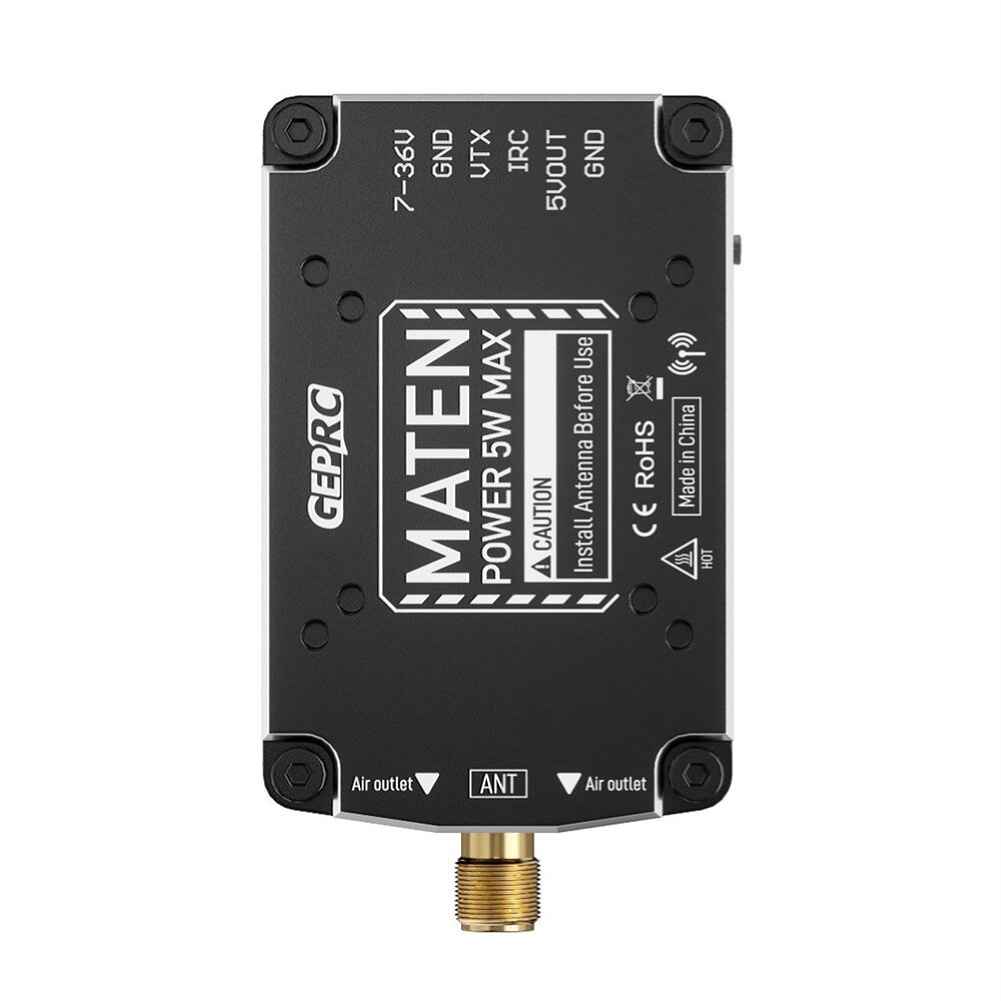

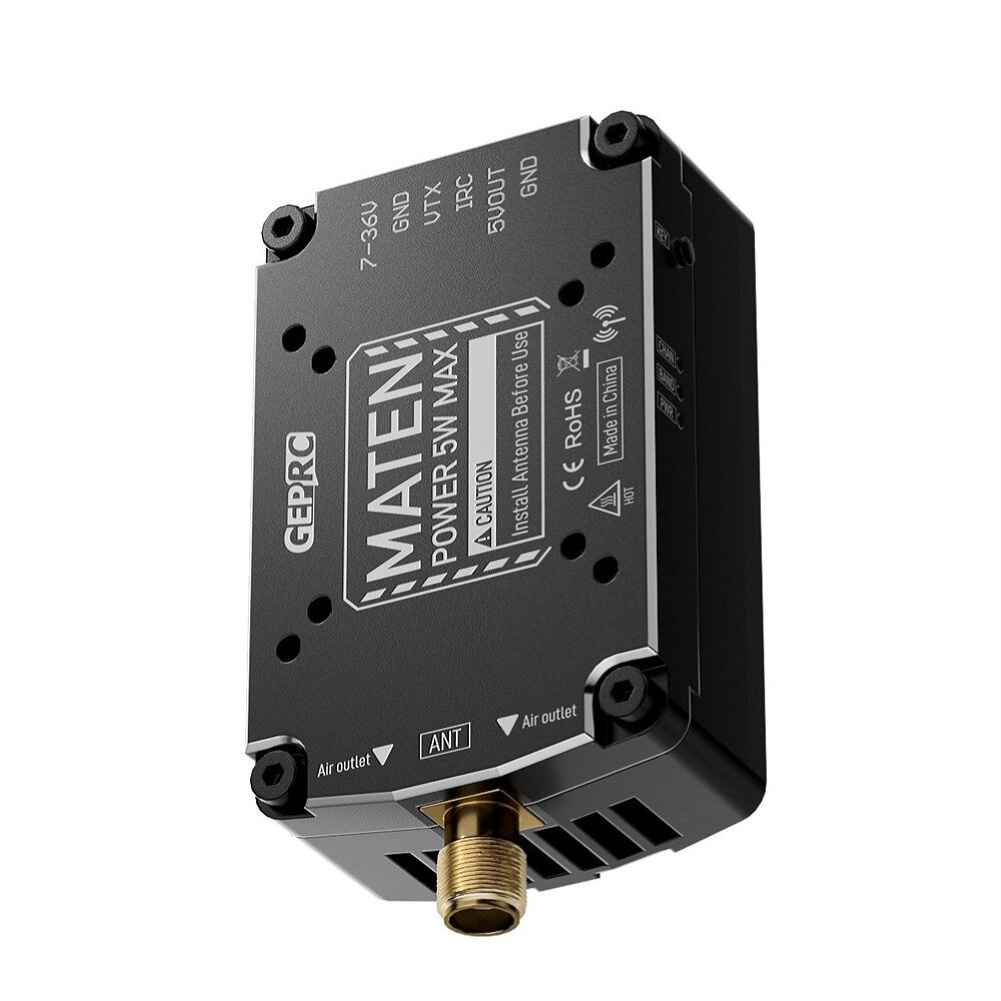

DC7-36V侈2-8S Battery佩

Output Voltage:

5V@600mA

Protocol:

IRC Tramp

Antenna Connector:

SMA

Cable Connector:

Sh1.25 6pin

Microphone:

Built-in microphone

Weight:

49.5g侈VTX only佩

Notes:
1. Installing antenna before use.
2. Flying with constant airflow and under a well-ventilated environment to prevent overheating. Install a cooling fan if operating in confined conditions.
3. The 5V Output is for a Camera/Cooling Fan use only! Do not connect the battery input to the 5V Output, severe damage will occur to VTX.

Package Included:
1 x MATEN 5.8G 5W VTX PRO VTX
1 x SMA(Internal needle) to SMA (Internal hole) connector
1 x sh1.25 6P connection cable
6 x M2 5 screw
6 x M2 6 screw
1 x Manual
