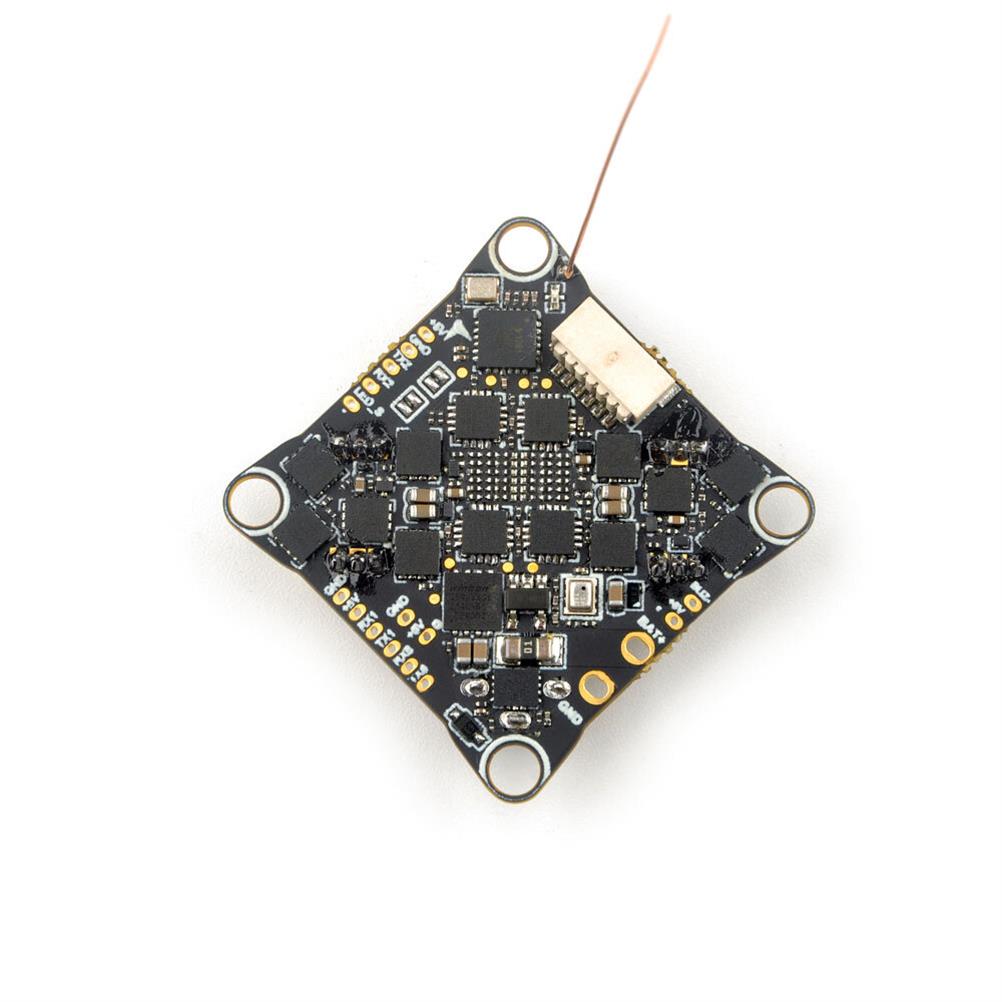

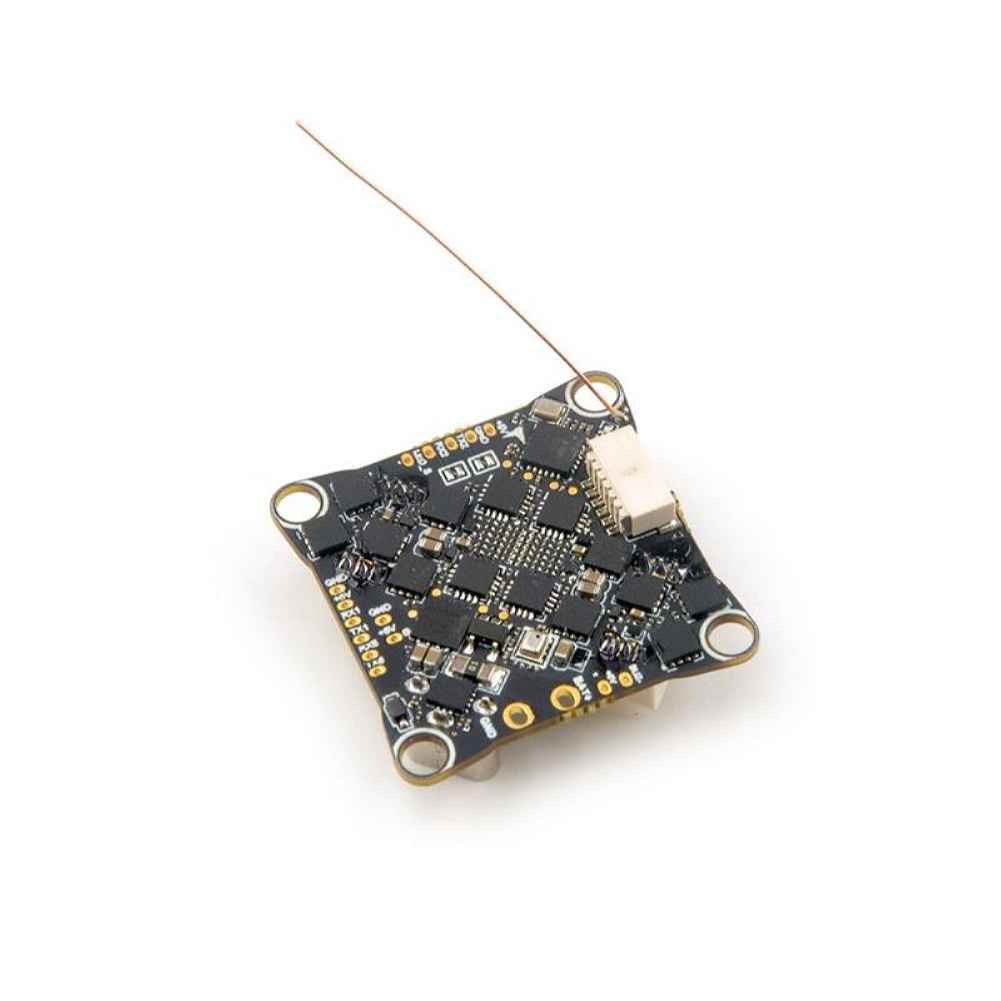

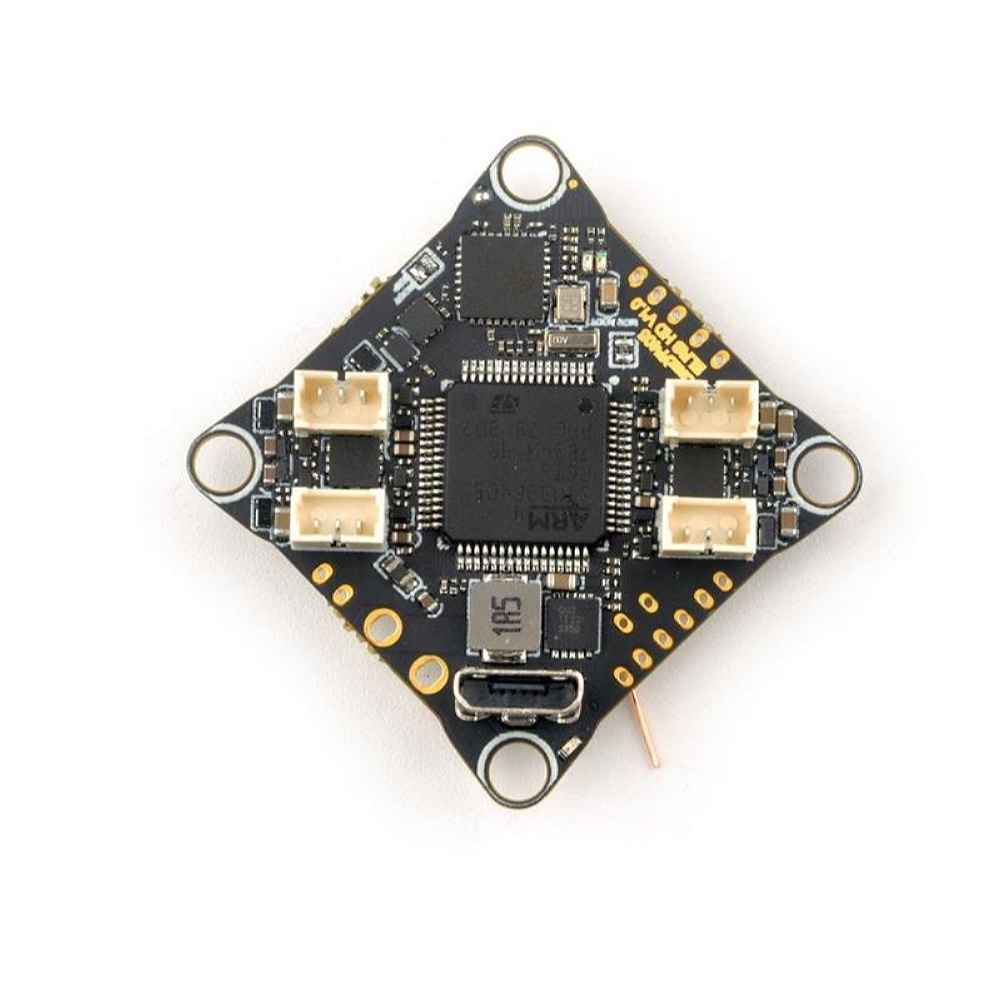

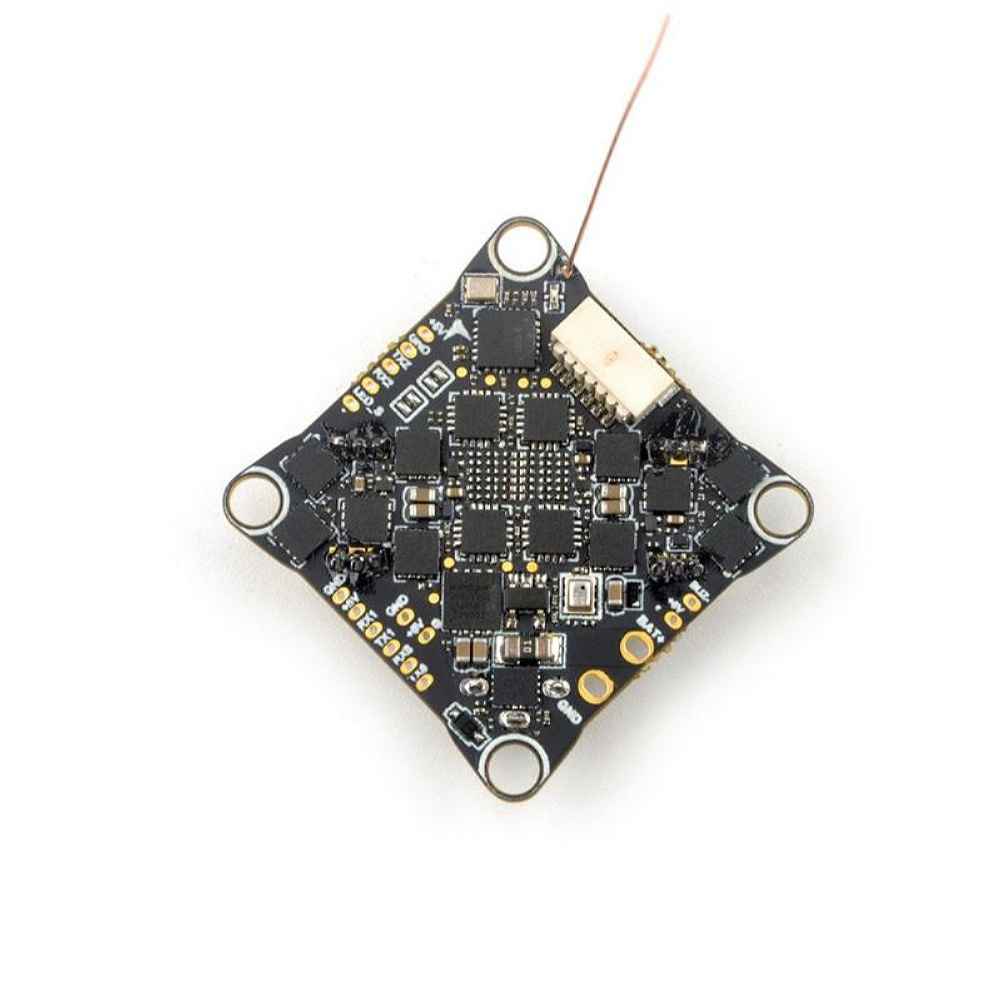

25.5mmx25.5mm Happymodel CrazyF405HD ELRS AIO 1-2S F4 Flight Controller Built-in 12A BL_S 4In1 ESC Receiver for Digital HD Whoop Toothpick FPV Racing Drone
Introduction:

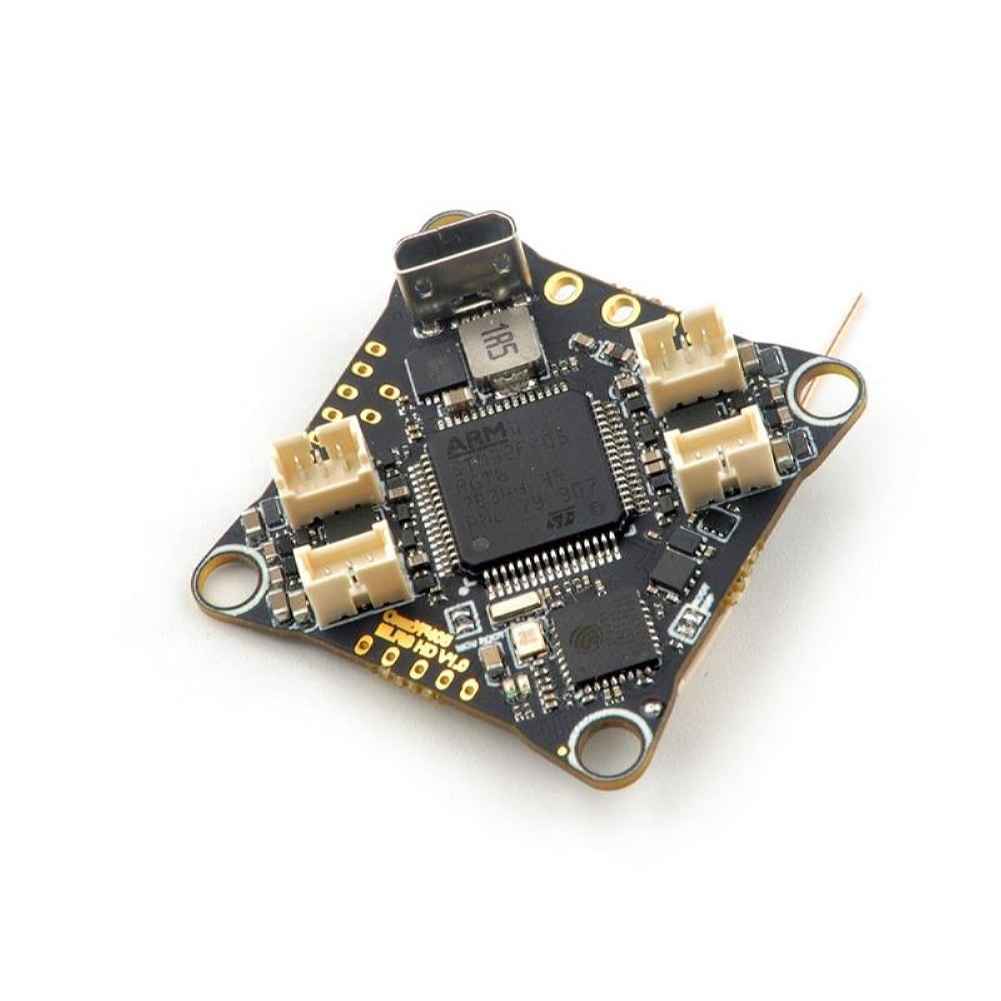

Aflight controller with Abuiltin Serial ELRS receiver and 4IN1 BL_S 12 AESC specially developed for Digital HD FPV, which removes the analog OSD chip 7456, optimizes the PCB layout, and supports 1-2S Lipo / LiHV lithium batteries, very Suitable for Digital HD Tinywhoop / Cinewhoop / Toothpick and other small FPV drones.
The flight controller uses the F405 chip, supports Betaflight/INAV firmware, has 3 sets of complete UARTs available, and integrates ABMP280 barometer and 8Mbp blackbox, which greatly enhances the playability of the flight controller.
Specification:
Brand: Happymodel
Model: CrazyF405HD
Item Name: F4 Flight Controller AIO 12A 4in1 ESC ELRS Receiver
Mount size: 25.5×25.5mm

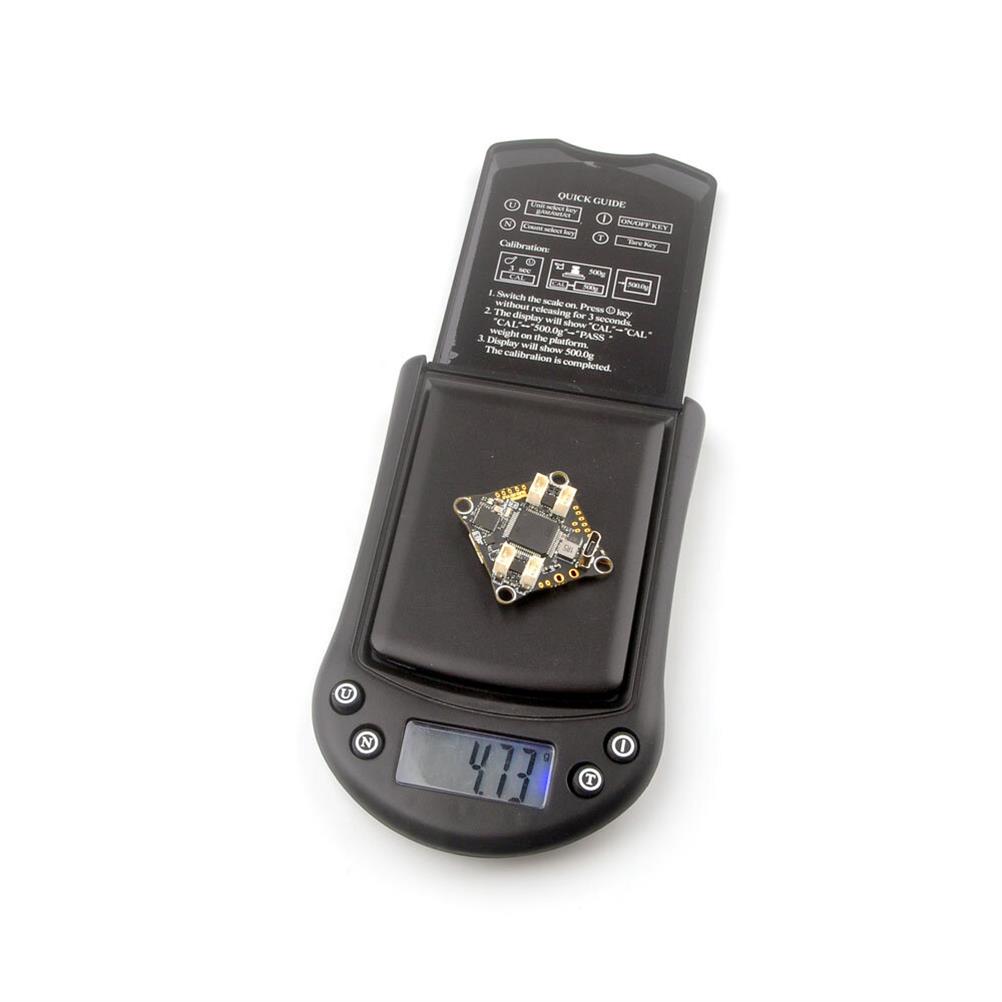

Weight: 4.8g (without power lead wire)
| Flight Controller | MCU: STM32F405RGT6 (168MHZ, 1Mbyte FLASH) GYRO Sensor: BMI270 (SPI connection) Mount hole size: 25.5mm*25.5mm Power supply: 1-2S battery input (DC 2.9V-8.7V) Built-in 12A(each) Blheli_S 4in1 ESC Built-in Serial ExpressLRS 2.4G Built-in BMP280 Barometer Built-in 8MBp blackbox Built-in voltage meter sensor , voltage meter scale 110 Built-in current meter sensor , current meter scale 470 |
| Onboard 4in1 ESC | Power supply: 1-2S LiPo/LiPo HV Current: 12 Acontinuous peak 15 A(3 seconds) Support BLHeli_S Bluejay firmware Factory firmware: Bluejay ESC V0.19 Firmware target: Z-H-30 Default protocol: DSHOT300 When use 1s battery and high KV 0702/0802 motors, should set startup power to 1100/1200 |
| Onboard UART ExpressLRS 2.4GHz Receiver | Packet Rate option: 25Hz/50Hz/150Hz/250Hz/500Hz RF Frequency: 2.4GHz Antenna: enameled copper wire 31mm length Telemetry output Power: <12dBm Default firmware version: ExpressLRS V3.0.1 Firmware target: HappyModel EP 2400 RX Could update firmware vi AExpressLRS configurator |

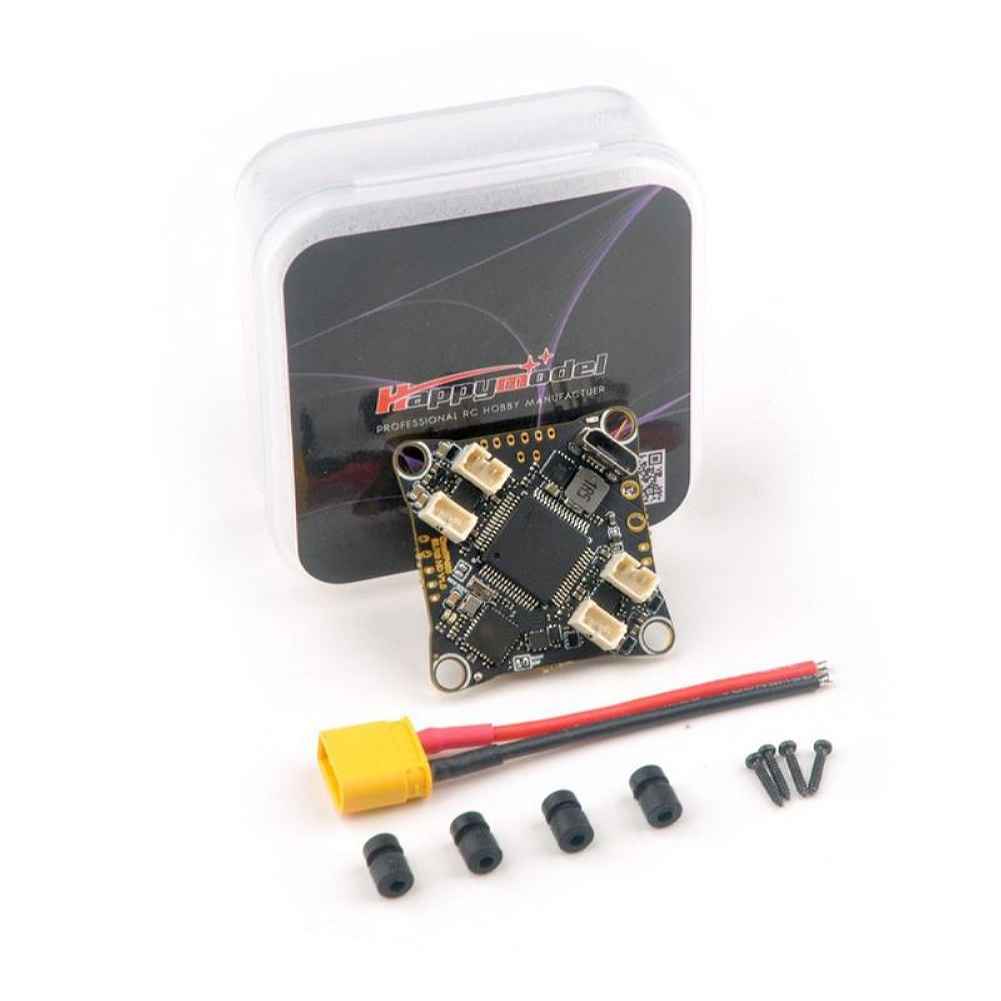

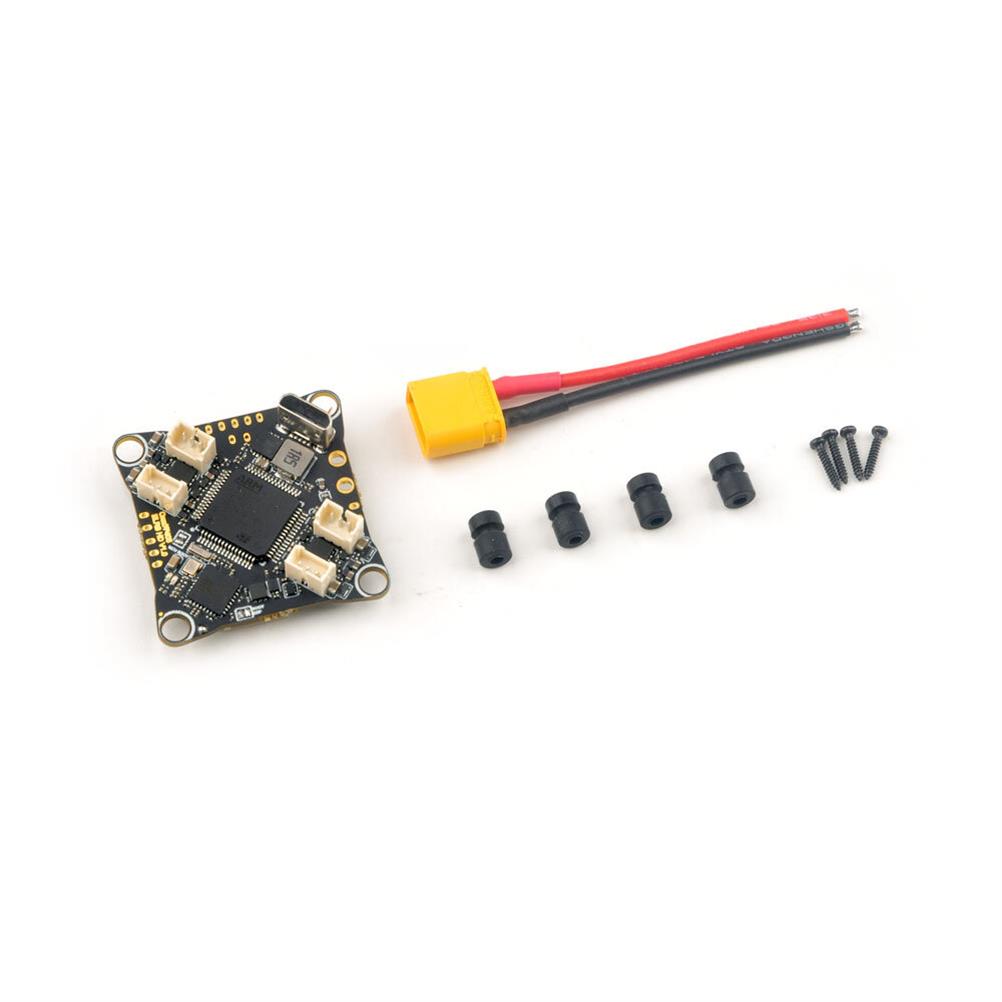

Pacakge Included:
1x Happymodel CrazyF405HD Board
1x Cable Connector
4x Anti-vibration Ball
4x Screws
