FIMI Manta 700mm Wingspan VTOL Vertical Takeoff And Landing Quick Release Design Compatible ArduPilot Open-Source Firmware EPP FPV RC Airplane PNP

FIMI Manta 700mm Wingspan VTOL Vertical Takeoff And Landing Quick Release Design Compatible ArduPilot Open-Source Firmware EPP FPV RC Airplane PNP

Product Information:

1. The product is available in two versions: PNP and PNP-FC. Both versions do not include battery or remote control, and users need to configure these components themselves.
2. PNP Version: compatible with FC( http://www.mateksys.com/portfolio=f405-wte) and a 4-in-1 ESC not less than 20A.
3. PNP-FC Version: match the batteries and the remote control can be realized flight.
4. Recommended Battery: Select a 3S LiPo battery.
5. Recommended Remote Control: we recommend using devices that support SBUS or CRSF signal from the receiver. Compatible options include Radiomaster tX16S MKII, Radiomaster TX12, Radiomaster BOXER, Radiomaster ZORRO, as well as other brands like FrSky, FlySky, Radiolink, Jumper, WLFLY, and SIYI.
6. The Manta PNP-FC version Power Plug Model: XT3.
7. Flight Altitude and Distance: The flight altitude and range depend on the capabilities of your chosen remote control and map transmission system.
8. FPV Functionality: If you wish to experience FPV flying, you will need to purchase and install an analog or high-definition map transmitter separately.
Specifications:
Brand Name: FIMI
Item Name: Manta
Material: EPP
Wingspan: 700mm
Length: 445mm
Takeoff Weight: 500g
Cruising Speed: 12m/s
Stall Speed: 8m/s
Wing Area: 11.8dm2
Motor: 2004 2700KV
ESC: 20 Athree-in-one ESC
Propeller: 6026 two-blade propeller
Recommended Battery (not included): 3S 1P 18650 or 3S 1P 21700 5000mAh (maximum endurance of 85 minutes)
Features:
– Flying Wing Biomimetic Layout Design
The Mant AVTOL fixed wing utilizes a Y3 configuration with tilting rotor design, combining the advantages of multirotor hover capability with efficient cruising characteristics of fixed-wing aircraft.
– Quick Assembly and Disassembly Wing Design
Mant Asupports quick assembly and disassembly of wings, is compact and easy to carry, and convenient for storage.
– 85 Minutes of Ultra-long Extreme Endurance

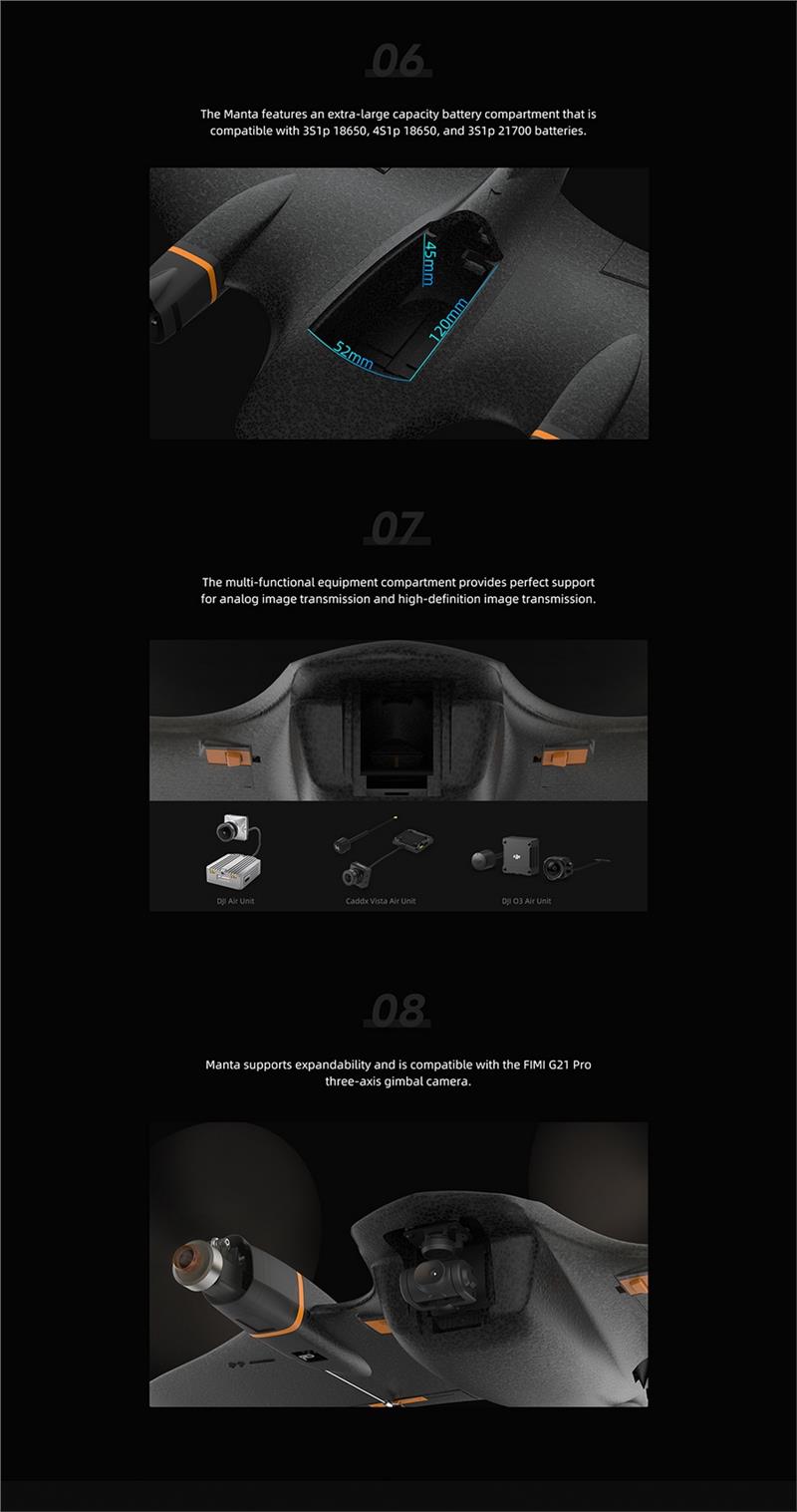

The Mant Afeatures an extra-large capacity battery compartment that is compatible with 3S1P 18650, 4S1P 18650, and 3S1P 21700 batteries.
– Lightweight High-density EPP Material
Made with lightweight, high density, environmentally friendly EPP material, Manta possesses compressive cushioning and thermal insulation properties. It is resilient, resistant to deformation, duration against impacts, and easy to repair.
– Fully Compatible With ArduPilot Open-Source Firmware
Being fully compatible with open-source software allows to customize their own configurations. Since its code is continuously synchronized in real time with official software, it offers Ahigh level of playability.
– Rich In Playability
The standard configuration includes foam parts for converting the fixed wing into Adual-engine forward-pull setup. Players can freely modify the aircraft into Adual-engine configuration using the modification parts provided.
PNP Version Included:
1x FIMI Manta VTOL Fixed Wing
3x Motor
4x Servo
3x Propeller
PNP With Flight Controller Version Included:
1x FIMI Manta VTOL Fixed Wing
3x Motor
4x Servo
3x Propeller
1x Flight Controller
1x ESC
1x GPS
