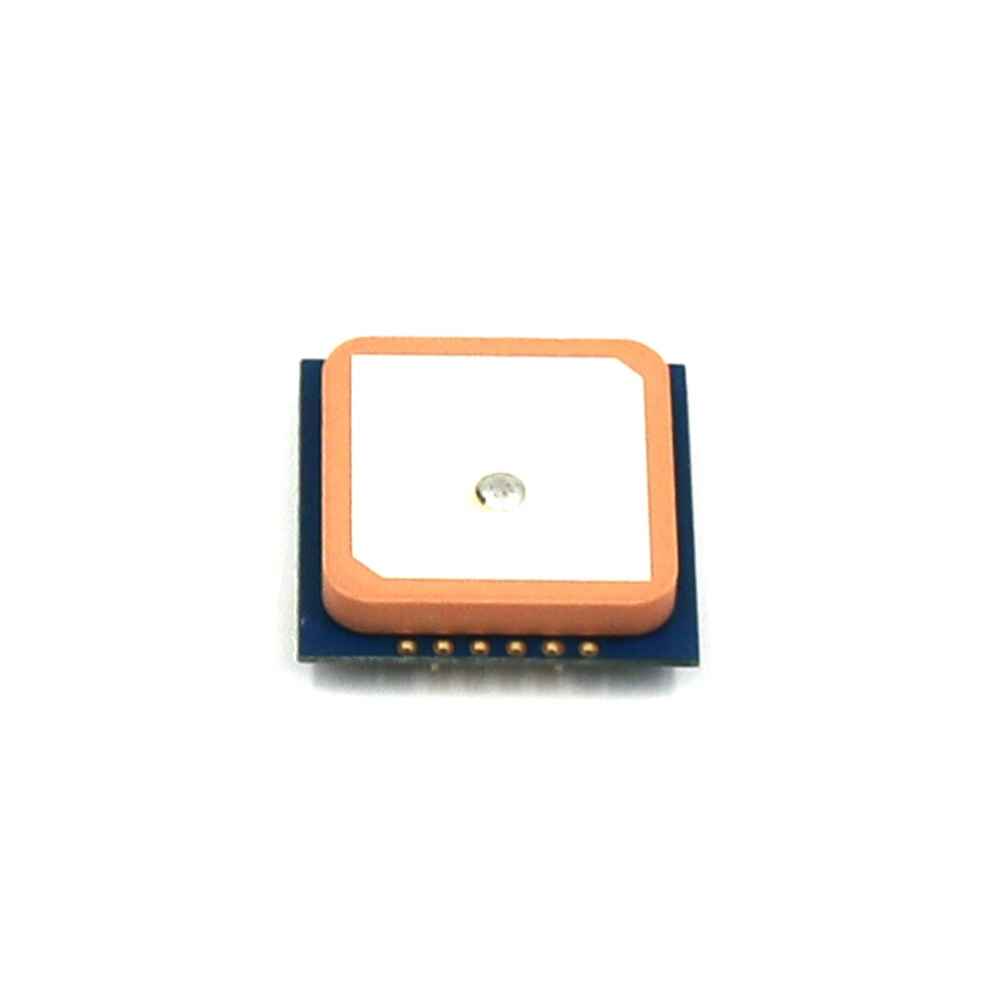

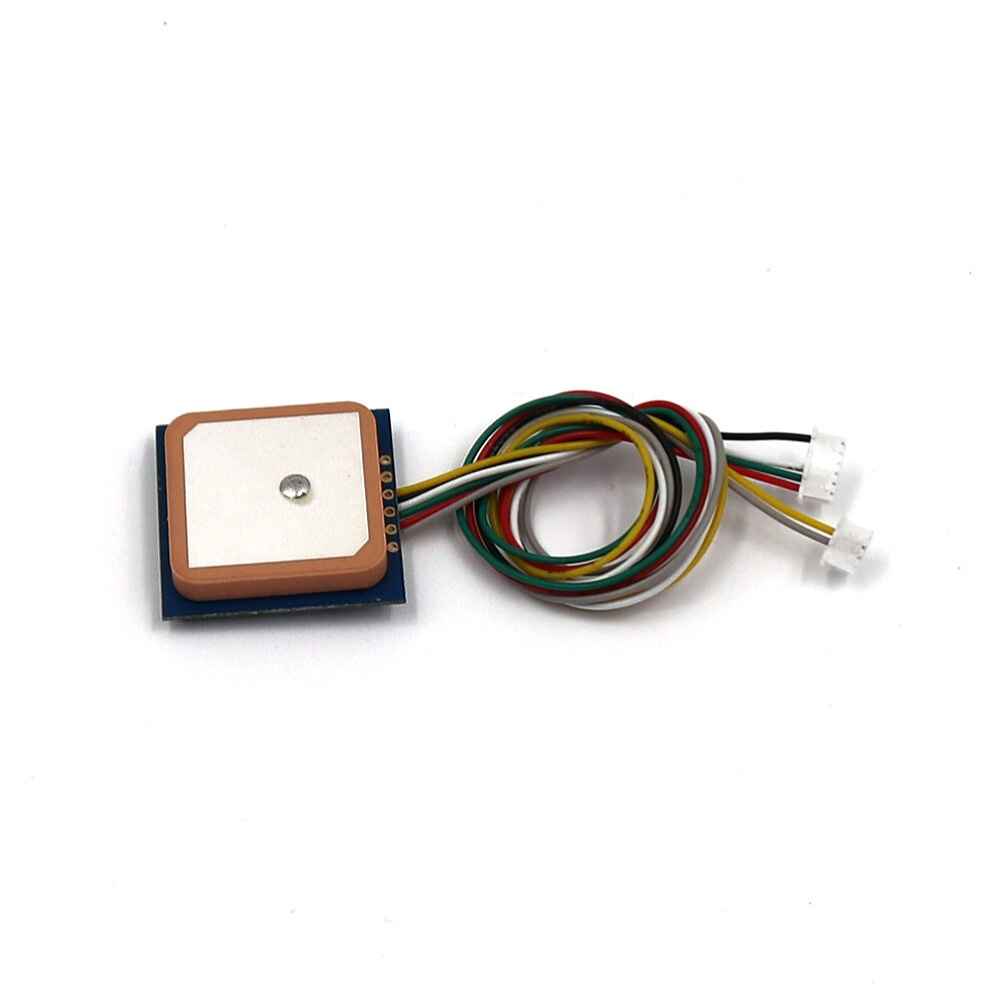

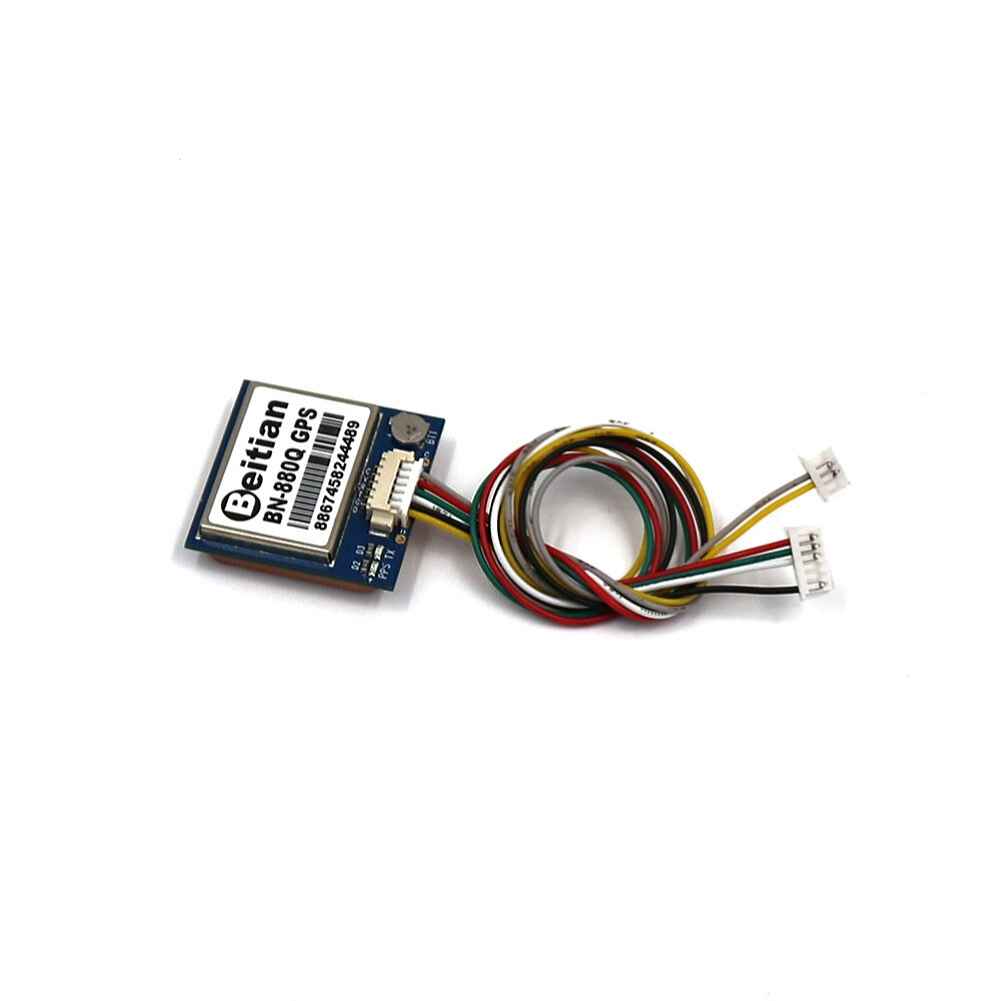

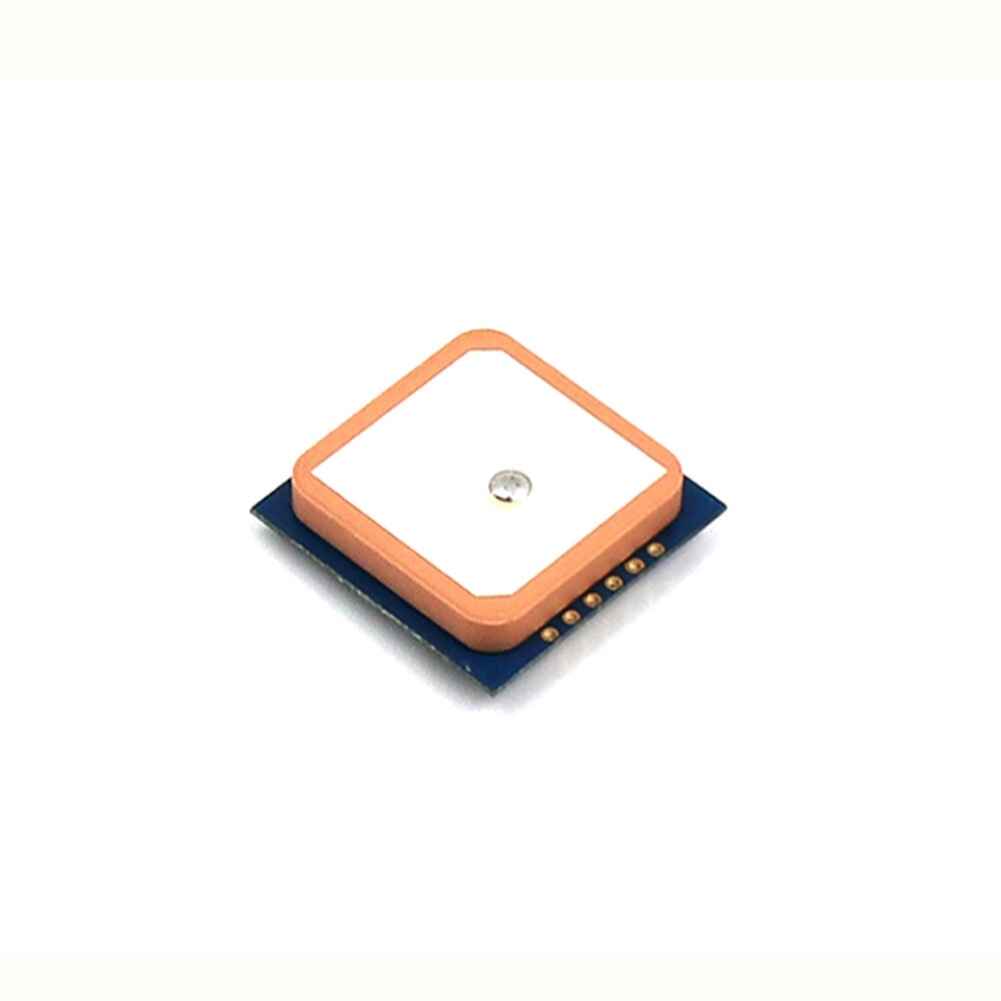

Beitian BN-880Q GPS+GLONASS Dual GPS Antenna Module FLASH TTL Level 9600bps for FPV Airplane RC Racing Drone
The Beitian BN-880Q GPS+GLONASS antenna module is designed for FPV airplanes and RC racing drones. It features the M8030-KT chip, supporting GPS, GLONASS, BEIDOU, GALILEO, SBAS, and QZSS modes. With a 72-channel capacity, it offers high sensitivity and precise tracking. The module provides horizontal accuracy of 2.0 meters and speed accuracy of 0.1m/s. It operates at a voltage range of DC 3.0V-5.5V and consumes 50mA at 5.0V. The compact design measures 28mm x 28mm x 8mm and weighs 12g. It includes an internal electronic compass and supports NMEA-0183 protocol with a default baud rate of 9600bps. The module is equipped with indicator lights for data output and 3D positioning status.
Description:Brand name: BeitianItem name: BN-880Q GPS+Glonass antenna module
|
Parameters
Description
|
Chip features
Chip
M8030-KT
|
Frequency
LPS L1, GLONASS L1, BEIDOU B1,GALILEO E1, SBAS L1, QZSS L1
|
Working mode
GPS, GLONASS, BEIDOU, GALILEO, SBAS and QZSS.
Default GPS+GLAONASS+SBAS+QZSS
|
Channel
72 searching channel
|
Sensitivity
Track
-167dBm
|
Recapture
-160dBm
|
Cold start
-148dBm
|
Hot start
-156dBm
|
Precision
Horizontal accuracy
2.0 m CEP 2D RMS SBAS assist (open space)
|
Speed accuracy
0.1m/s 95%(SA off)
|
Time accuracy
1us
|
Startup time
Cold start
26s
|
Warm start
25s
|
Hot start
1s
|
Output data
Baud rate
4800bps-921600bps, default 9600bps
|
Output level
TTL
|
Output protocol
NMEA-0183 or UBX, default NMEA-0183 protocol
|
NMEA sentences
RMC, VTG, GGA, GSA, GSV, GLL
|
Update frequency
1Hz-10Hz, default 1Hz
|
FLASH
4M FLASH, The configuration can be changed and will not be lost after power off
|
Working limit
Height
50,000m max
|
Speed
515m/s max
|
Gravity acceleration
4g max
|
Power consumption
Voltage
DC 3.0V-5.5V, typical: 5.0V
|
Current
Normal 50mA@5.0V
|
Physical parameter
Size
28mm*28mm*8mm
|
Weight
12g
|
Connector
1.25 pitch 6pin carrier
|
Environment
Operate temperature
-40﹠~+85﹠
|
Storage temperature
-40﹠~-+105﹠
|
Indicator light
TX light
Blue light flashing when power-on, indicated that there is data output
|
PPS light
The light is not lit when it is not positioned; after 3D positioning, it starts to blink.
|
Compass
Compass
With internal electronic compass QMC5883

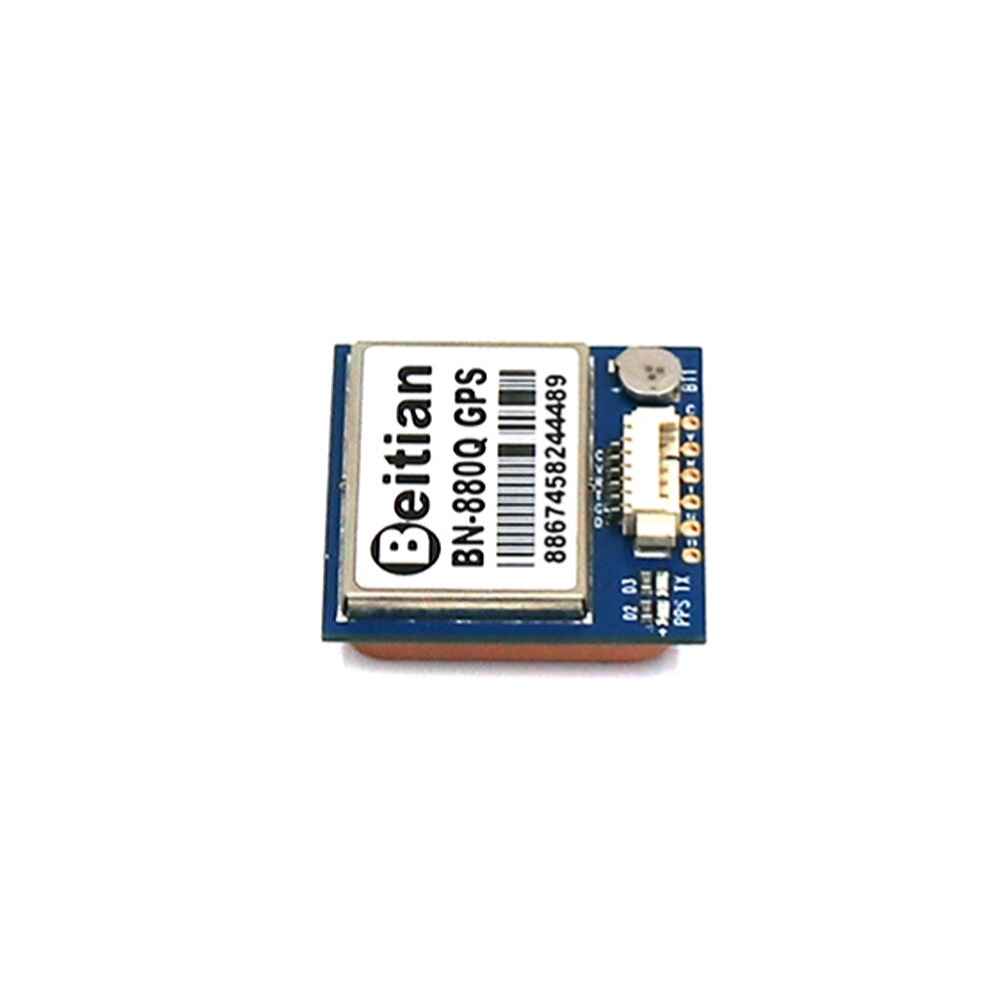

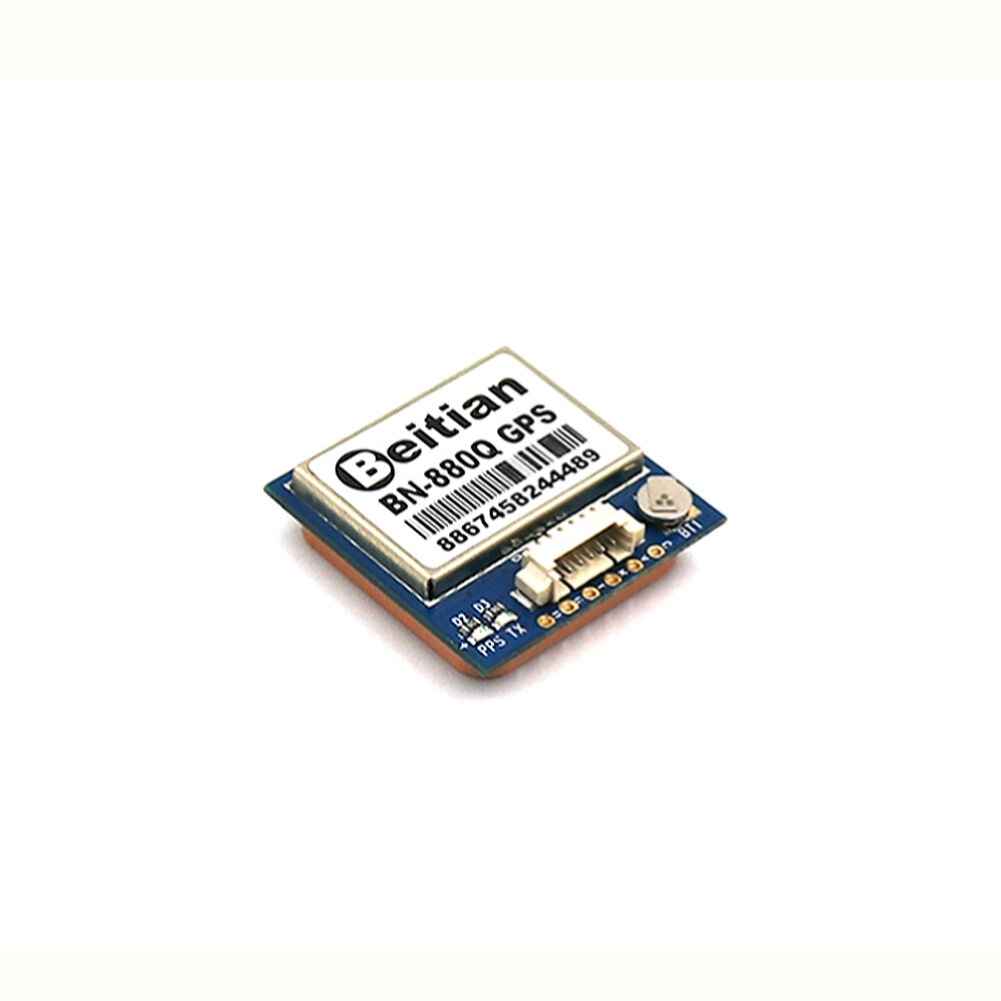

BN-880Q GPS integrated module
Pins of the module:
1. SDA.
2. GND, ground.
3. TX, the data output of the module.
4. RX, the data input of the module.
5. VCC, 3.0V–5.5V.
6. SCL.
Package Included:
1 x BN-880Q GPS+Glonass antenna module
