MAMBA Stack MK4 F722 APP 65A 6S Flytower with MPU6000 for FPV Racing RC Drones

Description

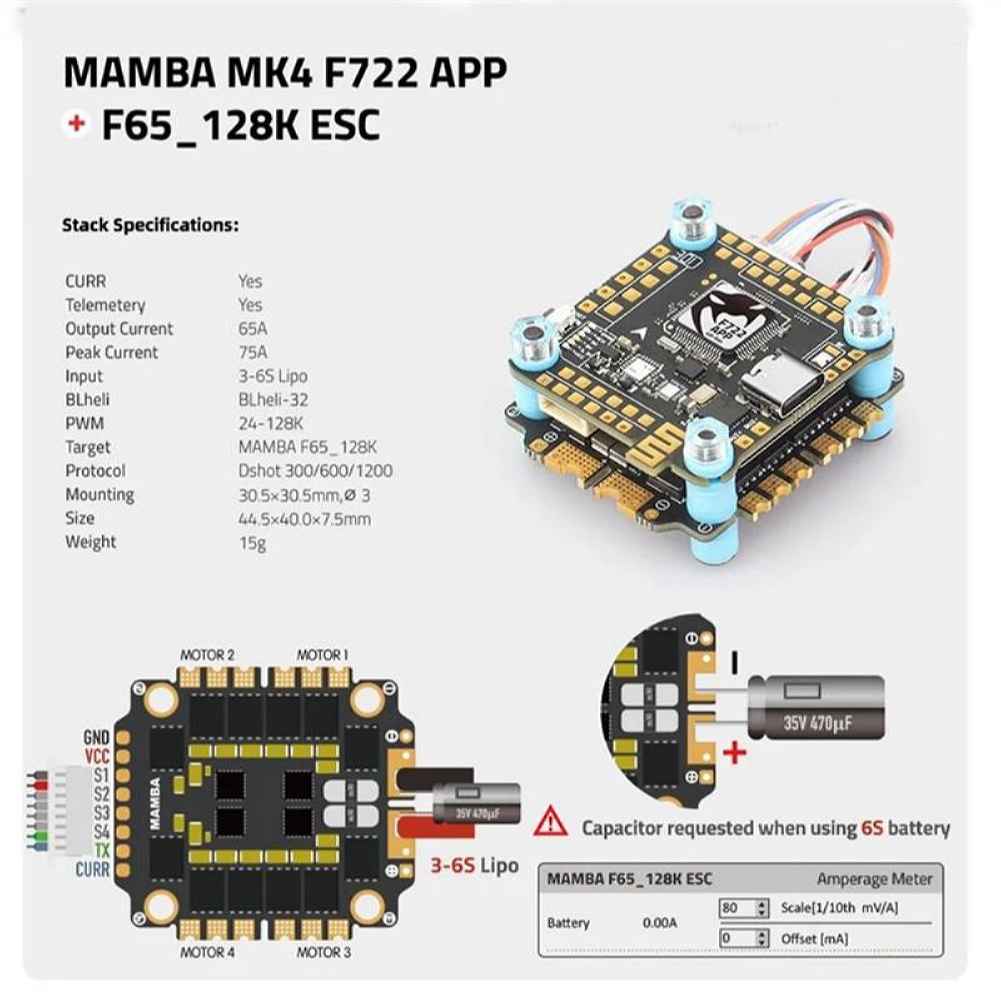

30.5*30.5mm MAMBA Stack MK4 F722 APP 65A 6S 32bit 128K Flytower MPU6000 for FPV Racing RC Drone

The MAMBA Stack MK4 F722 APP is a high-performance flytower designed for FPV racing RC drones. It features a powerful 216MHz STM32F722 MCU and an MPU6000 gyro, ensuring precise control and stability. With a 16M flash memory blackbox and SPL06 barometer, it supports advanced flight data logging. The stack includes six UARTs, I2C, and F.Port compatibility, along with a buzzer pad and LED controller for enhanced functionality. The ESC supports Dshot300/600/1200 protocols and has a continuous current of 65A with burst capabilities up to 75A. Suitable for 3-6S LiPo input, this stack is equipped with TVS protection and multiple BEC outputs for reliable performance.

FC SpecificationsMAMBA MK4 F722APPMCU: 216MHz STM32F722GYRO: MPU6000Target銊㎝AMBA F722_2022AOSD: YesBlacbox: 16M Flash MemoryBarometer: SPL06Uarts: 6SetI2C: YesF.Port: YesRSSI: NoBuzzer Pad: YesCURR Pad: YesESC Signal: 8 SetESC Soft: Dshot300/600/1200ESC Telemetry: YesPower Led: YesLED Controller:BF LED/MB LEDAIR UNIT Port: YesWIFI: SpeedyBee APP VTX Switch: YesReceiver Protection: YesTVS Protection: Yes BEC:3.3V 0.5A& 5V 3A& 9V 3AInput: 3~6S Lipo (12.6~25.2V)Mounting size: 30.5mm/M3ESC SpecificationsMAMBA F65_128KInput voltage: 3~6S Lipo (12.6V~25.2V)Continue current:65A鈩?Burst current:75A (10S)BEC: NoTarget銊〣LHeli_32 MAMBA F65_128KSOFT: Dshot300/600/1200PWM:24~128KTVS Protection: Yes Mounting size: 30.5mm/M3

Package Included:
MAMBA MK4 F722APP x1
MAMBA F65_128K ESC X1
High Frequency 1000uF/35V x1
18pin sh1.0 x2
AIR UNIT sh1.0 x1
12AWG 100mm x2
AMASS Original XT60 x1
