Happymodel RS0802 0802 20000KV 1S Brushless Motor, 1.5mm Shaft, Compatible with M7 Mobula7 1S/HD Whoop RC Drone FPV Racing

Description

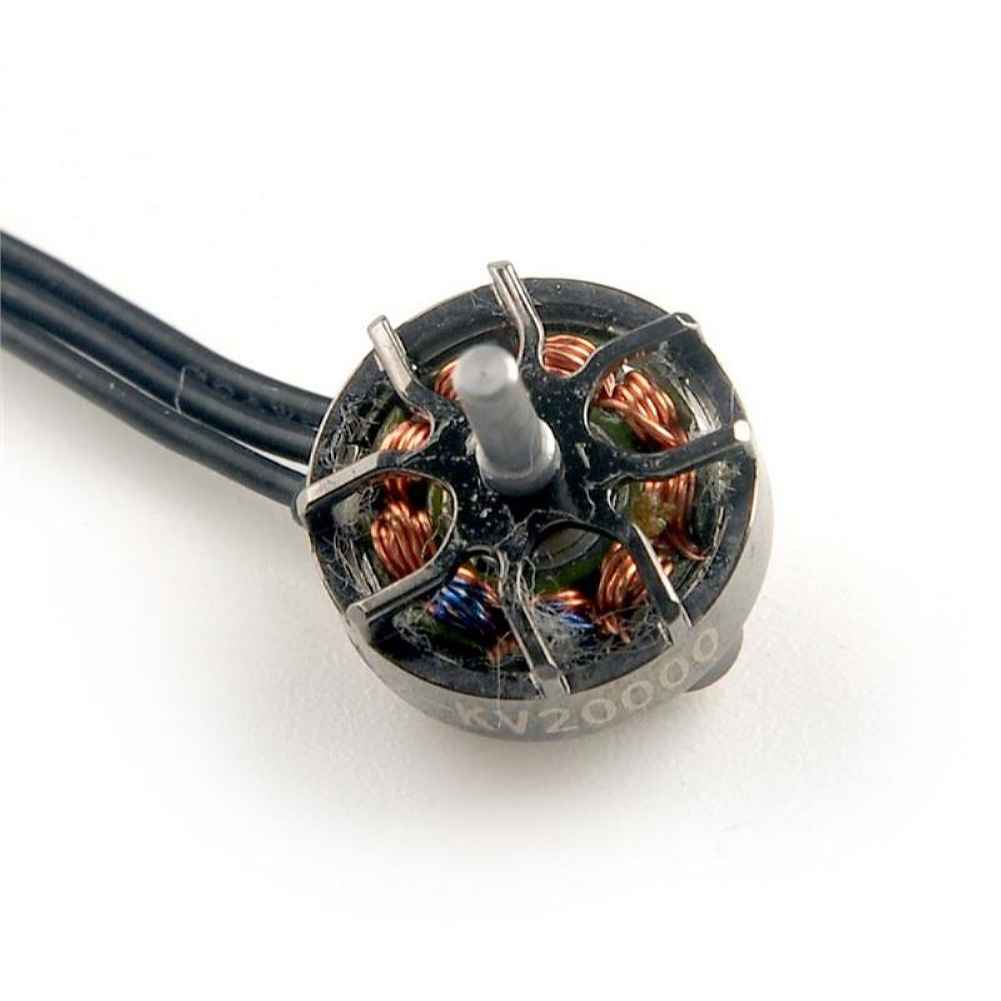

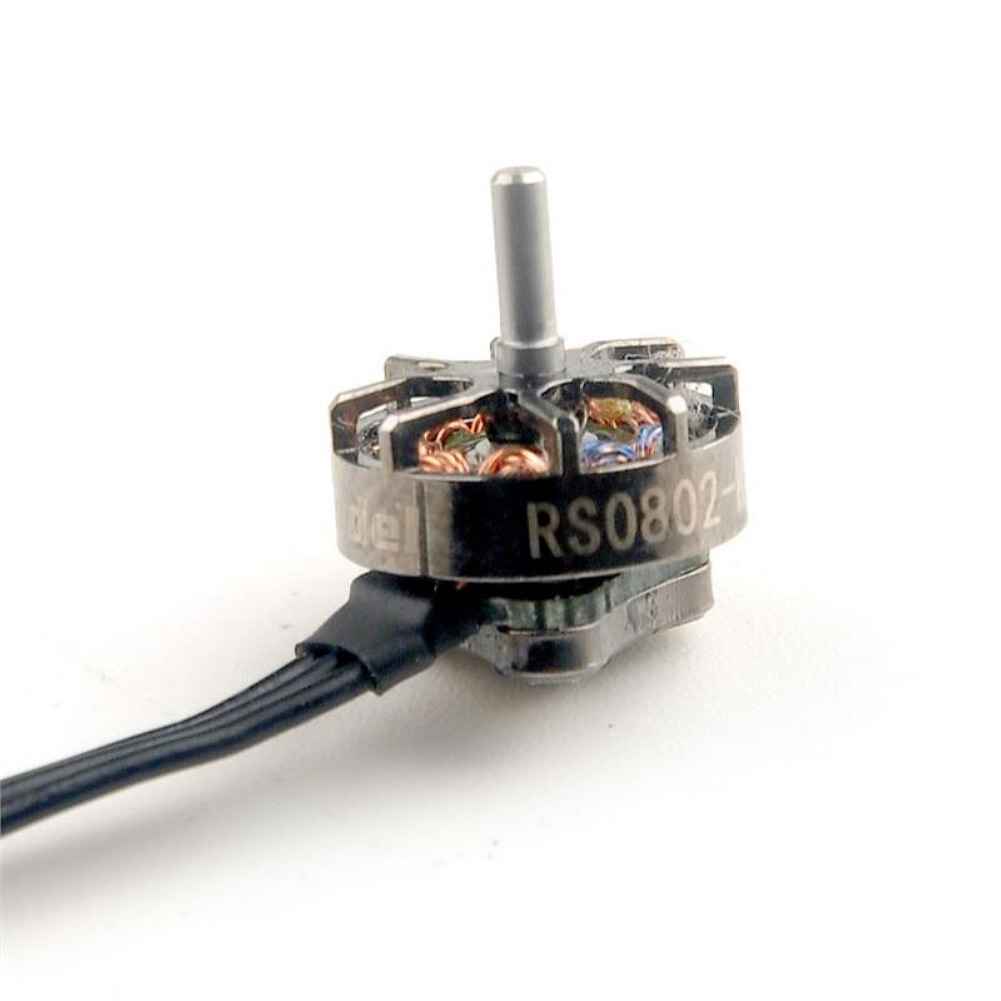

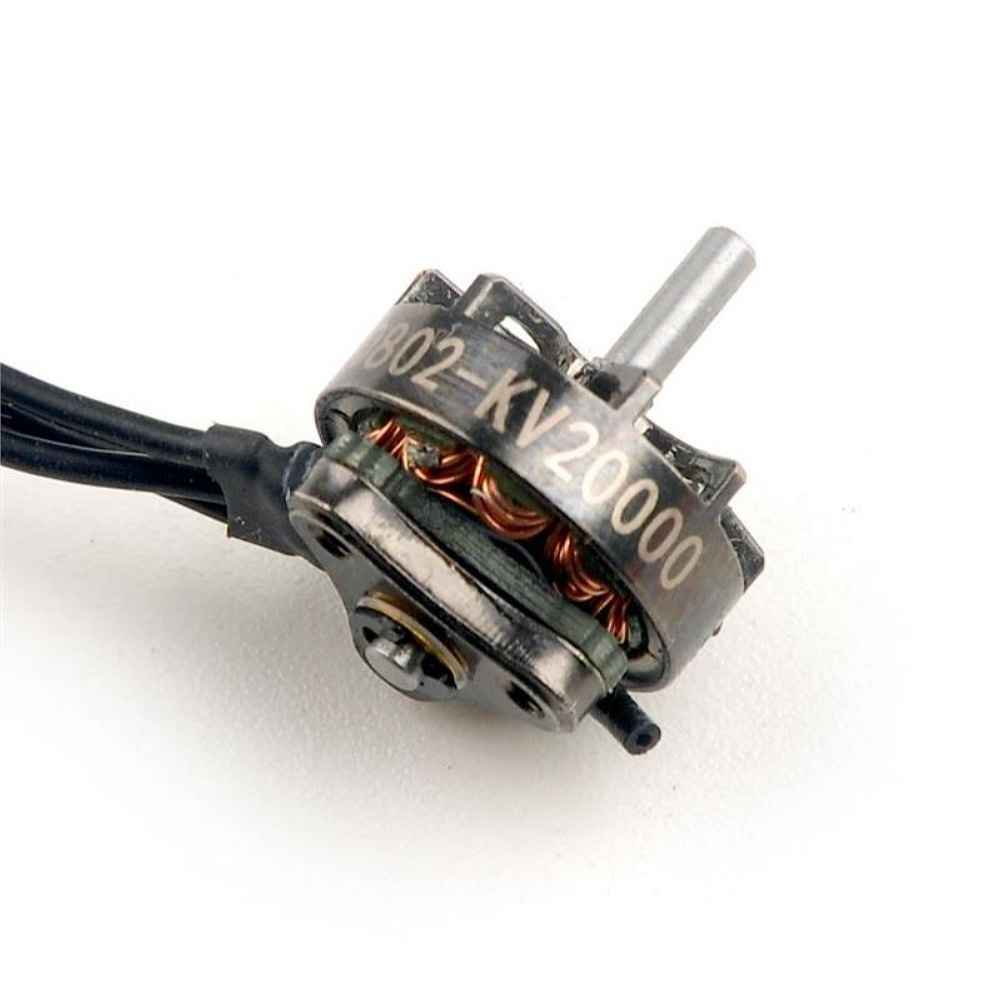

Happymodel RS0802 0802 20000KV 1S Brushless Motor 1.5mm Shaft for M7 Mobula7 1S / HD Whoop RC Drone FPV Racing

The Happymodel RS0802 0802 20000KV 1S Brushless Motor is designed for high-performance FPV racing drones. With a 1.5mm shaft, this motor is compatible with the M7 Mobula7 1S and Mobula7 1S HD Whoop RC drones. It features a 9N12P configuration, an 8mm stator diameter, and a stator length of 2mm, delivering efficient power. The motor dimensions are 10.5mm in diameter and 13.5mm in length, with JST1.25mm terminals for connectivity. Weighing only 2g, this motor is lightweight yet powerful, making it an essential component for drone racing enthusiasts.

Specification:
Brand name: Happymodel
Item name: 0802 20000kv 1S brushless motor
Model: RS0802
KV: 20000KV
Shaft Diameter: 1.5mm
Configuration: 9N12P
Stator Diameter: 8mm
Stator Length: 2mm
Motor Dimension(Dia.*Len): 朴10.5mm*13.5mm
Terminals: JST1.25mm
No. of Cells(Lipo):
20000KV compatible with only 1S lipo
Wire length(exclude connector): 30mm
Weight: 2g
Application: Original Motor for Mobula7 1S and Mobula7 1S HD FPV Racing Dron

Package Included:
1 x RS0802 20000KV 1S Motor
