Sale!

DarwinFPV 1504 Brushless Motor, 2300KV/3600KV, 1.5mm Shaft, Compatible with 2.5-4 Inch FPV Drones, Lightweight 10g Design for Racing

SKU: RC1985195Brand: DarwinFPV

Price range: $10.70 through $42.91

  • Lightweight design at only 10g for improved drone battery life
  • Compatible with 2.5-inch whoop and 3-4 inch toothpick FPV drones
  • 1.5mm shaft fits most FPV propellers
  • Available in 2300KV and 3600KV versions
  • Supports 4-6S input voltage for versatile racing applications

You May Also Like

Description

DarwinFPV 1504 2300KV 4-6S / 3600KV 4S Brushless Motor 1.5mm Shaft for CineApe 25 2.5 Inch Whoop 3-4 Inch Toothpick BabyApe II RC Drone FPV Racing

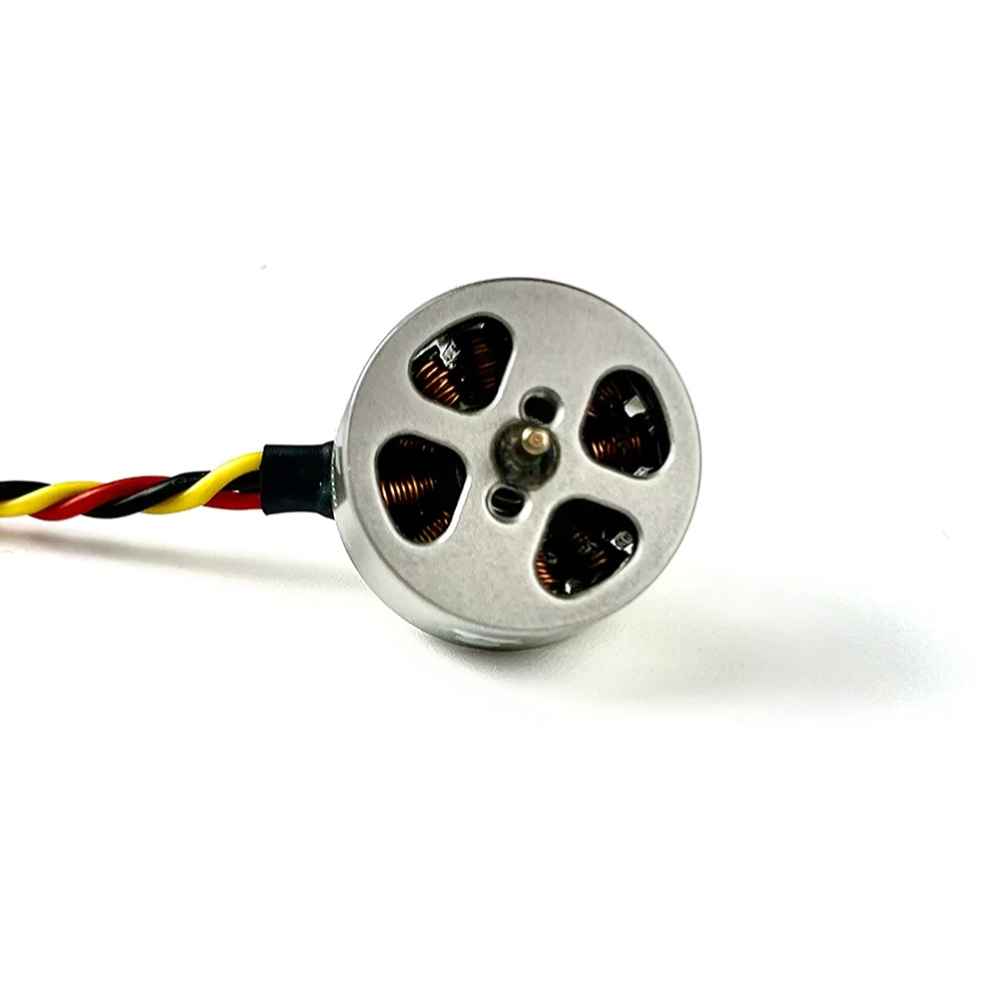

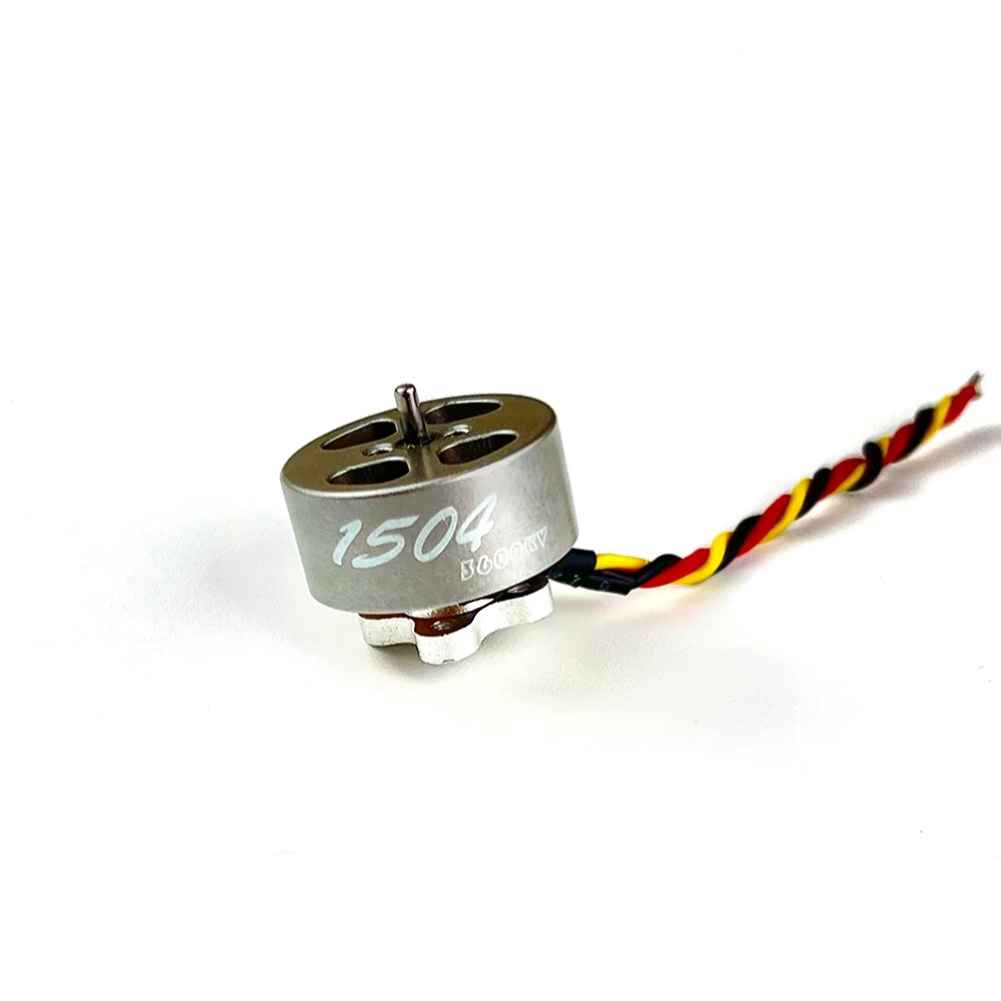

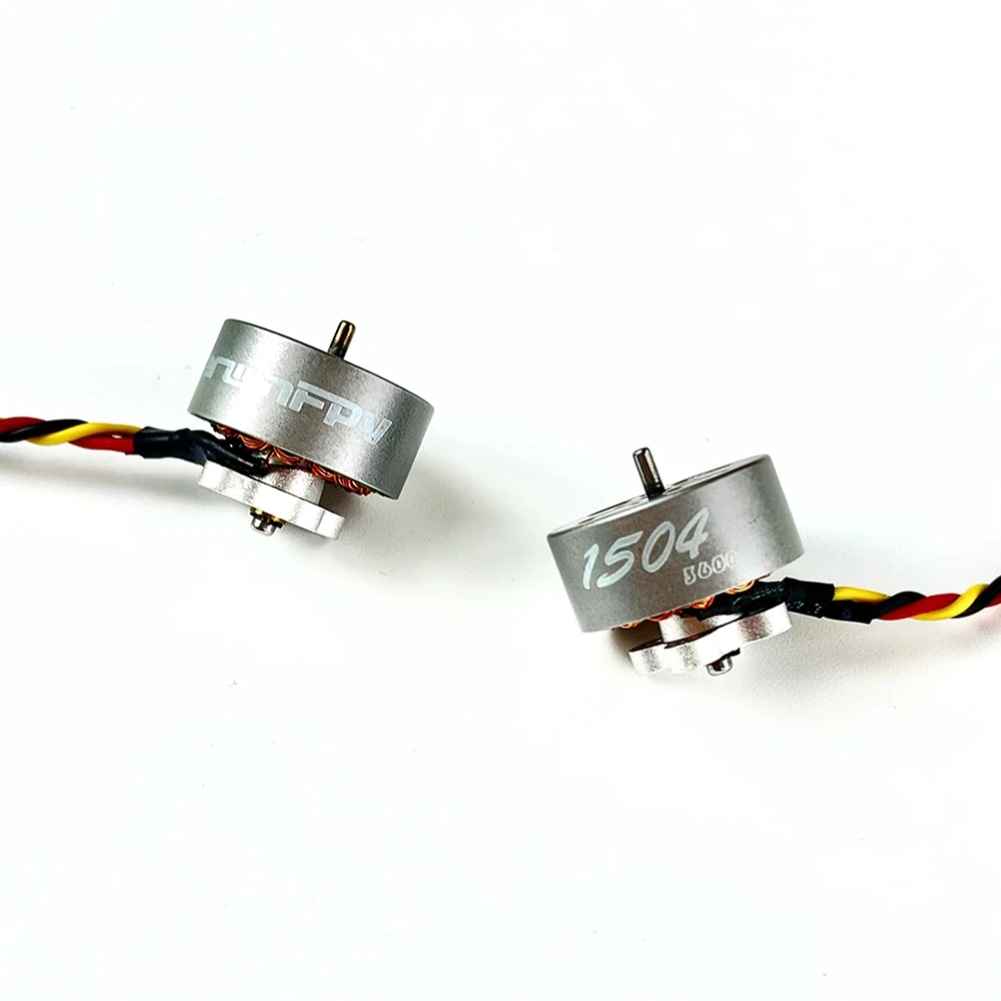

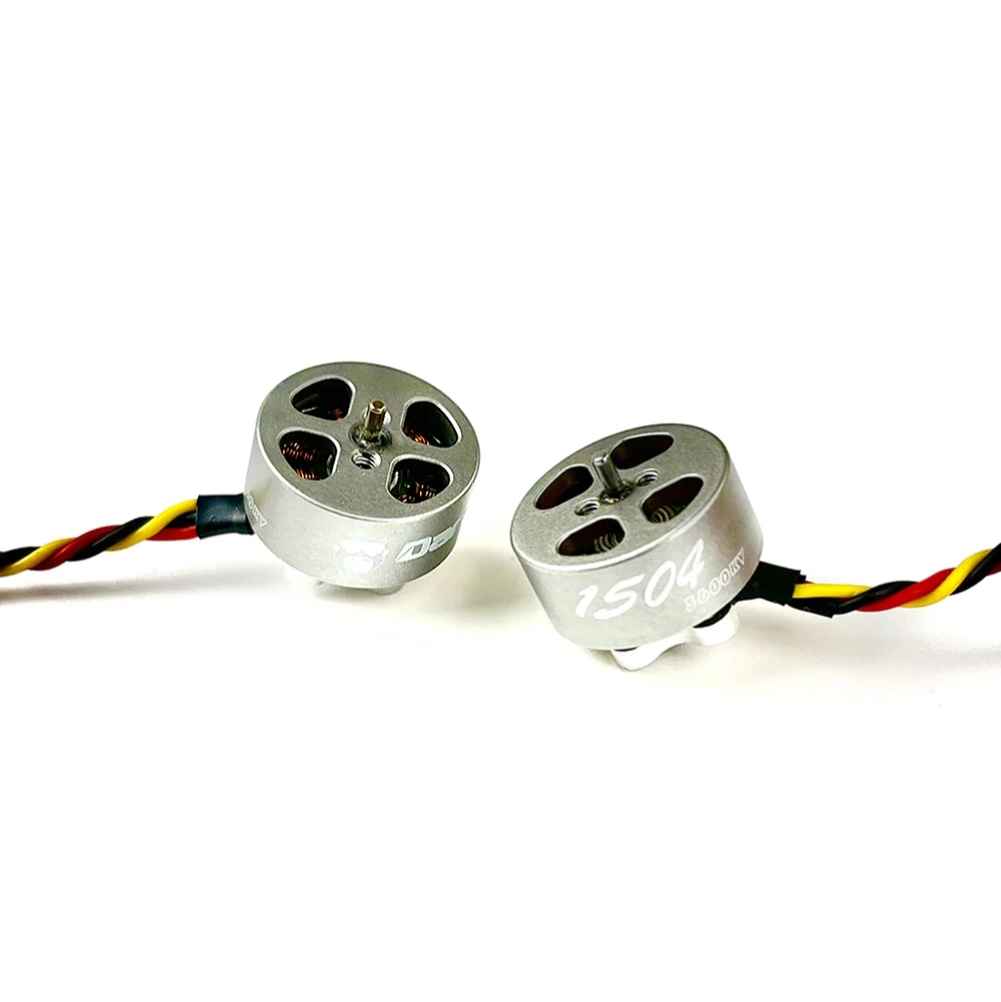

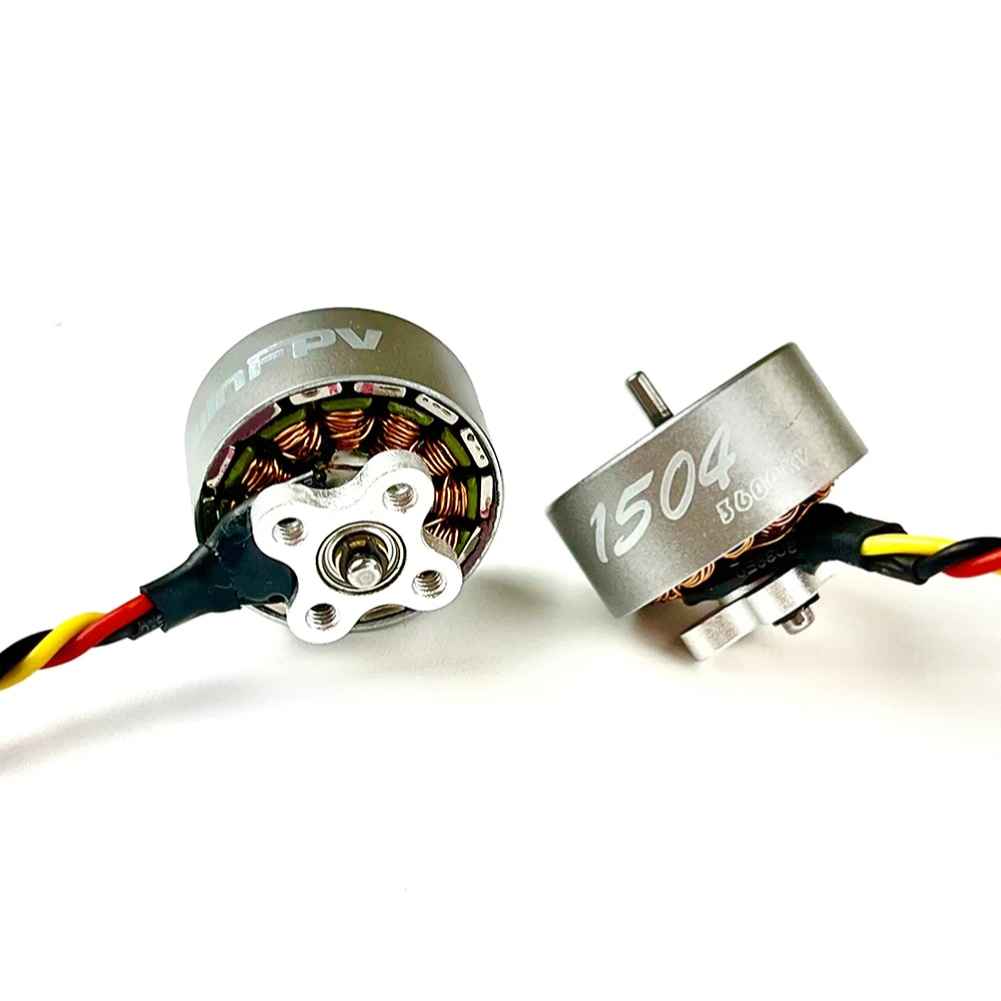

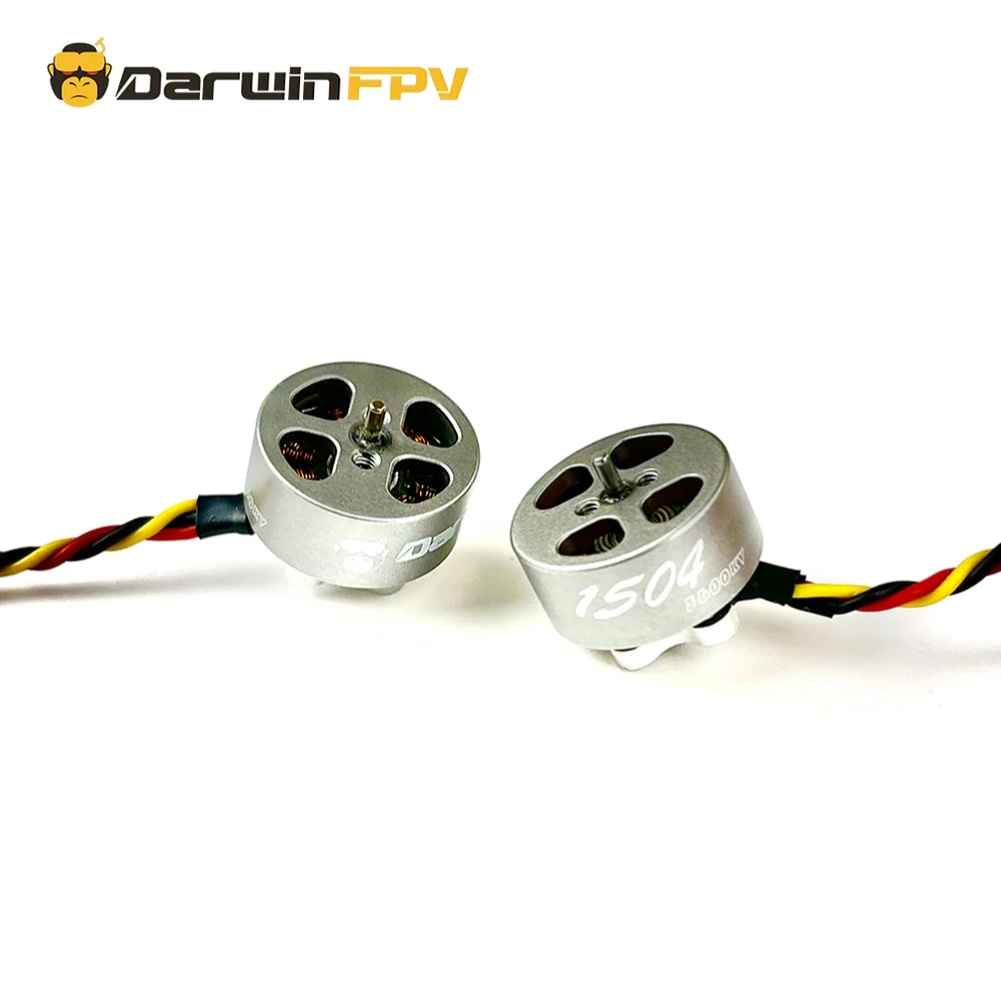

The DarwinFPV 1504 Brushless Motor is designed for high-performance FPV racing drones, offering an excellent balance of power and control. Weighing only 10g, this motor enhances drone battery life and agility. It’s compatible with 2.5-inch whoop and 3-4 inch toothpick FPV drones, making it versatile for various racing setups. The motor features a 1.5mm shaft that fits most FPV propellers, ensuring smooth and powerful operation. Available in 2300KV and 3600KV versions, it supports 4-6S input voltage, providing flexibility for different racing needs. With mature production technology and quality materials, this motor combines affordability with high performance.

Introduction:
DARWINFPV 1504 Motor is a very cost-effective motor with an overall lightweight design weighing only 10g.Smooth running, powerful and easier to control. This motor is also a good choice if you are building a 2.5′ hoop or 4′ toothpick quadcopters.Features:The most cost-effective brushless motor. Like the 1504 motor of a well-known brand, it has mature production technology, sufficient raw materials and a complete supply chain, which essentially determine the characteristics of low price and high quality.Lightweight design, weighing only 10g, greatly improves the battery life of the drone.Compatible with 2.5-inch FPV drone and 3-4-inch toothpick FPV drone, which can be used for racing.The 1.5mm shaft fits perfectly with most 2.5-4 inch FPV propellers on the market.
Specifications:
Brand: DarwinFPV
Model: 1504
Item Name: 1504 2300KV 4-6S / 3600KV 4S Brushless Motor

Optional KV Version

2300KV

3600KV

Input Voltage

4-6S

4S

Number of slot poles

12N14P

12N14P

Stator size

15x4mm

15x4mm

Out shaft diameter

1.5mm

1.5mm

Mounting hole

9x9mm (M2)

9x9mm (M2)

Weight

10g

10g

Lead wire specifications

26#AWG

26#AWG

Maximum Power

192W

168W

Maximum Current

8A

10.5A

Application:

6S for 2.5 inch whoop FPV drone
6S for 3 inch toothpick quadcopters
4S for 4 inch toothpick quadcopters

4S for 2.5 inch whoop FPV drone
4S for 3 inch toothpick quadcopters

Packing Included:
1x 1504 Motor
4x M2*4 Screws
OR
2x 1504 Motor
8x M2*4 Screws

Package Included:
1 x 1504 Motor
4 x M2 4 Screws
