iFlight BLITZ F7 V1.1 OSD Flight Controller, 30.5×30.5mm, Built-in 5V 9V BEC, for Nazgul5 V2 FPV Racing Drone

SKU: RC1976654Brand: iFlight

Original price was: $142.11.Current price is: $100.79.

  • Improved circuit design with reduced electrical noise
  • DJI HD VTX Connector for easy setup
  • Updated gyro to BMI270 for better stability
  • 32MB Blackbox flash for data logging
  • Supports Smartaudio/IRC Tramp VTX protocol

You May Also Like

Description

30.5×30.5mm iFlight BLITZ F7 V1.1 OSD Flight Controller 2-6S Bulit-in 5V 9V BEC for Nazgul5 V2 RC Drone FPV Racing

The iFlight BLITZ F7 V1.1 Flight Controller is designed for optimal performance in FPV racing drones. Featuring an improved circuit design and high-quality components, it reduces electrical noise for smooth operation. This flight controller includes a DJI HD VTX connector for easy plug-and-play setup, eliminating the need for soldering. The updated version features a BMI270 gyro for enhanced stability. With a 32MB Blackbox flash, six UARTS, and support for Smartaudio/IRC Tramp VTX protocol, it offers versatile connectivity options. The compact design with a 30.5×30.5mm mount pattern makes it ideal for the Nazgul5 V2 drone.

Features:
– Improved circuit design, better components and lower electrical noise!
– DJI HD VTX Connector (Plug-and-Play / No soldering required)
– FC indicator LEDs for visual debugging
– With LC filter
Changelog:
– 2022/Feb: Version updated to V1.1 / Gyro changed to BMI270 due to availability & price issues with MPU6000.
Description:
Brand: iFlight
Model: BLITZ F7 V1.1
MCU: STM32 F722
Gyro: BMI270
Barometer: DPS310
OSD Chip: AT7456E
Flash: 32MB (Blackbox flash)
UARTS: 6
Motor outputs: 4x (SH1.0 connector)
I2C serial: SDA / SLA pads
Smartaudio / IRC Tramp VTX protocol supported
LED controller: Yes
Beeper pad: Yes
Firmware target: IFRC-IFLIGHT_BLITZ_F722
Mount pattern: 30.5*30.5mm / 4mm PCB hole diameter
Dimensions: 36.5*35 mm

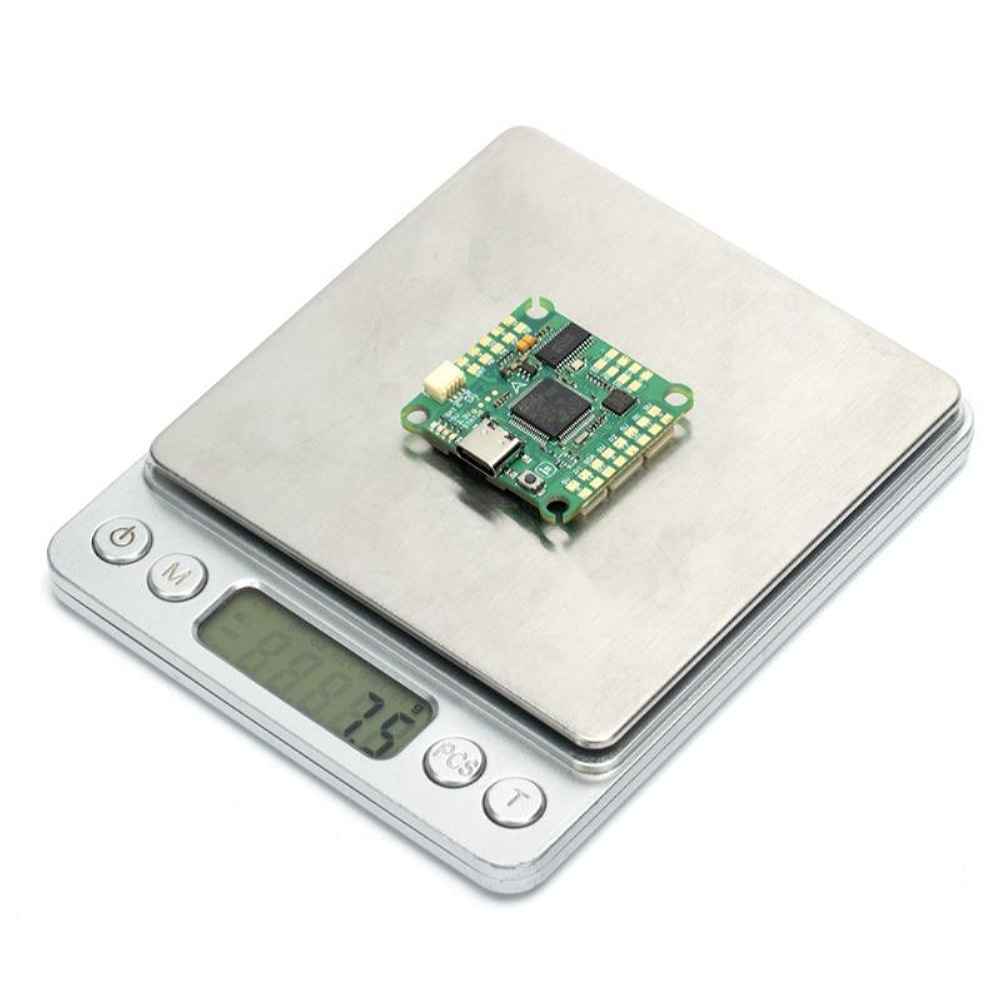

Weight: 7.8g

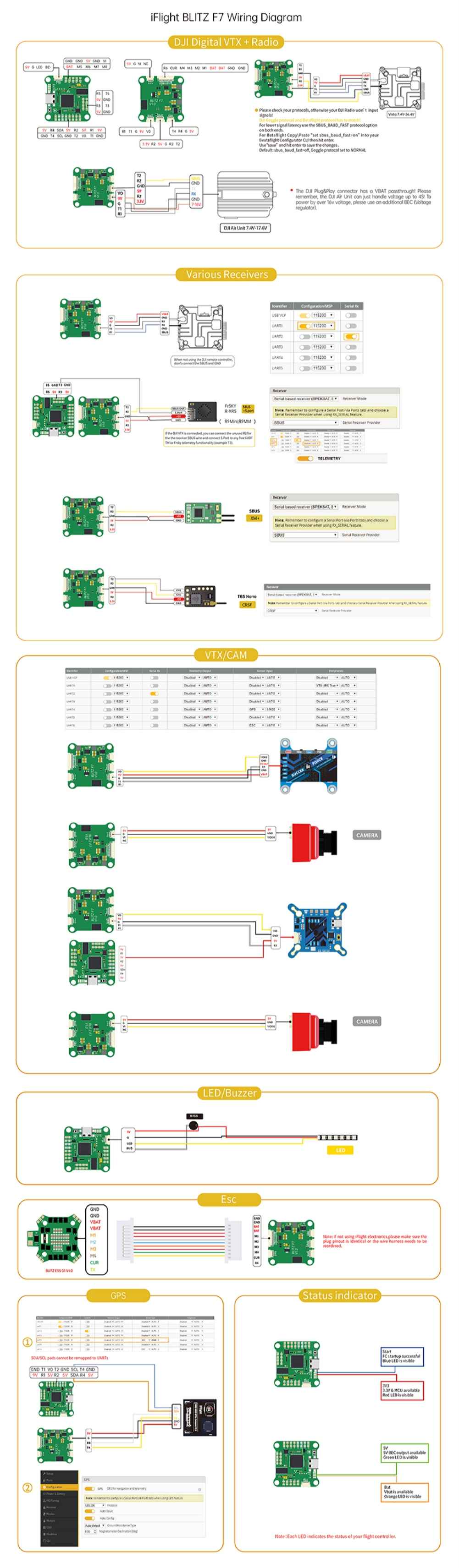

BEC: 5V 2.5A / 9V 2AWiring suggestion:
– UART 1 for VTX HD / Analog
– UART 2 for a Receiver
– UART 3/4/5 for GPS or other sensors that require a serial port
– UART 6 for ESC Telemetry
Tips
1. F722 MCU has an inner inverter.
2. SBUS閿曟窅RSF閿曟窊LRS閿曟窔BUS閿曟窉SM ETC… can be connected to any unused UART_RX閵婃硤e suggest you connect to Uart_RX2
3. Frsky SmartPort閵婃笨ramp & Smartaudio can be connected to any unused UART_TX閵婃硤e suggest you connect to Uart_TX1
4. F.port can be connected to any unused UART_TX閵婃硤e suggest you connect to Uart_TX2
Included Connectors (Plug-and-Play wire harness):
– 1x SH1.0 – 5pin connector for HD VTX/Analog VTX&CAM (R1/T1/G/9V/VO)
– 1x SH1.0 – 10pin connector for ESC (R6/CUR/M4/M3/M2/M1/BAT/BAT/G/G)
– 1x SH1.0 – 6pin connector for any receiver or DJI閵?V3/R2i/5V/G/R2/T2閵?br/>- 1x SH1.0 – 4Pin connector GPS (T4/R4/G/5V)
– 1x SH1.0 – 4Pin connector LED & Beeper (5V/G/VI/NC)

Package Included:
1 x BLITZ F7 V1.1 Flight Controller 1 set of FC connectors (as above) 1 set silicon grommets
