JHEMCU GF30F722-ICM F722 Flight Controller with Baro OSD, Dual BEC 5V/10V, for 3-8S FPV Freestyle HD RC Drone
Original price was: $69.49.$55.59Current price is: $55.59.
- STM32F722RET6 MCU for precise control
- Dual BEC outputs: 5V/2.5A and 10V/2A
- Supports 3-8S Lipo input voltage
- Compatible with multiple receiver types
- Includes barometer and AT7456E OSD
You May Also Like
Description

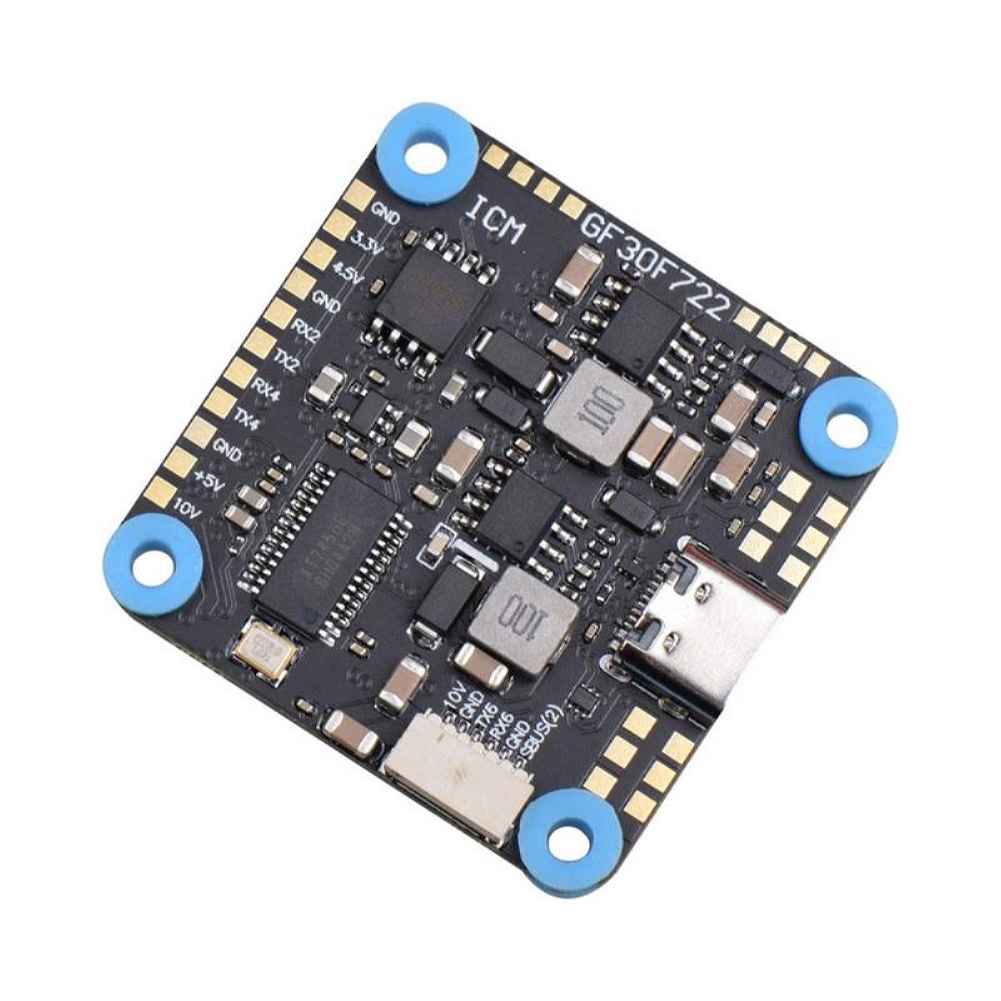

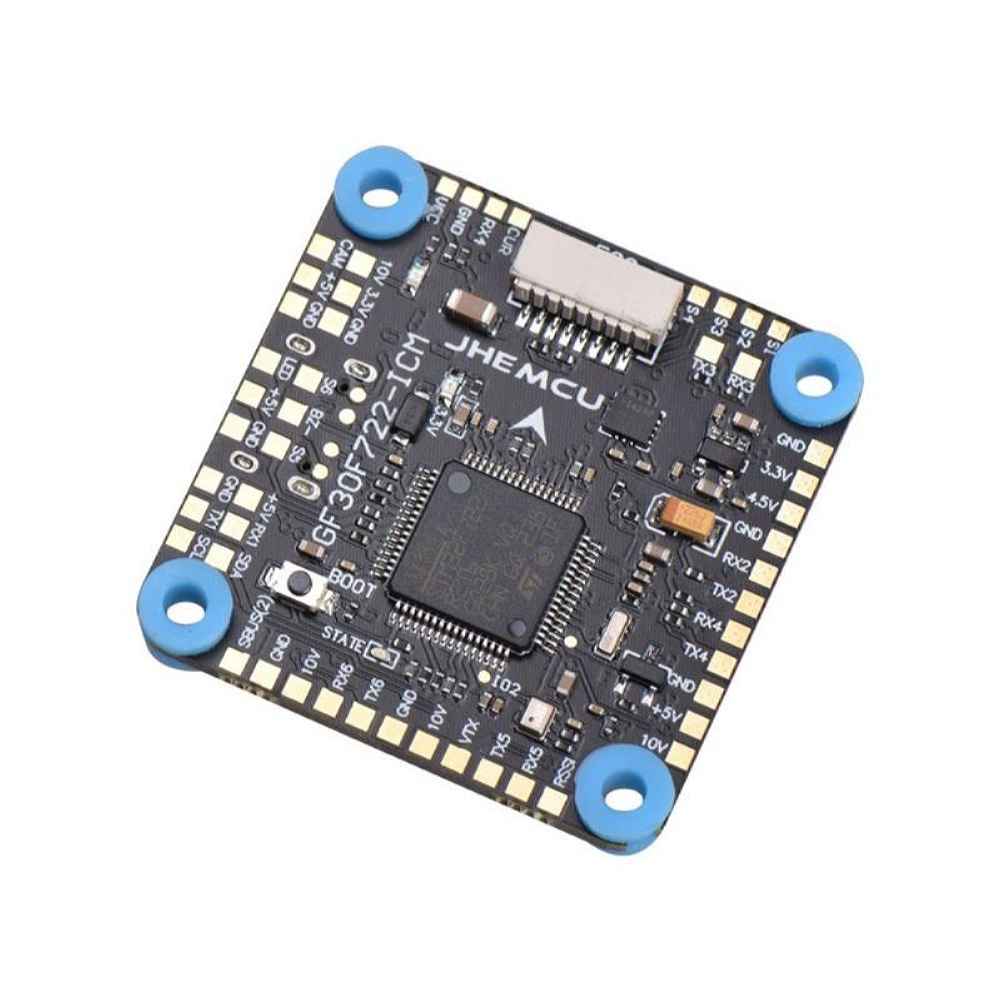

30X30mm JHEMCU GF30F722-ICM F722 Baro OSD 5V 10V Dual BEC Flight Controller 3-8S for FPV Freestyle HD RC Drone
The JHEMCU GF30F722-ICM F722 Flight Controller is designed for FPV freestyle HD RC drones, offering robust performance and versatility. It features an STM32F722RET6 MCU and an ICM-42688-P gyro/accel for precise flight control. With a built-in AT7456E OSD and barometer, it enhances your drone’s functionality. Supporting 3-8S Lipo input voltage, it includes dual BEC outputs of 5V/2.5A and 10V/2A. Compatible with various receivers like ELRS, TBS, SBUS, and more, it supports multiple ESC signals including PWM and Dshot600. Additional features include a USB Type-C port, voltage sensor, DFU button, and Betaflight 4.3.1 firmware. Its compact 36x36mm size with 30.5×30.5mm mounting holes makes it a perfect fit for your drone setup.
Description:
Brand: JHEMCU
Model: GF30F722-ICM F722
MCU: STM32F722RET6
IMU: ICM-42688-P/Gyro/Accel
OSD: AT7456E
Baro: Yes
Blackbox: 16MB
Input Voltage: 3-8S Lipo (11.4-36V)
5V-BEC: 5V/2.5A+銑?.1V
10V-BEC: 10V/2A

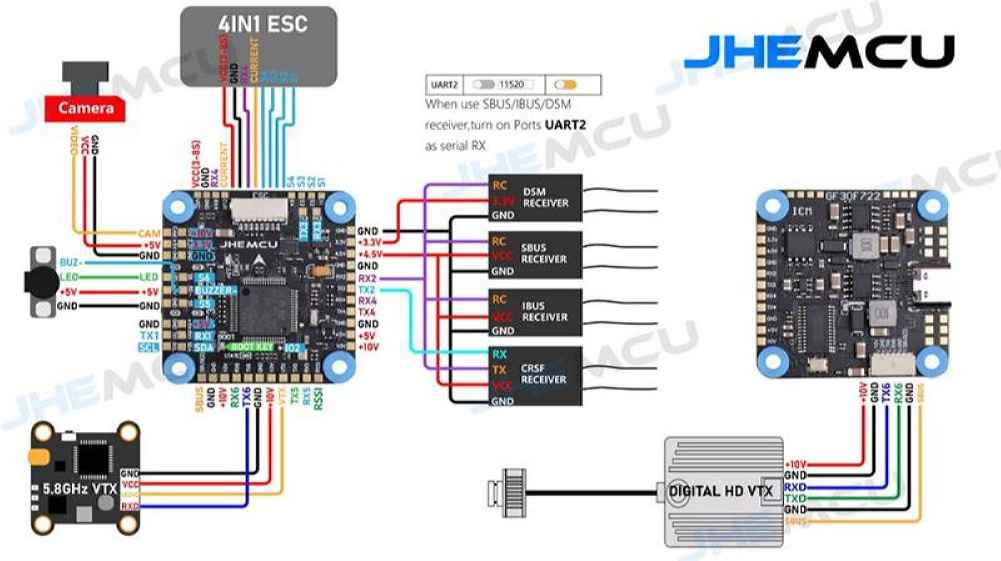

Receiver: ELRS(CRSF),TBS(CRSF),SBUS,IBUS,DSM2,DSMX
HD: Yes
UART: URRT1/2/3/4/5/6
IIC: 12C1
Led_Strip: Yes
Buzzer: 5V
ESC Signal: PWM,Oneshot123,Oneshot42,Multishot Dshot150,Dshot300,Dshot600
USB: Type-C
Current Port: Yes
Voltage Sensor: Yes
Voltage Sensor: Yes
DFU Button: Yes
Firmware: Betaflight_4.3.1 JHEF7DUAL.HEX
Size: 36*36mm
Mounting Hole: 30.5*30.5*4mm
Weight: 8.8g
Package Included:
1 x GF30F722-ICM F722 Flight Controller
