AET H743 Basic Automation Flight Controller with 5V 4A BEC, Supports ArduPilot Inav PX4 for FPV Racer Drone and VTOL RC Airplane
Price range: $110.86 through $148.70
- STM32H743 microcontroller for high performance
- Dual ICM42688P IMUs for enhanced stability
- 13s PWM/Dshot outputs and 8s UARTs for versatile connectivity
- 5V/6V/7V 10A servo rail BEC and 5V 4A BEC for robust power management
- Compact and lightweight design, ideal for FPV drones and VTOL airplanes
You May Also Like
Description

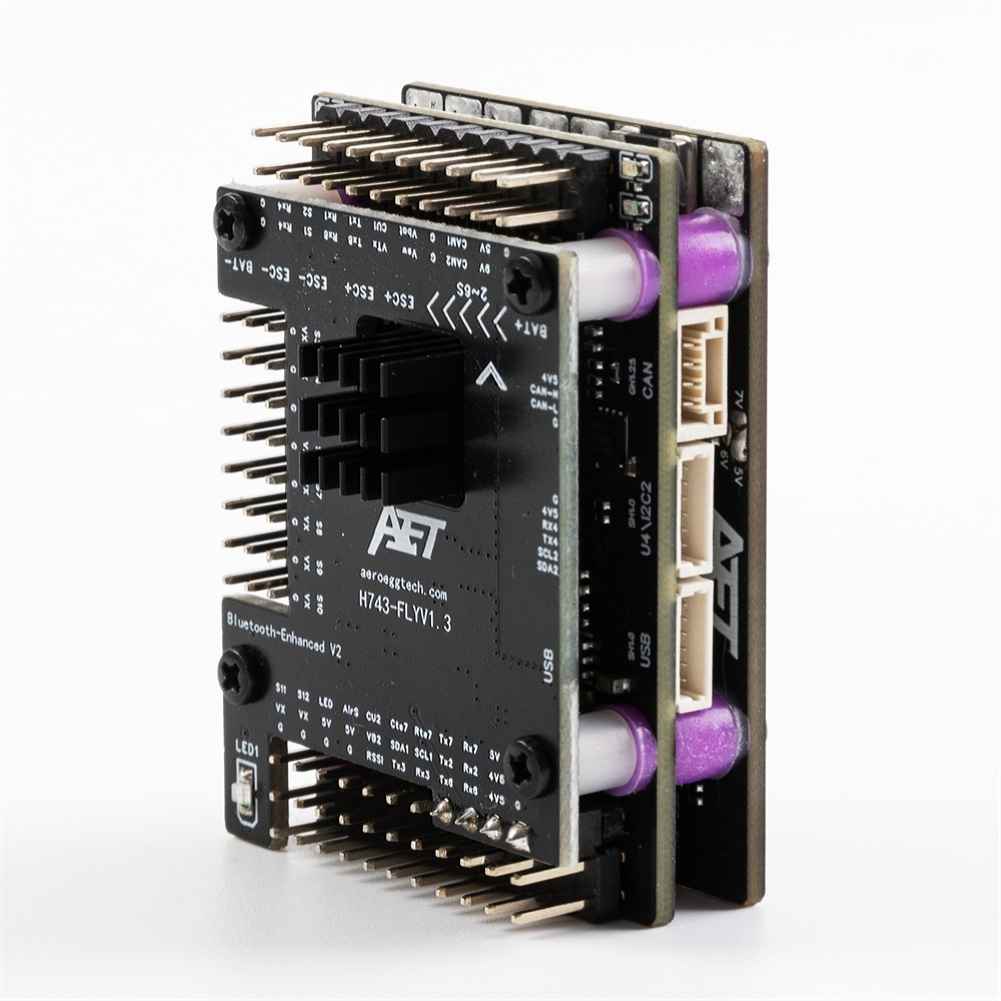

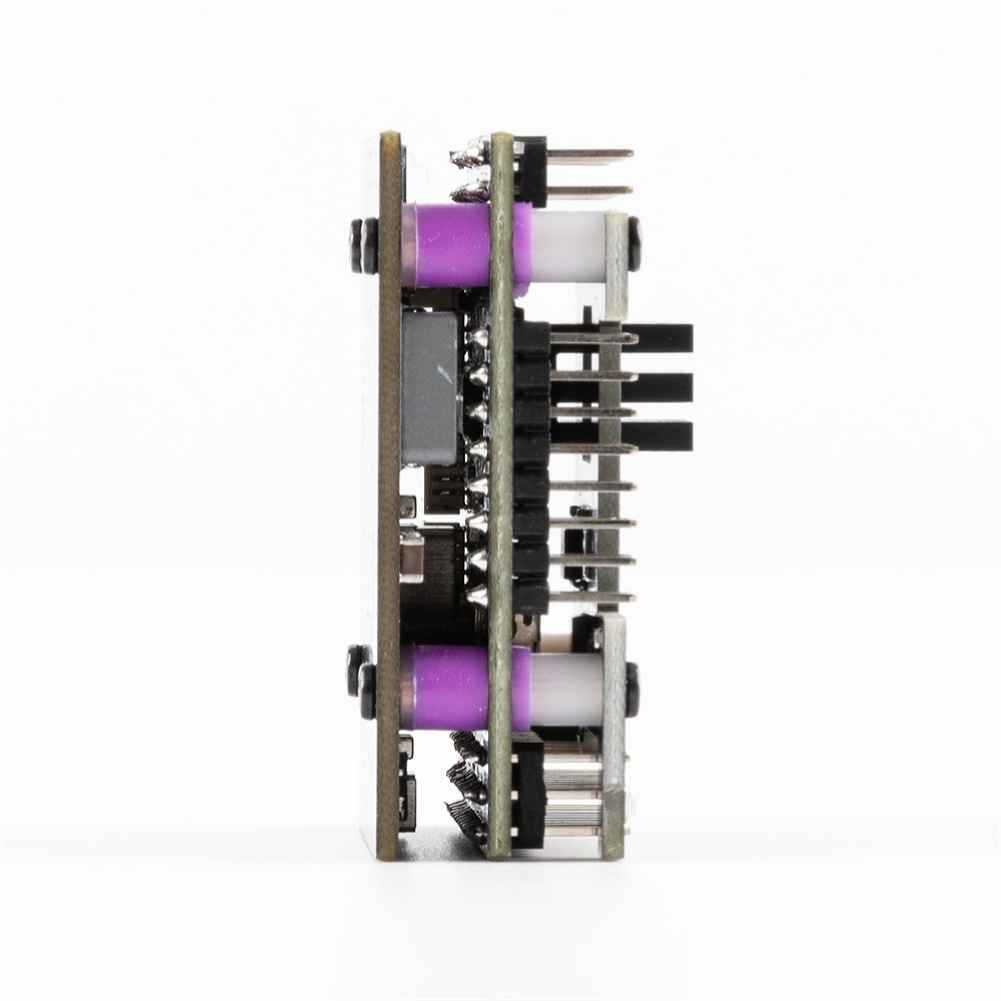

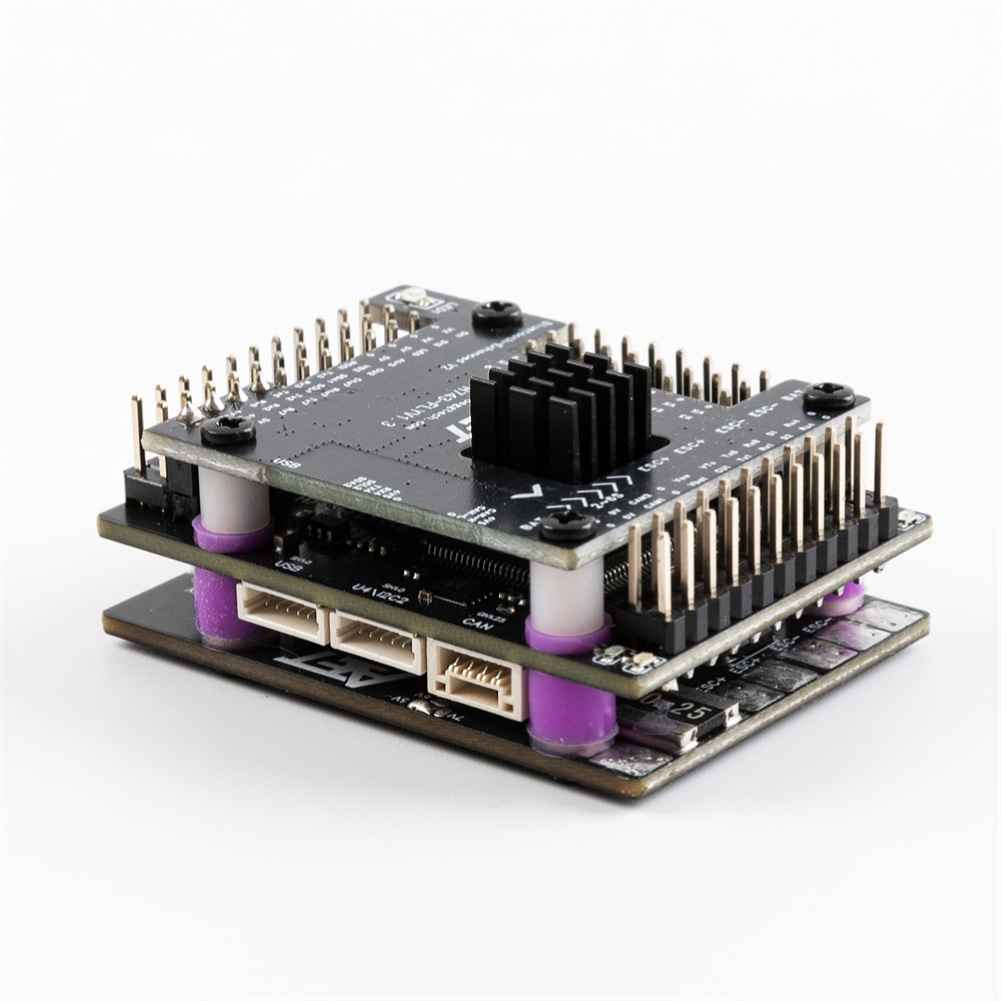

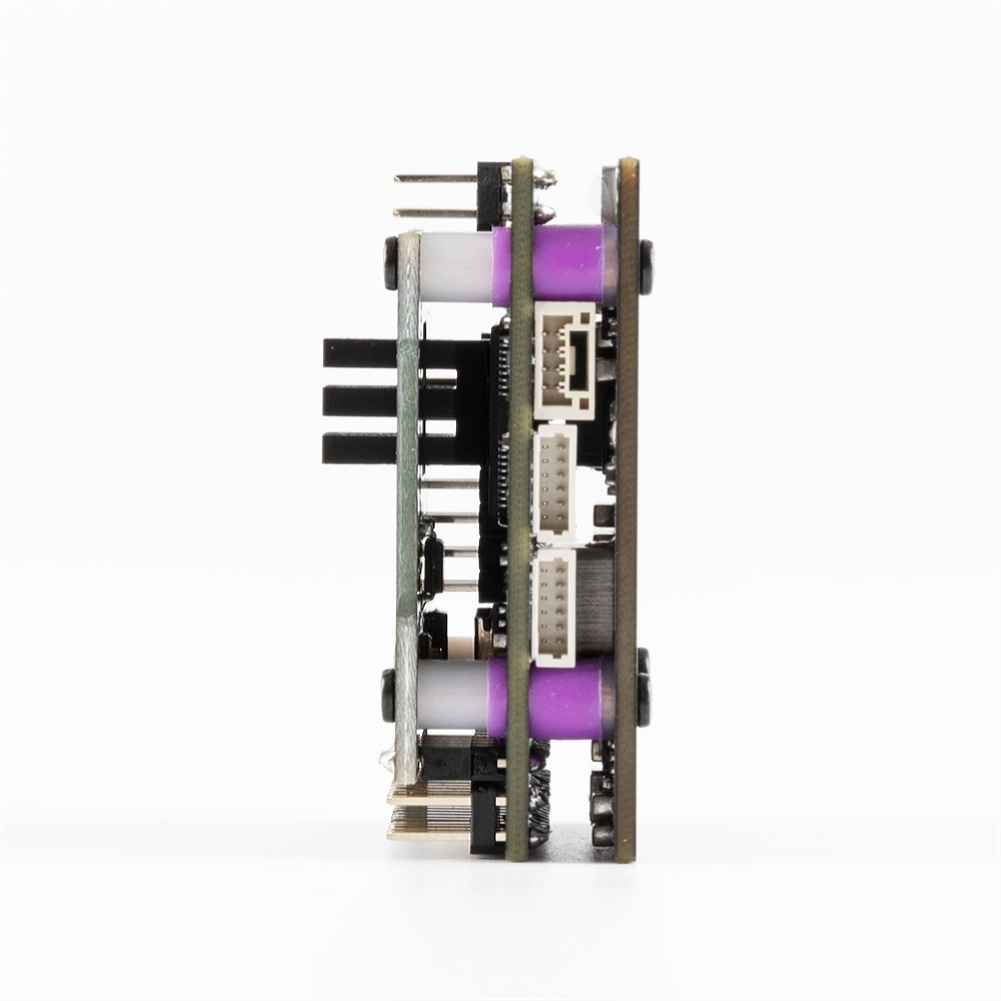

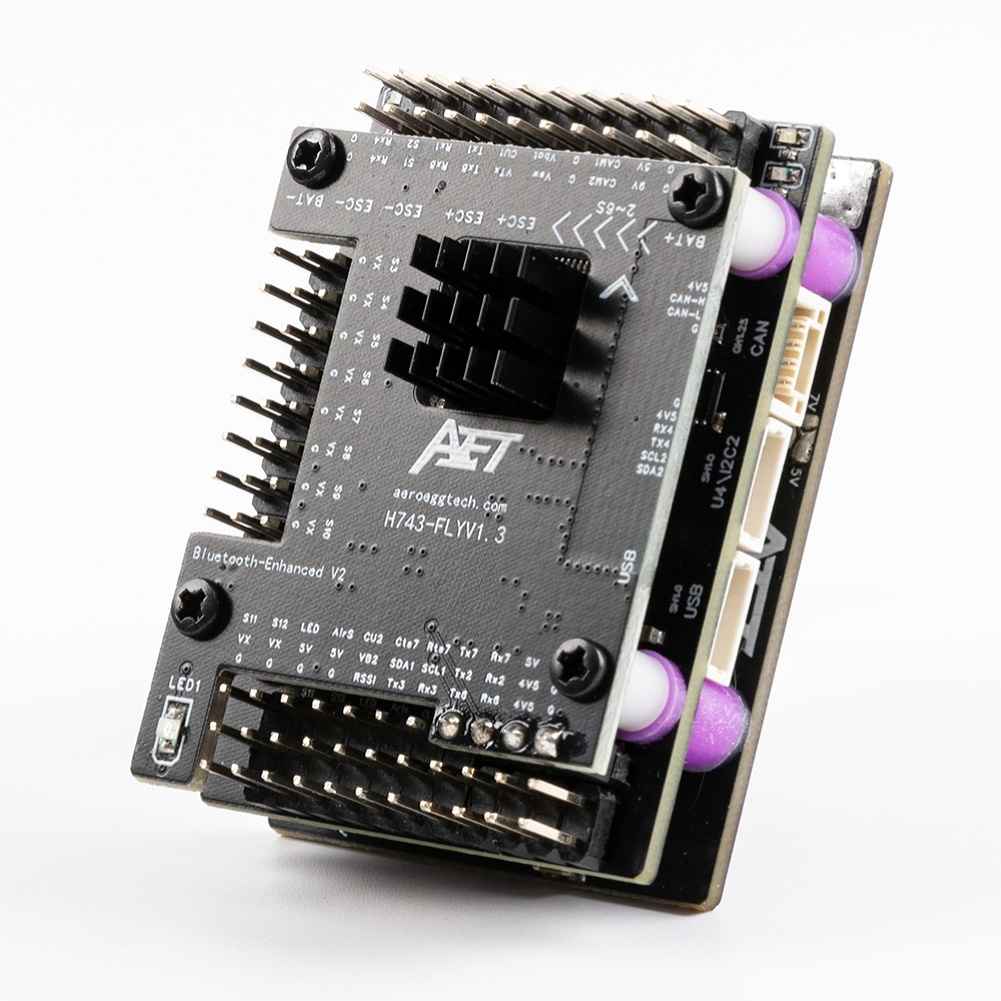

AET H743 Basic Automation Flight Controller Support ArduPilot Inav PX4 With 5V 4A BEC for FPV Racer Drone VTOL RC Airplane
The AET H743 Basic Automation Flight Controller is engineered for high-performance FPV racer drones and VTOL RC airplanes. It features a powerful STM32H743 microcontroller and dual ICM42688P IMUs, ensuring stability and precision. With comprehensive outputs including 13s PWM/Dshot and 8s UARTs, it supports versatile connectivity. The controller includes a DPS310 or SPL06 barometer, 5V/6V/7V 10A servo rail BEC, and a dedicated 5V 4A BEC, providing robust power management. Additional features include a MicroSD card slot, dual camera input, and AT7456E OSD for enhanced functionality. Its compact design (36 x 47 x 17 mm) and lightweight (45g) make it ideal for advanced RC applications.
Features:
– STM32H743 microcontroller
– Dual ICM42688P IMUs
– 13s PWM / Dshot outputs (13th is setup for serial LED)
– 8s UARTs, one with CTS/RTS flow control pins
– 1s CAN
– Dedicated USB board
– DPS310 or SPL06 barometer
– 5V/6V/7V 10A Servo rail BEC
– 9V 2A BEC for VTX, GPIO controlled
– 5V 4A BEC
– MicroSD Card Slot
– Selectable dual camera input
– AT7456E OSD
– 2x I2Cs
– Integrated power monitor
Specification:
Model: The AET-H743-Basic Flight Controller
Dimensions: 36 x 47 x 17 mm
Weight: 45g
Main Control Model: STM32H743VIT6
IMU0: ICM-42688-P
IMU1: ICM-42688-P
Barometer: SPL06
OSD Chip: AT7456E
UART Interface: 8 channels UART
I2C Interface:2 channels
ADC Interface: 1 channel voltage measurement/2 channels current measurement/1 channel airspeed measurement
PWM Interface: 12 channels universal/1 channel LED
Flight Status Indicator Light: 1 Green/1 Red/1 Blue
RSSI Input: 1 channel
Power Supply: 7-36V (2-6S Lithium battery)
Voltage Detection: Internal
Current Detection: Internal
VX Adjustable Power Supply: 5/6/7V adjustable, up to 10A
9V Fixed Power Supply: Up to 2A
5V Fixed Power Supply: Up to 4A
Package Included:
1 x AET H743 Basic Flight Controller
