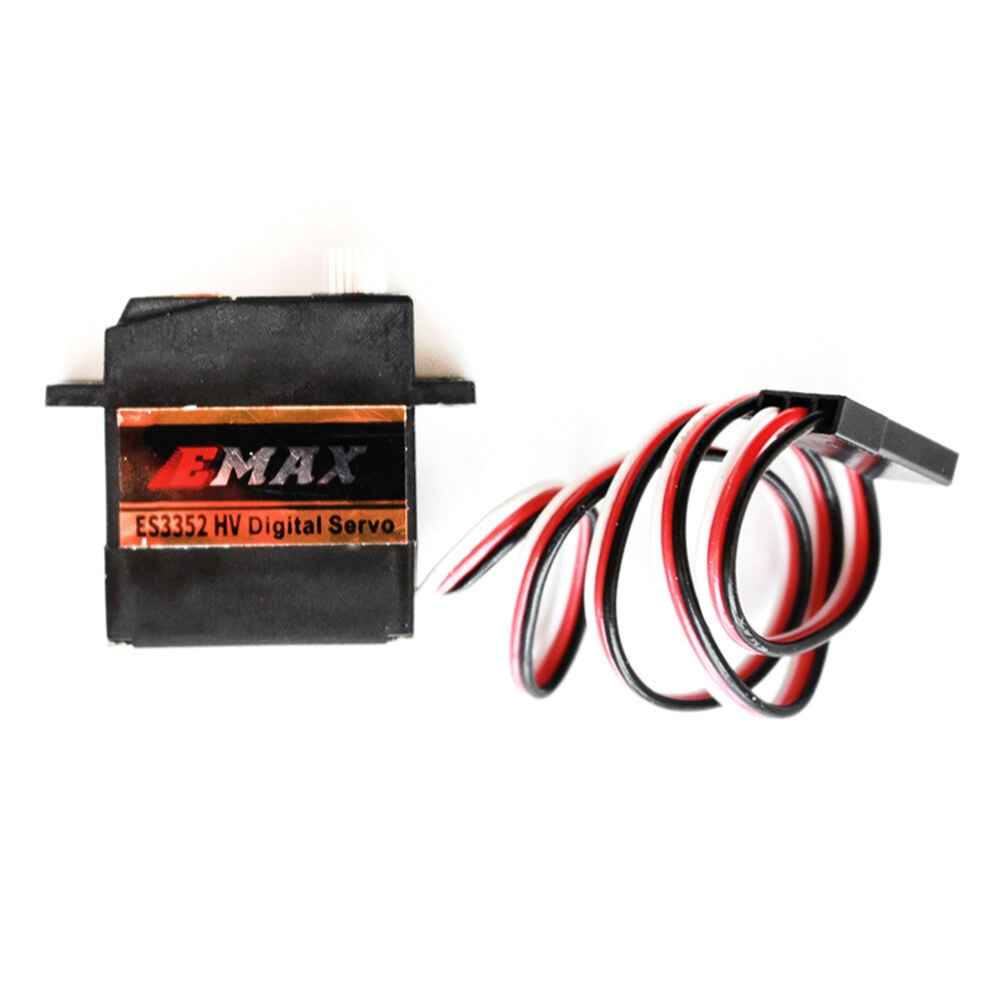

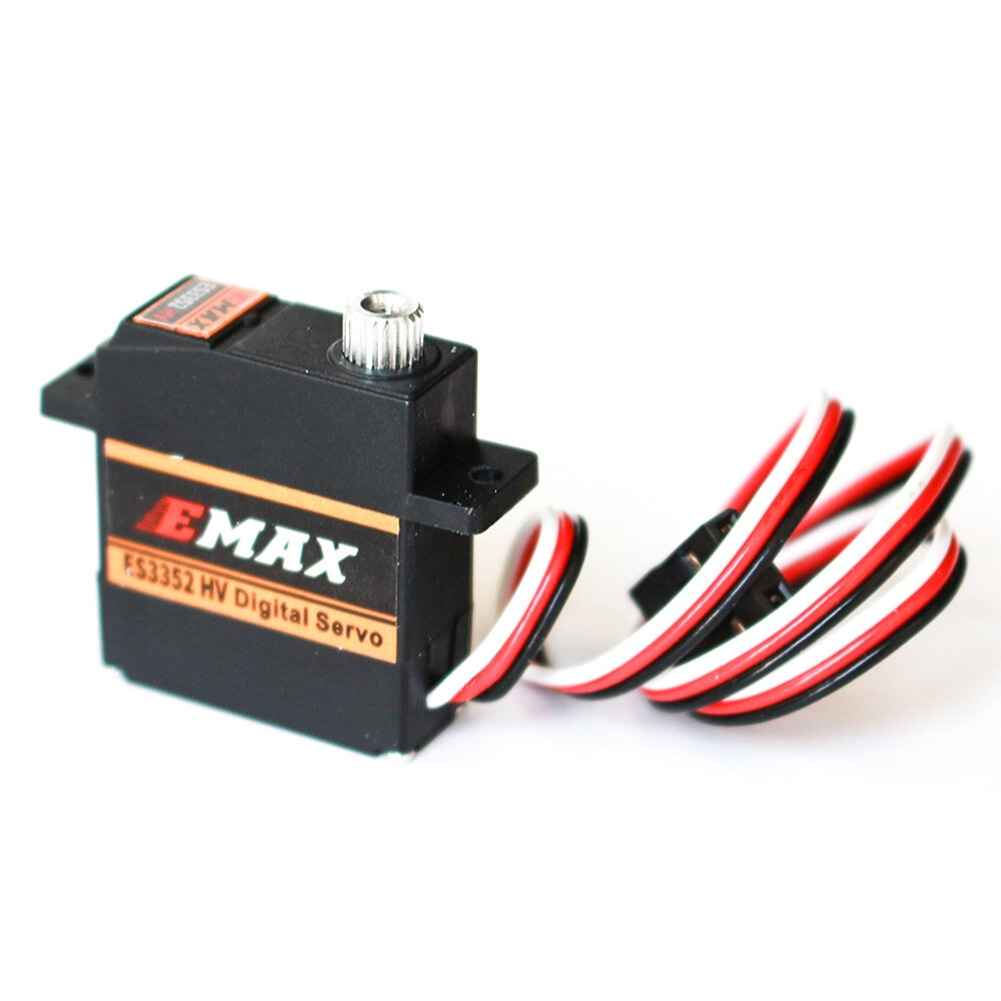

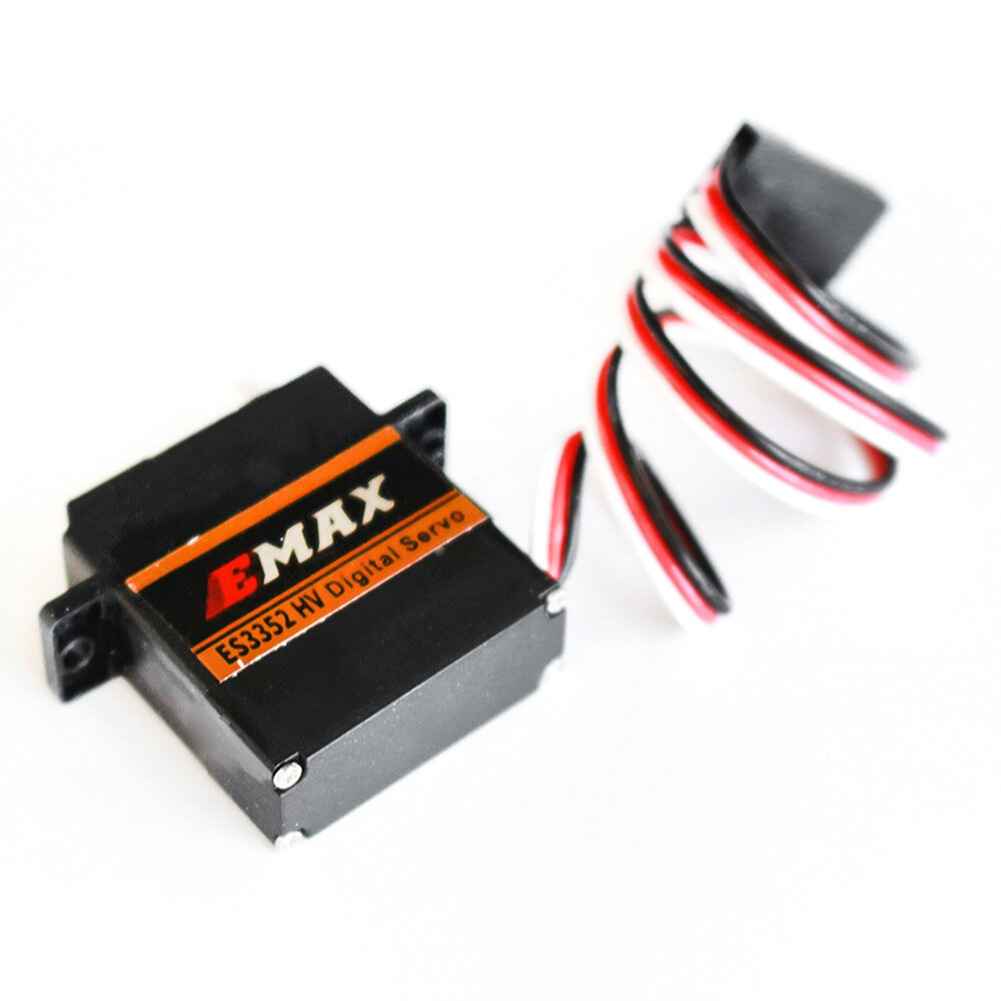

EMAX ES3352 HV High Voltage Metal Gear Digital Servo for RC Airplane, Waterproof, Fast and Precise Control

Description

EMAX ES3352 HV All-Purpose High Voltage Metal Gear Digital Servo for RC Airplane Waterproof

The EMAX ES3352 HV Digital Servo is designed for high performance in RC airplanes. This servo operates efficiently across a wide voltage range, delivering fast and precise responses for enhanced control. Its compact size ensures easy installation into various models, while the durable construction with high-quality materials guarantees long-lasting reliability. This versatile servo is suitable for a range of RC models, including airplanes, helicopters, and cars. With a stall torque of up to 2.4kg.cm at 8.4V and a maximum travel of 125 degrees, this servo provides exceptional performance under demanding conditions.

Electrical Specification (Function of the Performance):
Operating Speed (at no load):
6.0V | 0.18 sec/60‵
8.4V | 0.13 sec/60‵
Running Current (at no load):
6.0V | 200mA Max
8.4V | 260mA Max
Stall Torque:
6.0V | 1.7kg.cm Max
8.4V | 2.4kg.cm Max
Maximum Current:
6.0V | 0.4A Max
8.4V | 0.6A Max
Idle Current:
6.0V | 9.5mA
8.4V | 9.5mA
Mechanical Specification:
Overall Dimensions: See Drawing Below
Weight: 12+1 g
Connector Wire Gauge: JR
Connector Wire Length: 250呼8mm (W/O Connector)
Output Gear Spline: 23T
Bearing: 2BB
Gear Type: 4x Metal & 1x Plastic
Extreme Angle: 160‵
Control Specification:
Control System: PWM
Operating Travel: 90‵ 呼5‵( when 1000-2000 譙 sec )
Neutral Position: 1500 譙 sec
Rotating Direction: Counter Clockwise / Pulse Traveling 1500 to 1900 譙 sec
Pulse Width Range: 800-2200 譙 sec
Maximum Travel: 125‵ 呼8( 800-2200譙 sec )
Features:
1. High Voltage: Operates efficiently with a wide range of voltage inputs, providing consistent performance.
2. Fast and Precise: Delivers quick and precise responses, enhancing the control of your RC toy.
3. Compact Size: The servo’s compact design allows for easy installation and integration into various models.
4. Durables Construction: Built with high-quality materials, ensuring long-lasting durability and reliability.
5. Versatile Application: Suitable for a wide range of RC models, including airplanes, helicopters, and cars.

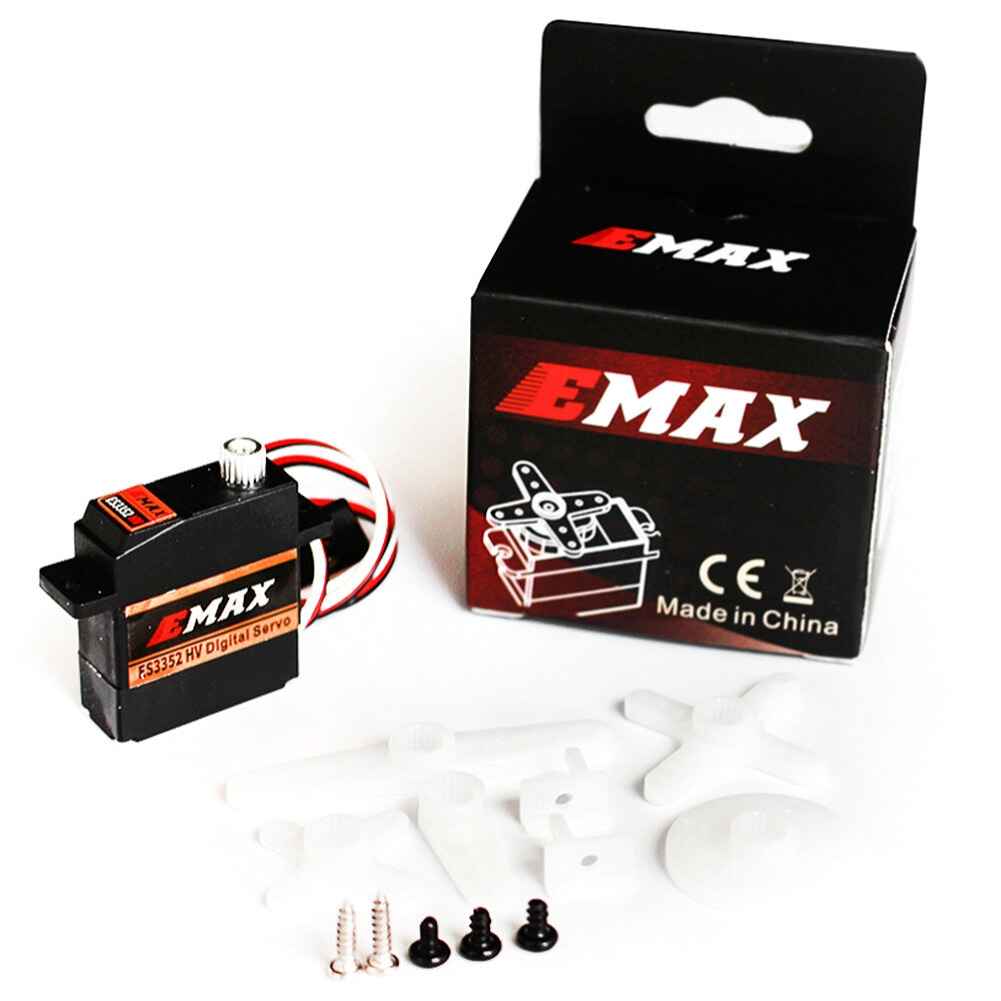

Package Included:
1 x EMAX ES3352 HV High-Voltage Servo
