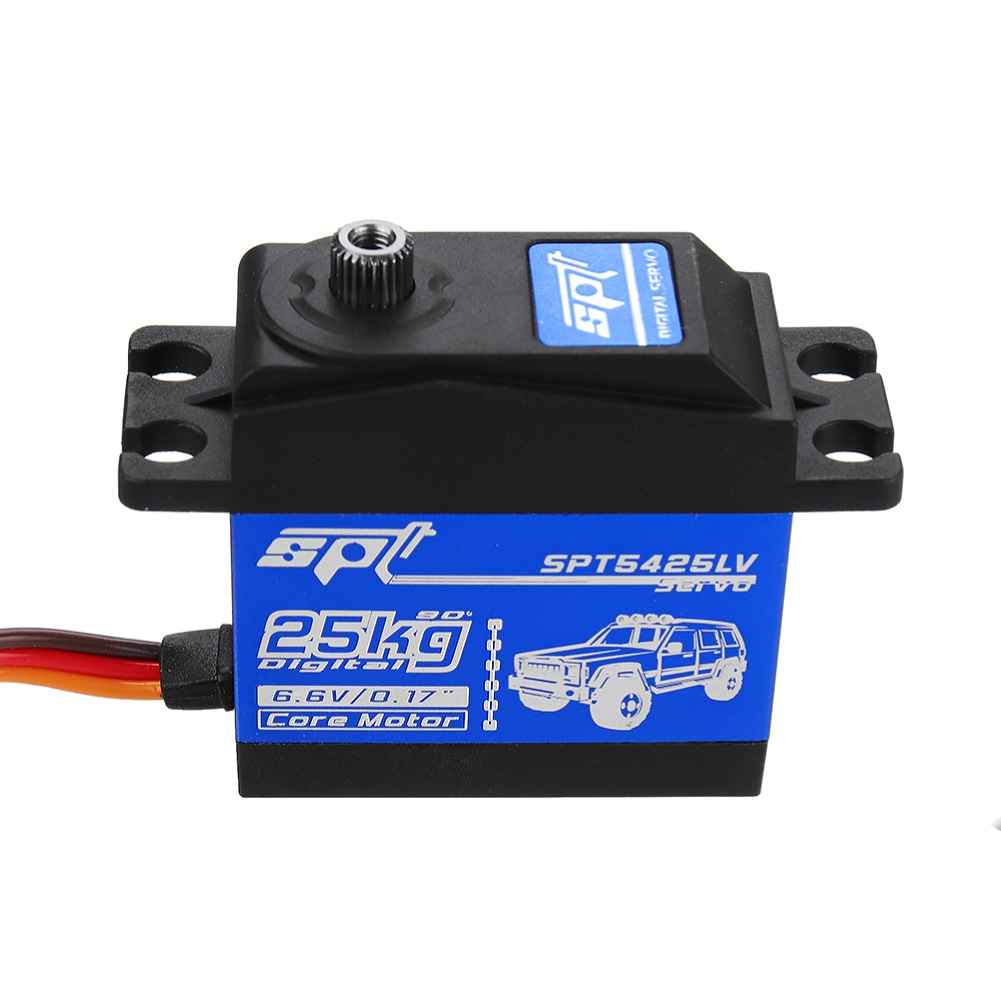

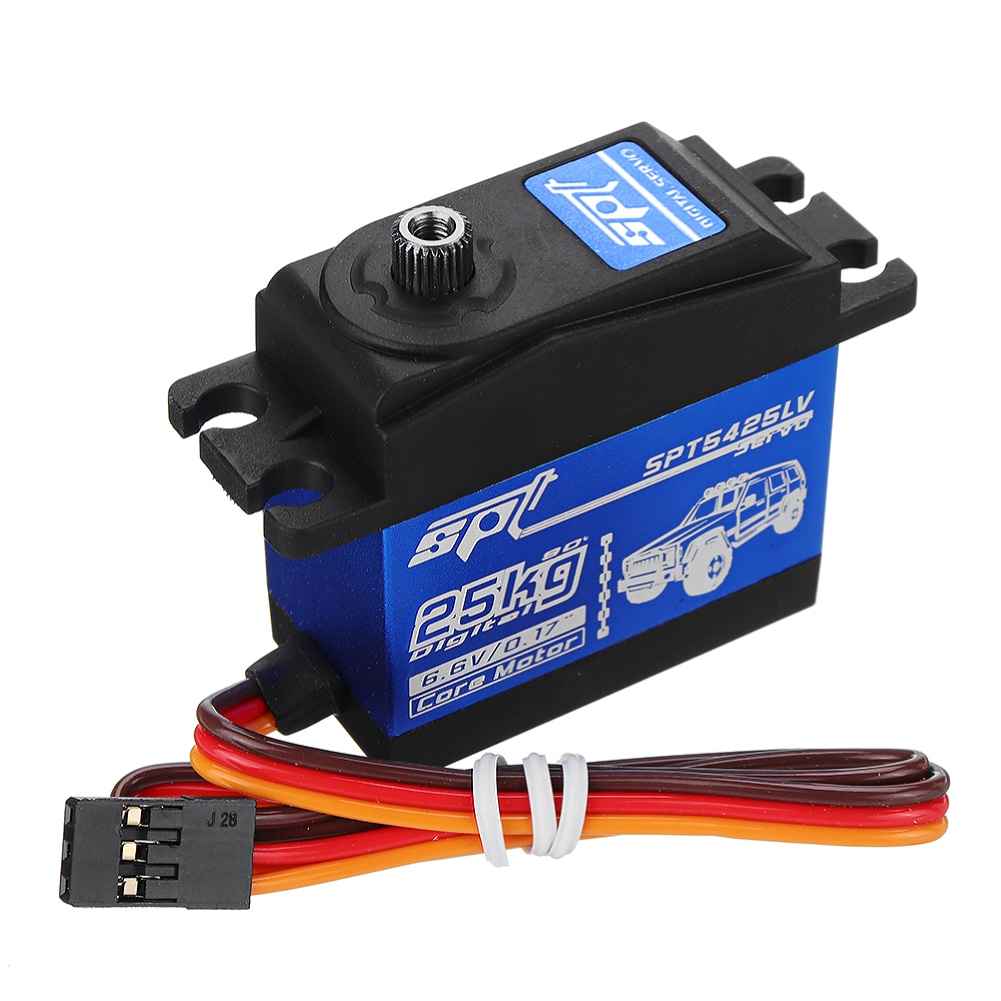

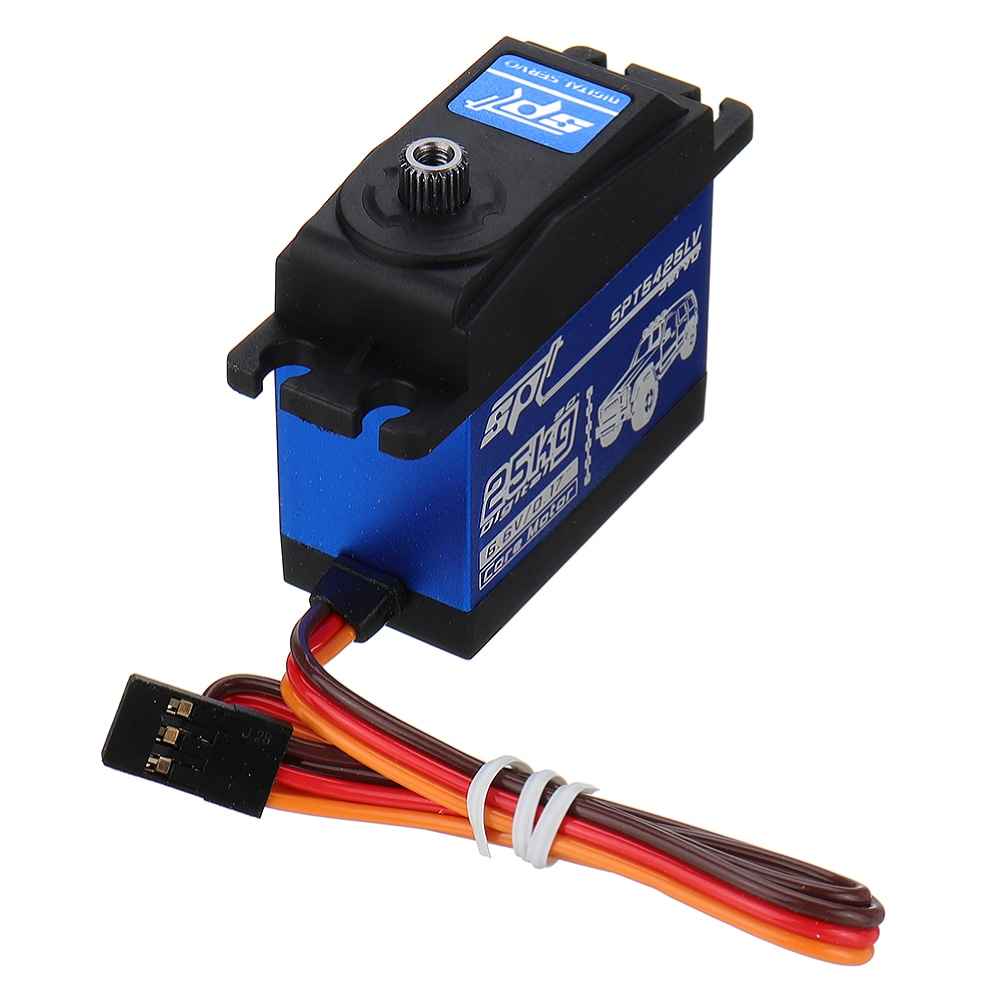

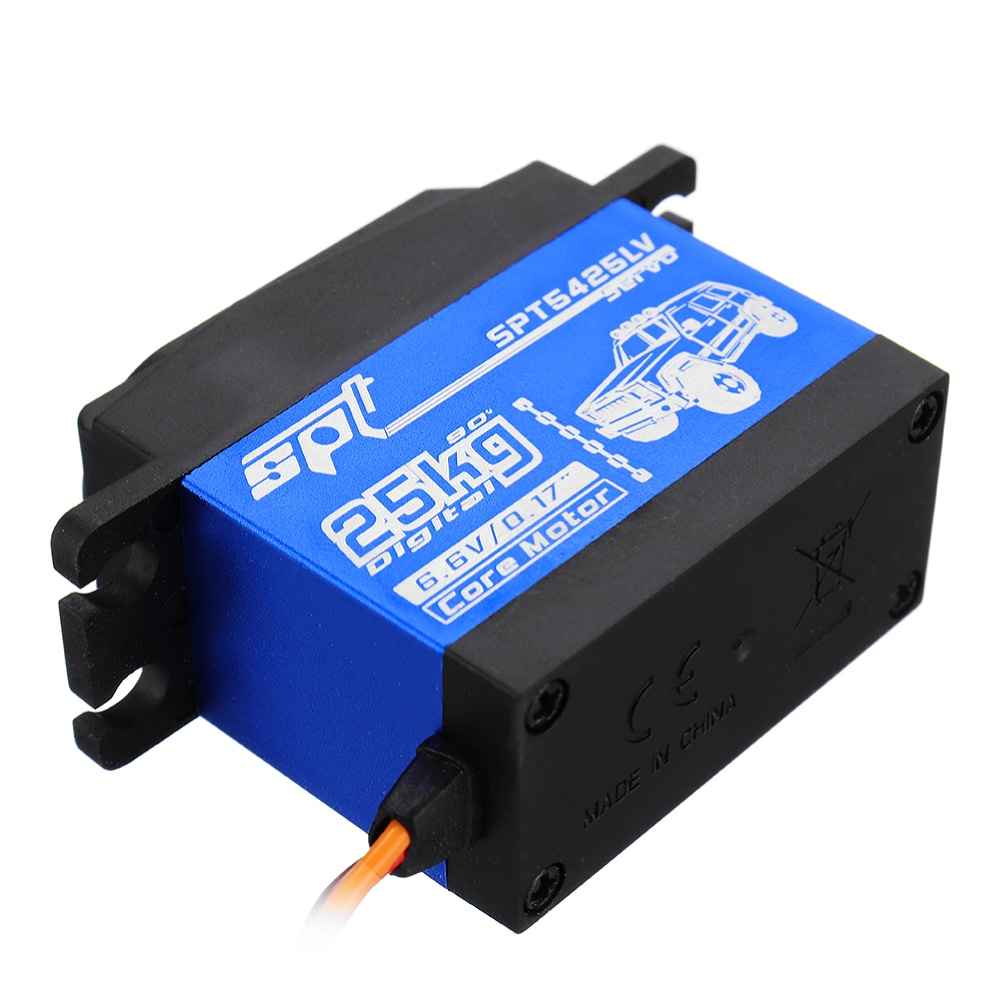

SPT Servo SPT5425LV 25KG High Torque Digital Metal Gear Servo for 1:8 1:10 RC Cars and Boats

Description

SPT Servo SPT5425LV 25KG 90 Large Torque Digital Metal Gear Servo For 1:8 1:10 RC Robot Car Boat

The SPT5425LV 25KG Digital Servo offers exceptional performance for your 1:8 and 1:10 RC models. This high-torque servo is equipped with a durable metal gear and core motor, ensuring reliable operation. With a remote control angle ranging from 90 to 120 degrees and a voltage range of 4.8V to 6.0V, it delivers precise movements. The operating speed varies from 0.22”/60° at 4.8V to 0.18”/60° at 6.0V, and the stall torque reaches up to 26 kg.cm. Compact with dimensions of 40.5X20X40.5mm and weighing approximately 57g, it includes a JR 260 mm connector wire and features 2BB bearings for smooth operation. Ideal for RC robot cars and boats.

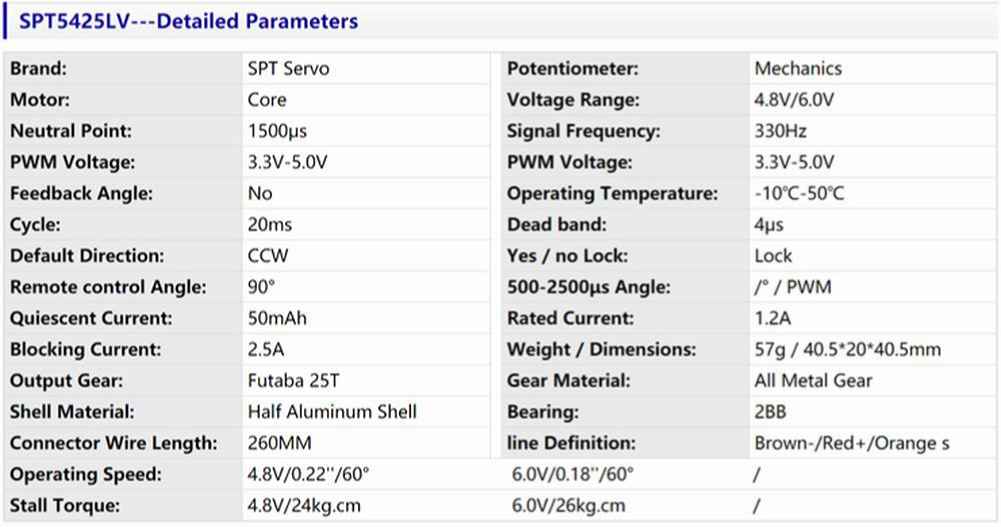

Description:
Product: SPT5425LV 25KG 90～ Digital Servo
Dead Band: 4ç±³s
Neutral Position:1500ç±³s/330hz
Motor: Core motor
Remote Control Angle:90-120～㊣2～
Voltage: 4.8V-6.0V
Operating Speed(4.8V): 0.22”/60～
Operating Speed(6.0V): 0.18”/60～
Stall Torque(4.8V): 24 kg.cm
Stall Torque(6.0V): 26 kg.cm

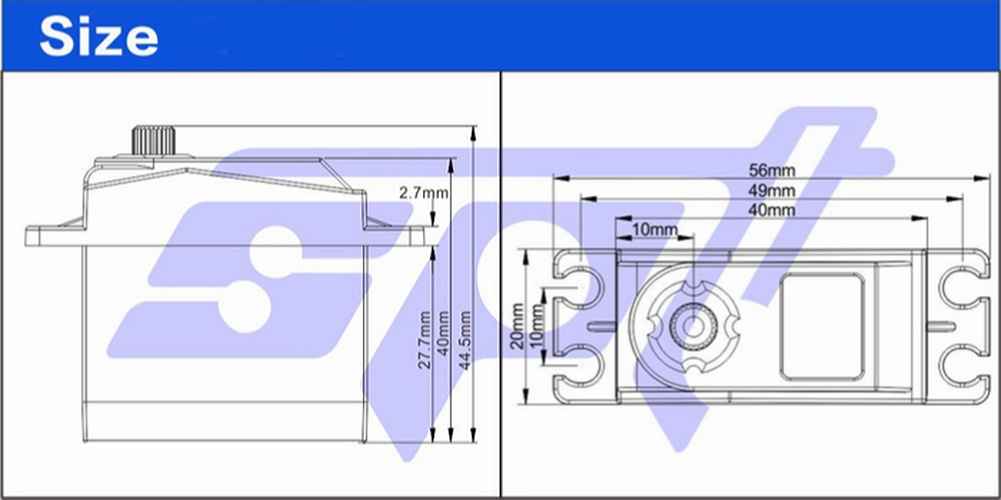

Dimensions: 40.5X20X40.5mm
Weight: About 57g

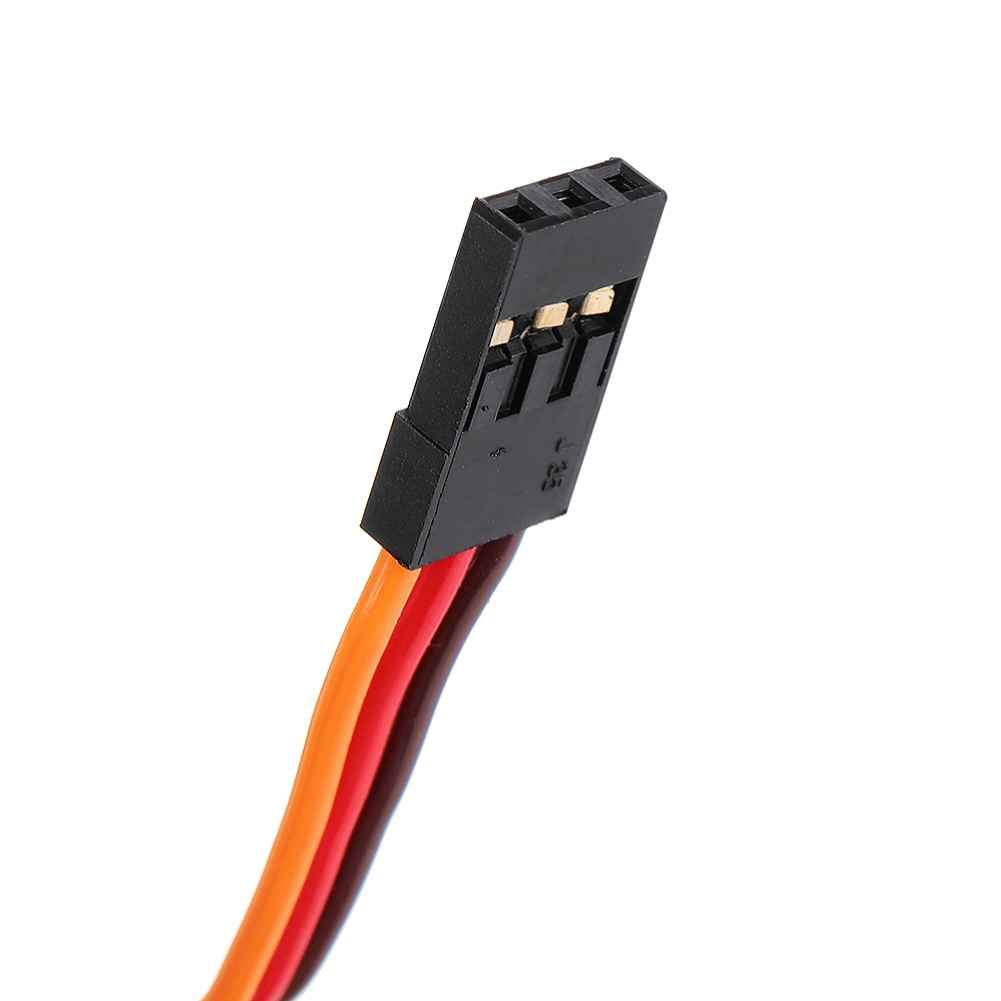

Connector Wire Length: JR 260 mm
Bearing: 2BB
Application: For 1:8 1:10 RC Robot Car RC Boat
Package:

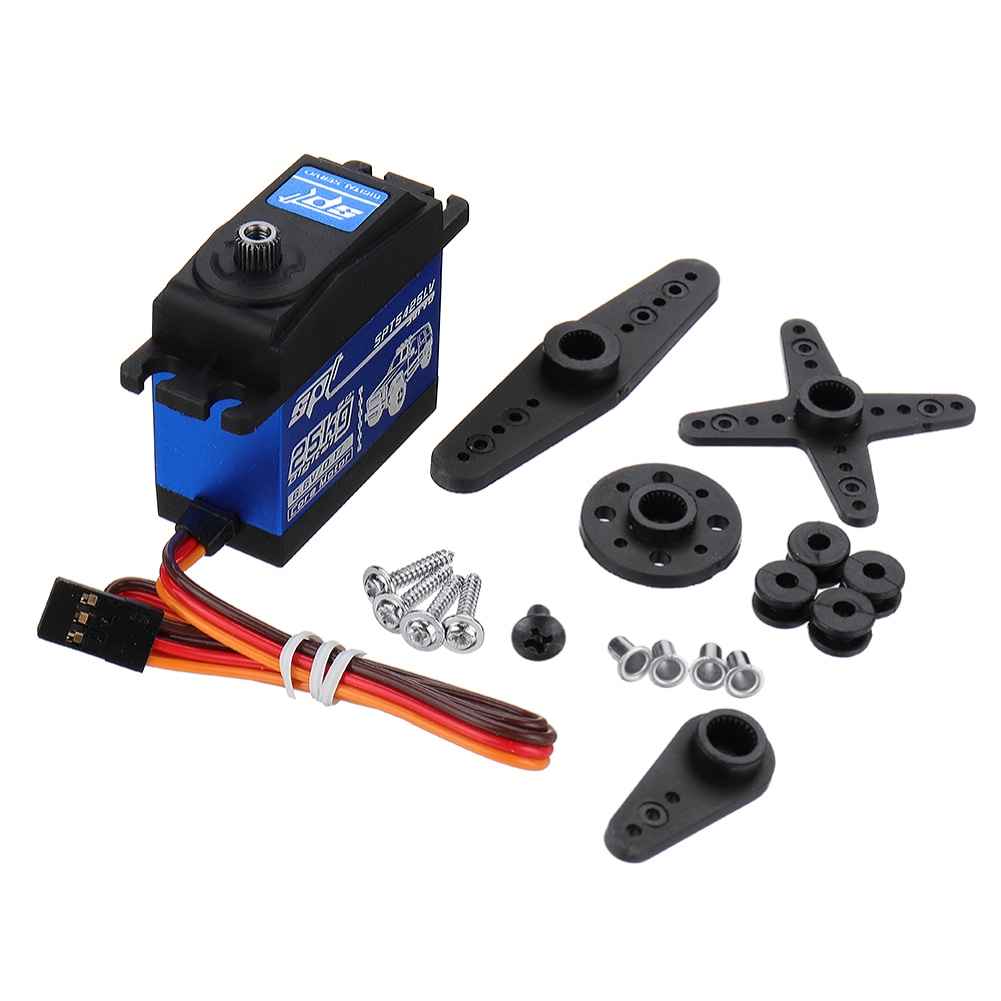

1* SPT5425LV 25KG 90～ Digital Servo

Package Included:
1 x SPT5425LV 25KG Digital Servo
