Corona DS939MG 2.5kg Metal Gear Digital Servo for RC Airplane and Boat Models

Description

Corona DS939MG 2.5kg Metal Gear Digital Servo for RC Airplane Boat Model

The Corona DS939MG Digital Servo is a compact and powerful solution for RC airplane and boat models. Measuring 22.5×11.5×24.6mm and weighing just 12.5g, this servo offers a stall torque of 2.5kg.cm to 2.7kg.cm. It operates efficiently within a voltage range of 4.8V to 6.0V and features a quick operating speed of 0.14sec/60掳 to 0.13sec/60掳. The servo is equipped with durable metal gears and a ball bearing for smooth performance, and it includes a 215mm connector wire for easy installation. With an operating temperature range of -20掳C to +60掳C, it ensures reliable functionality in various conditions.

Description:
Brand: Corona
Item NO: DS939MG
Size: 22.5X11.5X24.6mm(0.88’x0.45’x0.96′)
Weight: 12.5g/0.44 oz
Operating Voltage: 4.8V / 6.0V
Operating Current: 200mA / 240mA
Operating Speed: 0.14sec.60o/ 0.13sec.60o
Stall Torque: 2.5kg.cm / 2.7kg.cm
Dead Band: 鈮?uSec
Operating Travel: 40o/one side pulse traveling 400us
Potentiometer: 2 slider/Direct Drive
Ball bearing: MR85
Gear: Metal
Connector wire: 215mm
Operating Temperature Range: -20鈯モ€?60鈯?br/>

Package Included:

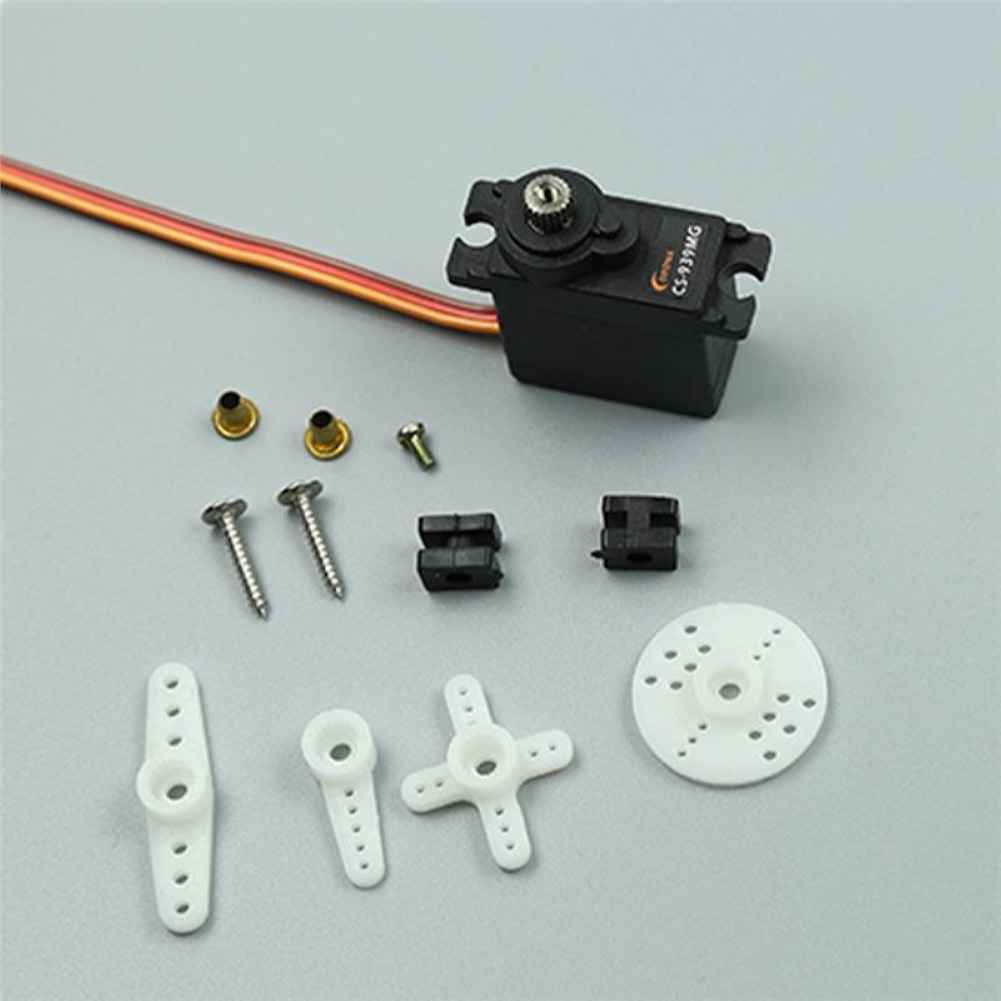

1 x DS939MG 2.5kg Metal Gear Digital Servo
