ALZRC DS452PM Coreless Metal Gear Digital Servo for 360 450 Class RC Helicopter Airplane

Description

ALZRC DS452PM Swashplate Coreless Metal Gear Digital Servo For 360 450 Class RC Helicopter RC Airplane

The ALZRC DS452PM Digital Servo is designed for 360 and 450 class RC helicopters and airplanes. It features a coreless metal gear for enhanced durability and precision. With an operating voltage range of 4.8-8.4V and a working frequency of 1520us/333Hz, this servo offers excellent performance. It boasts a fast operating speed, ranging from 0.14 sec/60° at 4.8V to 0.09 sec/60° at 7.4V, and a torque of up to 2.6kg.cm. Weighing just 12g, it is lightweight yet powerful. The servo includes a 220mm connector wire, making it easy to install.

Description:
Brand: ALZRC
Product: DS452PM Digital Servo
Operating Voltage Range: 4.8-8.4V
Operating Temperature Range: -20 ~ +60
Working Frequency: 1520us/333Hz
Dead Band: 2us
Operating Speed:
0.14 sec/60@4.8V
0.11 sec/60@6.0V
0.09 sec/60@7.4V
Torque:
1.8kg.cm @4.8V
2.2kg.cm @6.0V
2.6kg.cm @7.4V
Weight: 12g
Bearing Material: Metal

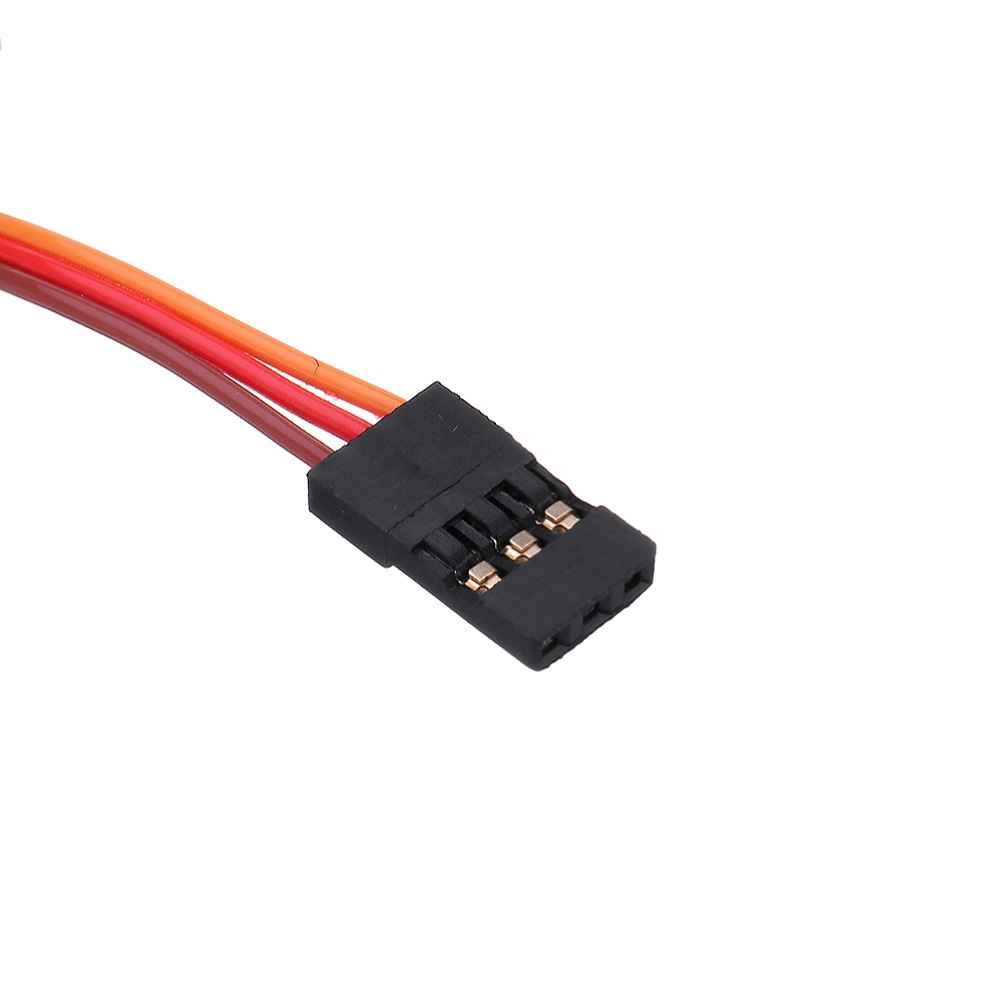

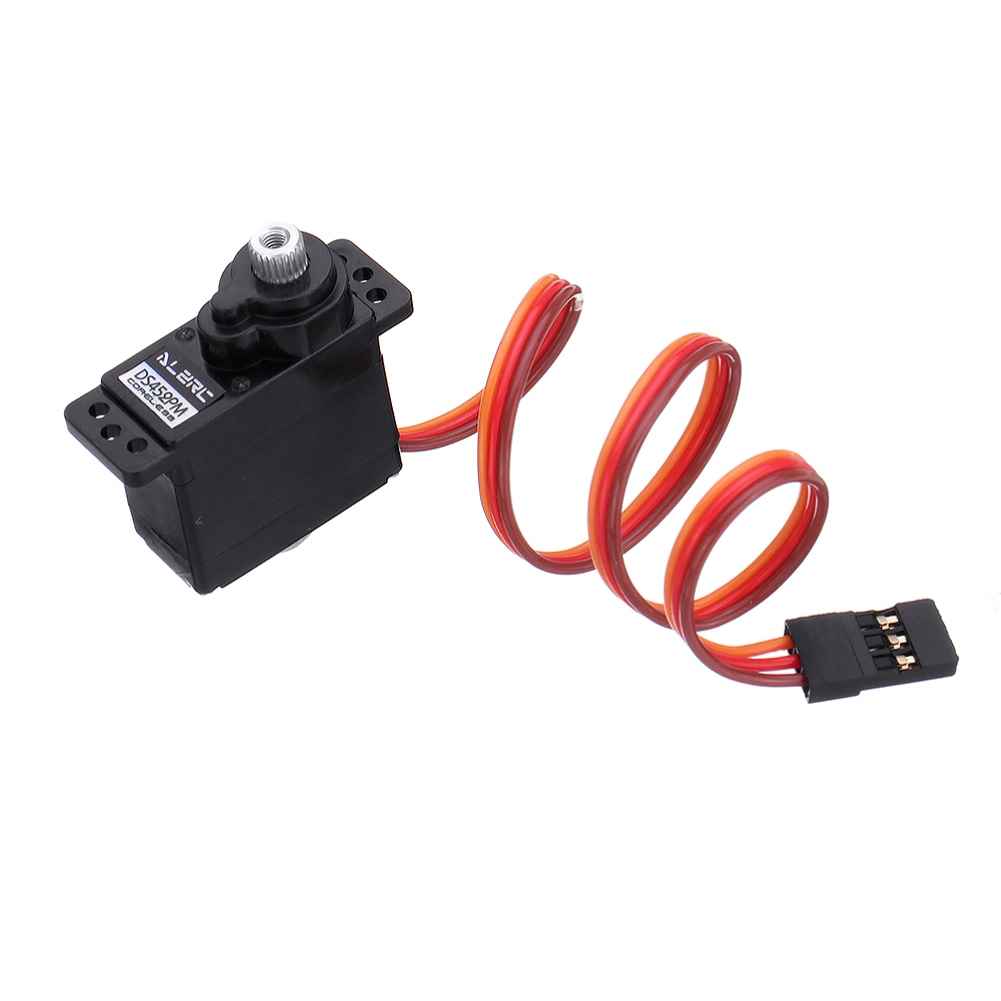

Connector Wire Length: 220mm
Application: For 360,450 Class RC Helicopter, RC Airplane
Package:
1* ALZRC DS452PM Digital Servo

Package Included:
1 x ALZRC DS452PM Digital Servo
