Aocoda-RC F4100 V4 AM32 Stack with F405 V4 Flight Controller & 100A 3-8S ESC for FPV Racing Drones

Description

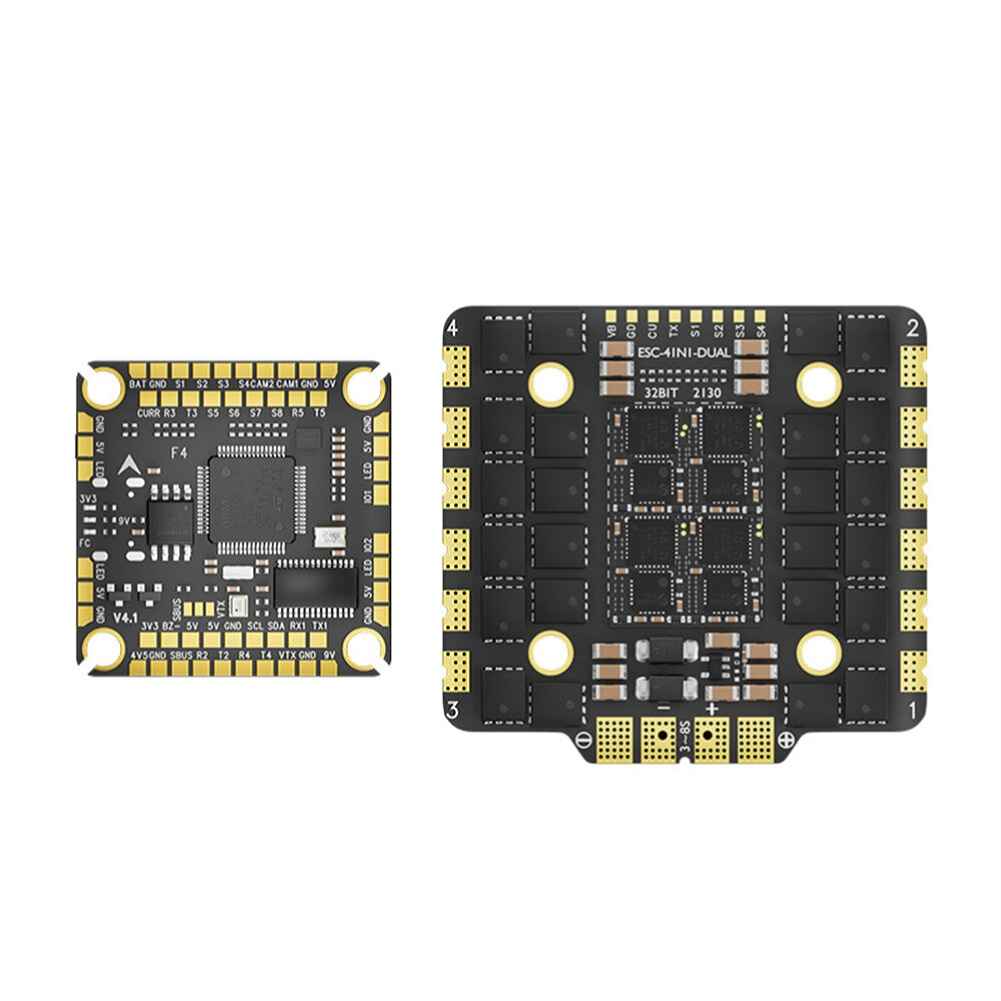

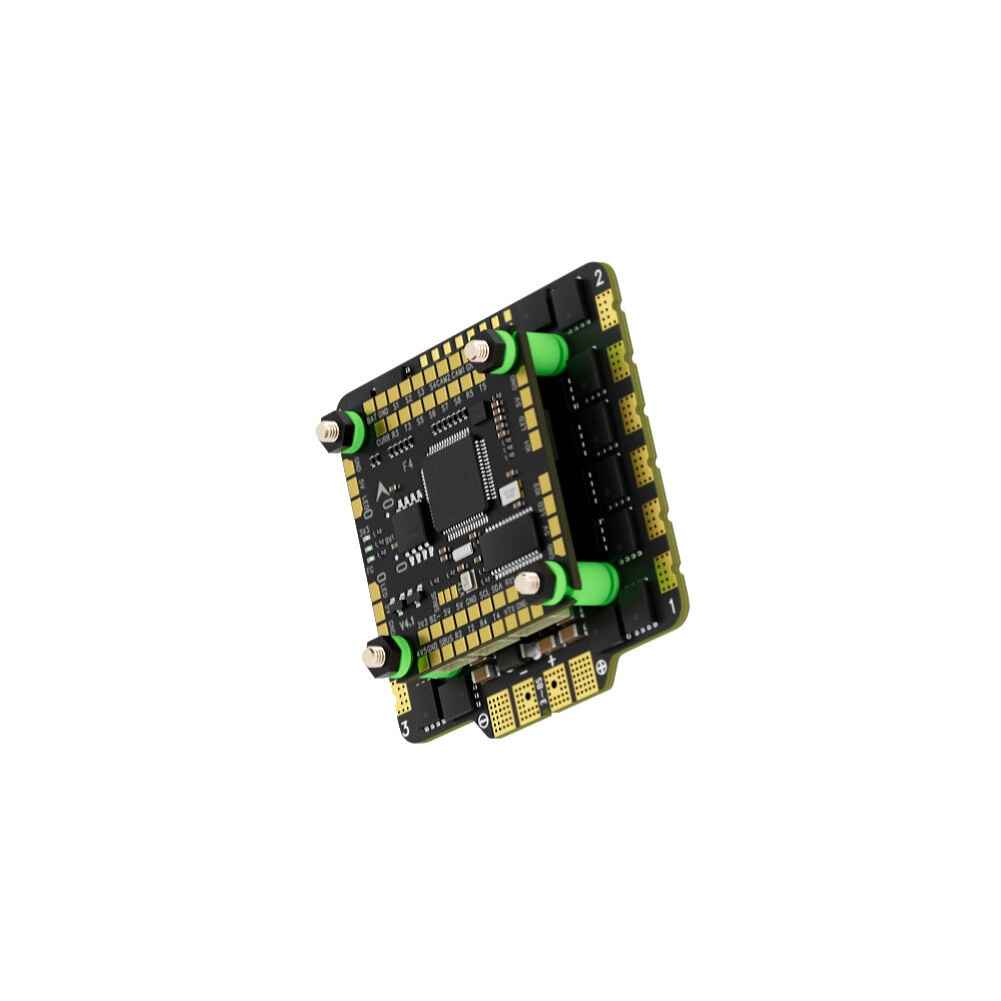

30.5mm x 30.5mm Aocoda-RC F4100 V4 AM32 Stack Build-in F405 V4 Flight Controller & 100A 3-8S ESC for FPV Racing Drone

The Aocoda-RC F4100 V4 AM32 Stack is designed for FPV racing drones, featuring the high-performance STM32F405RGT6 chip for advanced processing. It includes dual BEC outputs (5V/3A and 9V/2.5A) for stable power delivery. The stack supports multiple receiver protocols, including ELRS, CRSF, SBUS, Frsky, Futab, and TBS Crossfire/DSMX. It integrates OSD and a 16MB black box for comprehensive flight data analysis. The Type-C USB connector allows for convenient configuration and firmware updates. This stack is compatible with DJI/Vista digital FPV systems and offers camera control, SBUS, and VTX signal switching.

Features:
1. STM32F405 High-Performance Chip: The inclusion of the STM32F405RGT6 main control chip ensures advanced processing capabilities and reliable performance.
2. Dual BEC Output: Features dual BEC outputs with 5V/3A and 9V/2.5A, providing stable power for your flight setup.
3. OSD and Blackbox Support: Integrates OSD functionality and a 16MB black box to record flight data for detailed analysis.
4. Compatible Protocols: Supports multiple receiver protocols including ELRS, CRSF, SBUS, Frsky, Futab, and TBS Crossfire/DSMX.
5. Type-C Connector: Comes with a Type-C USB connector for easy and fast configuration and firmware updates.

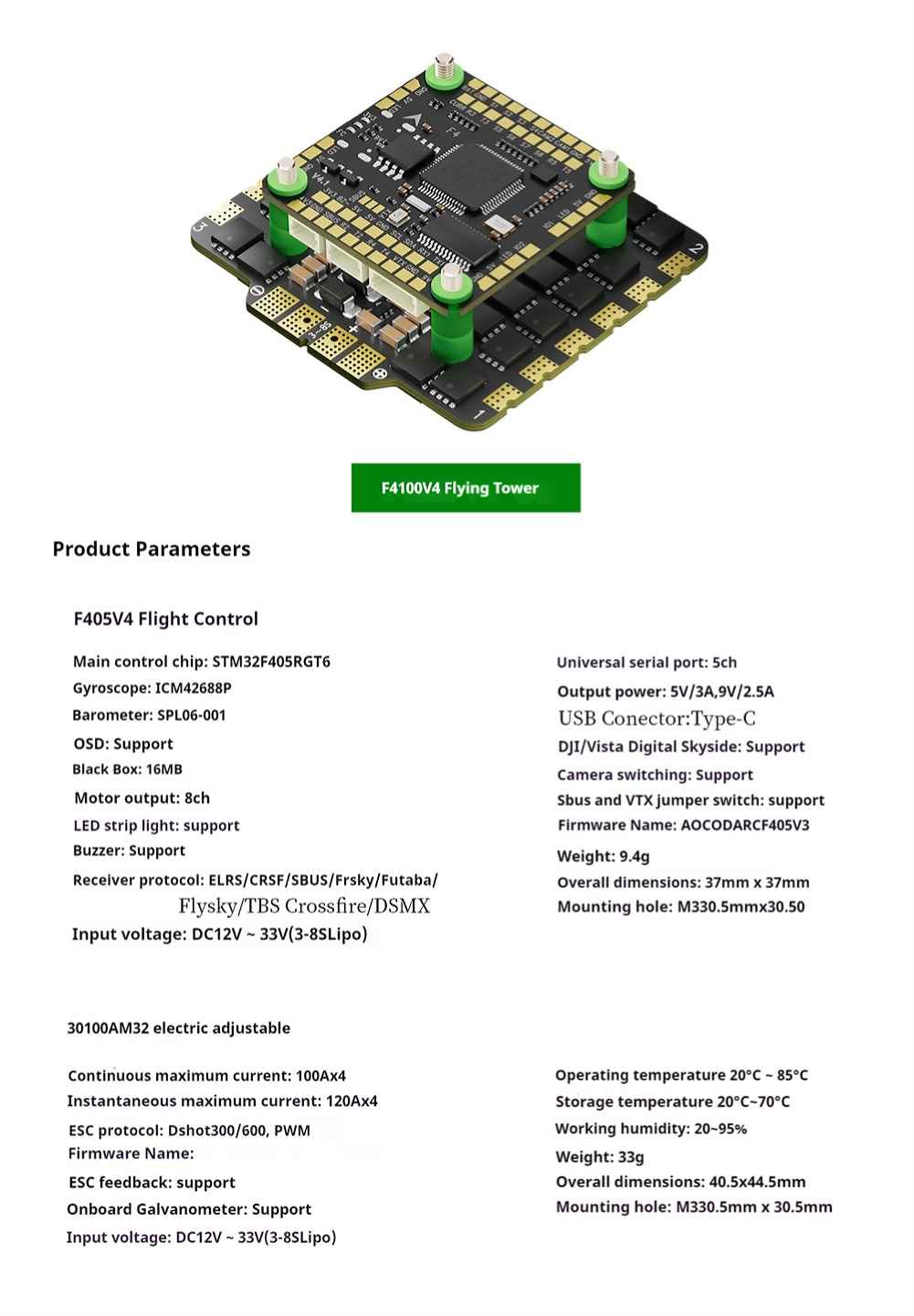

Specifications:
Brand: Aocoda-RC
Model: F4100 V4 Stack

Specification

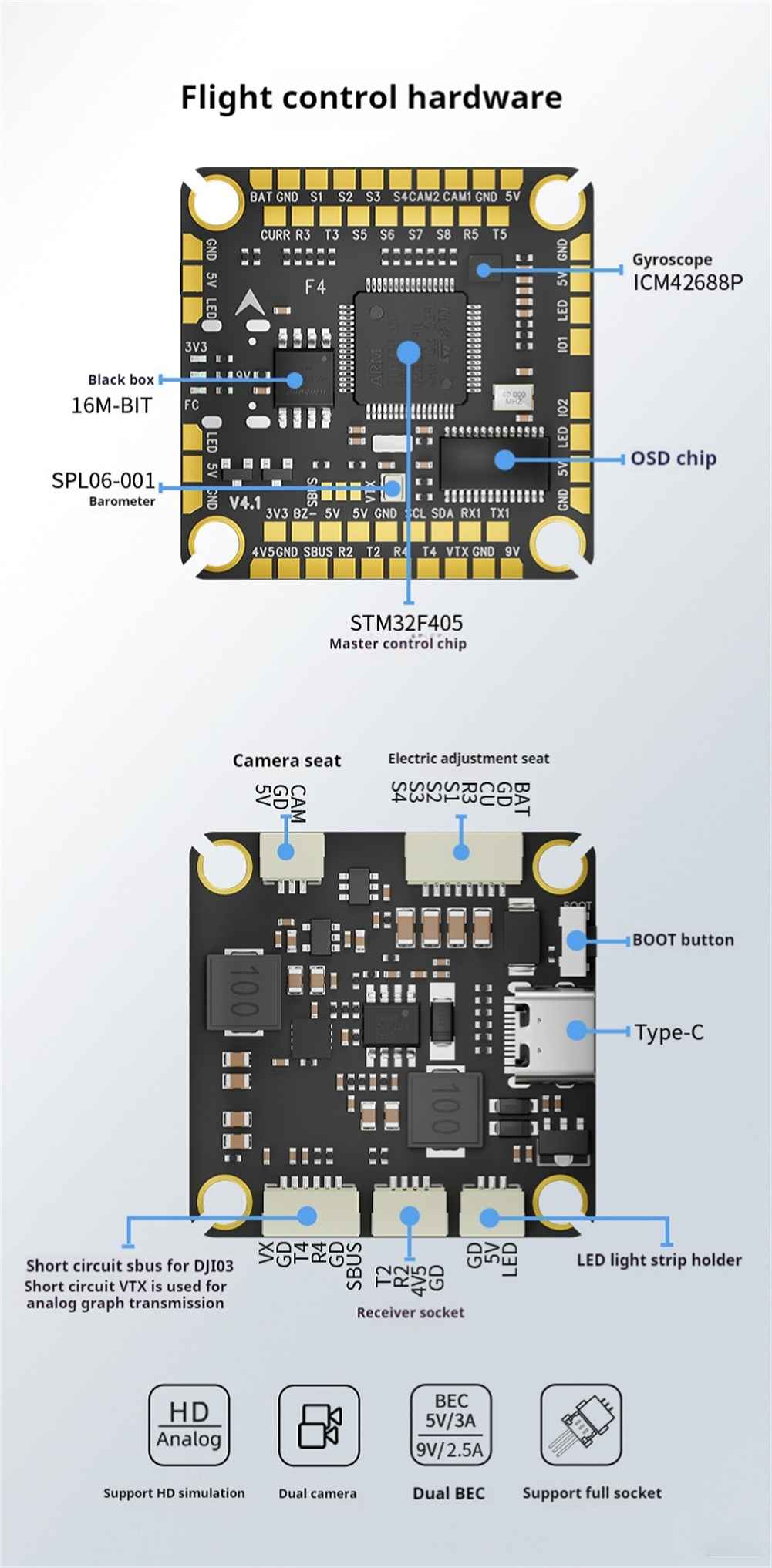

F405 V4 Flight Controller

Main Chip: STM32F405RGT6
Gyroscope: ICM42688P
Barometer: SPL06-001
OSD: Supported
Black Box: 16MB
Motor Output: 8 channels
LED Strip: Supported
Buzzer: Supported
Receiver Protocol: ELRS/CRSF/SBUS/Frsky/Futab/Flysky/TBS Crossfire/DSMX
Input Voltage: DC 12V~33V (3-8S Lipo)
UART Ports: 5 ports
Output Power: 5V/3A, 9V/2.5A
USB Connector: Type-C
DJI/Vista Digital FPV: Supported
Camera Control: Supported
SBUS and VTX Signal Switch: Supported
Product Name: AOCODARCF405V3
Weight: 9.4g

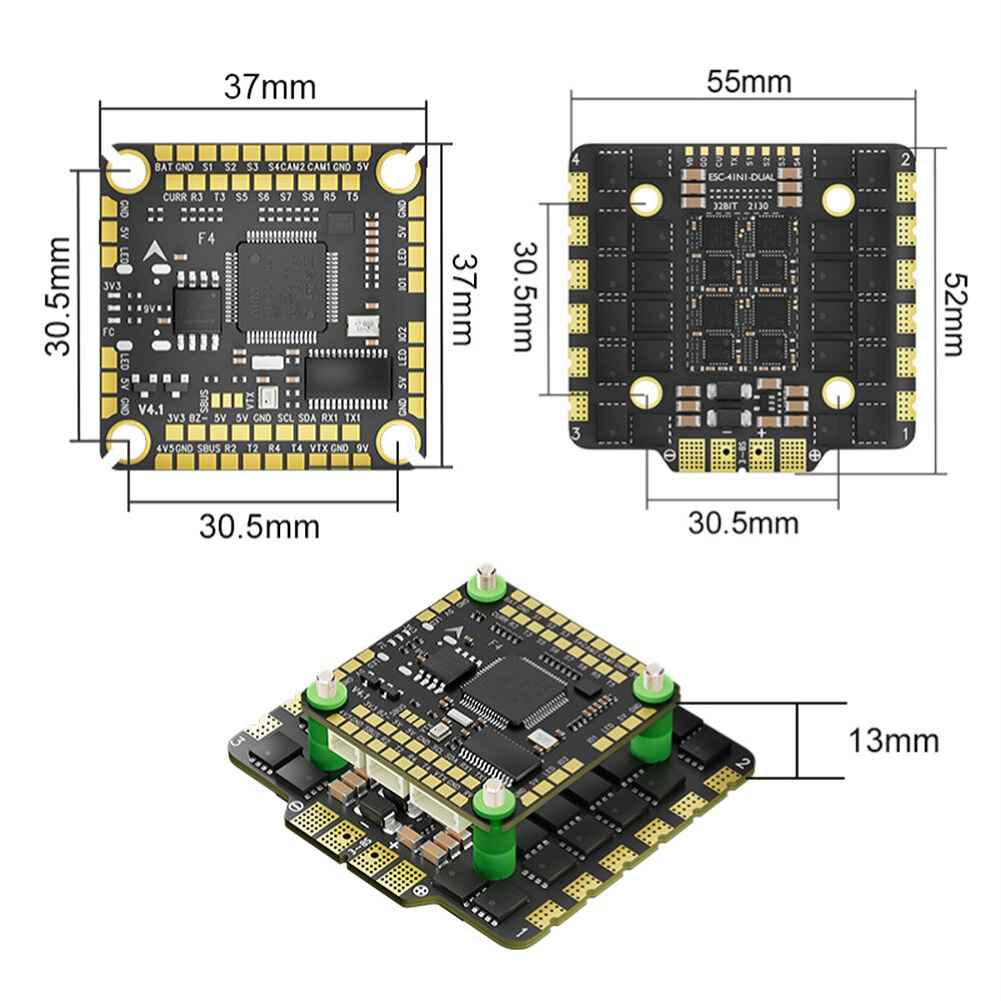

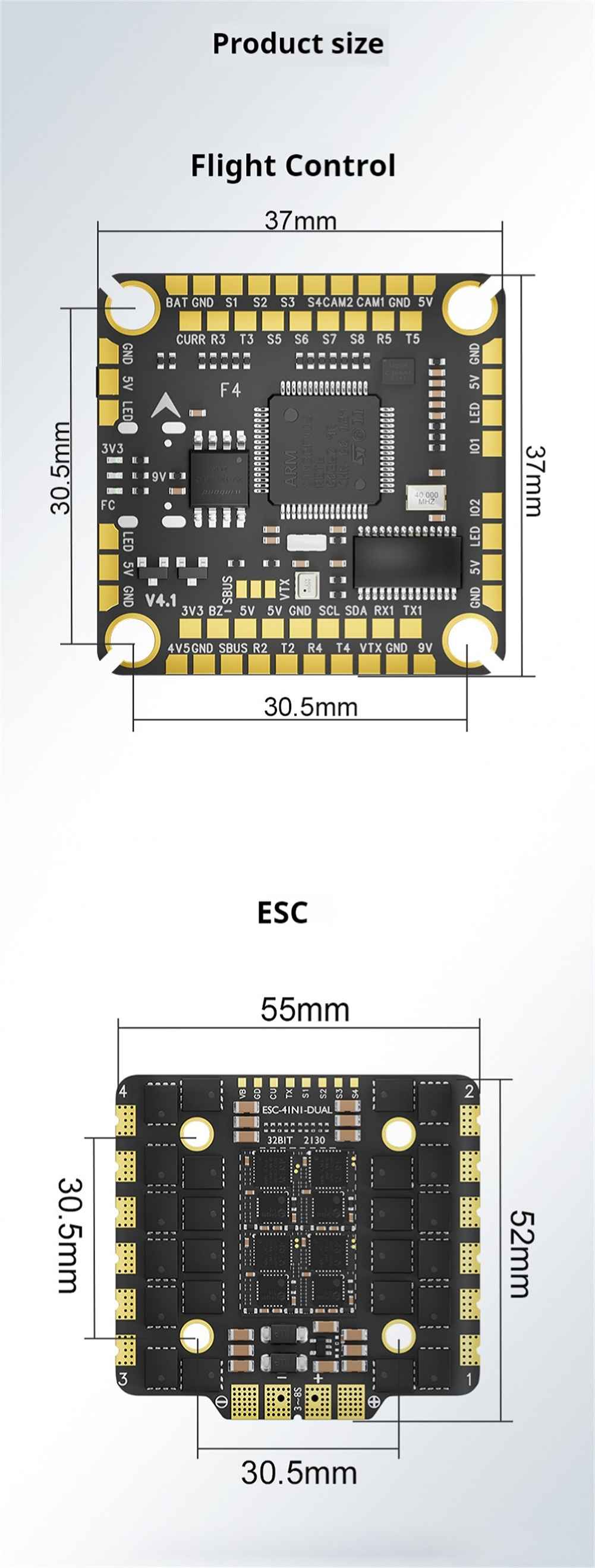

Dimensions: 37mm x 37mm
Mounting Holes: M3 30.5mm x 30.5mm

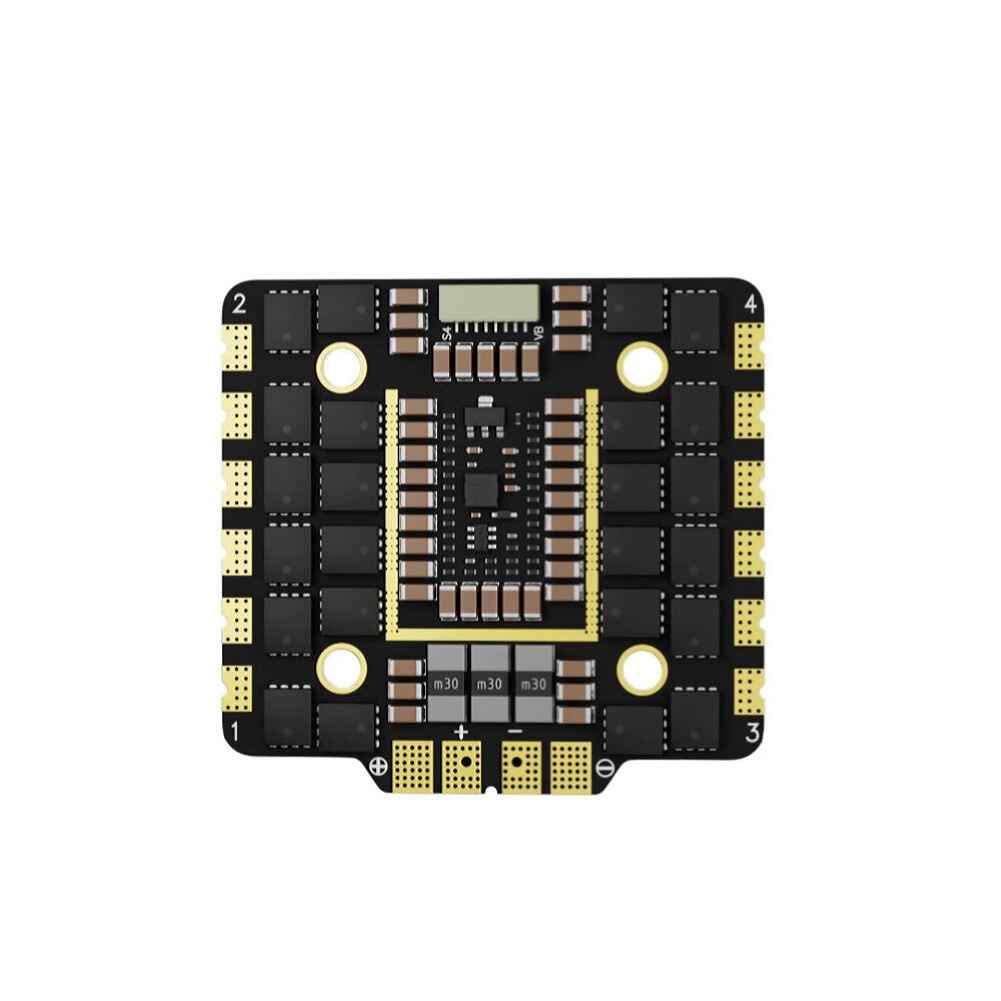

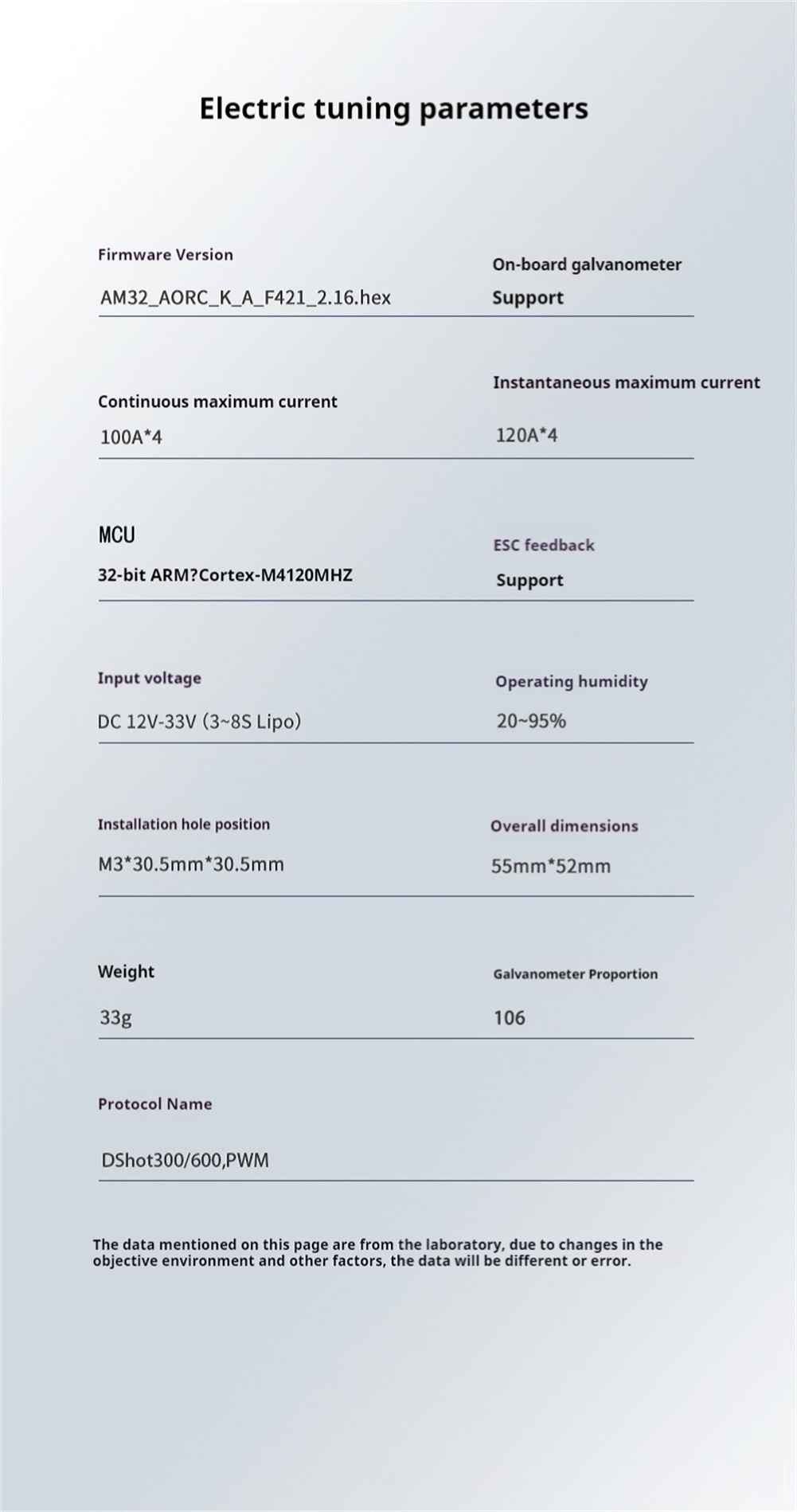

30100 ESC

Continuous Current: 100A x 4
Burst Current: 120A x 4
ESC Protocol: Dshot300/600, PWM
Firmware Name: AM32_AORC_K_A_F421_2.16.hex
Telemetry: Supported
Board Current: Supported
Input Voltage: DC 12V~33V (3-8S Lipo)
Operating Temperature: 20‵C ~ +85‵C
Storage Temperature: 20‵C ~ +70‵C
Working Humidity: 20% ~ 95%
Weight: 33g
Dimensions: 40.5mm x 44.5mm
Mounting Holes: M3 30.5mm x 30.5mm

Package Included:
1 x Flight Controller 1 x ESC 1 x 8PIN SH1.0MM Reverse Connection Cable 8 x M3 8MM Shock-absorbing Ball 2 x 35V 1000UF Capacitors 1 x XT90 Power Cable 8 x Nuts 4 x M3 30MM Screws
