Radiolink F722 Flight Controller & 55A ESC Stack with 5V/12V BEC for RC FPV Racing Drones, Supports Betaflight & INAV

Description

30.5*30.5mm Radiolink F722 Filght Controller with 5V 12V BEC & 3-6S BLS 4in1 55A ESC Stack for RC FPV Racing Drones Support Betaflight and INAV

The Radiolink F722 Flight Controller with 55A ESC Stack is designed for RC FPV racing drones, offering high performance and flexibility. It features the STM32F722RET6 processor and ICM42688 gyro for precise control, supporting Betaflight and INAV firmware for varied flying styles. The stack includes a 4-in-1 55A ESC optimized for high-power setups, capable of handling 3-6S LiPo cells. With built-in OSD and DJI Air Unit support, it ensures a streamlined setup with minimal wiring. The robust power management system supports multiple BEC outputs, ensuring reliable operation in extreme conditions, from -30ç°žC to 85ç°žC.

Specification:
Brand: Radiolink
Model: F722 55A Stack

Specification

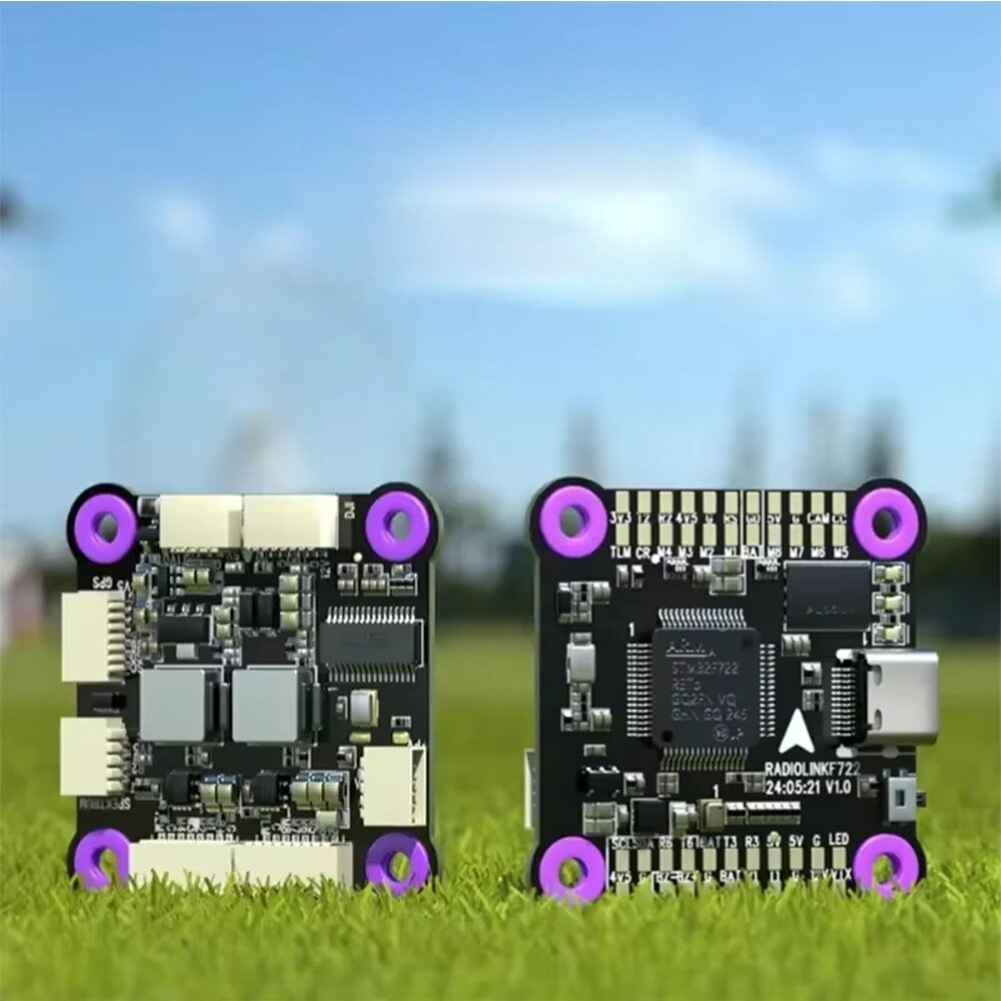

F722 Flight Controller

Mounting Hole Distance: 30.5*30.5mm
Weight: 9.5g
Main Processor: STM32F722RET6
Gyroscope: ICM42688
Barometer: SPL06-001
Flight Log Storage: 128MB, capable of storing flight log information
OSD Chip: AT7456E
Motor Communication: M1 – M8
DJI Air Unit Connector: Supported
Module Schematic Direct Connection: Supported
Flight Controller Firmware: Betaflight
Camera Menu Parameter Adjustment: Supported
Voltage Monitoring Compression: 110
UART Quantity: 5 UART Ports
ESC Telemetry Input: Supported
I2C: Supported
LED Pad: Supported
Buzzer Pad: Supported
RSSI Signal Detection: Supported
Firmware Type: Betaflight and INAV Firmware
Firmware Name: RADIOLINKF722
USB Port: 1 (Type-C)
Receiver Signals (RC IN): SBUS/CRSF
Supported ESC Protocols: Supported, with built-in image transmission OSD module
Buzzer Pad: PWM/Bi-directional DShot/OneShot
Power Input: 3-6S
BEC: 3.3V/300mA; 4.5V/500mA; 5V/3A; 12V/3A
12V BEC Switch: Supported (USER1 setting)
Operating Temperature: -30~85‵C

BLS 4in1 55A ESC

Continuous Current: 55A
BEC: No
LiPo Cells: 3-6S
Weight: 15.8g
Dimensions (reference): 45x41x5.8mm
Mounting Hole: 30.5×30.5mm, M3
Configuration Software: Bluejay configurator or BLHeliSuite
Firmware: A-H-30

Feature:
– High-Performance Flight Controller
Equipped with STM32F722RET6 processor and ICM42688 gyro for ultra-responsive flight control, ensuring smooth and precise handling in FPV racing.
– 4-in-1 55A ESC with High Current Support
BLS-04 4-in-1 ESC delivers 55A continuous current per motor, optimized for high-power setups while maintaining compact size (45x41x5.8mm).
– Dual Firmware Compatibility (Betaflight & INAV)
Supports both Betaflight for racing and INAV for long-range/autonomous flights, offering flexibility for different flying styles.

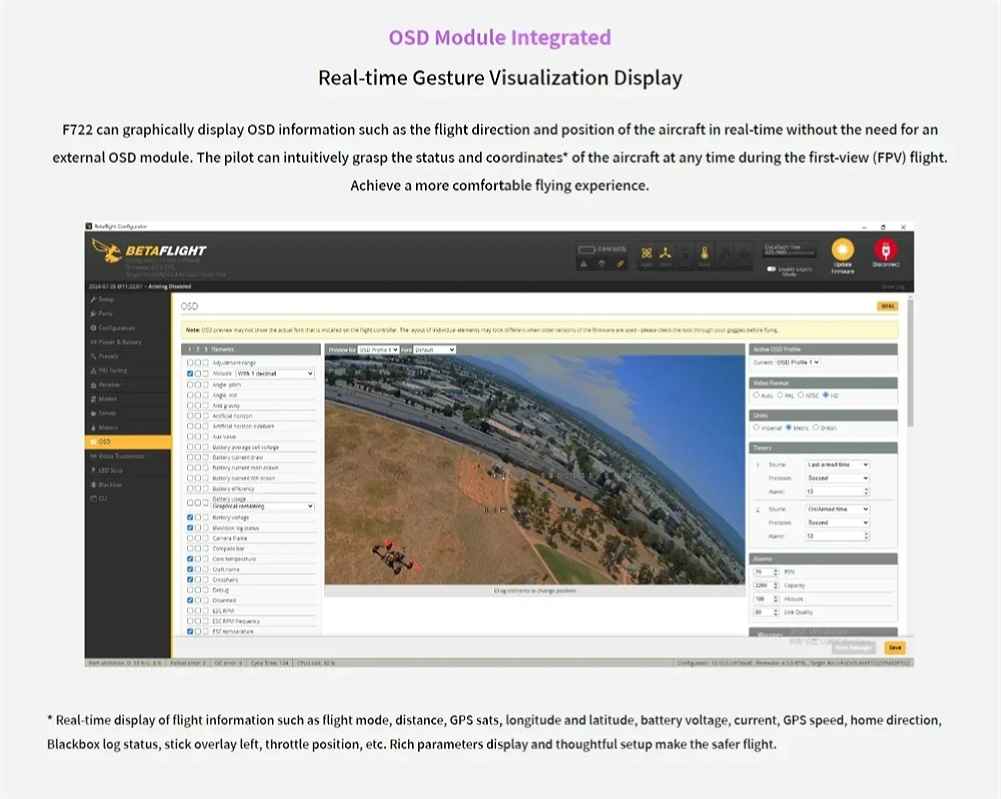

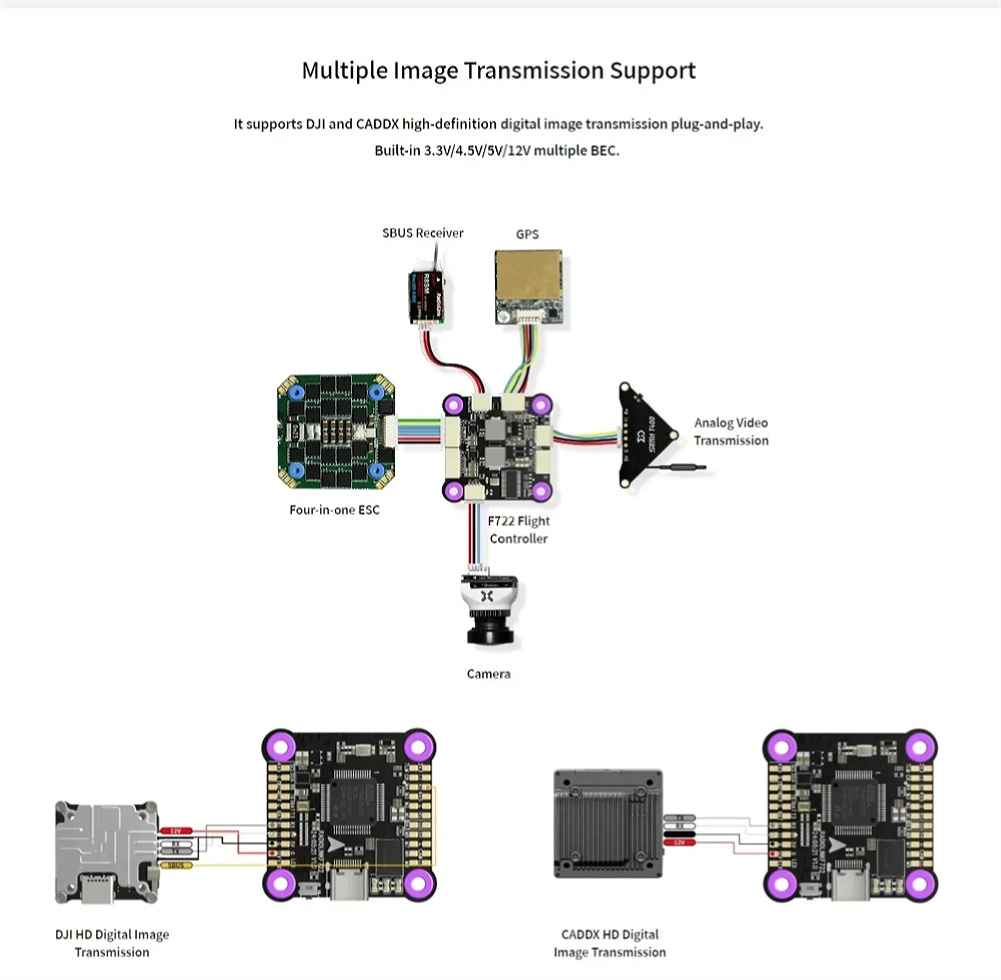

– Built-in OSD & DJI Air Unit Support
Features AT7456E OSD chip for real-time data display and direct DJI Air Unit plug-in, eliminating extra wiring for cleaner builds.
– Robust Power Management & Cooling
3-6S LiPo input with 5V/3A & 12V/3A BEC, plus -30‵C to 85‵C operating range, ensuring reliability in extreme conditions.

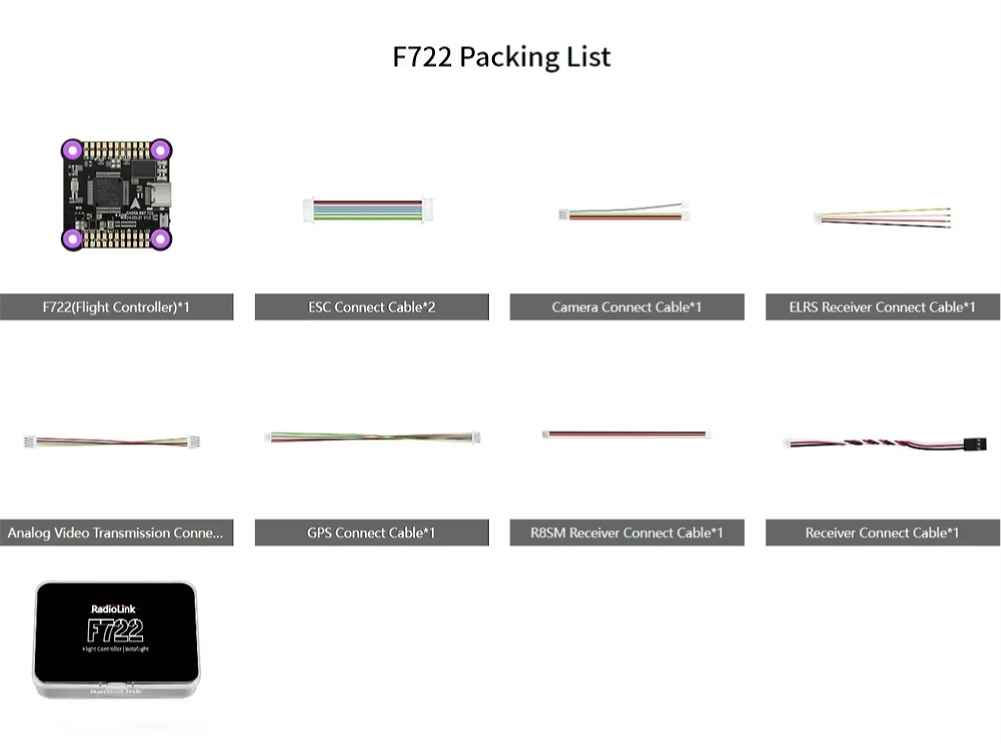

Package Included:
1 x Flight Controller
1 x ESC
2 x ESC Connect Cable
1 x Camera Connect Cable
1 x ELRS Receiver Connect Cable
1 x Analog Video Transmission Connect Cable
1 x GPS Connect Cable
1 x R8SM Receiver Connect Cable
1 x Receiver Connect Cable
1 x Package Box
