Axisflying ARGUS F745 Flight Controller & 40A 4-6S ESC Stack with 5V/12V BEC for RC FPV Racing Drone

Description

20*20mm Axisflying ARGUS F745 Flight Controller with 5V 12V BEC Output & 40A 4-6S ESC Stack for RC FPV Racing Drone

The Axisflying ARGUS F745 Flight Controller with 40A 4-6S ESC Stack is designed for RC FPV racing drones, offering high-performance capabilities. Equipped with an F745 MCU, it supports 8 UARTS, a barometer, and a DJI O3 Air Unit plug-and-play port. The stack includes a 32M black box and supports various features such as OSD, GPS, and LED. With a continuous current output of 40A and AM32 factory pre-installed ESC firmware, it ensures reliable performance. The compact design features a 20x20mm mounting size and weighs only 14.4g, making it an ideal choice for drone enthusiasts seeking efficiency and power.

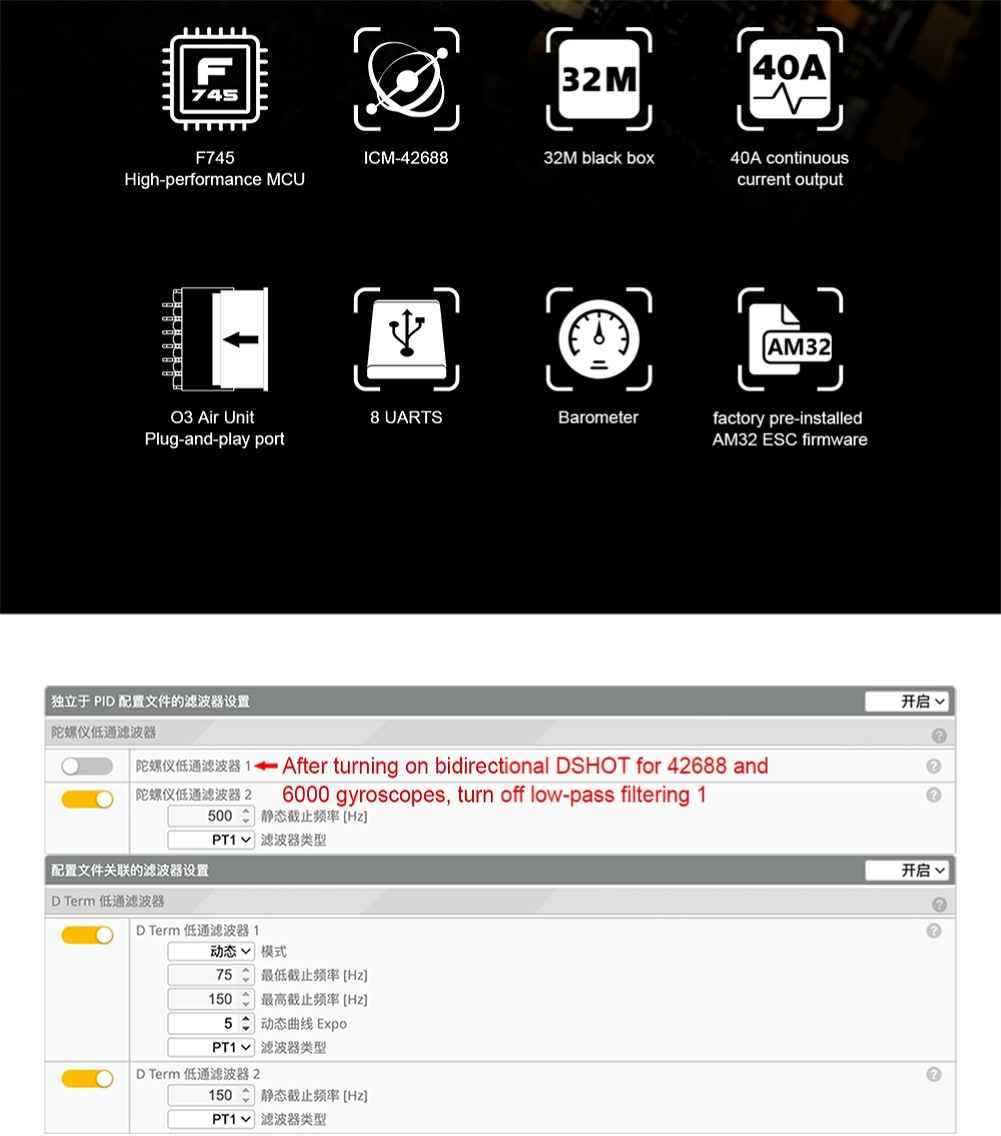

Feature:
– F745High-performance MCU
– DJI O3 Air Unit Plug-and-play port
– ICM-42688
– 8 UARTS
– 32M black box
– Barometer
– 40A continuous current output
– AM32 factory pre-installed AM32 ESC firmware

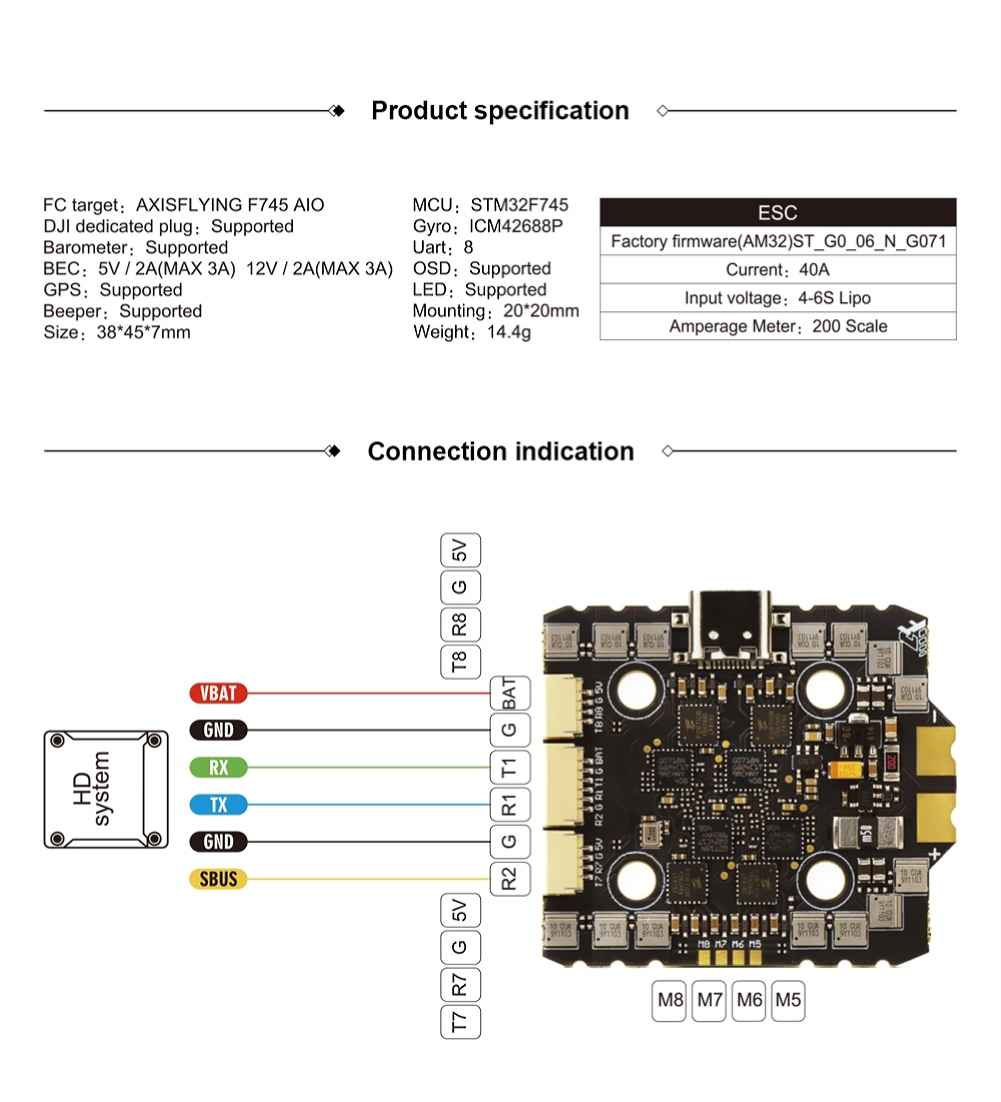

Specification:
Brand: Axisflying
Model: ARGUS
Item Name: F745 40A Stack

Item

Specification

F745 AIO FC

FC target: AXISFLYING F745 AIO
MCU: STM32F745
DJl dedicated plug: Supported
Gyro: ICM42688P
Barometer: Supported
Uart: 8
BEC: 5V / 2A(MAX 3A) 12V / 2A(MAX 3A)
OSD: Supported
GPS: Supported
LED: Supported
Beeper: Supported
Mounting: 20*20mm
Size: 38*45*7mm
Weight: 14.4g

40A 4-6S ESC:

Factory firmware(AM32)ST_G0_06_N_G071
Current: 40A
Input voltage: 4-6S Lipo
Amperage Meter: 200 Scale

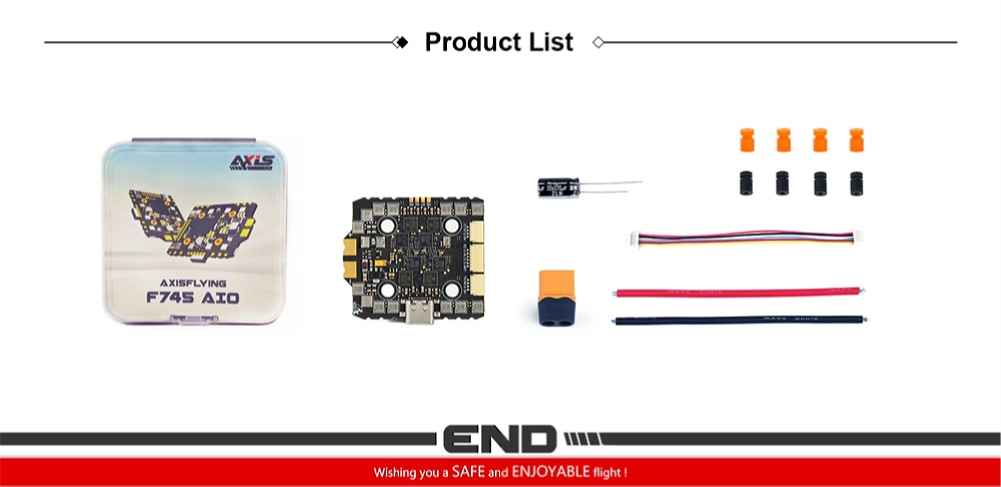

Package Included:
1 x F745 40A Stack
