Beitian BN-880Q GPS+GLONASS Dual Antenna Module with FLASH TTL Level 9600bps for FPV RC Racing Drone

Description

Beitian BN-880Q GPS+GLONASS Dual GPS Antenna Module FLASH TTL Level 9600bps for FPV Airplane RC Racing Drone

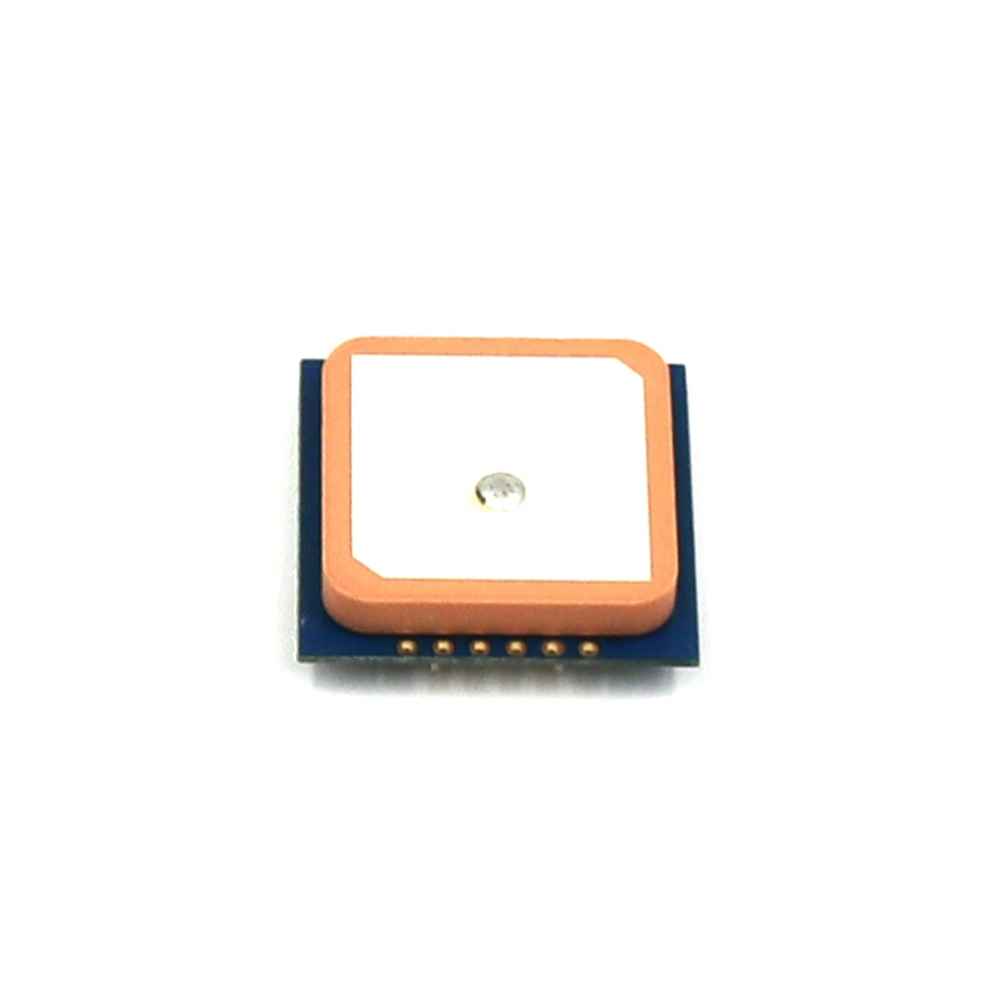

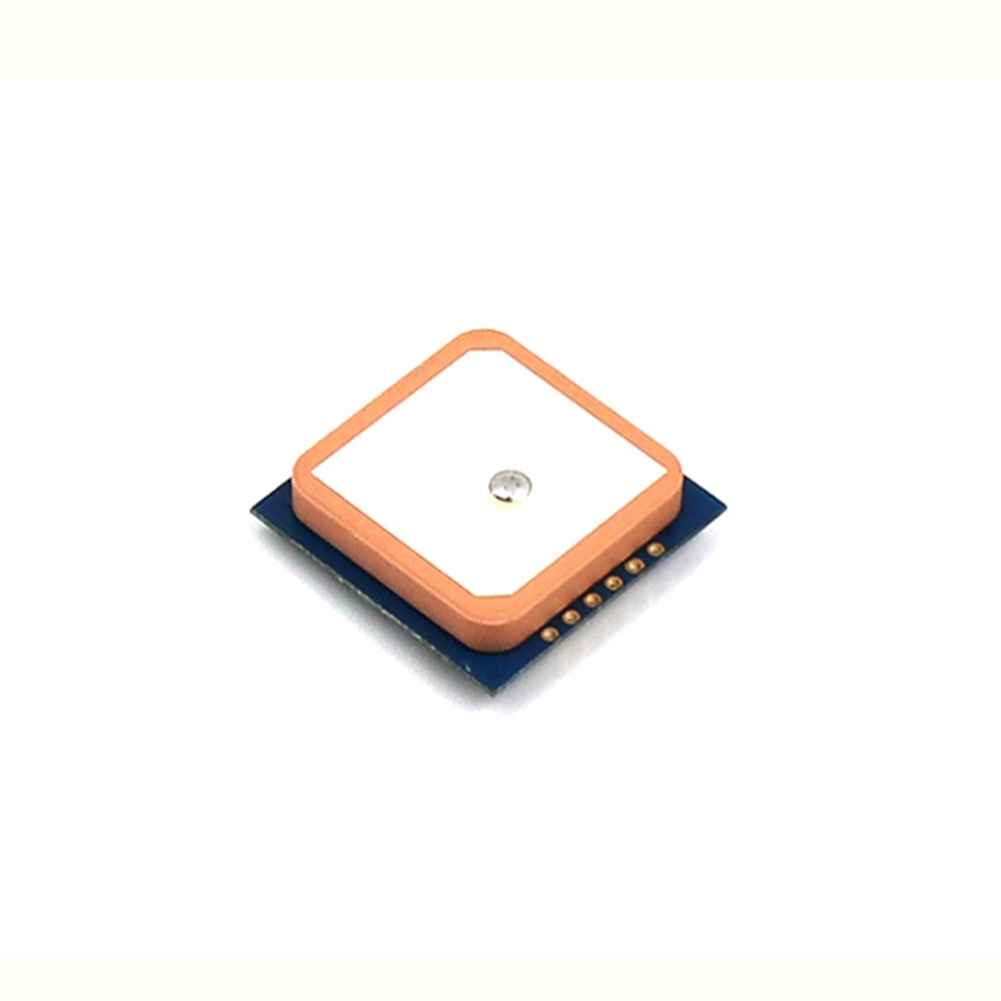

The Beitian BN-880Q GPS+GLONASS antenna module is designed for FPV airplanes and RC racing drones. It features the M8030-KT chip, supporting GPS, GLONASS, BEIDOU, GALILEO, SBAS, and QZSS modes. With a 72-channel capacity, it offers high sensitivity and precise tracking. The module provides horizontal accuracy of 2.0 meters and speed accuracy of 0.1m/s. It operates at a voltage range of DC 3.0V-5.5V and consumes 50mA at 5.0V. The compact design measures 28mm x 28mm x 8mm and weighs 12g. It includes an internal electronic compass and supports NMEA-0183 protocol with a default baud rate of 9600bps. The module is equipped with indicator lights for data output and 3D positioning status.

Description:Brand name: BeitianItem name: BN-880Q GPS+Glonass antenna module

Parameters

Description

Chip features

Chip

M8030-KT

Frequency

LPS L1, GLONASS L1, BEIDOU B1,GALILEO E1, SBAS L1, QZSS L1

Working mode

GPS, GLONASS, BEIDOU, GALILEO, SBAS and QZSS.
Default GPS+GLAONASS+SBAS+QZSS

Channel

72 searching channel

Sensitivity

Track

-167dBm

Recapture

-160dBm

Cold start

-148dBm

Hot start

-156dBm

Precision

Horizontal accuracy

2.0 m CEP 2D RMS SBAS assist (open space)

Speed accuracy

0.1m/s 95%(SA off)

Time accuracy

1us

Startup time

Cold start

26s

Warm start

25s

Hot start

1s

Output data

Baud rate

4800bps-921600bps, default 9600bps

Output level

TTL

Output protocol

NMEA-0183 or UBX, default NMEA-0183 protocol

NMEA sentences

RMC, VTG, GGA, GSA, GSV, GLL

Update frequency

1Hz-10Hz, default 1Hz

FLASH

4M FLASH, The configuration can be changed and will not be lost after power off

Working limit

Height

50,000m max

Speed

515m/s max

Gravity acceleration

4g max

Power consumption

Voltage

DC 3.0V-5.5V, typical: 5.0V

Current

Normal 50mA@5.0V

Physical parameter

Size

28mm*28mm*8mm

Weight

12g

Connector

1.25 pitch 6pin carrier

Environment

Operate temperature

-40ï¹ ~+85ï¹

Storage temperature

-40ï¹ ~-+105ï¹

Indicator light

TX light

Blue light flashing when power-on, indicated that there is data output

PPS light

The light is not lit when it is not positioned; after 3D positioning, it starts to blink.

Compass

Compass

With internal electronic compass QMC5883

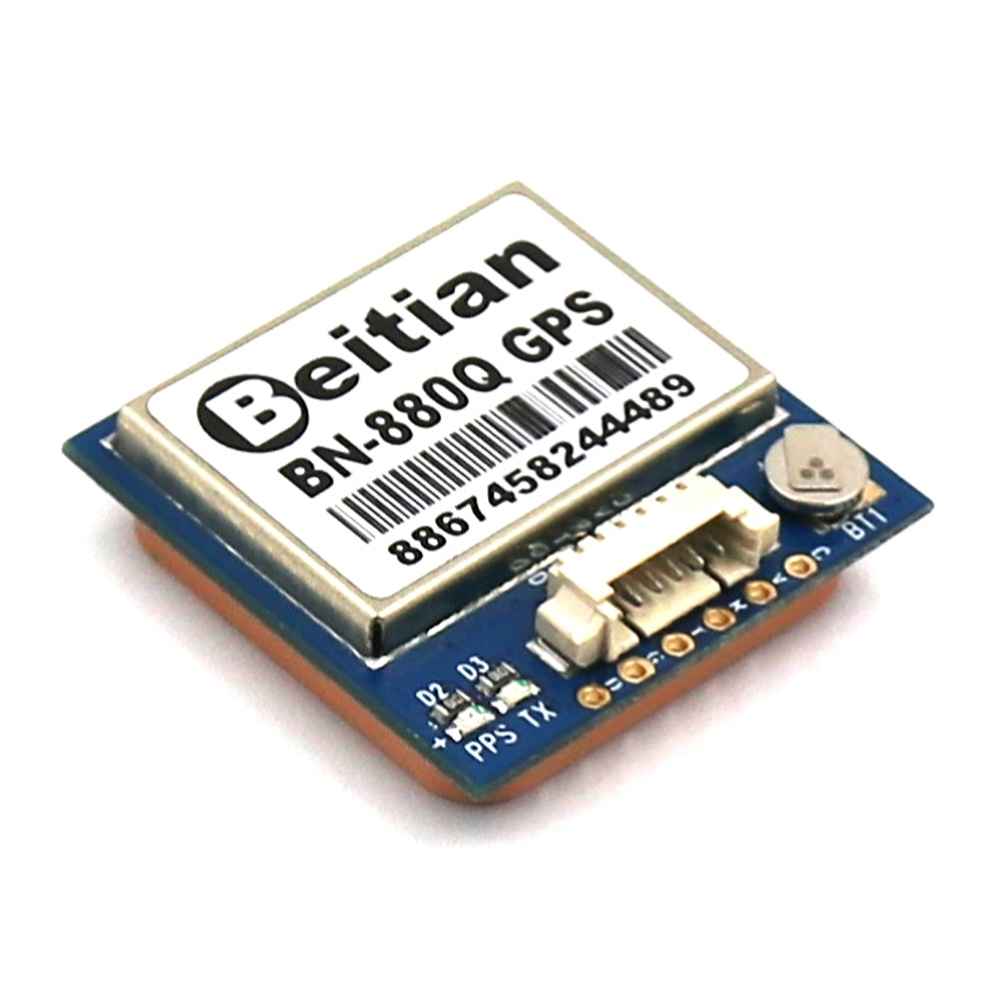

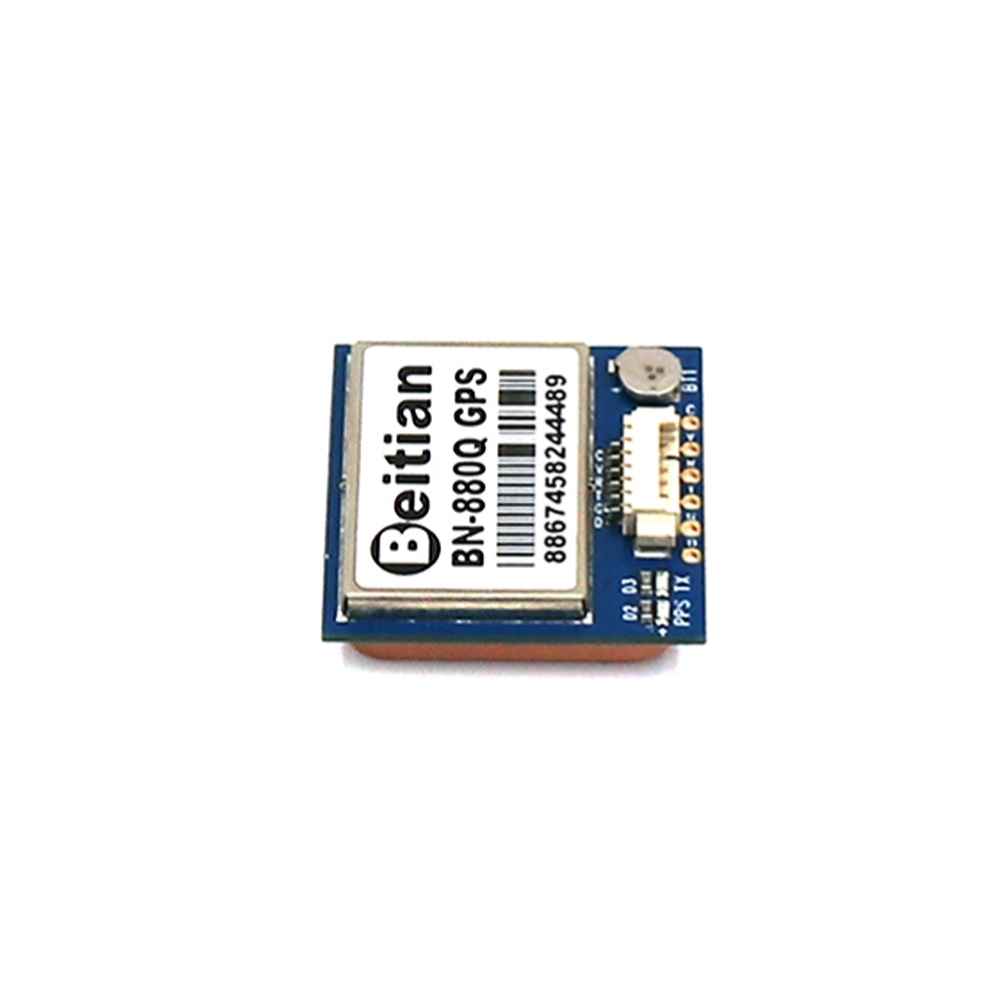

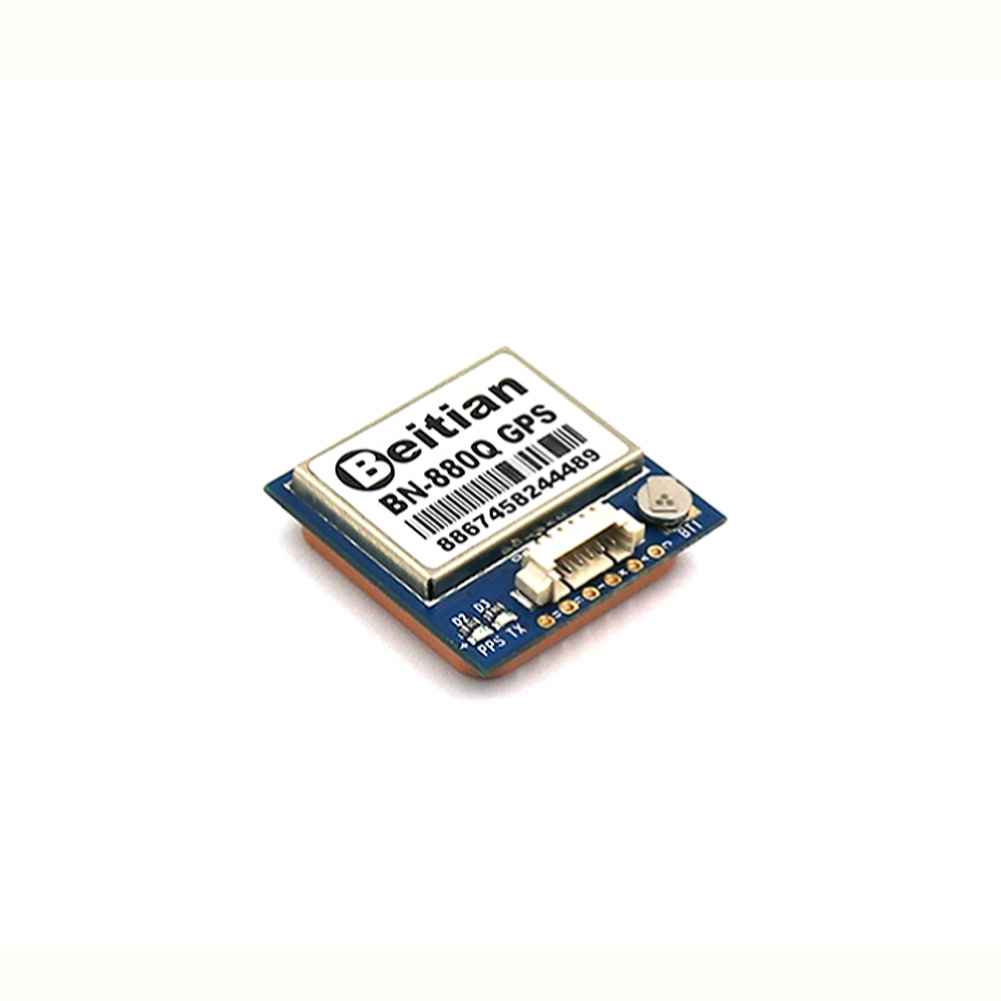

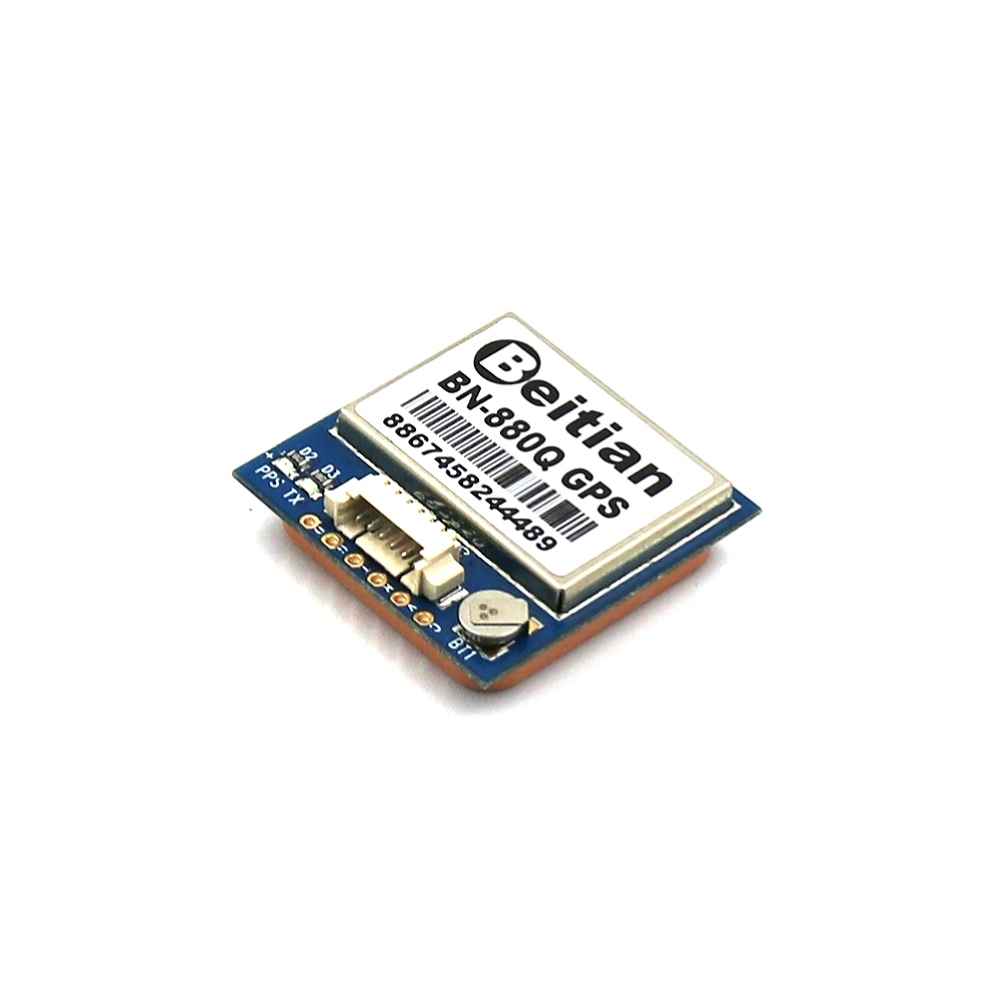

BN-880Q GPS integrated module
Pins of the module:
1. SDA.
2. GND, ground.
3. TX, the data output of the module.
4. RX, the data input of the module.
5. VCC, 3.0V–5.5V.
6. SCL.

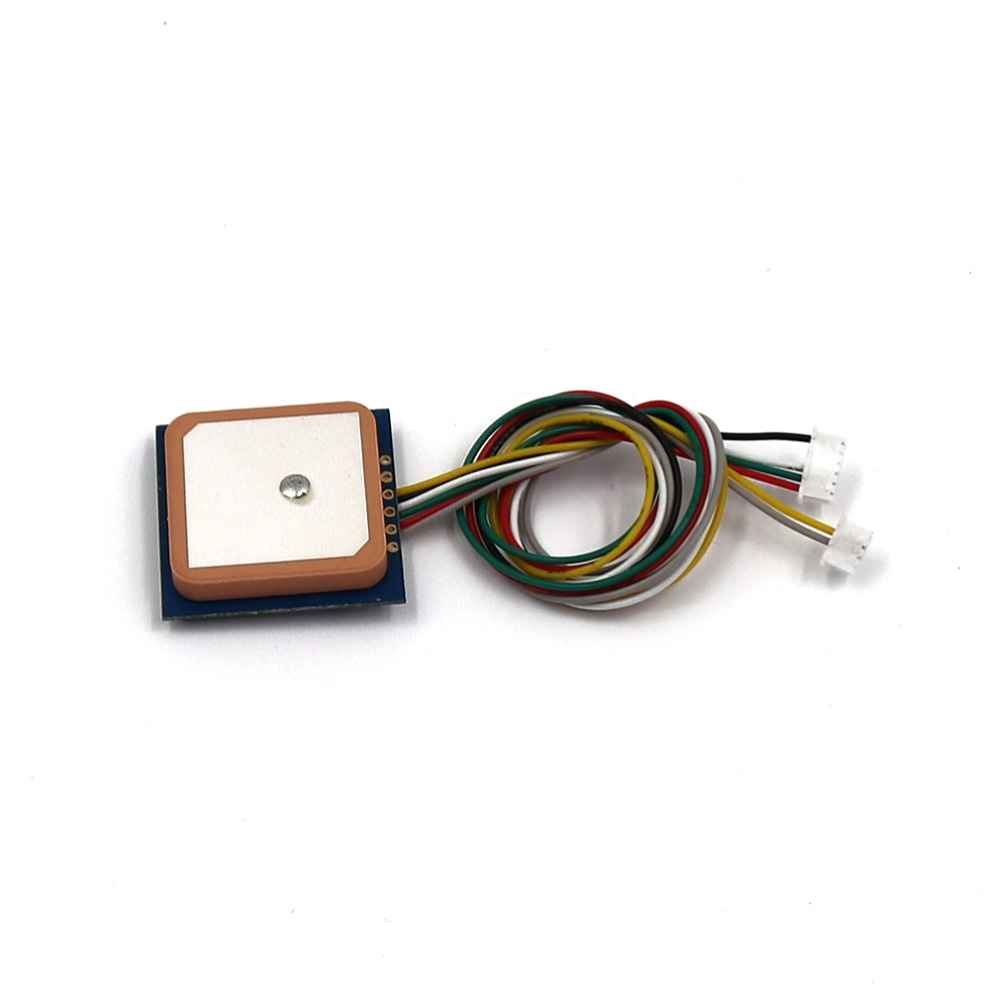

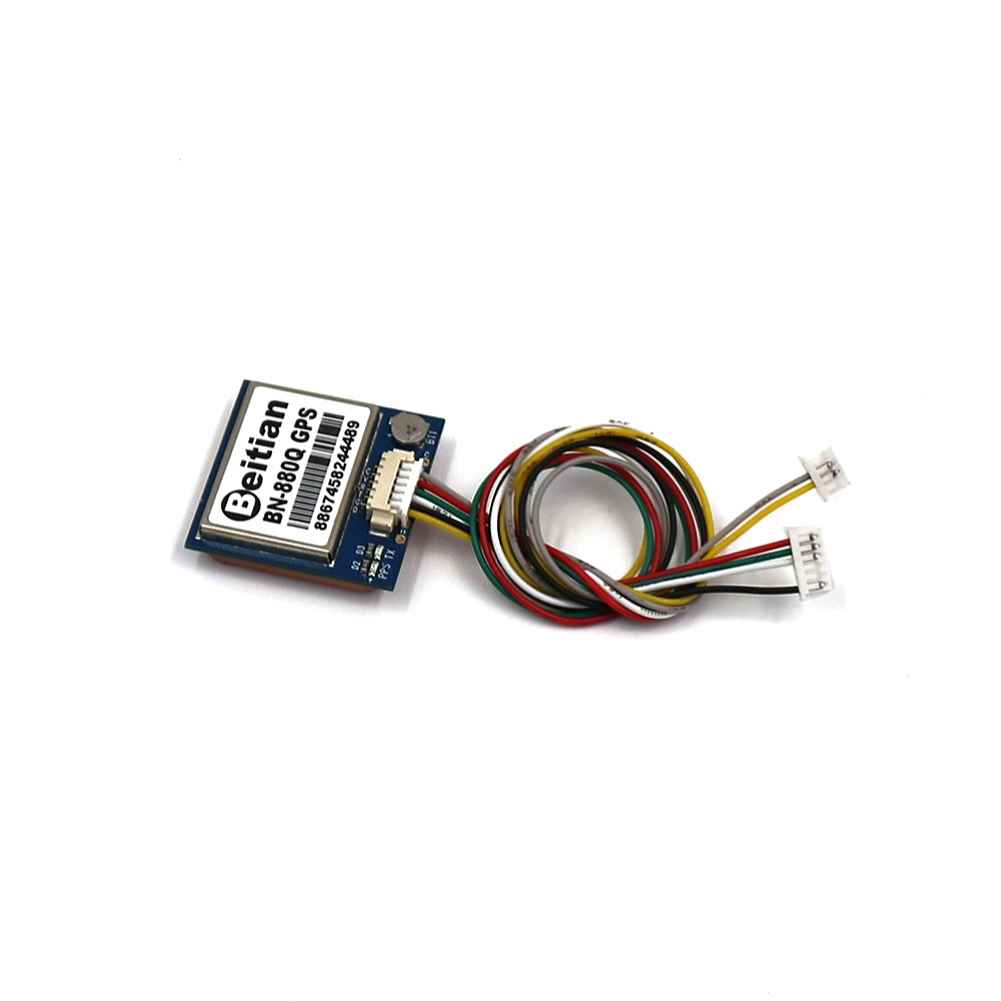

Package Included:
1 x BN-880Q GPS+Glonass antenna module
