DarwinFPV CineApe35 2006 Brushless Motor 2030KV 6S/3400KV 4S for 3.5 Inch Whoop FPV Drones
Price range: $19.74 through $70.50
- Optimized for 3.5-inch whoop FPV drones
- DJI-inspired magnetic circuit for higher efficiency
- Durable anti-slip titanium shaft
- Available in 2030KV and 3400KV options
- Compatible with 3-4 inch and 4-6 inch FPV drones
You May Also Like
Description
DarwinFPV CineApe35 2006 2030KV 6S/ 3400KV 4S Brushless Motor for 3.5 Inch Whoop FPV Drones
The DarwinFPV CineApe35 2006 motor is engineered for optimal performance in 3-4 inch whoop FPV drones and 4-6 inch long-range FPV drones. It offers superior power compared to the 2004 motor, making it perfect for 3.5-inch whoop FPV drones, especially when equipped with a full GoPro. The motor features a magnetic circuit design inspired by DJI, ensuring enhanced efficiency and longevity. Its custom anti-slip titanium shaft adds to its durability, making it resistant to wear and tear. This motor is available in two KV options: 2030KV for 6S and 3400KV for 4S, providing flexibility for various drone setups.
Summary:
DarwinFPV 2006 motor is developed for 3-4 inch whoop fpv drones or 4-6 inch long range fpv drones. Compared with the 2004 motor, it has higher power and is equipped with a full GoPro with sufficient power. Especially suitable for 3.5-inch whoop fpv drone.
The motor magnetic circuit design uses the same material structure as DJI, which is more efficient and lasts longer. Plus, it has decent durability thanks to a custom-made anti-slip titanium shaft.
Specification:
Brand: DarwinFPV
Model: CineApe35 2006
Item Name: 2006 2030KV/3400KV Motor
KV: 2030KV/3400KV (Optional)
Stator Dimension: 瀚20x6mm
Rated Voltage: 24V
Idle Current: 1.2A
Maximum Current: 16.7A
Maximum Power: 400.8W
Framework: 12N14P
Prop Shaft: 瀚1.5*3.5mm
Interphase Resistance209m妫
Bearing Specification: 瀚8*瀚3*2mm
Rotor: Split
Magnet: N52H
Winding: Single Strand Copper Winding
Lead Wire Size: 22AWG娌150mm

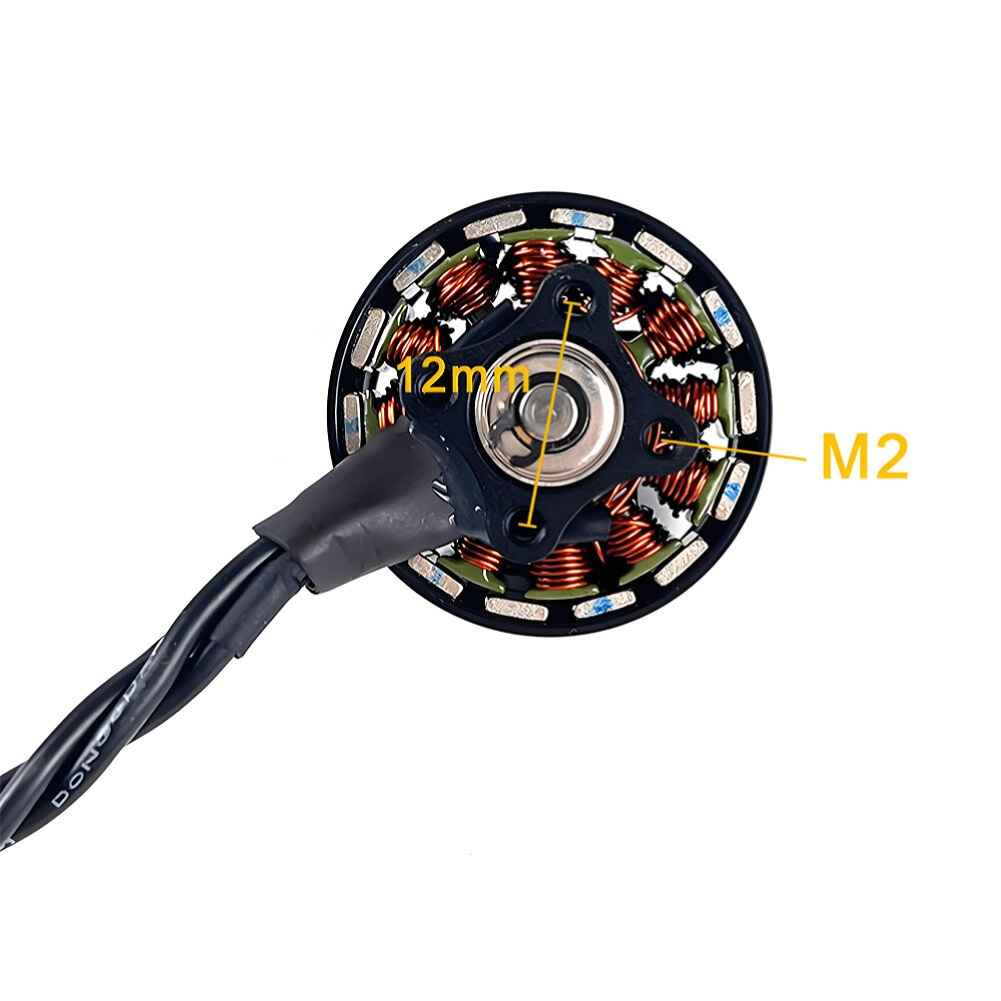

Mounting Holes: 12娌12mm (M2)

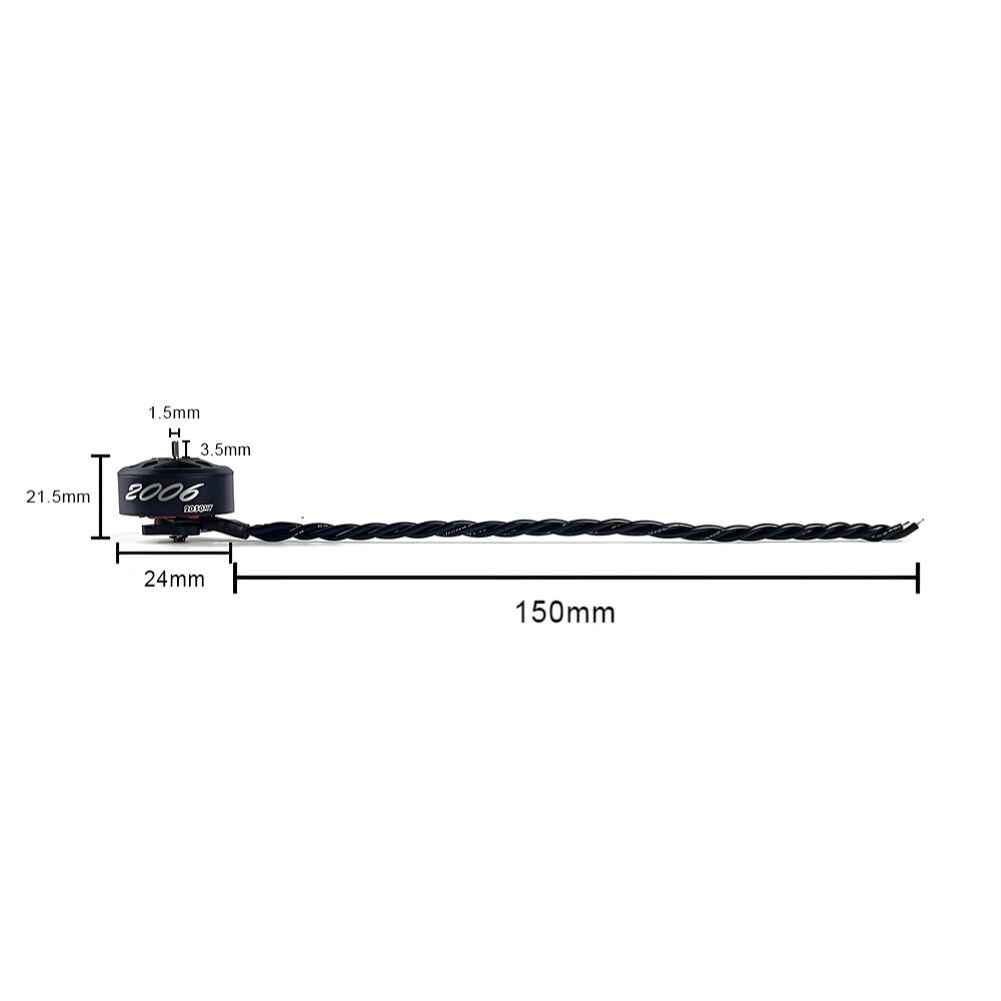

Dimensions:瀚24*21.5mm

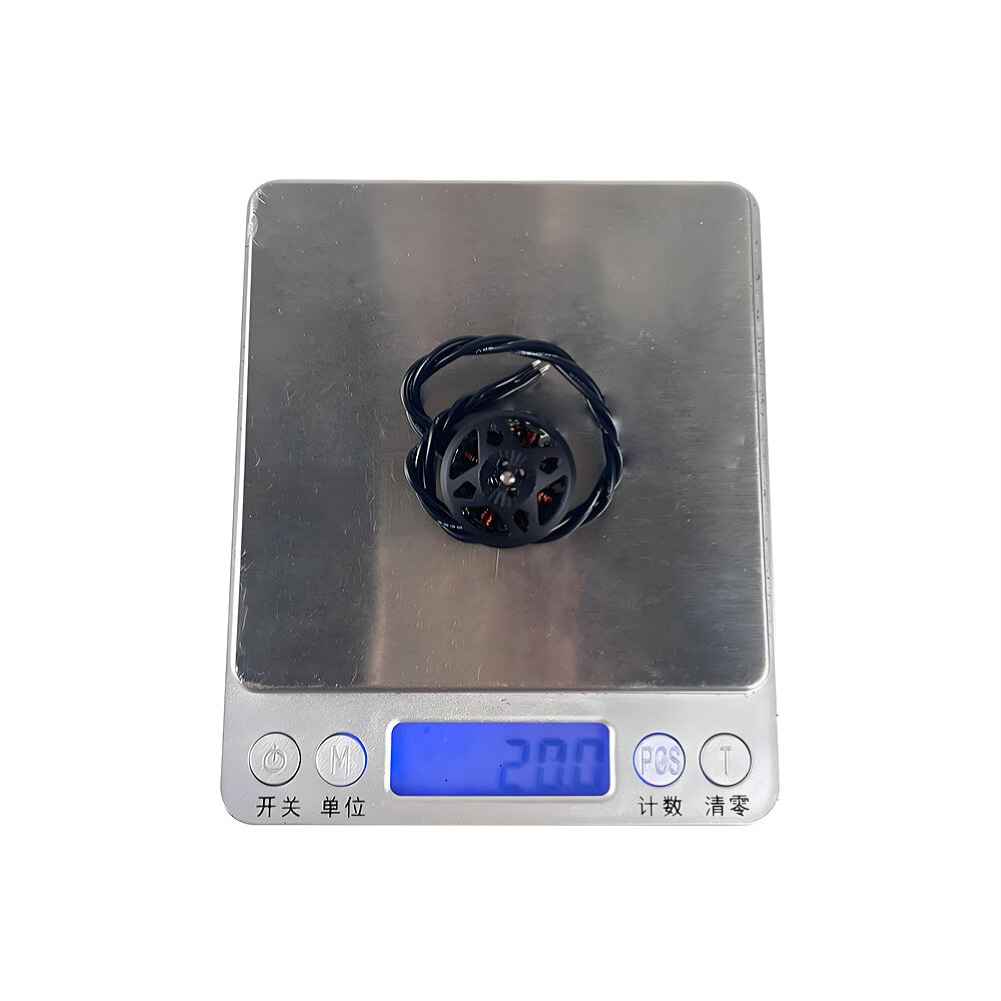

Weight: 20鍛0.2g(Including Wires)
Applicable Models: 3-4 inch Freestyle FPV Drone
3.5 inch Whoop FPV Drone
5-6 inch Long Range FPV Drone
Features:
1. Compared to 2004 motors, 2006 is more suitable for 3.5-inch whoop fpv drones.
2. Adopting the same magnetic circuit design as DJI, it has higher efficiency and longer endurance.
3. Customized anti detachment titanium alloy step shaft, more blas resistant.
Recommend Lipo Battery ( NOT Included):
2030KV Version: 6S 1300mAH3400KV Version: 4S 1500mAH
Packing Included:
1 娌 2006 Motor
5 娌 M2*6 Hexagon Socket Head Black Screws
1 娌 Sticker
Package Included:
1 x 2006 Motor
5 x M2 6 Hexagon Socket Head Black Screws
1 x Sticker
