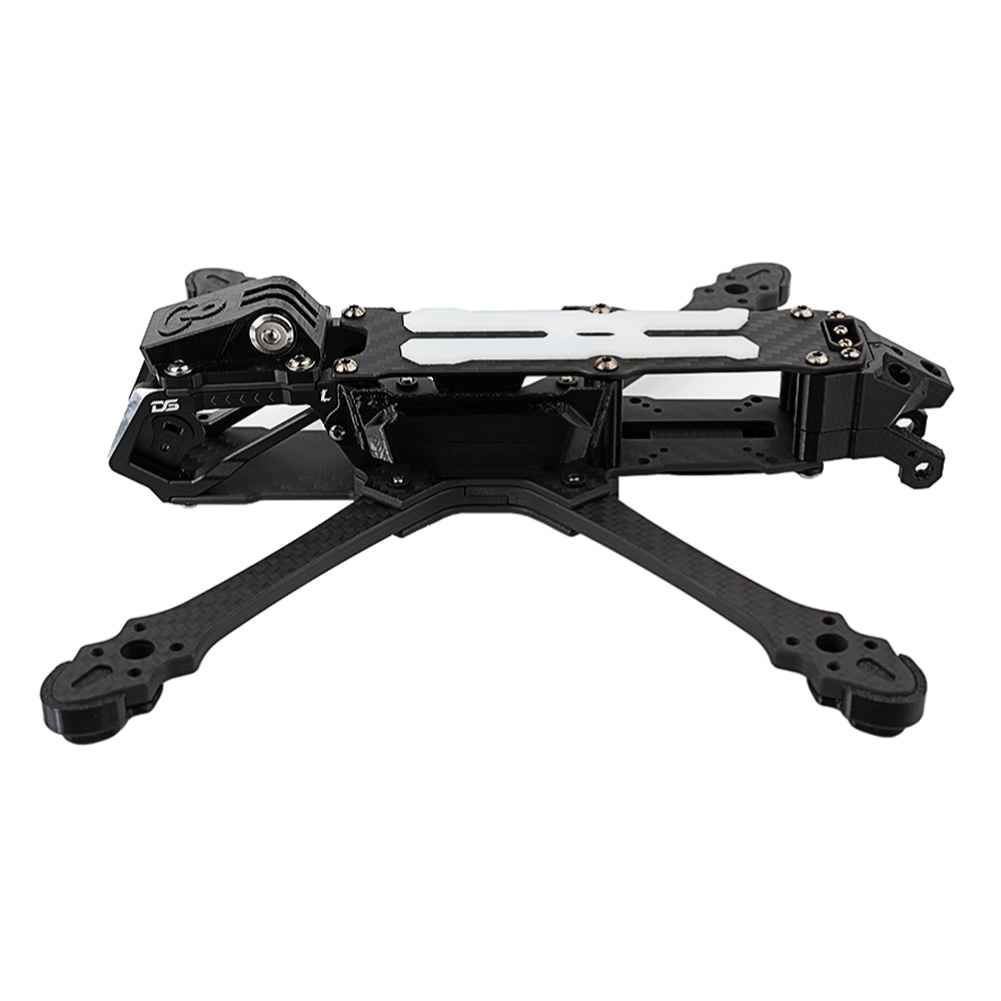

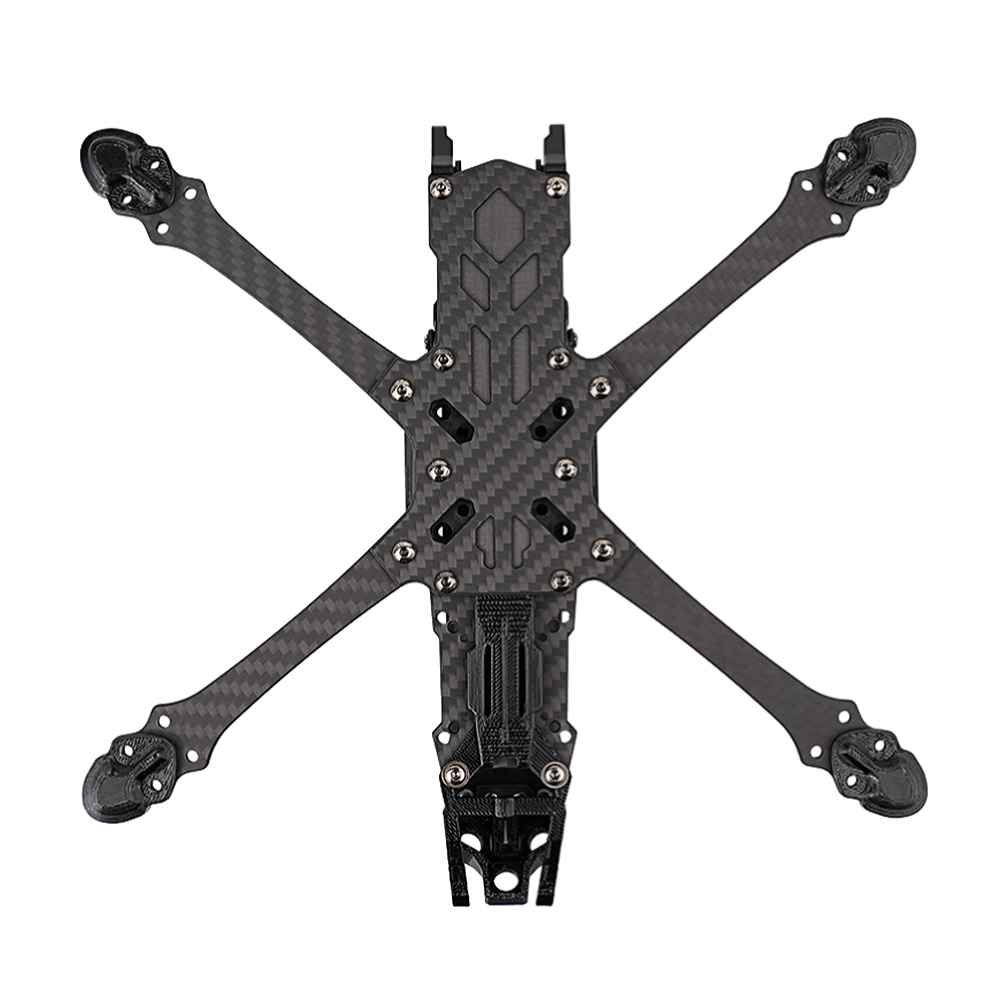

DeepSpace SEEKER5 5-Inch Frame Kit, DC 228mm/XL 224mm Wheelbase, Supports DJI O4 Pro, Freestyle RC FPV Racing Drone

Description

DeepSpace SEEKER5 DC 228mm / XL 224mm Wheelbase 5 Inch Frame Kit Support DJI O4 Pro Version for Freestyle RC FPV Racing Drone

The DeepSpace SEEKER5 5-Inch Frame Kit is designed for freestyle RC FPV racing drones, featuring an adaptable DC 228mm or XL 224mm wheelbase. This unassembled frame kit requires user assembly and is compatible with the DJI O4 Pro version. It includes a front-mounted GPS module design to minimize interference, CNC aluminum alloy side plates for lens protection, and custom silicone shock pads to reduce vibrations. The frame’s quick-release arm design allows for easy replacement, and the external receiver design simplifies installation and maintenance. With its robust construction, including a 5mm arm thickness and various mounting options, this frame is an ideal replacement for the DeepSpace SEEKER5 FPV Racing Drone.

Notice: 1. It is empty frame kit, comes unassembled. Need build by buyers.
2. From June 20, 2025, the frame will be upgraded to adapt to the DJI O4 Pro version.
Specification:
Brand: DeepSpace
Model: SEEKER5
Item Name: 5 Inch FPV Frame Kit
Type: DC / XL (Optional)
Wheelbase: DC 228mm / Squashed X 224mm
Prop Size: Max 5.1 inch
Motor Mounting: 16*16mm(M3)
Stack Mounting: 20/30.5mm(M3)
Camera Space: 14~20mm
VTX Mounting: 20 /25.5(M2)/ 30.5mm(M3)
Top Plate Thickness: 2mm
Middle Plate Thickness: 2.5mm
Bottom Plate Thickness: 2.5mm
Arm Thickness: 5mm
Application: Original Replace Frame for DeepSpace SEEKER5 FPV Racing Drone.
Feature:
– Front-mounted design of GPS module: Avoid interference for quick satellite acquisition and quantity.
– Externaldesign of the receiver: Boost install and ease maintenance.
– CNC aluminum alloy side plates: Effectively protect the lens.
– Custom silicone shock pads: Effectively filter high-freq vibes for the smooth and stable footage.
– Arminter locking design.
– Standard side plates: Prevent stack from grass & mud pollution.
– Quick-release arm. Easy replacement.
– Rear fixed power plug. Compatible with front-out cord.
Recommend Parts: ( NOT Included)FC & ESC: F722 BL32 60A stackBrushless Motor: DS Aether 2207.3 1960KV
Propeller: Gemfan 51433VTX&Camera: DJI O4 Pro Air UnitLipo Battery: 6S 1300-1550mAh

Package Included:
1 x SEEKER5 5 Inch FPV Frame Kit
